Overview:

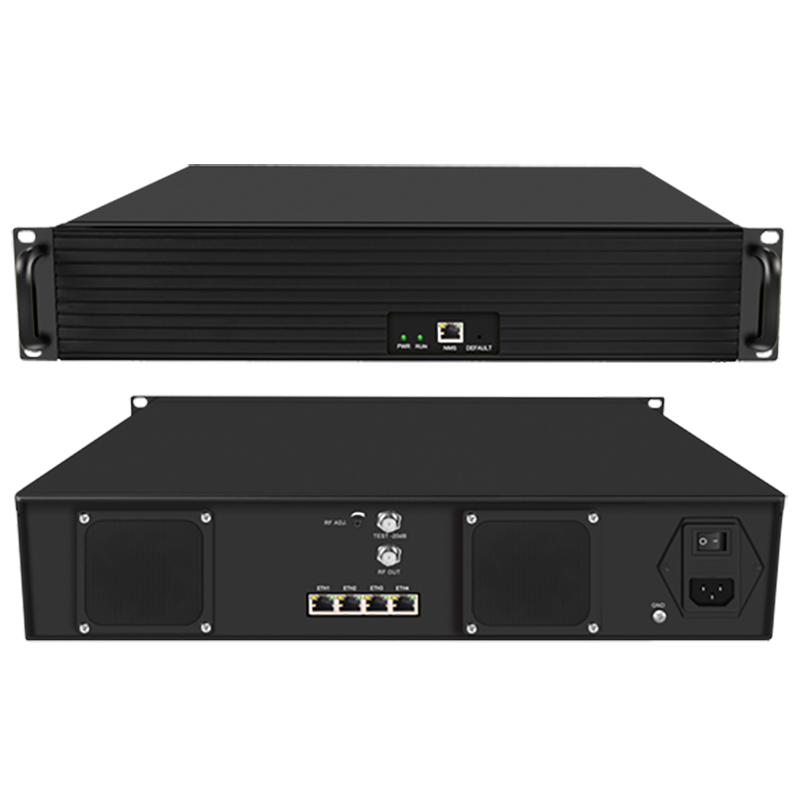

OTV-IP2A 32 in 1 IP To Analog RF Agile Modulator is a high-density IP to analog RF platform that carry 32 non-adjacent channels in a 2U box. Browser based user interface facilitate system setup and maintenance efficiency. This outstanding modulator system consume much less power than other competitors, eventually reduce operating cost and extend life cycle.
Key Features:
System provides 4 GE input ports for both MPTS and SPTS video streams
Compact 2RU design with 5 cooling fans and dustproof screen
Receive up to 32 IP streams and output up to 32 channels in NTSC or PAL standard
Easy configuration and software upgrade by built-in Web UI
Optional function on teletext and overlay
Support BISS decryption as an option
Main Specifications:
Item | Description |
GE INPUT | |
Input Connector:4x RJ45 Transport Protocol:UDP, RTP Addressing:Unicast, Multicast MPEG Transport:SPTS, MPTS | |
TS DECODING | |
Video Resolutions:Up to 1080P Video Form:MPEG1/2/4; H.264; H.265; AVS; AVS+; VC1 Audio Form:MPEG-1 Layer I/II/III; WMA, AAC,AC3 MAX decoding stream:32 channels Additional capabilities:Teletext; BISS decrypt Aspect Ratio Control:4:3(Letter & Box); 16:9 | |
RF OUTPUT | |
Connector:F female connector Number of RF channels:Max 32, Fully agile modulated channels Supported Standard:NTSC, PAL BG/DI/DK STD, HRC and IRC:Supported Output Frequency:48 ~ 860 MHz Out-band Rejection:≥ 60dB Flatness:-2dB per carrier Return Loss:12 dB (min) Differential Gain:≤ 5% Group Delay Response:≤ 100nS 2K Factor:≤ 2% Output Level:≥ 53dBmV combined* Adjust Range:20dB Per 32CHs,10dB Per CH Audio Output Format:MONO Audio Level Adjust Range:0 ~ 100 % RF Test Point:-20 dB Relative to output | |
Working Environment | |
Management:NMS Language:English, Spanish Power Supply:AC 90 ~ 264 V Consumption:<240 W Weight:8.5 KG Dimension:484*435*89 (MM) | |

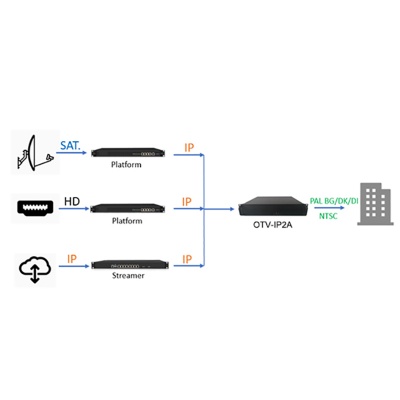

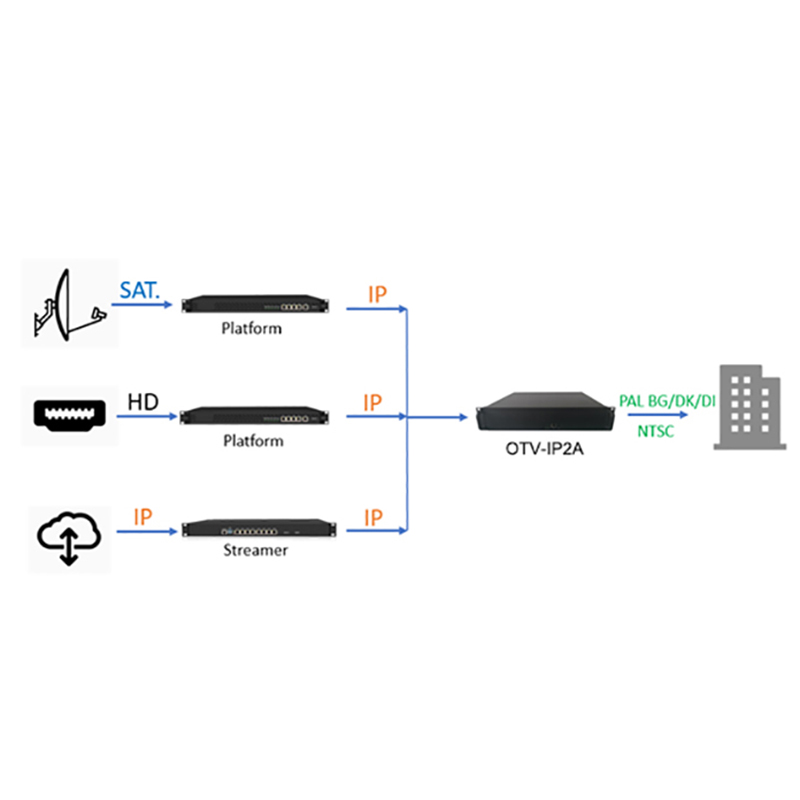

Application:
