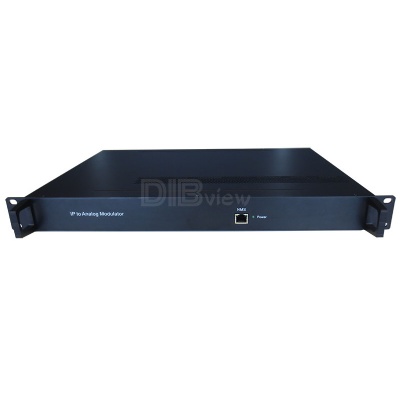

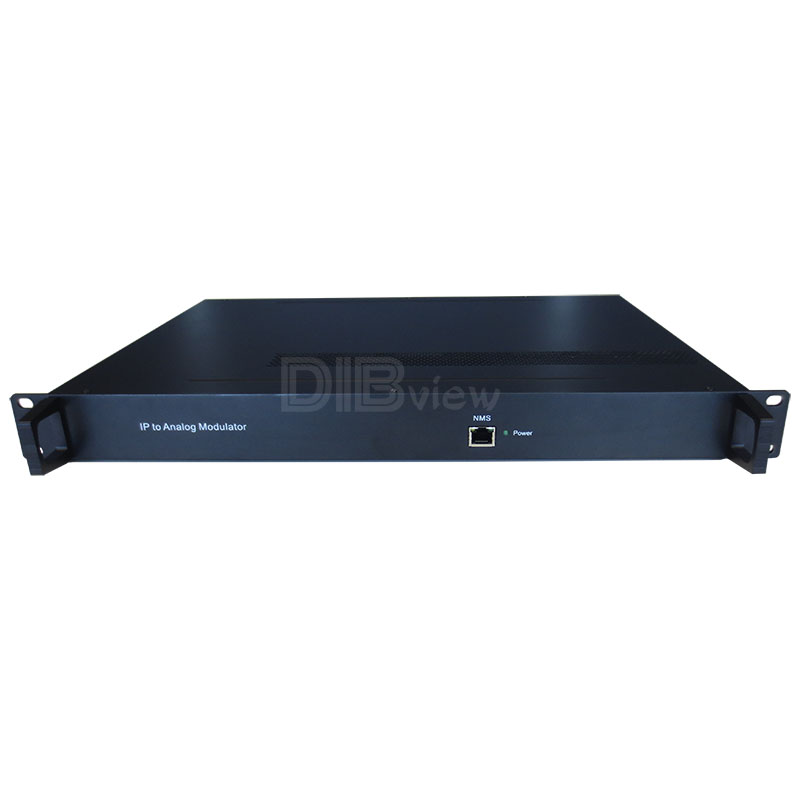

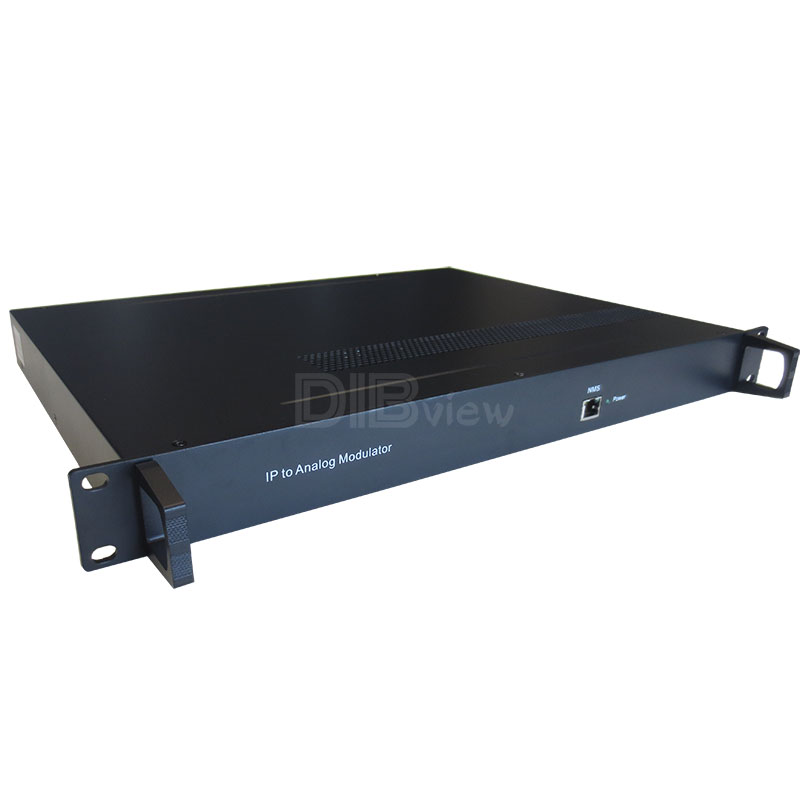

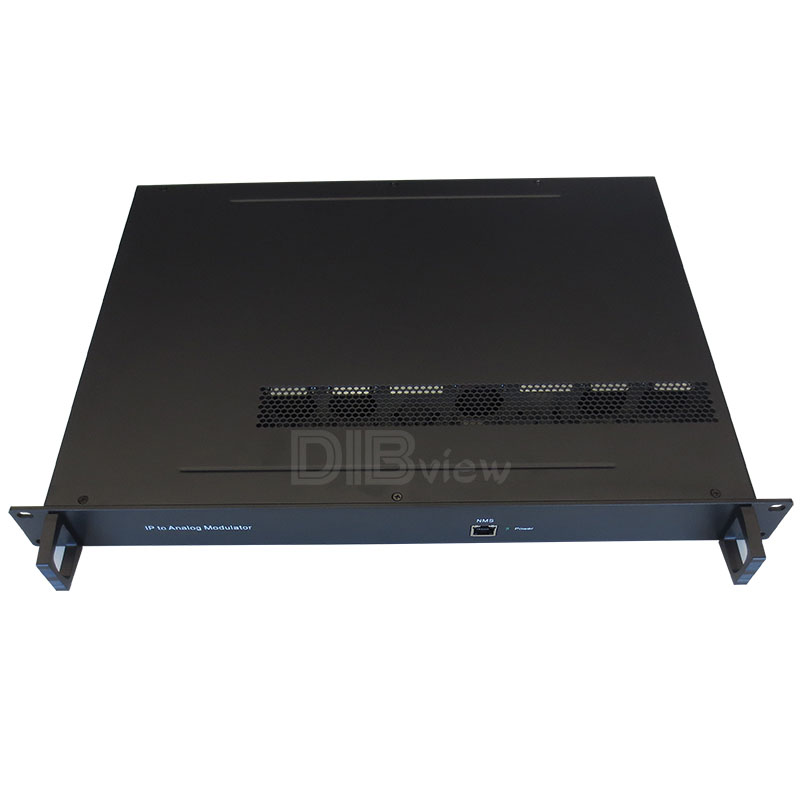

OTV-IPNM 32 in 1 IP Analog RF Modulator(Agile Modulator), which realize the digital stream to convert to analog modulation, perfectly help users throwing away the frequently frozen set-top box, throwing away the frequently upgraded remote control, and throwing away the large cabinet that consumes electricity.

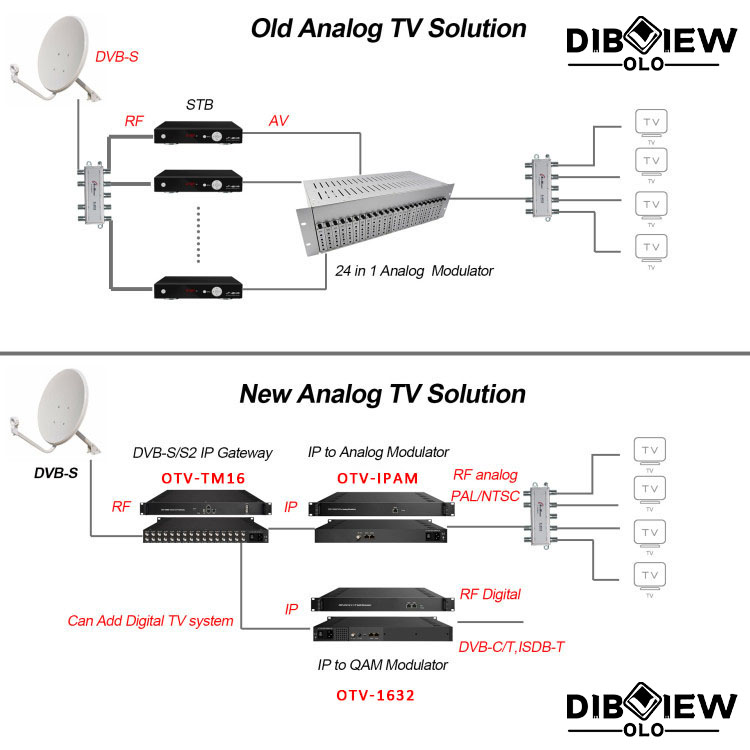

OTV-IPNM working process like this: IP Stream from Digital Front End ---IP Analog Modulator----RF

Finally, it save more space for the machine room, and makes the after-sales more effective. With the features of low cost high performance,OTV-IPNM 32 in 1 IP Analog RF Modulatoris very adaptable to hotel, community and entertainment spot.

Key Features:

• 1U chassis, high density to save shipping cost

• Support to convert 32 IP channels (or 4 HDMI/AV+28 IP channels, or 8 HDMI/AV+24 IP channels) to analog RF out

• Support OSD (Logo and Caption) insertion for each channel, easy operation

• Suport CC/Subtitle/Teletext

• Support BISS De-scrambling

• Support program info modify, multiple audio choose

• 2 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input

• Support HEVC/H.265, H.264/AVC, MPEG-2 TS Decoding

• 32 standard PAL or NTSC or SECAM TV programs output via 32 non-adjacent or adjacent carriers output within 400MHz

• Redundancy power supply for option

• Support Web-based Network management

Specifications:

Input Interface:

32 IP (or 4 HDMI/AV+28 IP, or 8 HDMI/AV+24 IP) input

2 GE ports (max 64 IP input)
Max 840Mbps for each GE input

Stream:UDP, UDP/RTP, 1-7 packets (SPTS/MPTS)

Transport Protocol:UDP/RTP, unicast and multicast, IGMP V2/V3
Packet Length:188/204 Bytes

Decoding Parameters

Video

HEVC/H.265, H.264/AVC, MPEG-2

Audio

MPEG-1/2 Layer 1/2, (HE-)AAC, AC3

Data:CC, Teletext, Subtitles, DVB Subtitling

Resolutions

HEVC/H.265:

1080@60P, 1080@60I, 1080@50P, 1080@50I, 720@60P, 720@50P

H.264/AVC:

1080@60I, 1080@50P, 1080@50I, 1080@30P, 1080@25P, 720@60P, 720@50P, 576@50I, 480@60I

MPEG2:

1080@60I, 1080@50I, 720@60P, 720@50P, 576@50I, 480@60I

Aspect ratio:4:3

Modulation Parameters

Number of channels:Up to 32 non-adjacent or adjacent carriers output

Connectors: 75Ω, F-jack

Frequency range:43.25 – 951.252MHz

Output Bandwidth:400MHz

Output level:-5 ~ 5dBm (102 ~ 112dBμV)

Return loss:≥ 14dB

Spurious frequency dist.:≥ 60dB

Residual carrier accuracy:1%

TV standard:PAL B/G/D/K/M/N/I,NTSCM, SECAM (before order, please choose one, NTSC or PAL Or Others)

Video-signal to noise ratio:≥ 60dB

Carrier to noise ratio:≥ 60dB (when single carrier on)

≥ 55.5dB (when all 32 carriers on)

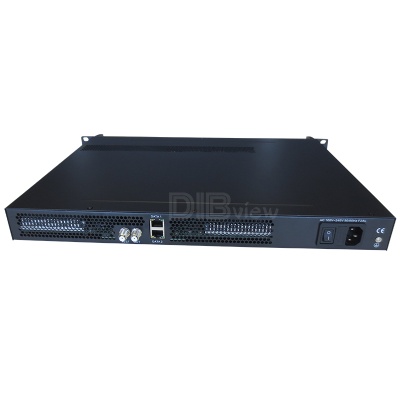

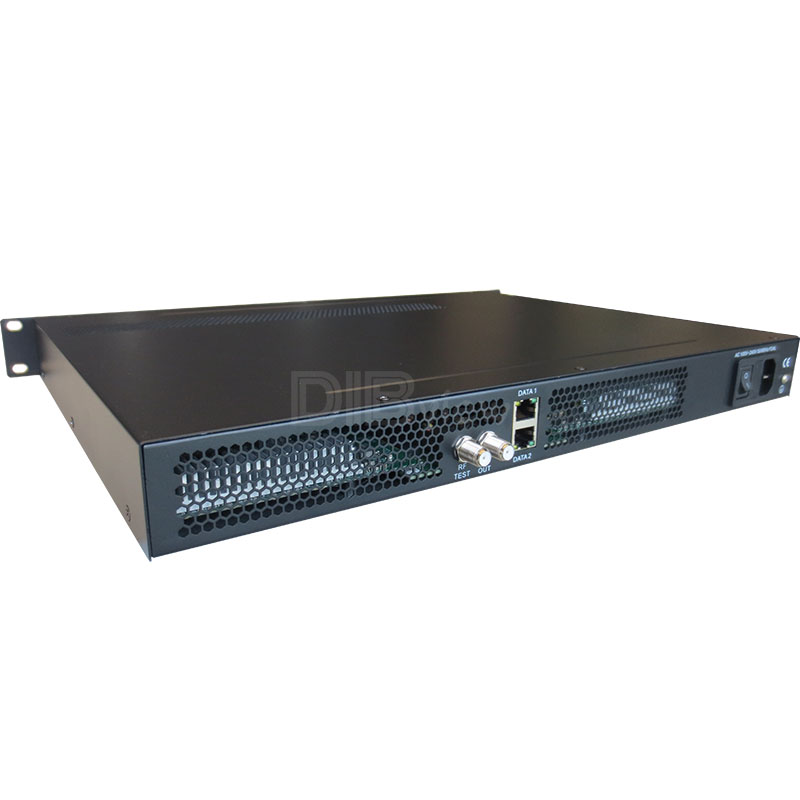

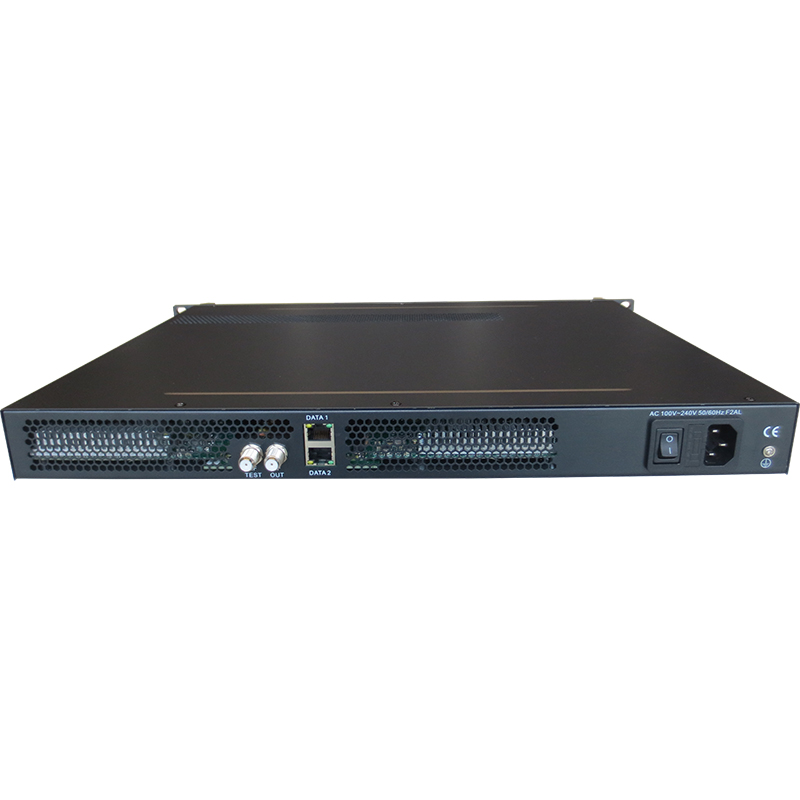

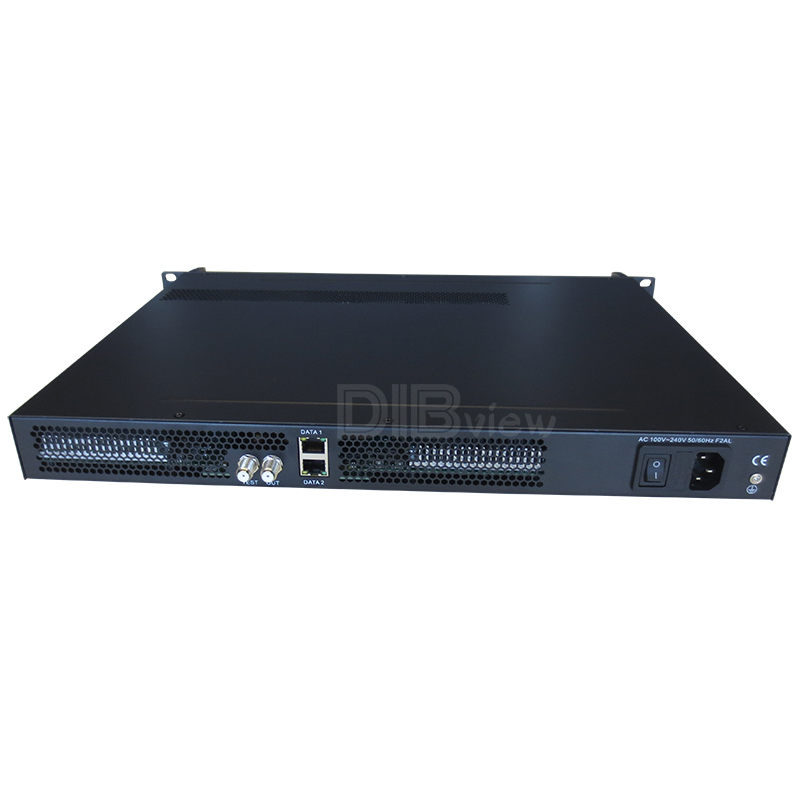

Network Interface

Management:1x100 Base-T Ethernet (RJ 45)

Data:2 x 1000 Base-T Ethernet (RJ 45)

Others

Image resolution output:480i/576i

OSD:Logo : JPG, BMP, PNG

Caption : support multiple languages, scrolling direction and speed customized

Output volume adjustment:0 - 100 %

General

Demission:420mm×440mm×44.5mm (WxLxH)

Temperature:0~45℃(operation), -20~80℃(storage)

Power Supply:AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz

Redundancy power supply (Optional)

Order Guide Options:

Configuration

Option 1:32 IP input (Shipment by Defaulty)

Option 2: 4 HDMI+28 IP input

Option 3: 4 AV+28 IP input

Option 4: 8 HDMI+24 IP input

Option 5: 8 AV+24 IP input

If need the Option 2, 3 , 4 , 5, please contact our sales directly for more details.
