Overview:

OTV-IPT4 IPTV Streaming Video Transcoder is a professional high-definition audio and video transcoding device, which can realize Four-channel IP streaming protocol/format/resolution conversion(Support B frame transcoding), supports up to 4k IP signal input, and supports 4 channel IP streaming media output. Rich streaming media video and audio formats are compatible, enabling fast hardware-based transcoding. It has a rich API interface and good compatibility. It can also communicate with PC version software terminals, Android and IOS system mobile clients to meet the needs of cross-brand, cross-terminal, and cross-platform video. It is suitable for multi-party audio and video interactive scenes in medical treatment, education, and finance.

OTV-IPT4 IPTV Streaming Video Transcoder integrated encoding and decoding at the same time, and supports simultaneous decoding of 4*4 IP streams to synthesize 4*4 split screen images and output them into 1*4 IP stream for transcoding. The interface design is simple and friendly, lightweight and portable.

Key Features:

• Video Encoding supports H264/H265 audio AAC/MP2/MP3/G.711, etc.

• Video Decoding formats MPEG4/H264/H265/MPEG2/VP9/VP8, etc.

• Decoding supports packaging formats such as ES/MPTS/SPTS

• Audio Decoding Format MP3/AAC/G.711/MP2/AC3, etc.

• Embedded DSP hardware solution, high efficiency, low latency.

• After transcoding, the video stream is concurrently accessed by 20x4 users on the backend

• Support Chinese and English OSD after transcoding, image overlay, support for adding company logo letters and symbols, etc., which can be displayed anywhere on the screen. Adjustable coordinates: 1920x1080, font size adjustment resolution available range: 8~72 interval

• Support RTSP/RTMP/HTTP/RTP/UDP unicast, multicast and other protocols (RTMP supports adding user and password functions), and other protocols are converted.

• Support DHCP protocol

• Support input 3840*2160/2560*1440/2048*1152/1920x1080p/1920x1080i /1280x720p/720*576i/720*576p/640*480i and other IP resolutions

• IE webpage preview and play

Main Specification:

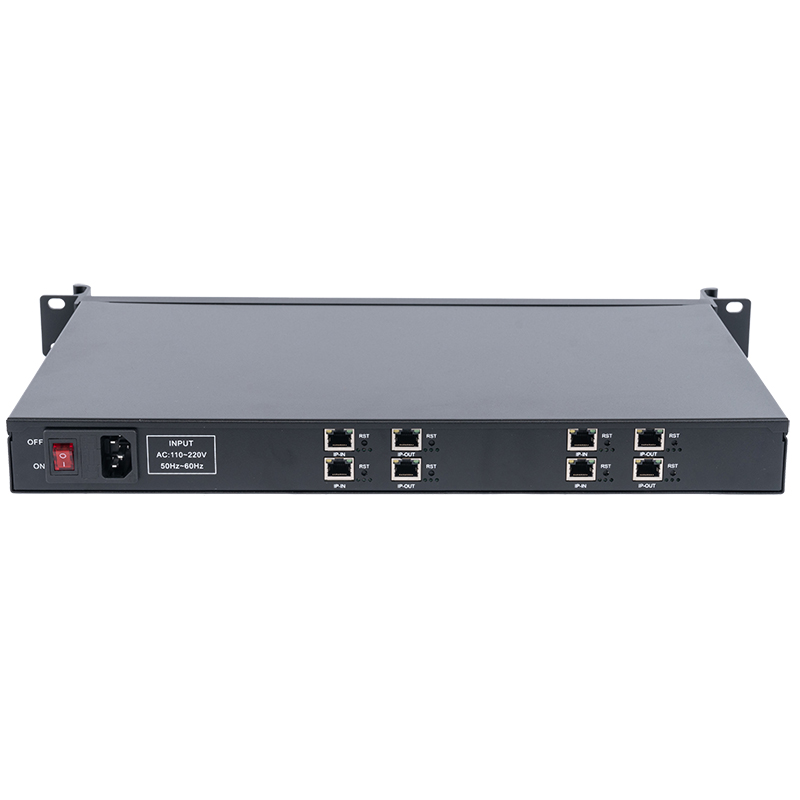

Model: OTV-IPT4 Video Streaming Media Transcoder

Input: 4 IP input (Support B frame network streaming)

Output: 4 channel IP output

Video Input Encoding format: MPEG4/H264/H265/MPEG2/VP9/VPP

Video Coding standard: H.265/H.264

Video Coding level:

H.265 MAIN PROFILE

H.264 BASELINE PROFILE

H.264 MAIN PROFILE

H.264 HIGH PROFILE

Video Encoded size: 640*480~3840*2160

Video frame rate: 30 fps

Audio coding: AAC/MP3/MP2/G.711

Audio bit rate: 64Kb/s~256Kb/s

Sampling rate: 32000, 44100 etc

IP output: 4 RJ 100M/1000M adaptive Ethernet port, dual-bitrate(H.265/264 TS stream)

Network protocol: SRT/RTSP/RTMP/HTTP/RTP/UDP/multicast/Unicast

Configuration management: WEB

Power supply: 220V

Power consumption: less than 20W.

Size: 483mm*240mm*45mm(length*width*height)

Operating temperature: -20℃+ 60℃

Working humidity: <90%, Non-condensing

Weight: 3Kg/pc

Application:

Live Streaming

Video Monitoring

Digital Signage

Remote Video Conference

Agencies, Pro Radio and Sports

Organizations Conferences and Worship

IPTV/OTT system

Hotel TV System

CATV Broadcasting system

Digital TV Broadcasting System

Digital TV Programs Transmission

Government, Education and Music

Edge side of Digital TV backbone network

Head-end system of Digital TV branch network.
