Overview:

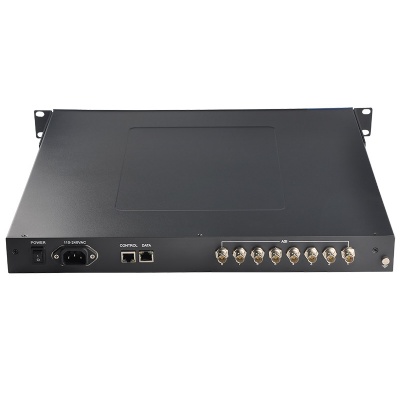

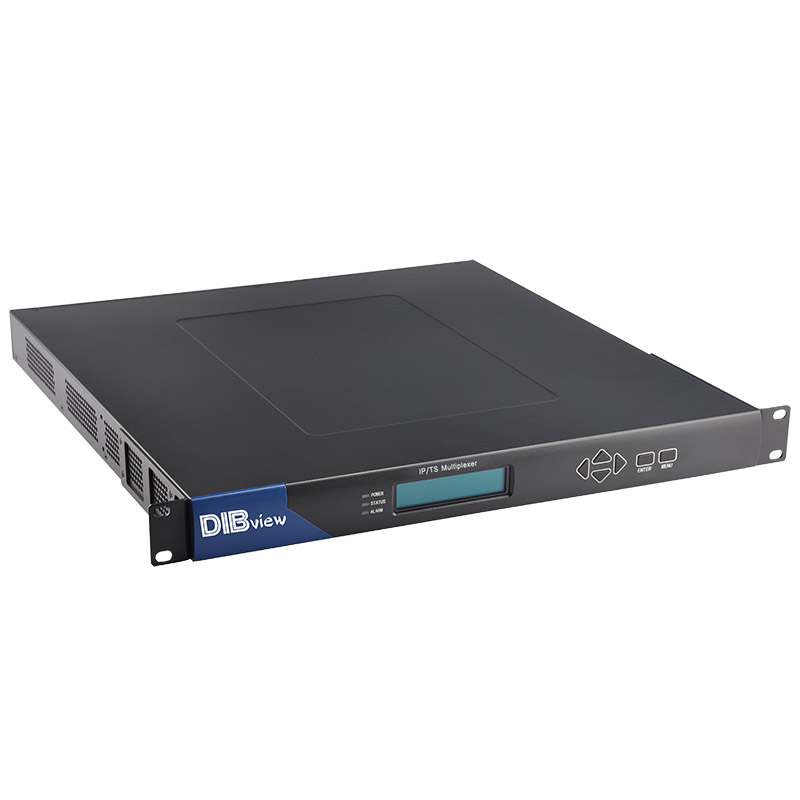

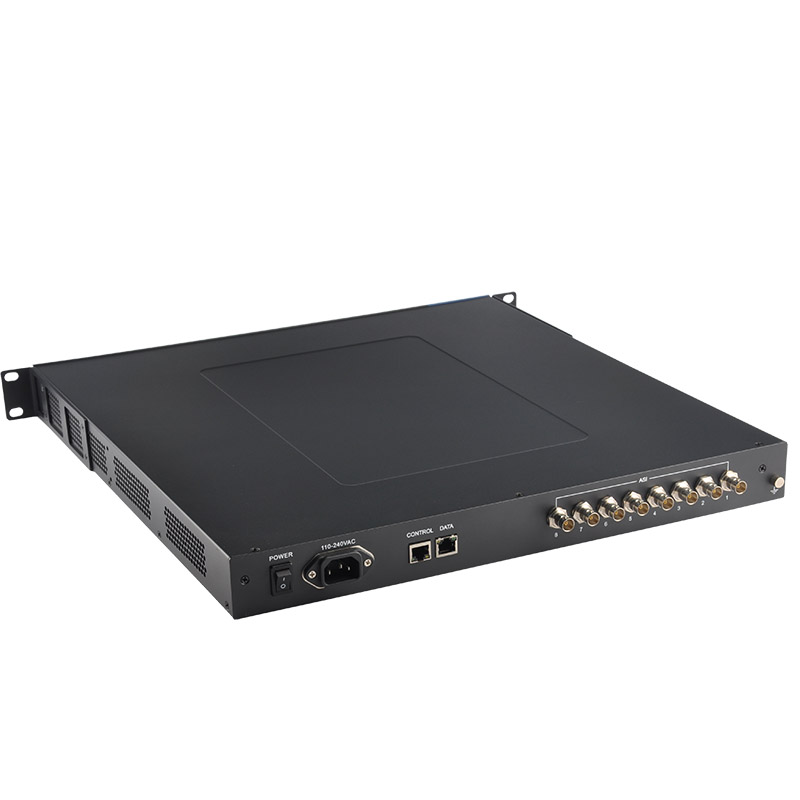

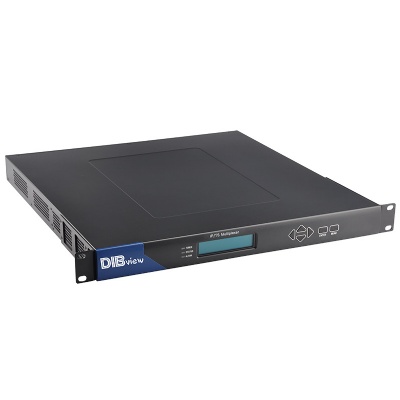

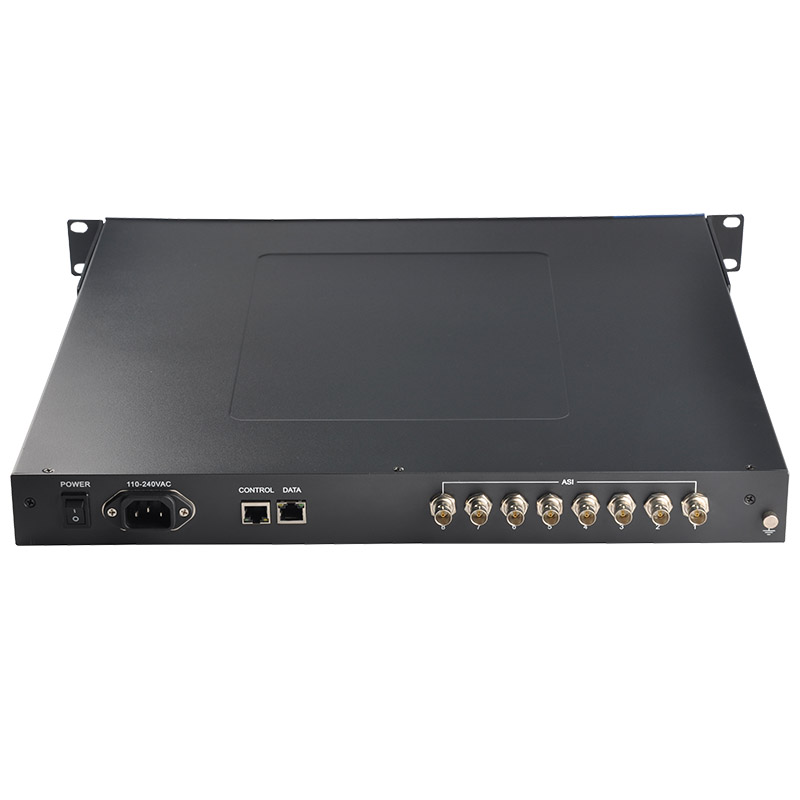

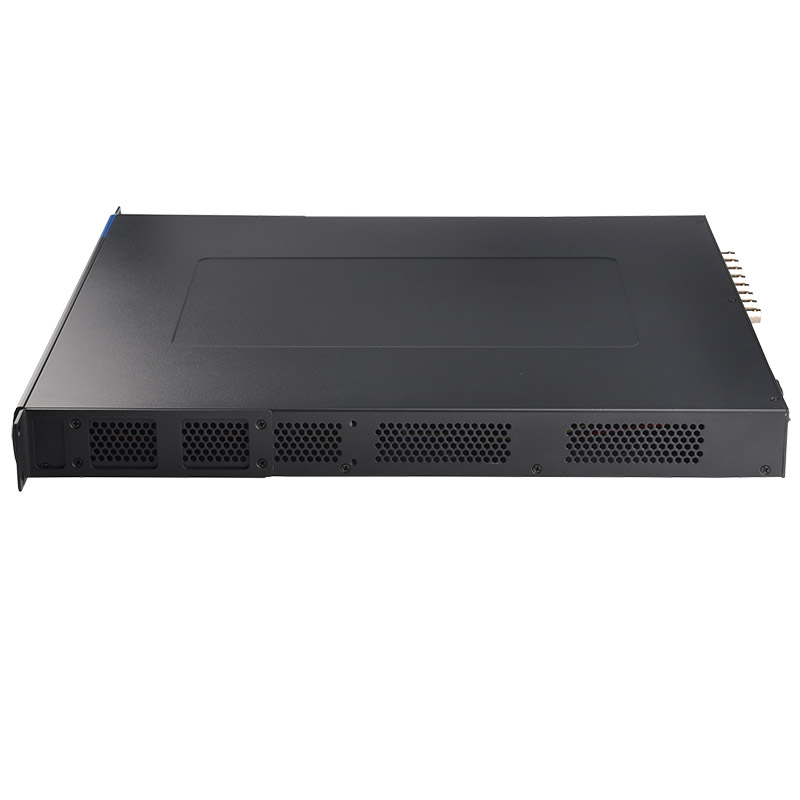

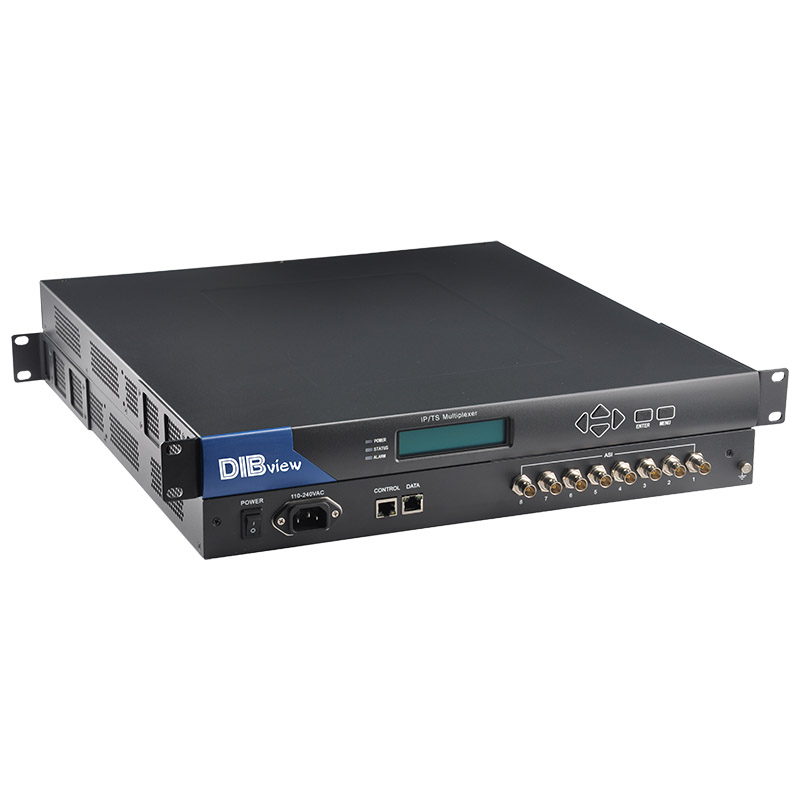

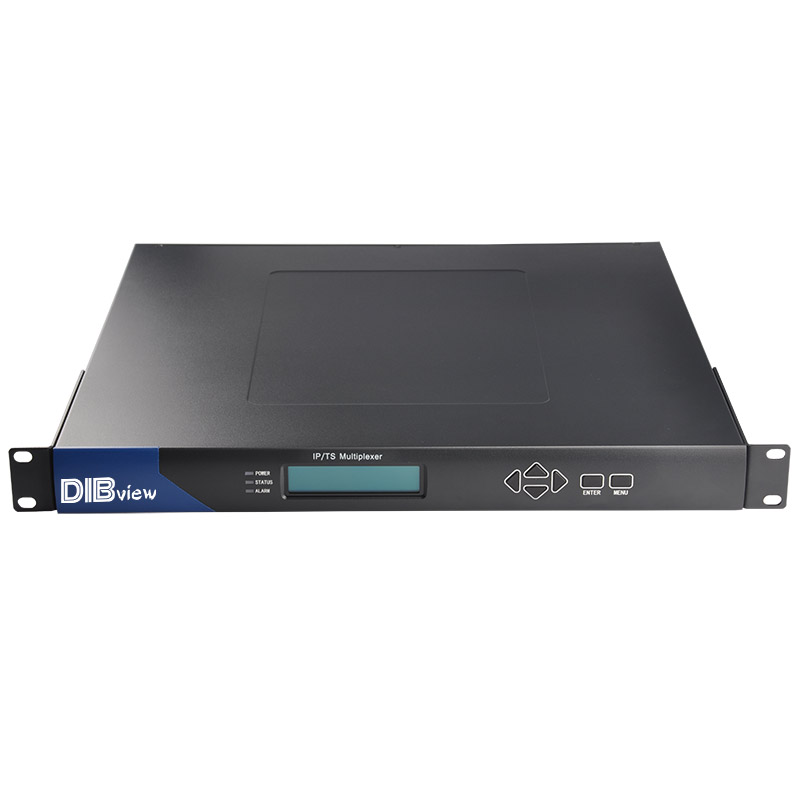

OTV-IPM51C IP TS ASI Bi-directional Multiplexer (ASI+IP to IP+ASI Multiplexer) is a professional TS processor and new generation IP Multiplexer used in digital TV broadcasting and IPTV head-end system. It receives 4*IP(MPTS/SPTS)+4*ASI IN channels and multiplex & de-multiplex the input programs into 4*IP (STSP/MPTS)+(2+2)*ASI(MPTS/SPTS) OUT, meanwhile, the scrambling feature for optional.

For easy management, OTV-IPM51C IP TS ASI Bi-directional Multiplexer (ASI+IP to IP+ASI Multiplexer) can be controlled and upgraded via web-based management in addition to front panel keyboard. Its high integration and cost-effective design have made it widely used in the IPTV Broadcasting system, edge side of Digital TV backbone network, Head-end system of Digital TV branch network etc.

Key Features:

• Fully complying with ISO13818 and EN300 468 standard

• 4*IP(MPTS/STPS)+4*ASI(MPTS/SPTS) input

• IP (SPTS/MPTS) input over RTP/UDP

• 4*IP(STSP/MPTS )+(2+2)*ASI(MPTS/SPTS) OUT, 2 independent ASI output

• MAX. input bitrate of IP is 800Mbps.

• Support UDP, RTP, ARP, ICMP, IGMP protocol etc.

• Auto-generation of Network information.

• Support accurate PCR adjusting

• Support PID pass-through, re-mapping, filtering.

• Support PSI/SI rebuilding and editing and auto-generation.

• Huge buffer memory for saving the overflowing code stream

• LCD/keyboard, Web-based and SNMP management, remote upgrading.

• Power off memory, saving the settings for auto-loading after reboot.

• Import & export the settings, easy to be configurable.

Technical Specifications:

Applications:

Hotel TV System

Digital TV Front-end System

Digital TV Broadcasting System

CATV Broadcasting system

Digital TV Programs Transmission

Head-end system of Digital TV branch network

Edge side of Digital TV backbone network
