Overview:

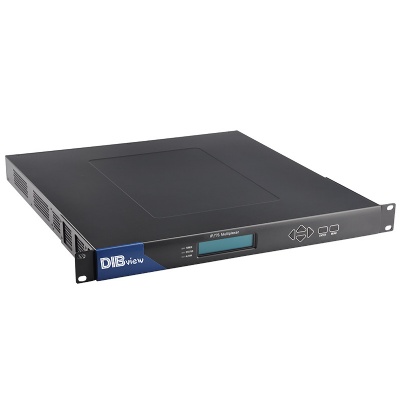

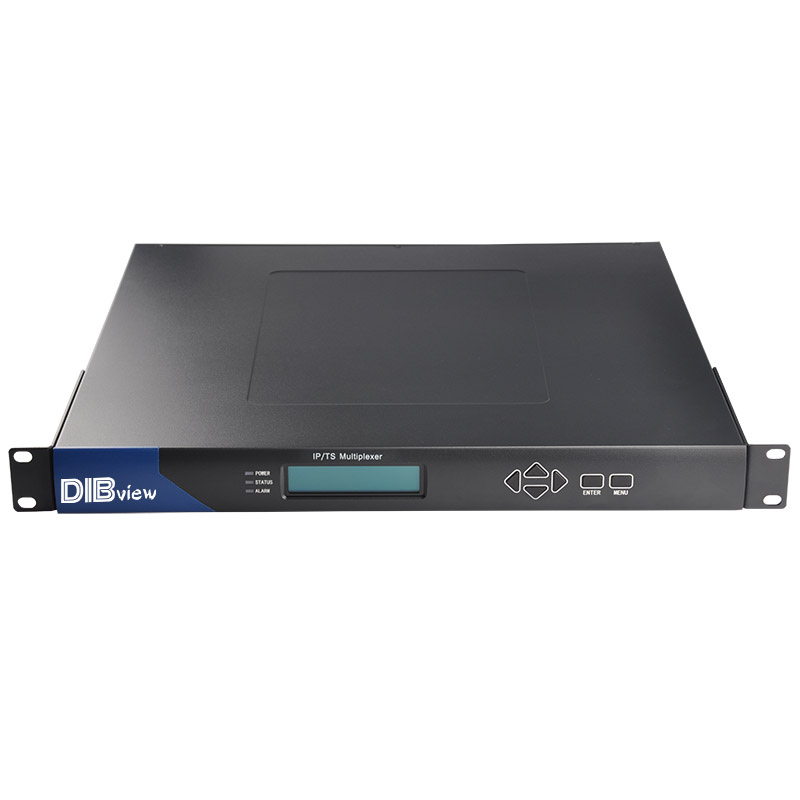

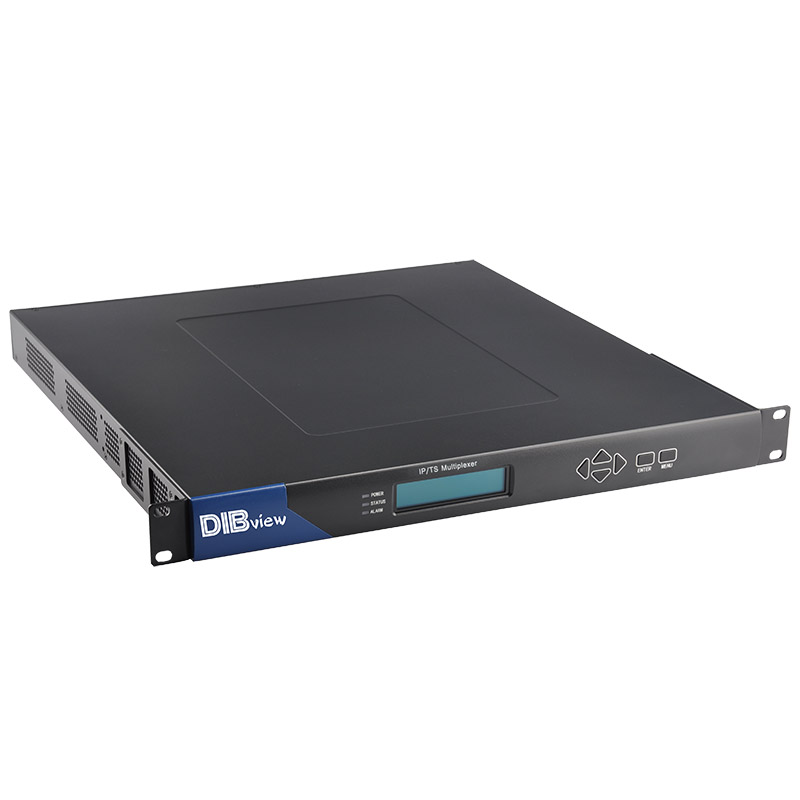

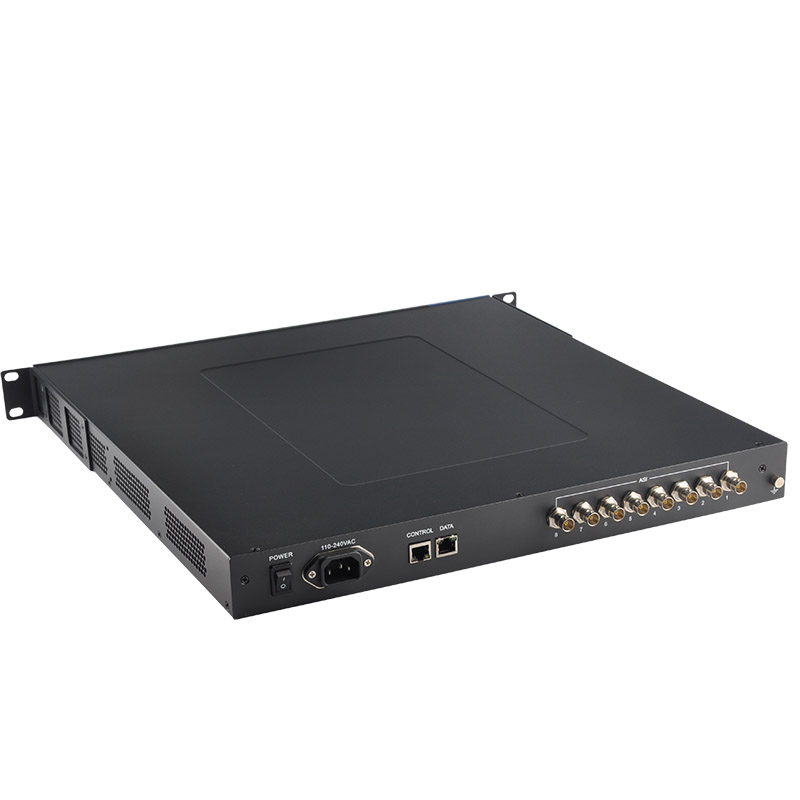

OTV-IPM51 IP to ASI Multiplexer is a professional Transport Stream processor and new generation IP Multiplexer used in digital TV broadcasting and IPTV head-end system. OTV-IPM51 Performs the adaptation of interfaces between Gigabit Ethernet and ASI, and then multiplex the MPEG transport streams before sending to local head-end system.

OTV-IPM51 receives 250*IP (SPTS/MPTS)/GigE channels and multiplex & de-multiplex the input programs into 8 TS stream output(MPTS/STPS). For easy management, it can be controlled and upgraded via web server in addition to front panel keyboard. This flexibility and versatility enables operators to reduce total cost of ownership.

OTV-IPM51 can be widely applied to central head-end and remote head-end system in CATV, DTT and SATV networks.

Key Features:

• Support ASI each channel 1.5-100Mbps

• 250*IP(SPTS orMPTS) inputs

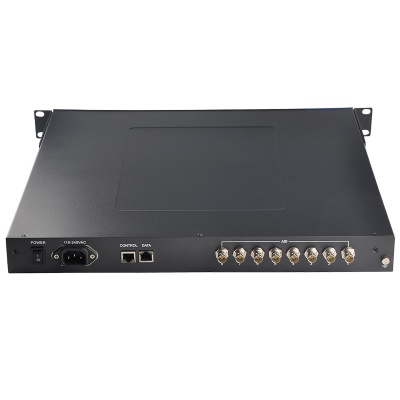

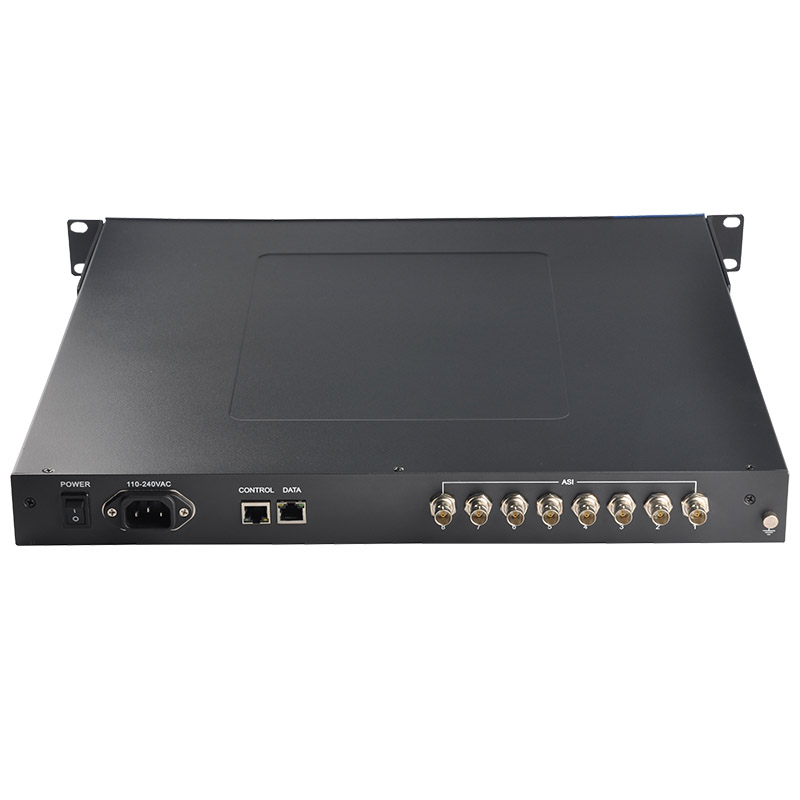

• 8 independent ASI output

• Supports up to 4*DVB SimulCrypt CAS

• Real-time statistics and analysis of program bit rates

• Support UDP, RTP, ARP, ICMP, IGMP protocol etc.

• Auto-generation of Network information.

• Up to 250 re-multiplexing channels.

• Support accurate PCR auto-correction

• Support PID pass-through, re-mapping, filtering.

• Supports various customizable PSI/SI table extraction and manual insertion

• Huge buffer memory for saving the overflowing code stream

Technical Specifications:

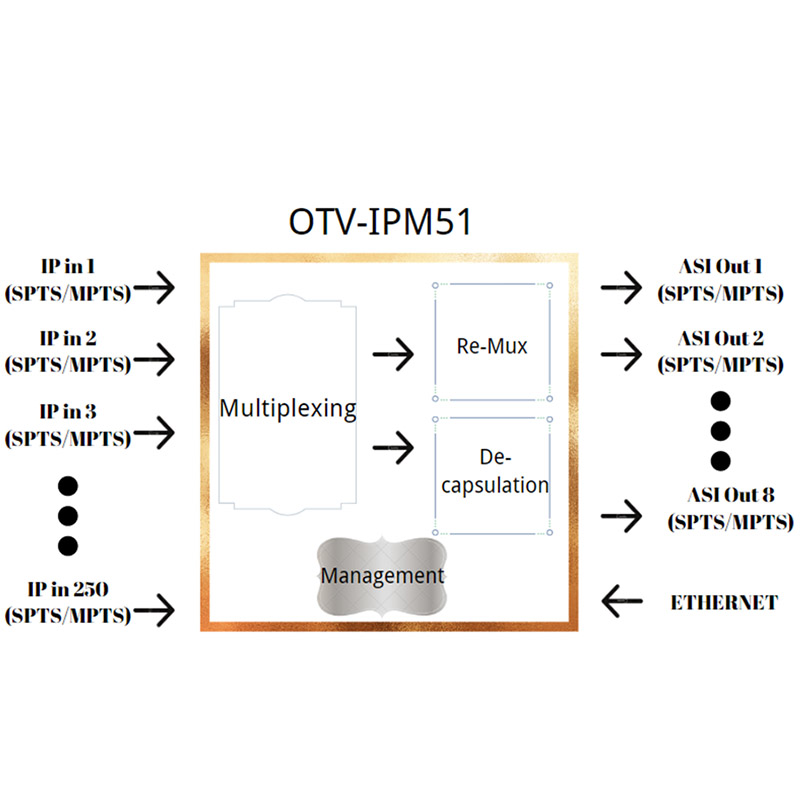

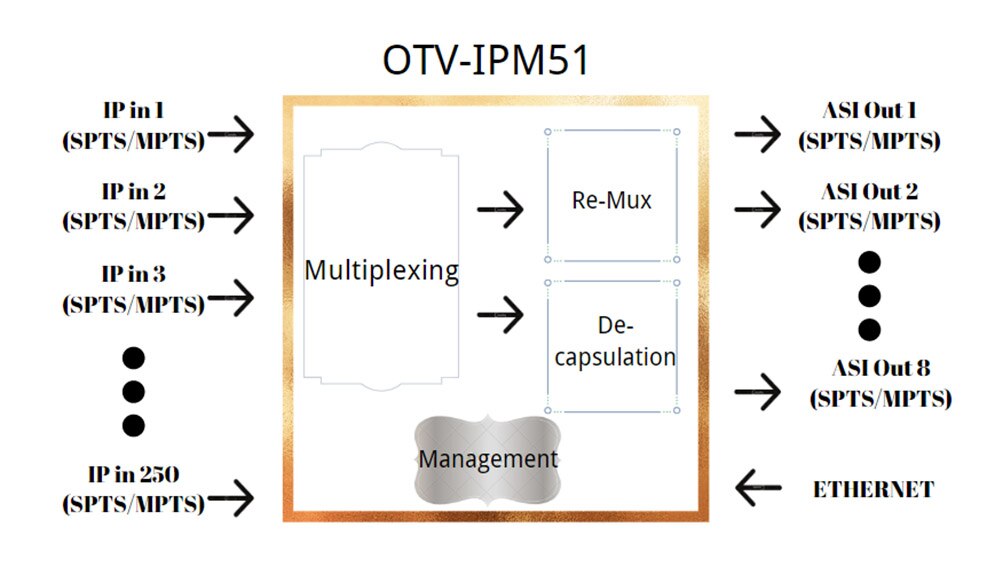

Key Diagram:
