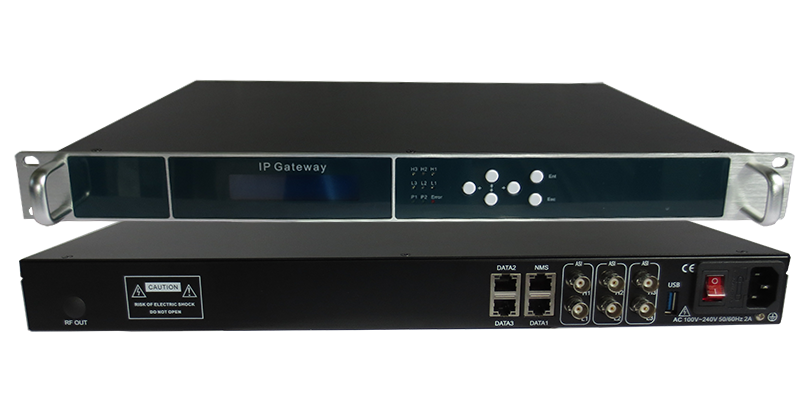

IPTV Multiplexer With SRT RTMP HTTP RTSP HLS

The SRT HLS to ASI IP Multiplexer/Converter is a high-performance, cost-effective solution engineered for digital TV signal source processing in commercial environments. With up to three Gigabit Ethernet ports—two designated for input and one for output—it offers flexible connectivity: DATA1 accepts RTMP, HTTP, RTSP, HLS, and SRT inputs; DATA3 supports UDP and RTP inputs; while DATA2 delivers UDP/RTP output with support for up to 4 MPTS or 512 SPTS.

In addition, the unit features 2 ASI inputs and 4 ASI outputs. Packaged in a 1U form factor, it combines compactness with high performance, low cost, strong integration, and reliable operation. By consolidating a complete front-end system into a single device, it is ideally suited for a variety of next-generation digital TV broadcasting applications.

Key Features:

1. Input support: RTMP, HTTP, RTSP, HLS, and SRT via DATA1; UDP/RTP via DATA3

2. Output support: 1 Gigabit Ethernet port (DATA2) delivering up to 4 MPTS or 512 SPTS over UDP/RTP

3. ASI input: 2 ports

4. ASI output: 4 ports
