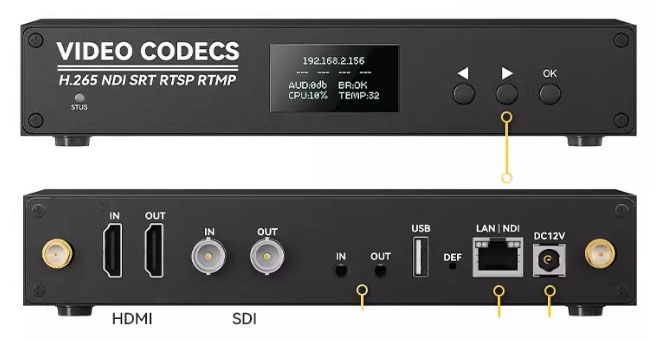

4K SDI HDMI Video Codec with Multi-protocol Live Streaming

Overview of 4K SDI Video Codec with Multi-protocol Live Streaming

This all-in-one 4K SDI video encoder-decoder delivers high-performance, low-latency video processing for professional live streaming and production. Powered by a 1.2GHz ARM Cortex A7 quad-core CPU with 2GB DDR4 memory and 8GB eMMC storage, it supports 4KP30/1080P60 input/output via HDMI 1.4 and 3G-SDI, with compatibility for resolutions up to 4K30 and frame rates adjustable from 1 to 60fps.

Featuring advanced encoding/decoding (H.264/H.265/MJPEG with SmartP/DualP tech) and ultra-low overall latency (60~80ms), it enables real-time video transmission across protocols including NDI, SRT, RTSP, RTMP, HTTP, HLS, and GB28181. Certified for NDI by NewTek, it supports full NDI encoding/decoding (with a 30-minute free trial for unlicensed use) and seamless integration with vMix, OBS for secondary editing and multi-platform live streaming.

Equipped with wired (10/100M), Wi-Fi 6/5, and 4G/5G connectivity, it supports multi-peripheral access (TV boxes, cameras, game consoles, etc.) with HDCP compatibility. Additional perks include on-device effects (watermarks, subtitles, image optimization), multi-screen mixing, mobile app control, and flexible audio/video encoding (AAC/MP3, 8K~48K sampling rates). With low power consumption (<15W) and wide operating temperature range (0~70°C), it is ideal for broadcast, live events, and mobile production scenarios.
