Overview:

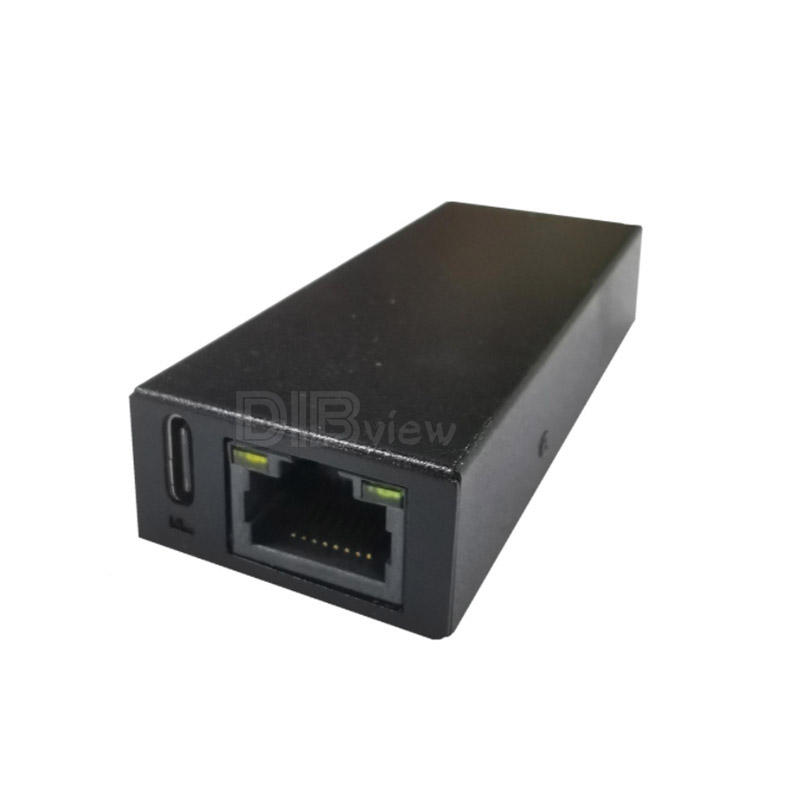

OTV-Finger IPTV Encoder is a professional HDMI video encoder, which supports 1 channel HDMI stream of H.264/H.265 encoding input and the AAC, G.711A audio format.

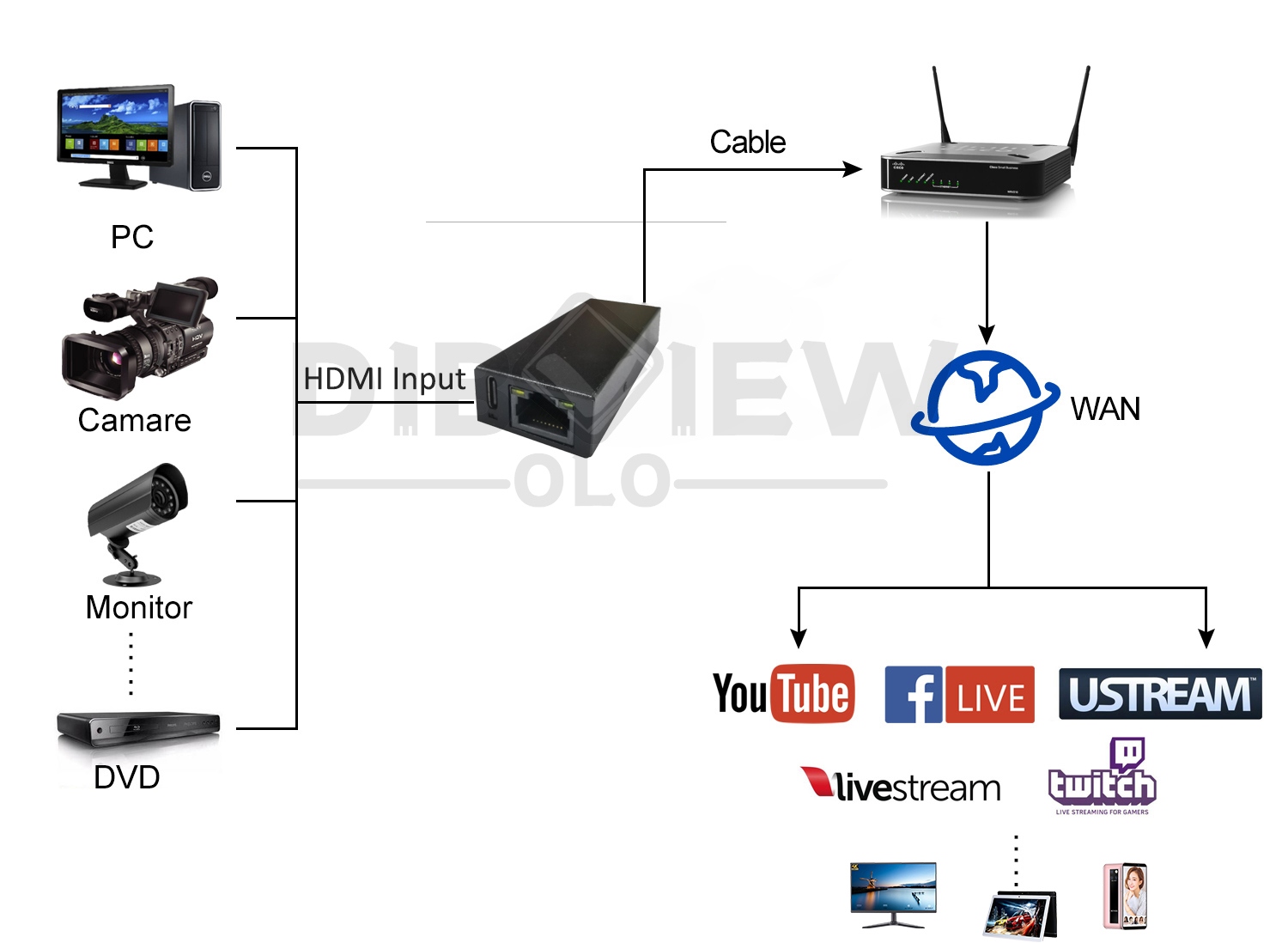

OTV-Finger IPTV Encoder can encode video streams from any HDMI video source to various media streaming servers (Wowza, Xtream Codes, FMS etc) or online live broadcast platforms (Youtube, Facebook, Ustream, etc. ) over IP in real time.
OTV-Finger IPTV Encoder is widely applied education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries
Main Features:

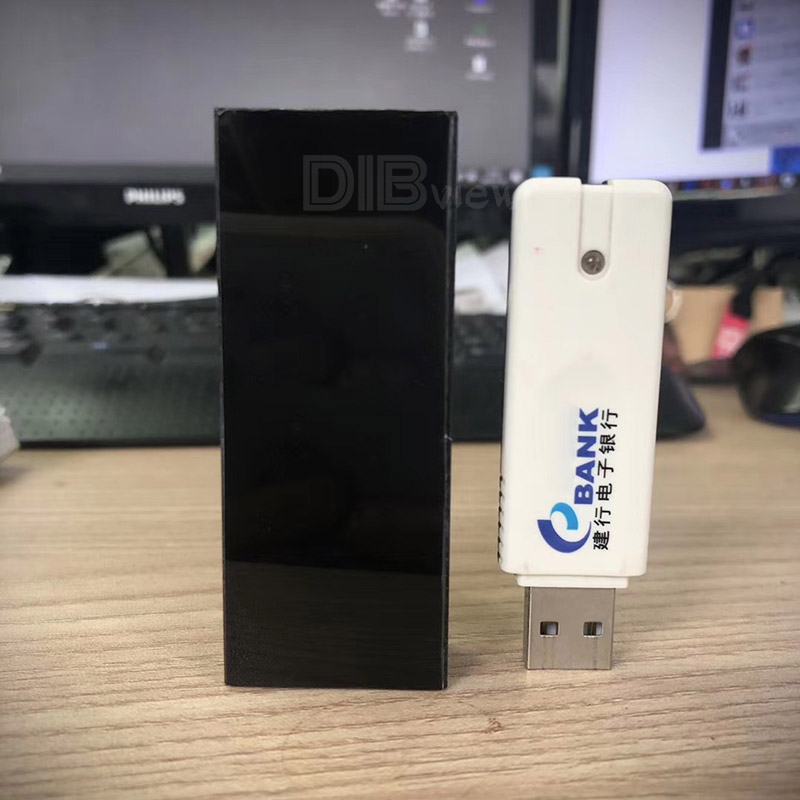

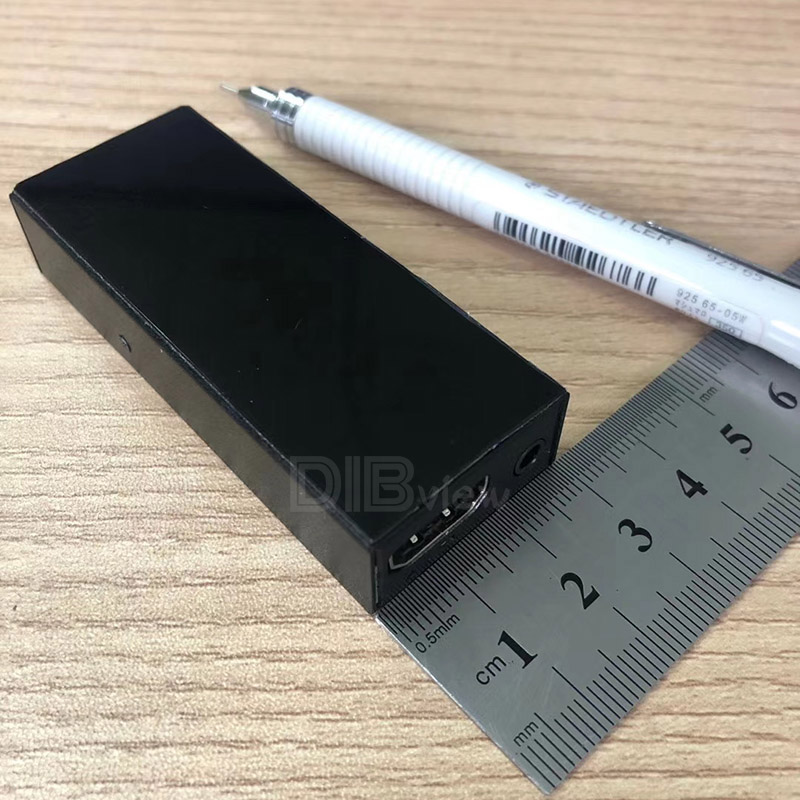

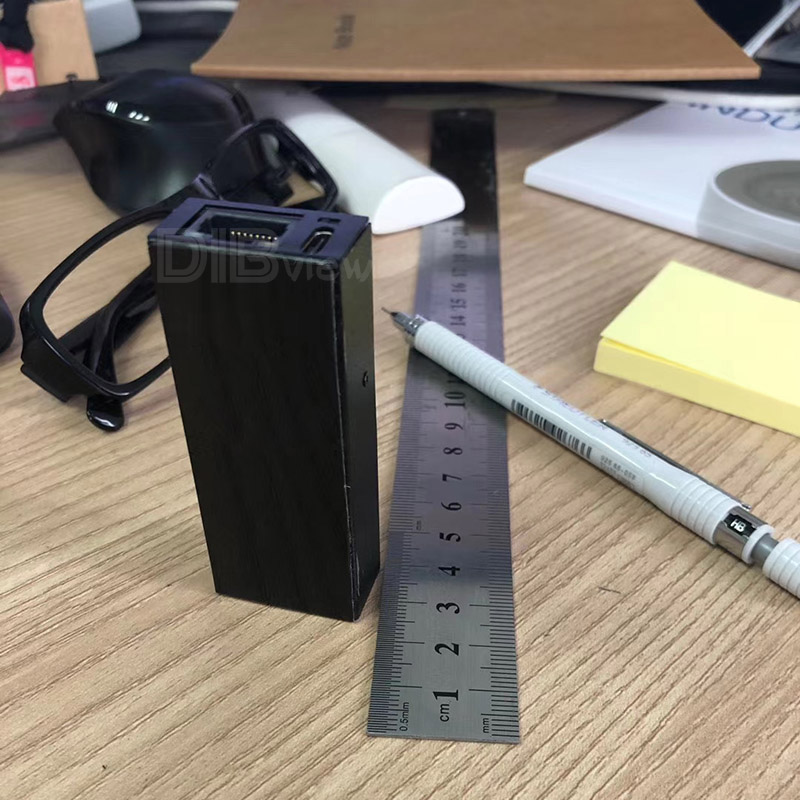

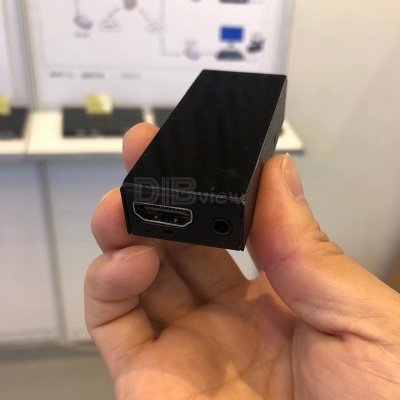

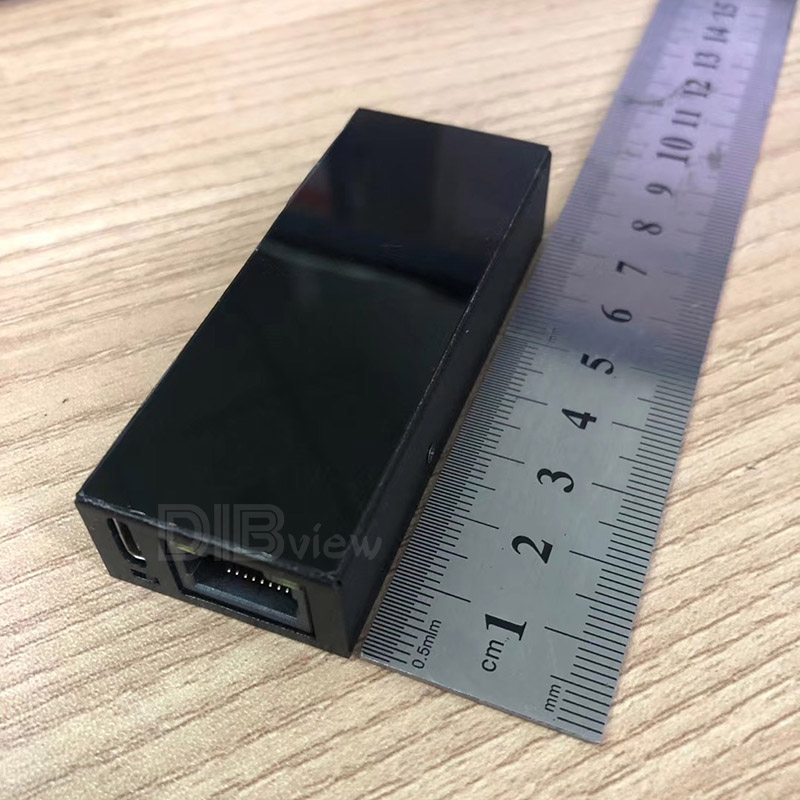

Smaller size like two Fingers
1Channel HDMI Input
Support H.265/H.264 encoding standard, max. Support 1080P@30fps encoding
Video encoding delay is less than 200ms
Video and audio stream supports standard TS stream format
1Port 3.5mm dual channel analog audio input
Support HDMI embedded audio input
Support AAC-LC, G.711 audio coding
Support RTSP, RTMP, P2P, HTTP, Onvif, UDP/MULTICAST and other network protocols
Built-in webserver, which can be managed and configured through the browser
Provide Type-C power universal socket
Key Specification:
Item | Description |
Video Parameters | |
Input resolution: 1080P:1920*1080@60/50Hz; UXGA:1600*1200@60Hz SXGA:1280*1024@60Hz; 720P:1280*720@60/50Hz XGA:1024*768@60Hz | |
Encoding Parameter | |
Encoding type: H.265 Main Profile/H.264 Baseline/Main/High Profile Bit rate frame rate: support CBR/VBR, Support encoding bit rate, frame rate adjustable 32Kbps~16Mbps, 1-60fps Video encoding capability: 1ch 1080p@30fps Audio encoding: AAC-LC, G.711a | |
Function | |
Audio and video transmission: Support RTSP, RTMP, Onvif, HTTP, UDP/Multicast, P2P Management: built-in webserver, which can be managed and configured through a browser Support network remote firmware upgrade | |
Peripheral interface | |
Video input: 1 HDMI interface Audio interface:1 input 3.5mm interface (level: 2.0Vp-p, impedance: 1KΩ), supports embedded audio Network Interface: 1*IP Port | |
General | |
Power supply:Type-C interface, DC5V/≤5W Working environment: -10℃~＋55℃/10%~90%RH Structure size: 74*30*16(mm) | |
Application:
HD video via private IP networks
Remote live Rebroadcasts and real-time transmission
Hotel, Campus, Enterprise IPTV & OTT system
Head-end system of Digital TV branch network
Digital TV Broadcasting System
CATV Broadcasting system
Edge side of Digital TV backbone network
Digital Signage Project
Remote Video Conference
Video Monitoring
Digital TV Programs Transmission
Live Streaming
Internet TV
