Overview:

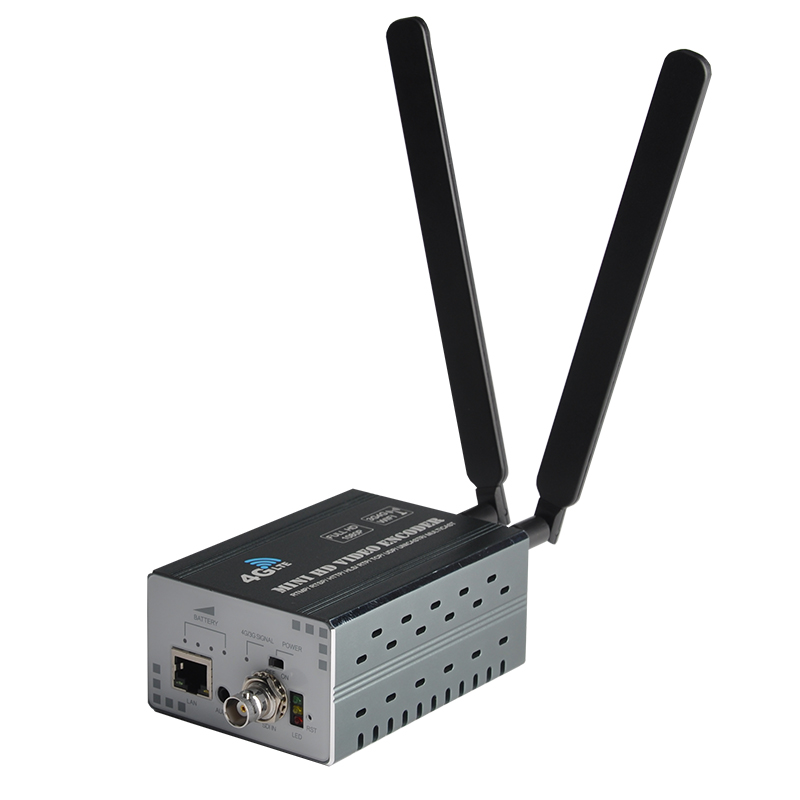

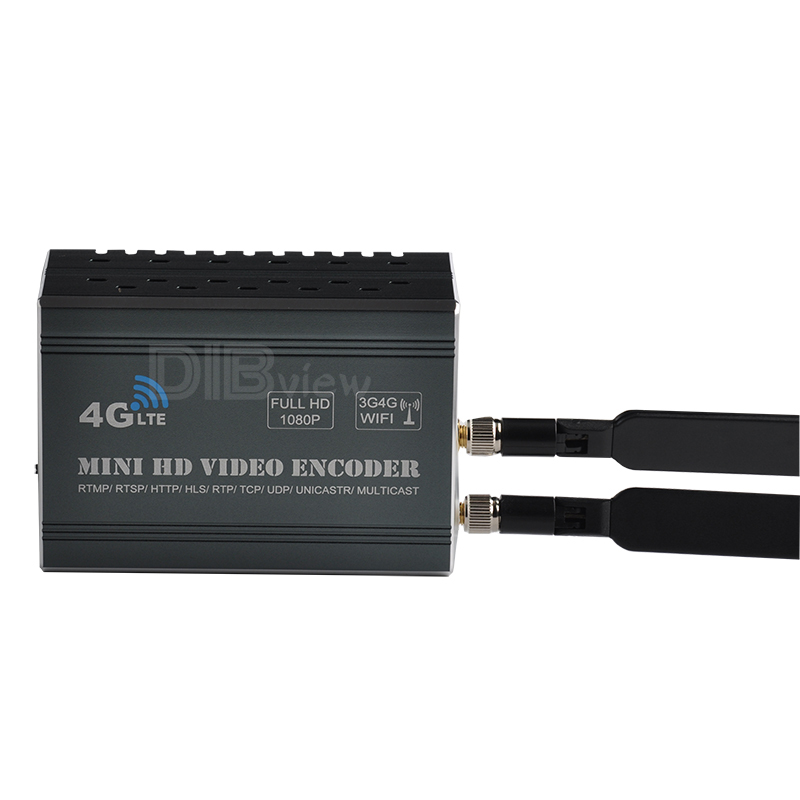

OTV-4GS 4G LTE HD IPTV Streaming Encoder features high performance, low latency and low bit rates for Live Streaming, IPTV & OTT systems, realized Video & Audio real-time transmission via 4G/3G internet, and adopts state-of-the-art compression technology of H.264 H.265/HEVC, which realizes its resolution to be up to full HD 1080P. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth.

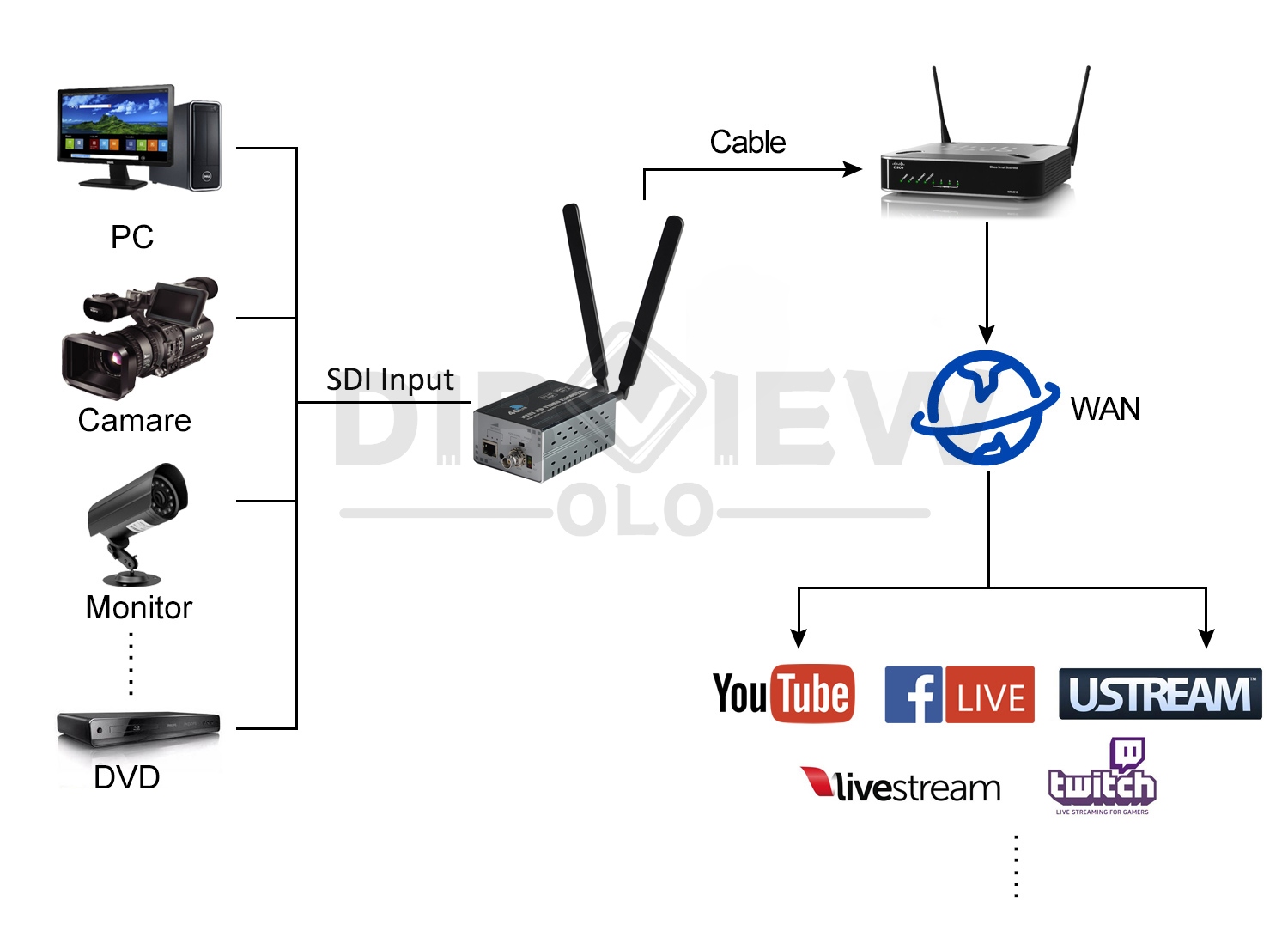

OTV-4GS 4G LTE HD IPTV Streaming Encoder accepts 1-Channel SDI IN With SDI LOOPOUT as option then outputs 4*streams H.265 format and audio MP3/AAC format with multi-protocol, multi-resolution, multi-bitrate which can be freely adjusted according to your needs. Besides, it's simple to be set up by switching between WIFI and 4G LTE mode, users can start Live Streaming Anytime, Anywhere, Anyplace!

OTV-4GS 4G LTE HD IPTV Streaming Encoder provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

Main Features:

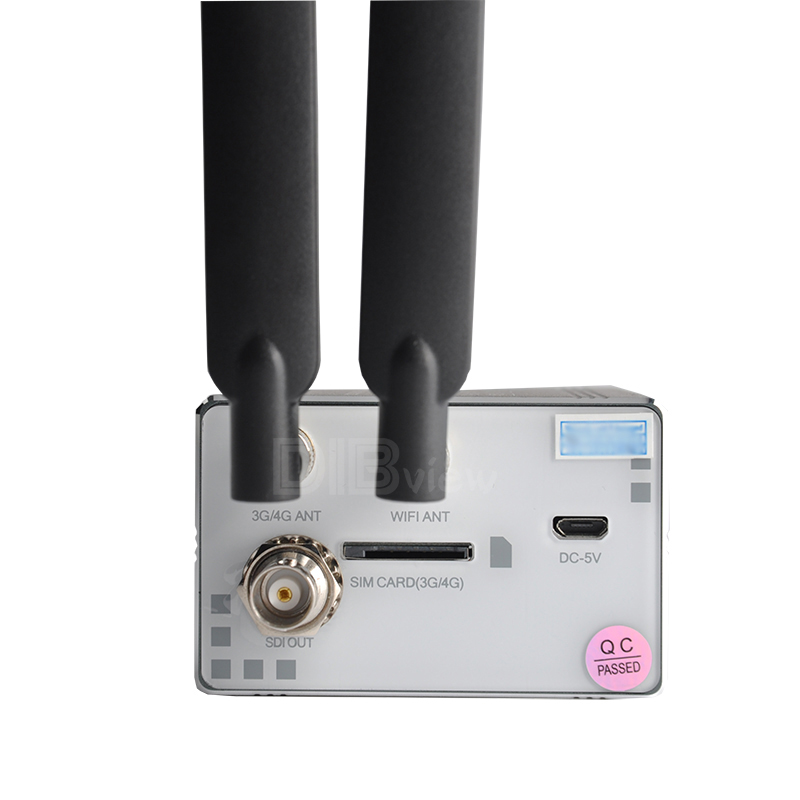

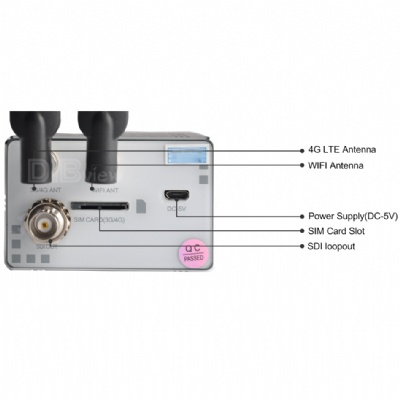

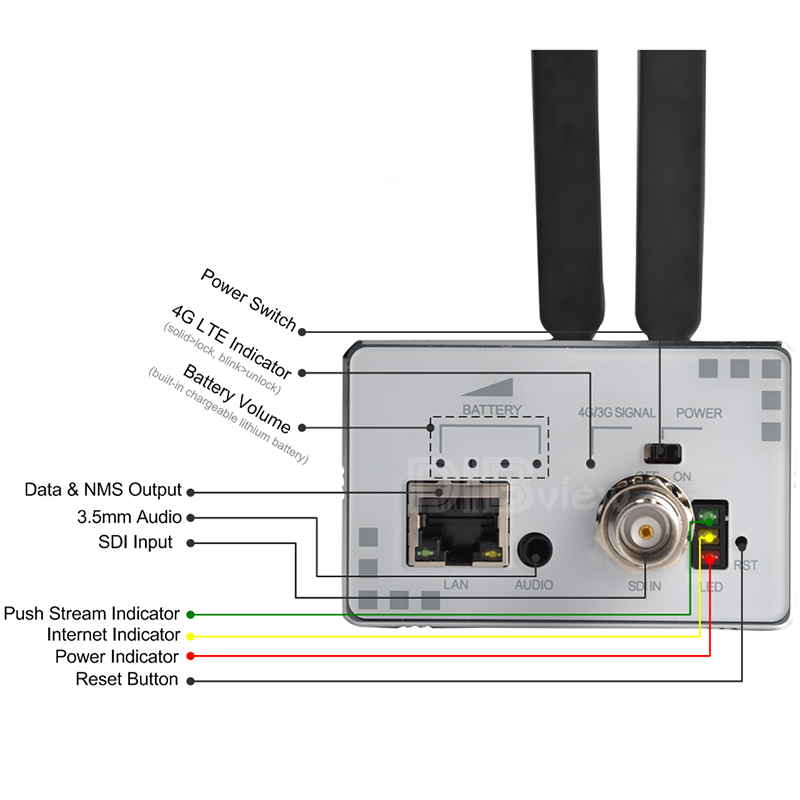

SDI IN, SDI Loopout

4G/3G LTE/WIFI/Internet(Switchable)

Low power consumption design & running time up to 5-6 hours by full built-in Lithium battery.

Support up to 4 TS over IP stream out.

Providing a standard hot shoe base for fixation on a camcorder

Workable with newest architecture of H.265

Display on multi-screen originated from one computer is available

Up to Full HD 1080P output.

Workable under SRT, HLS,RTSP/RTP/RTMP, HTTP, UDP unicast and multicast(Username and password verification allowed under RTMP)

Support HDCP protocol

Support ONVIF Network Video Protocol

Configurable of multi-screen ,multi-protocol, multi-resolution and multi-stream and low bit-rate by H.265 with high quality image

Any iOS browsers(iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.

Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC).

Encoding level: Level 1/2/3/4/5(the higher level, the higher stream fluctuation rate)

Encoding profile:H.265/HEVC BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE

Audio format: MP3 , AAC, sampling rate:32 KHz /44.1 KHz/48 KHz etc.

Audio encoded bit-rate: 48Kbps /64Kbps /96Kbps /128Kbps/160Kbps/192Kbps /256Kbps

Bit-rate mode CBR/VBR,16Kbps~12Mbps

Video packing: FFMPEG/ VLC

Transport method: TCP,UDP,1000M (RJ45 duplex interface)

Web-based management easy for configuration.

Scrollable English OSD ,picture overlapping and logos are realizable while letters and symbols can be displayed anywhere in the screen

Adjustable coordinate: 1920x1080

Adjustable font size:8~72

Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance

Image setting: Contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering

Audio: embedded or line in; left & right; built-in audio gain for independent volume adjustability

Able to encode with absence of video signal

The setting comes into effect once finished while reboot is unnecessary

Default configuration can be done by one key recovery

WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

Key Specification:

VIDEO Encoding

Video compression:H.265/HEVC, H.264/MPEG-4 AVC

Video inputs: SDI in/loopout for option

Input resolution:

1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540, 720x540,720x480,

720x404,704x576,640x480,640x360,auto

Output resolution:

Main stream(supports two protocols):

1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540, 720x540,720x480,

720x404,704x576,640x480,640x360,auto

Sub-stream(supports two protocols):

1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480,

640x300,352X288,320X240,320X180 auto

Bit-rate: 16kbps~12Mbps, CBR/VBR

Video Frame Rate: 30/25fps

OSD: text, photo

Video pre-processing: Noise reduction, Sharpen, Filtering

AUDIO Encoding

Input interface: 1*SDI embedded audio for option,

1*3.5mm line in(audio gain adjustable)

Audio compression: AAC, MP3

Sampling Rate 32KHz,44.1 KHz,48 KHz etc.

Audio Bit-rate: 48Kbps,64 Kbps,96 Kbps,128 Kbps,16 Kbps,192 Kbps,256 Kbps,384Kbps

IP Streaming output

Transport protocol: TS over IP output, SRT, HLS, RTSP, HTTP, RTMP, UDP multicast/unicast, ONVIF protocol

For SDI in/loopout to IP output:

2 Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application

Support RTMP Username and Password for verification of IPTV Server

Connector: RJ45,100M/1000M

SYSTEM

Configuration Interface: Web-based

Remote Upgrade: via network

Connector: RJ45, 100M/1000M Ethernet interface.

Working Environment:

Voltage: 5V, Power: 2.4A

Power Consumption: 10W

Operating temperature: -20~60℃(operation), -20~65℃(storage)

Working Moisture: <90% no condensation

Dimensions: 102mm(L)*72mm(W)*25mm(H)

Net Weight: 0.45 KG

LTE mode: 4G/3G LTE

Lithium Battery: 10000MAH

(running up to 5hours, the specific working time would be depended by the settings).
