Overview:
OTV-HR31S SDI HEVC UHD IPTV Streaming Encoder is Dibview's new product with SDI in/loopout, adopt advanced H.265/HEVC and H.264/AVC Video compression technology, encoding up to 1080P@60fps output. integrated the features of HD SDI Encoding, data transmission and real-time recording. You can connect to external storage by USB port or put in the TF card to save the files locally. Meanwhile output IP streams with multi-protocols from RTMP,RTSP,UDP(Unicast/Multicast),CMI,ONVIF,TCP/IP.
OTV-HR31S SDI HEVC UHD IPTV Streaming Encoder possess the features of stability, reliability, powerful function, network agility, which makes it a new generation HD network media terminal. It's no fan and Low Power Consumption physical design, with encoding in compact size, benefit customers for more flexible to use, and avoid the trouble of gathering multiple device.
Key Features:
Up to 1080P@60fps output
SDI input/loopout, easy to monitor the video source quality.
Video compression H.265/HEVC and H.264/AVC
Low latency less than 200ms
Capable of real-time recording, save the file to local storage by TF card.
Multi-Protocol: RTMP, RTSP,TCP/IP, UDP(Unicast/Multicast) IP transmission mode
Support ONVIF and CMI protocol.
User-friendly UI, easy to check the encoding parameters on field.
High reliable interface design: professional protective capability for surging and static
Web-based management easy for configuration
Technical Specifications:
Item | Description |
Video in/Loopout | |
Input resolution: 1920*1200P@60fps; 1920*1080P@60/50fps; 1920*1080P@30/25fps; 1920*1080i@60/50fps 1680*1050, 1600*1200 1600*900,1440*900,1400*1050,1366*768 1280*1024,1280*960,1280*800,1280*768 1280*720P@60/50fps,1024*768 720*576P@60/50fps,720*480P@60/50fps 640*480,800*600
Loop output resolution: 1920*1080@60/50HZ; 1600*1200@60HZ 1280*1024@60HZ; 1280*720@60/50HZ 1024*768@60HZ 1680*1050,800*600,720*576,720*480 704*576,640*480,640*360,352*288 320*240,320*180,auto | |
Encoding | |
Video compression: H.265/HEVC, H.264/AVC High/Main/Base Profile Bitrate/Frame: CBR/VBR/AVBR, 32Kbps~12Mbps/1-60fps Video encoding capacity: 1 channel up to 1080p@60fps Audio compression: AAC-LC,G.711a/u Audio sample rate: 32KHz,44.1KHz,48KHz Low latency: less than 200ms GOP length: 1~500 | |
Protocol | |
Network protocol: RTSP, RTMP, UDP(Unicast/Multicast), TCP/IP Communication protocol: CMI,ONVIF | |
In/Output Interface | |
Video input: 1*SDI in/loopout Audio interface: 1*Line in/loopout, 3.5 mm interface ( level:2.0Vp-p, Impedance:1 KΩ) Local storage: Micro SDXC TF card slot(capable of 256G+) Network: 1*10M/100M Adaptive Network interface USB interface: For upgrading and expand to external WIFI low-speed interface: 1* RS232 Power interface: DC5V(micro USB) and DC9V~12V(DC5.5/2.1) | |
The Working Environment | |
Power Supply: external power supply: DC5V and DC12V/800mA Power consumption:≤4W Operating temperature: -20~60°C (operation) Storage temperature: -40-70°C (-40-158°F) Dimensions: 124mm(L)*75mm(W)*23mm(H) | |

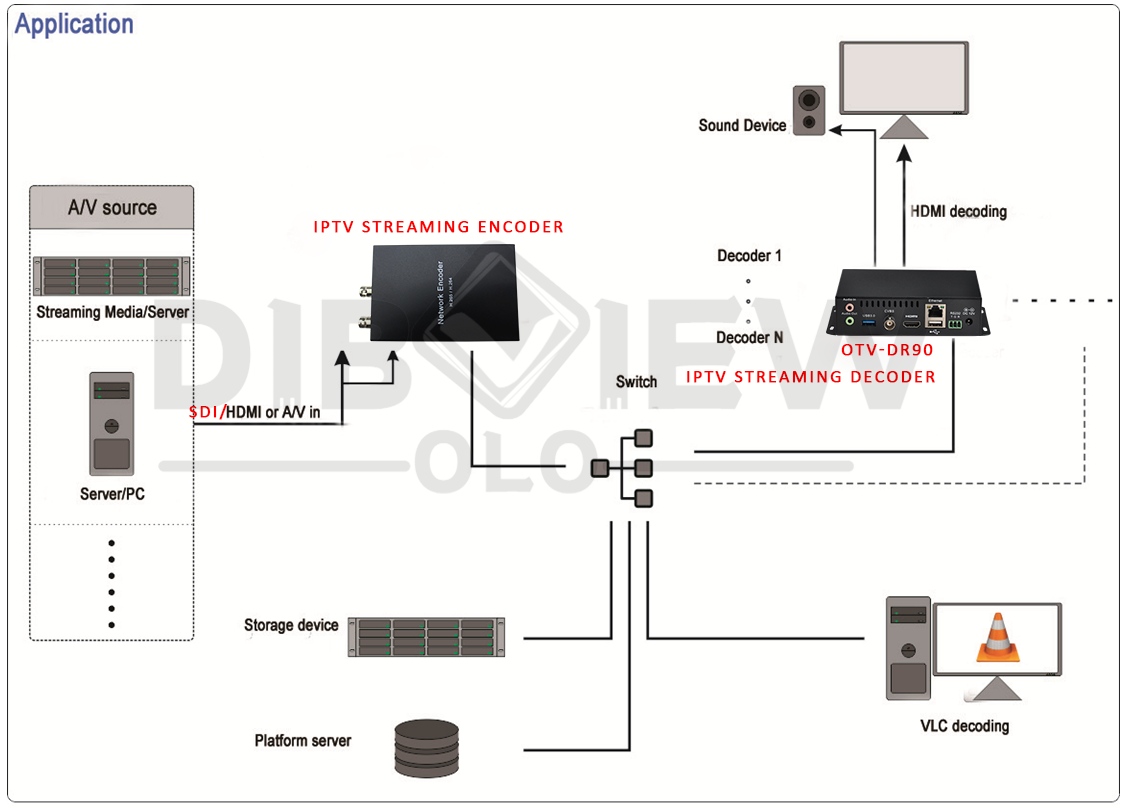

Applications:
H.264/H.265 HEVC digital TV Broadcast decoding
Low Bitrate Video and audio compression transmit
IPTV, conference, remote education
Backhaul/Monitoring for Broadcasters

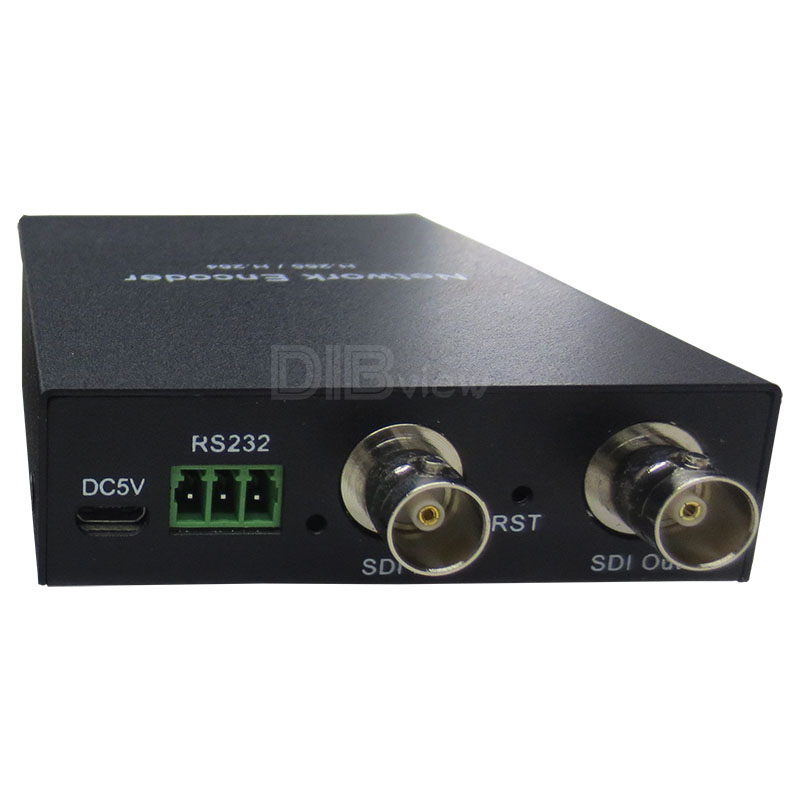

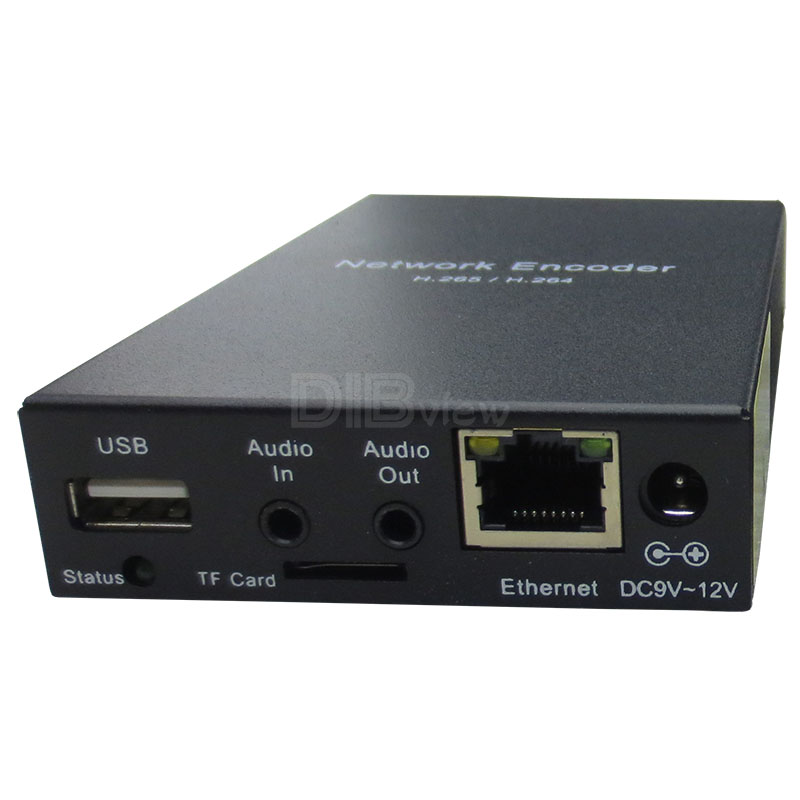

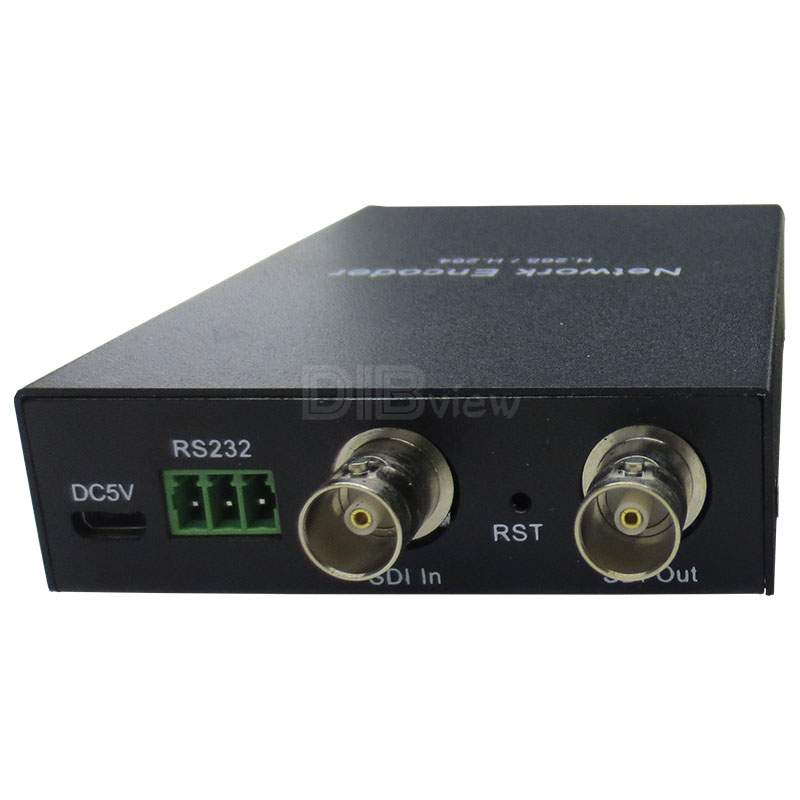

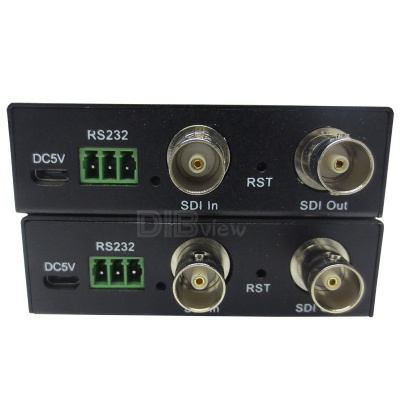

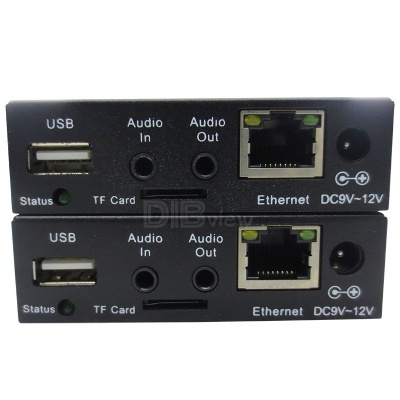

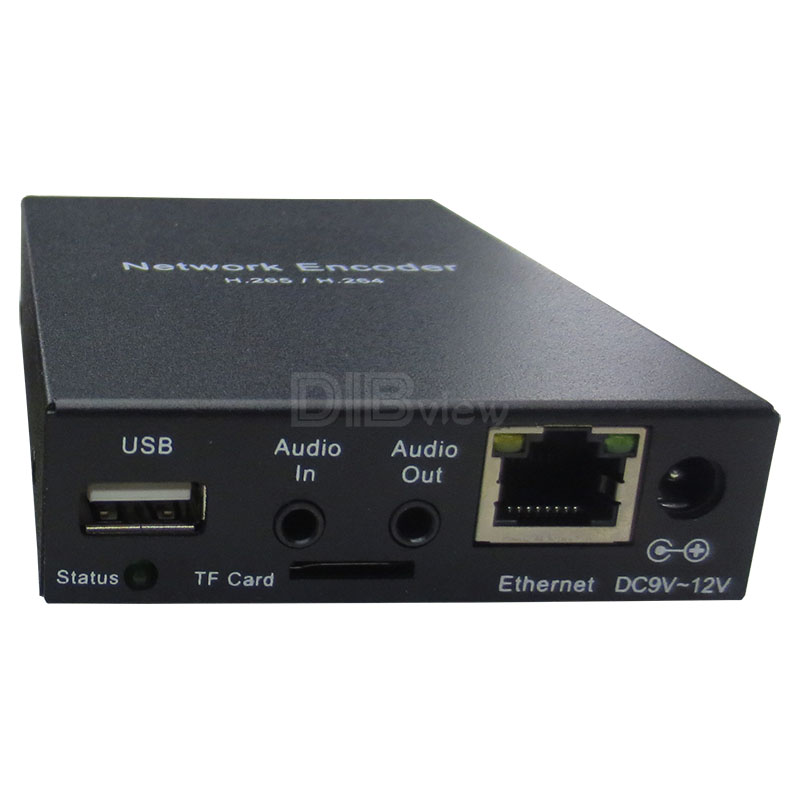

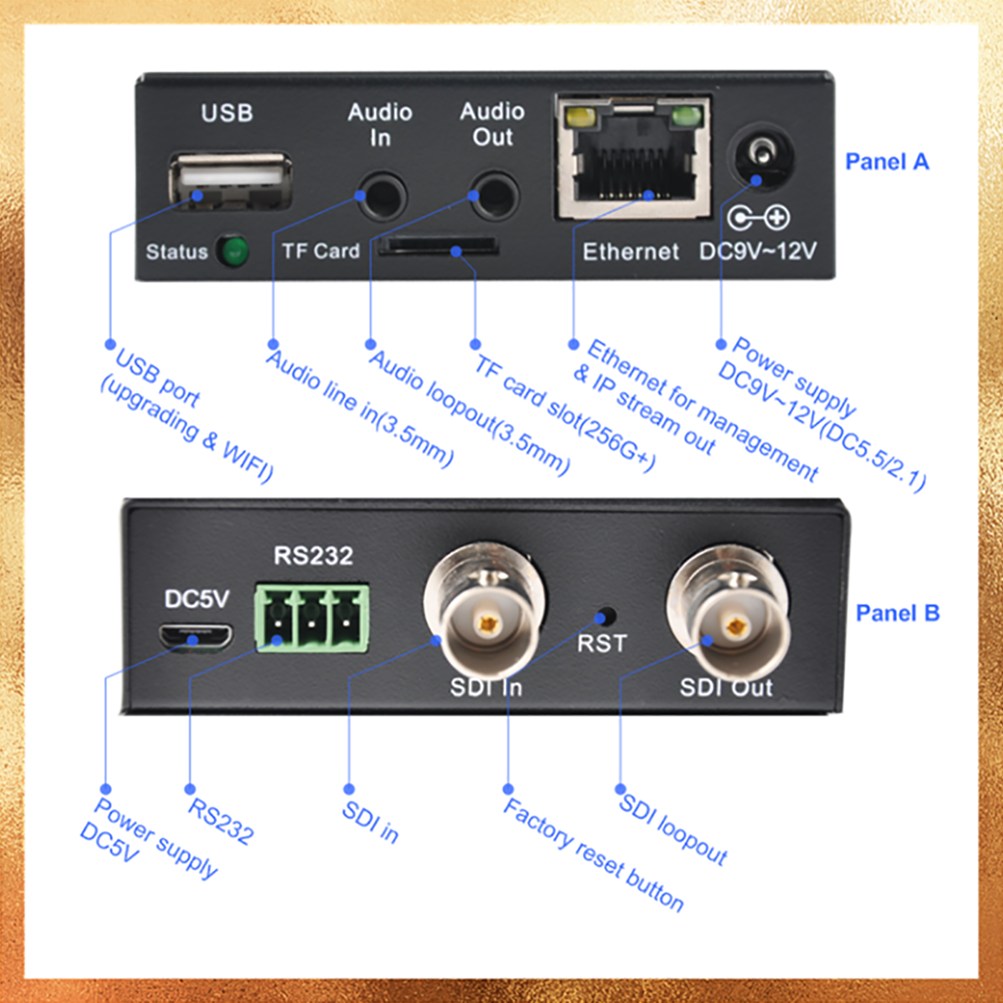

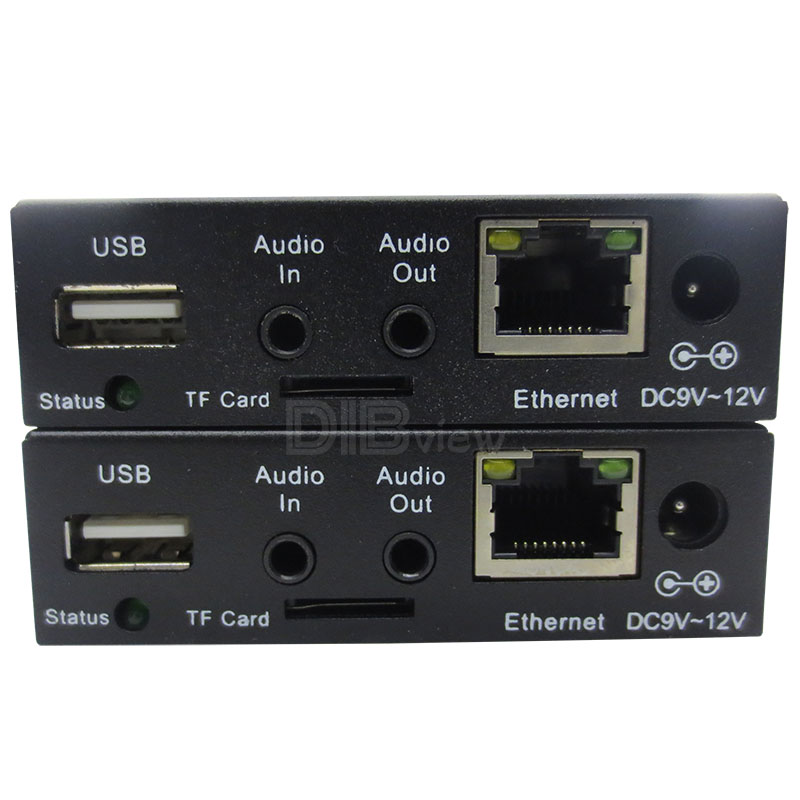

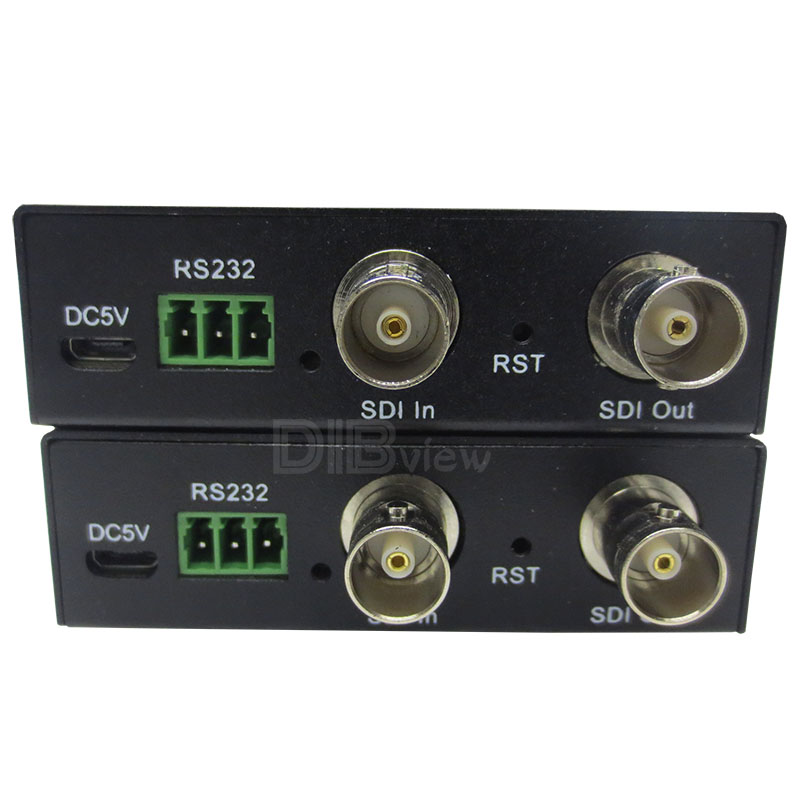

Hardware Interfaces:
