Overview:

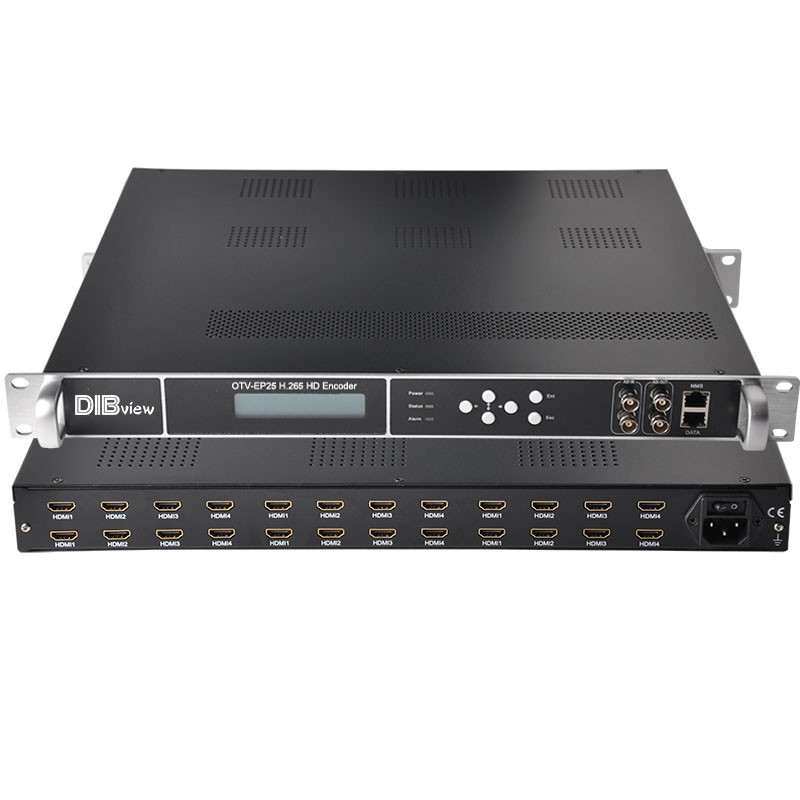

OTV-EP25 Multi-Channel HD Encoder with H.264/H.265 video encoding mode by default, H.265 high compression ratio can help to save bandwidth up to 75% than H.264. Besides that, this device can provides MPTS/SPTS/ASI independent multiplexing output and IP output channel switch.
With PSI/SI technology to modify the audio and video PID information of the output program, OTV-EP25 Multi-Channel HD Encoder also supports to insert a NIT information table into the WEB to achieve better compatibility with the backend devices. OTV-EP25 supports to edit program number and name of the output video stream, and the logical channel number setting can also be added to the encoder.
Overall Dibview's encoder/modulators with OSD/Logo/QR code Insertion function, which perfectly suit any professional SD/HD Video company, including TV Channels, Live broadcasters, Government applications, Hotel, Campus, Entertainment facilities, education broadcasting systems at schools and government buildings and many others. Many outstanding features are integrated into OTV-EP25, In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end (CATV), digital TV broadcasting (DTV), and OTT IPTV streaming projects.
Key Features:
Distribute up to 4/8/12/16/20/24 channels of HD Programs Content
H.264/H.265 video encoding compression
Two separate ASI input for External TS Multiplexing
ASI Multiplexing Inputs and Outputs: Compatible with traditional ASI Ports connected in Digital TV head-end Solution
Simultaneously MPTS and SPTS over UDP/RTP IP out
Audio encoding: MPEG-1 Layer 2, Optional: AAC-LC, AAC-HE v1, AAC-HE v2, AC3
Audio gain adjustment supported
Selectable the Value of PCR PID same as Video PID
CBR mode supported
Selectable LOGO,QR code, OSD insertion for every, All or Each module of local channel
Support TTL editing
LCN (Logical Channel Number) support
PSI/SI editing & inserting
PID Remapping & Filtering
Support PCR correct and PCR interval adjusting
Control via web management, and easy updates
Technical Specifications:
Item | Description |
Video Specifications | |
Input Resolution: 1920×1080@60P, 1920×1080@60i, 1920×1080@50P, 1920×1080@50i, 1280×720@60P, 1280×720@50P, 720×576@50i,720×480@60i Output Resolution: 1920×1080@30P, 1920×1080@25P, 1280×720@30P, 1280×720@25P, 720×576@25P,720×480@30P Encoding: H.265/MPEG-4 AVC/H.264 Bit-rate: 1Mbps~13Mbps Rate Control: CBR GOP Structure: IPPPP (P Frame adjustment, without B Frame) | |
Audio Specifications | |
Audio compression: MPEG-1 Layer2, LC-AAC, HE-AAC (v1&v2). Dolby Digital AC3(optional) Sampling rate: 48KHz Sampling accuracy: 24-bit Encoding bit rate: 64Kbps~320Kbps | |
Stream Output | |
RJ45 Port 100/1000M GbE Port Simultaneous output with N*SPTS (from HDMI channels) and 1*MPTS (modulation or MPTS channels) MPEG-4 TS over UDP, unicast, and multicast streaming MPEG-4 TS over RTP/RTSP Configurable packet size(2-7)x188Bytes, Filter Null Packet Total Bitrate: 1-200Mbps (Should be More than Encoding bitrate) | |
ASI Input | |
Connector: BNC female, 75Ω Signal Level: 200-800mVp-p Packet Length: 188 bytes Maximum bit-rate per port:≤100Mbps Number of Input Ports: Dual separate ASI ports | |
ASI Output | |
2 Separate ASI, (Select from modulation Channels or MPTS channel) 75Ω, BNC, 188Bytes MPEG-4 TS over DVB-ASI (EN 50083-9) | |
Management | |
Local interface: LCD+control buttons Remote management: Web/NMS NMS interface: RJ45, 100M Language: English | |
The Working Environment | |
Dimension: (WxLxH) 482mm×380mm×44mm Gross Weight: 4.6KG Temperature: 0 to 45(For working), -20 to 80(For storing) Input Voltage: AC 100V-220V±10%, 50/60Hz | |

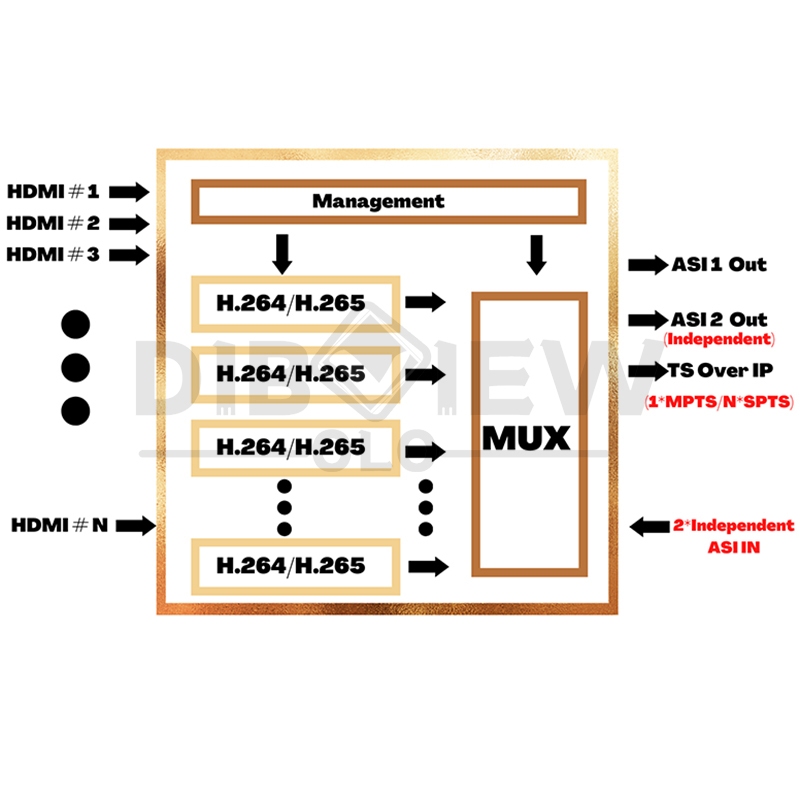

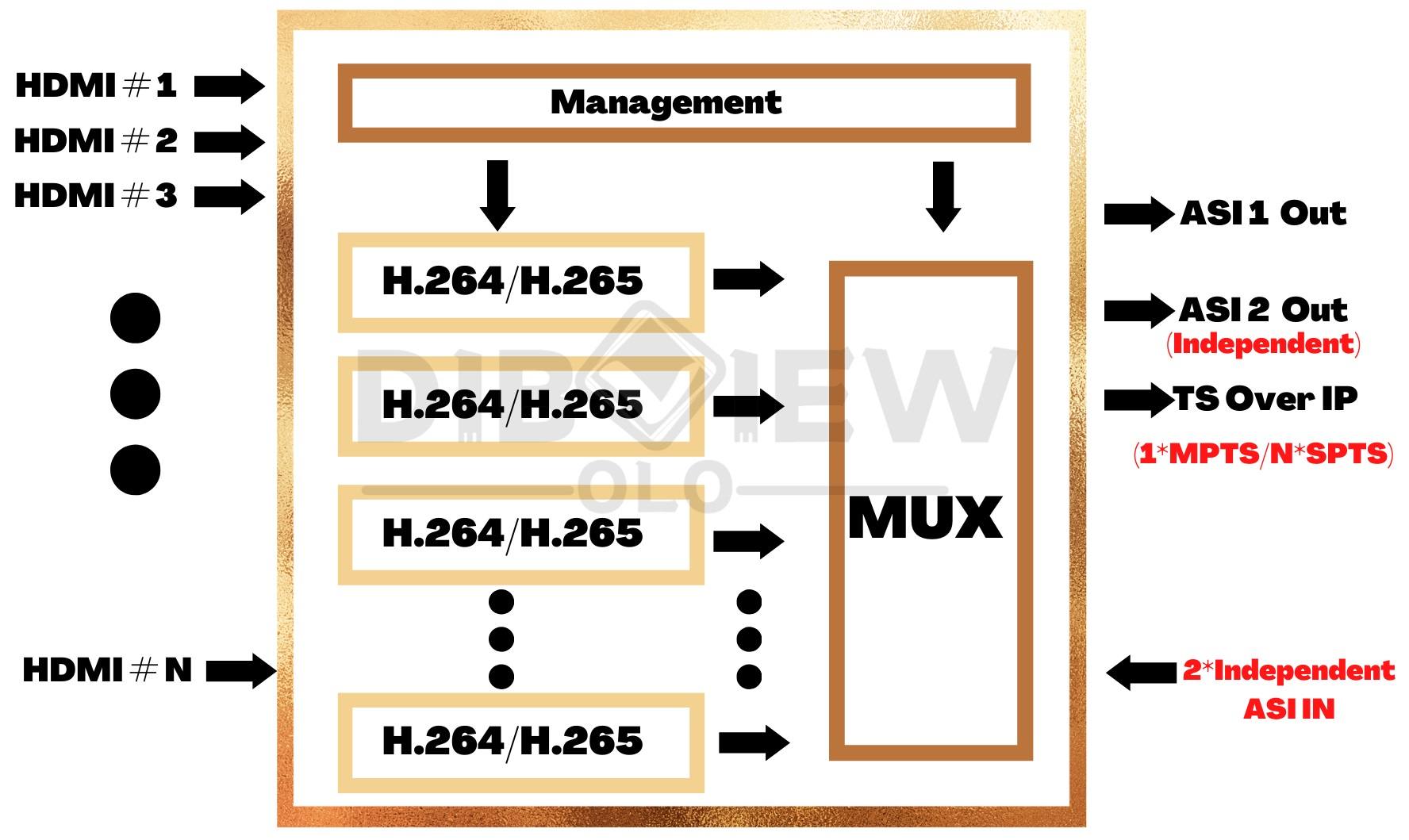

Key Diagram:
