Overview:

OTV-USB2 H.265/H.264 Streaming IPTV HDMI Video Encoder (With USB Port to collect Video from USB Camera) is DIBVIEWOLO newest professional HD audio and video encoding device with powerful functionality, which is equipped with 1 Channel HDMI input, 1 Channel HDMI Loopout, multi-screen multiprotocol series IP Encoder are designed to demand the increasing needs for video delivery to Internet and mobile devices.

OTV-USB2 H.265/H.264 Streaming IPTV HDMI Video Encoder supports audio and video collection by 1-Channel HDMI input. For HDMI input, each channel of HDMI input supports output 4 groups IP streams with four different resolution (up to 1080p) and another four different bitrates to meet different size screen and different bandwidth condition. Each group of IP stream supports kinds of main protocols output (SRT, HLS, RTMPs, HTTP, RTSP, UDP), this enable Encoder to deliver H.264/H.265 IP streams by independent IP output to various servers for IPTV & OTT application. Such as Facebook Server, YouTube Server, Ustream Server, Adobe Flash Server, Wowza Media Server, and some other servers based on SRT/HLS/UDP/RTSP/RTMPs/HTTP/ONVIF protocols. Moreover, providing username, password matching function which required from destination server, to avoid the streaming which does not authorized.

OTV-USB2 H.265/H.264 Streaming IPTV HDMI Video Encoder is an excellent Hardware encoder for professional broadcast level IPTV & OTT system construction, hospitality Hotel IPTV application, Remote multi-window video conference, Remote education and Remote medical treatment and etc.

Not only 1-channel HDMI, we also produce multichannel HDMI Streaming Encoder which is packed by 2U or 3U Rack. For 3U rack, support max 16pc independent encoding modules to be installed.

Main Features:

Provide H.265/H.264 encoding

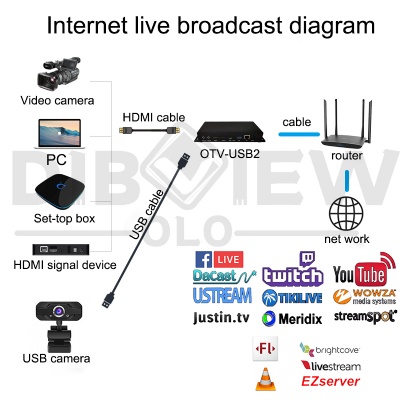

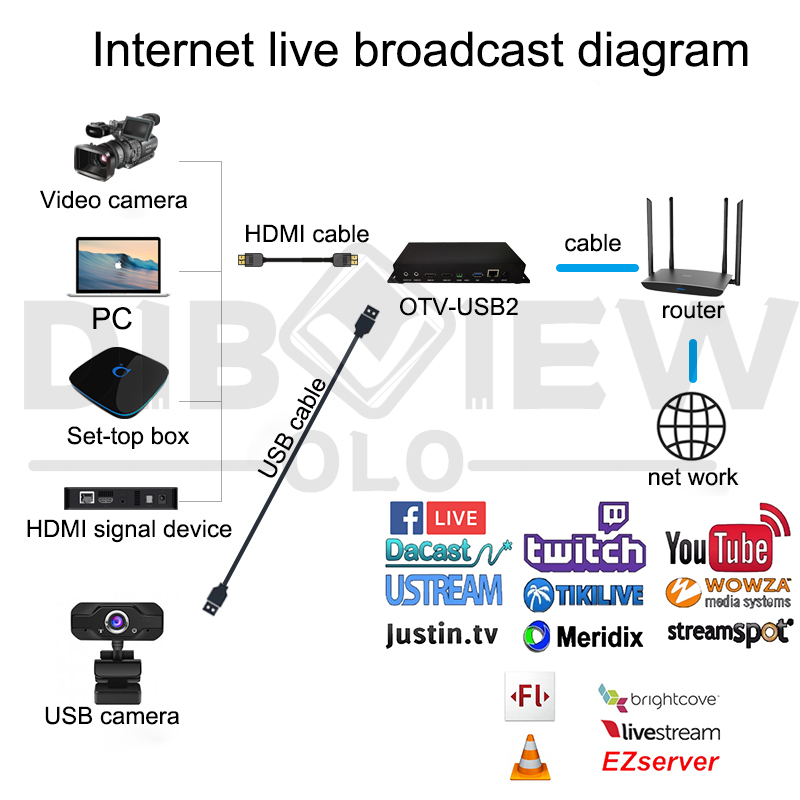

Support USB camera+HDMI input video signal combo, picture-in-picture+2 channels of sound superimposition

1 HDMI output monitoring

Support HTTP HLS RTSP UDP RTMP ONVIF SRT and other protocols for transmission

Support HDMI resolutions such as 1920x1080, 1600x1200, 1280x720, 800x600, etc.

Input and output frame rate support: 1~60 frames per second

The HDMI HD signal is encoded and compressed to output the TS and HLS streams of the standard H.265 and H264, seamlessly connecting with mainstream cloud platforms such as Baidu Cloud/LeTV/Audian Cloud/Tencent Cloud/Youtube and Facebook.

Support external Audio IN input, switch with HDMI audio, choose one of the two. Superimposed and mixed with USB camera sound.

OSD can superimpose subtitle effects.

Compatible with access to NVR products such as Dahua, Hikvision, and Univision, with sound.

The Usage:

You can use VLC, Potplayer, and hardware decoder to play the following pull stream addresses:

1) http://192.168.1.168/0.ts

2) http://192.168.1.168/0.hls

3) http://192.168.1.168/0.m3u8

4) http://192.168.1.168/0.flv

5) rtsp://192.168.1.168/0

6) rtmp://192.168.1.168/live/0

7) udp://@238.0.0.1:1234 (udp unicast and multicast)

It also supports RTMP/RTMPS/SRT streaming to Baidu Cloud, LeTV Cloud, Aodian Cloud, Tencent Cloud, WeChat, etc.,  Facebook, YouTube, Ustream, Twitter, Sopplus, etc.

Technical Specifications:

Applications:

Agencies, TV & Pro Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference

IPTV/OTT system

Government, Education and Music

Digital Signage Project

Video Monitoring
