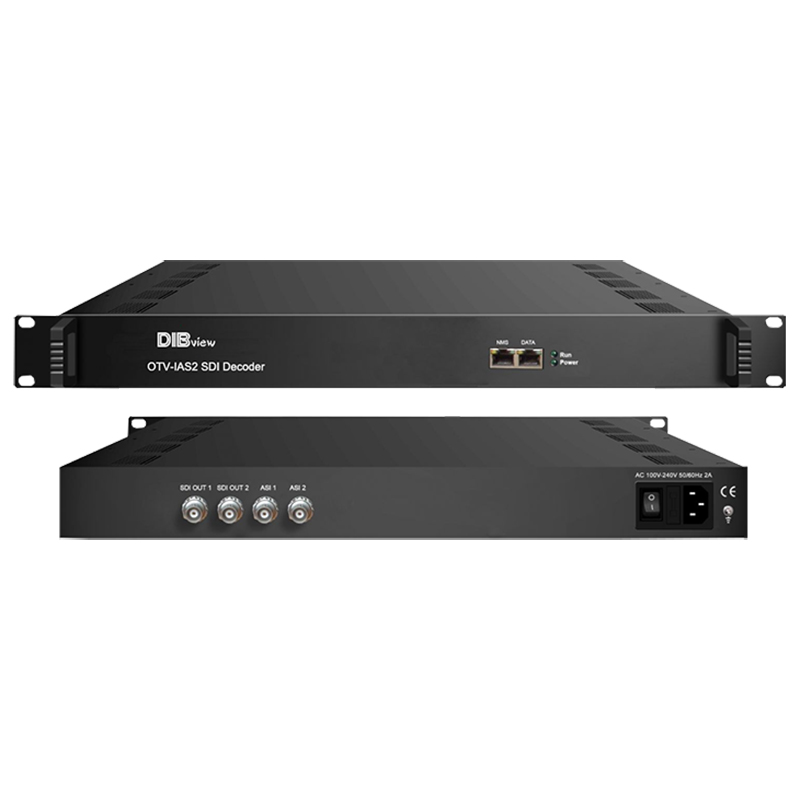

    IP ASI To Multi-Channel SDI Professional Decoder

    EMAIL   INQUIRY

Overview:

OTV-IAS2 IPASI To Multi-Channel SDI Professional Decoder provides a high-integrated and cost-effective solution for digital TV head-end system project. Which is a 1U case supporting both IP and ASI input. After decoding process, it outputs 2 channels of HD/SD-SDI videos with dual stereo audios embedded in each port. It also supports 1*IP (MPTS) output and featured with dual bi-directional ASI ports for input and output alternatively, capable of MPEG-2 and MPEG-4 AVC/H.264 Decoding.


Based on the users' request for multi-channels decoding with the TSoIP or ASI input signal source, the OTV-IAS2 IP ASI To Multi-Channel SDI Professional Decodercan work properly together with other head-end equipments for kinds of system applications including DVB, IPTV/OTT, Hotel TV, Industrial surveillance, etc.


With the newest and advanced IP stream processing technology, DIBVIEW's OTV-IAS2 IP ASI To Multi-Channel SDI Professional Decoder becomes a very cost-effective product in the worldwide market of multi-channels decoder.


Key Features:

  • Low power consumption, rack-mount design

  • 2*IP input and 1*IP output

  • 2 bi-directional ASI ports with input and output alternatively

  • 2*HD/SD-SDI decoding out with dual stereo audios embedded in each port

  • Support MPEG-2 and MPEG-4 AVC/H.264 Decoding for video

  • MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough for audio

  • Support CC/Subtitle

  • Easy manage with web-server remote control

  • Management by NMS


Technical Specifications:

Item

Description

Input

2*IP (MPTS/SPTS, 100M/1000Mbps  Ethernet, RJ45, UDP protocol, Unicast/multicast)

2* ASI bi-direction, BNC 75Ω

Decode

Video Format: MPEG-2, MPEG4 AVC/H.264

Interface: 2*SDI HD/SD

Video Resolution: 1080i@50/59.94/60,  720p@50/59.94/60, 576p, 576i, 480p, 480i

Audio Format: MPEG1 Layer2, LC-AAC,  HE-AAC, AC3 (2.0/5.1), AC3 Passthrough

Audio Channel: dual stereo audios  embedded in each port

Output

2*HD/SD-SDI decoding out
2 ASI output
1 IP output over UDP protocol

System


Web-based management


Ethernet software upgrade


Language: English and Chinese

The Working Environment

Voltage: 220VAC±10%, 50Hz

Consumption: 25W

Operating temperature: 0~45°C

Storage temperature: -20~80°C

Humidity: 10~90% (non-condensing)

Dimensions: 328mm(W)* 482mm(D)*45mm(H)

Weight: 5Kg

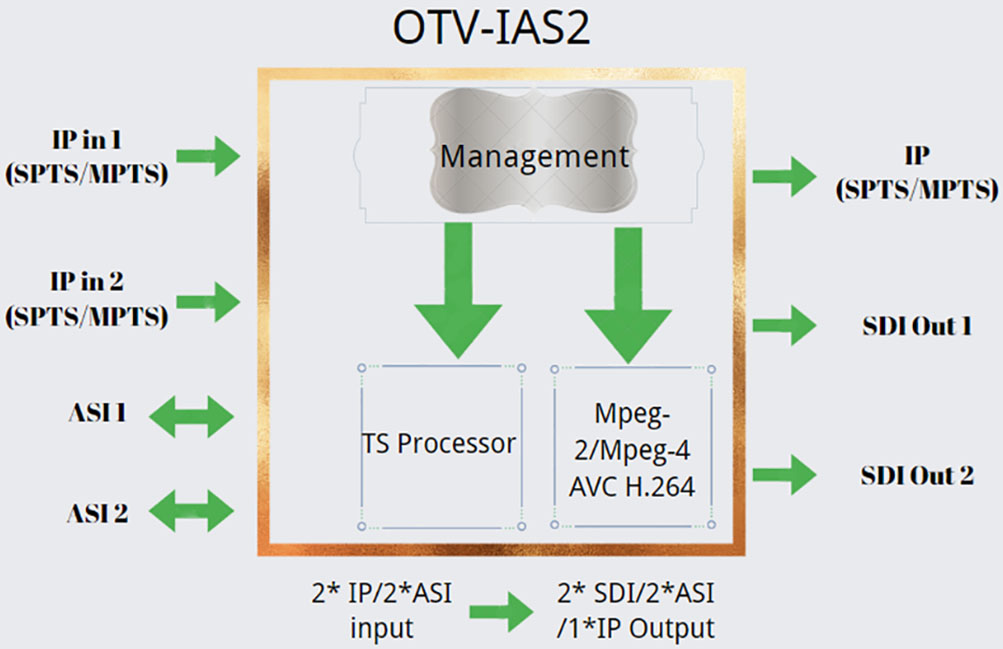

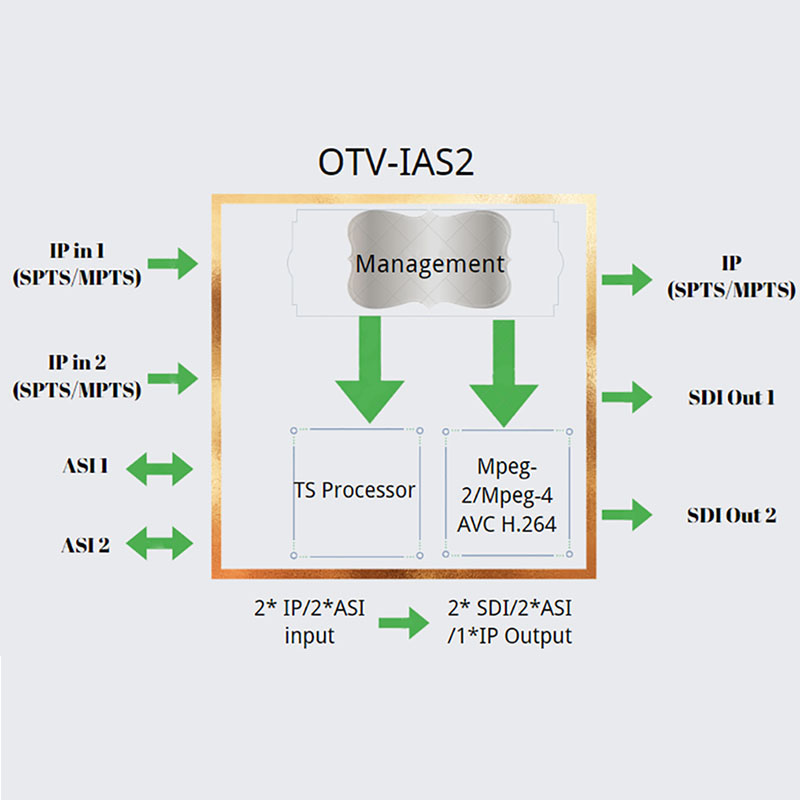

Key Diagram

IP TO SDI Decoder

Key Diagram 1003.jpg
