Overview:

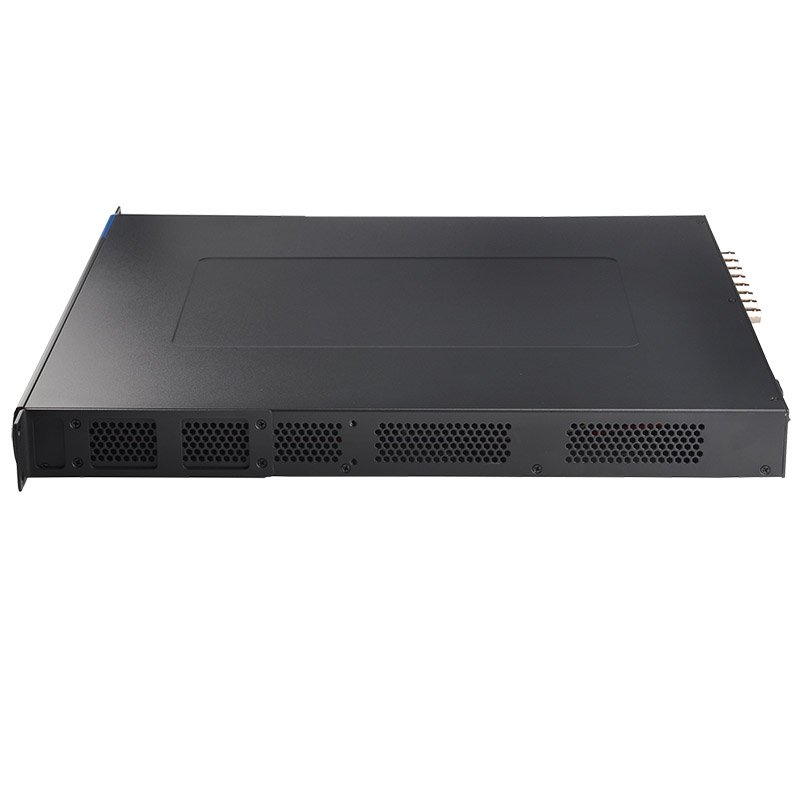

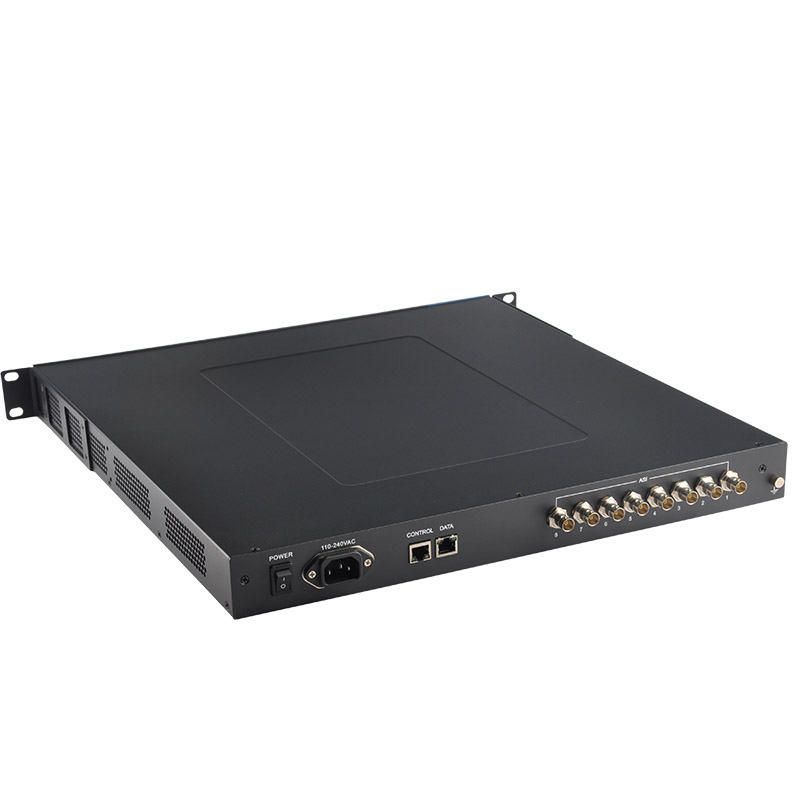

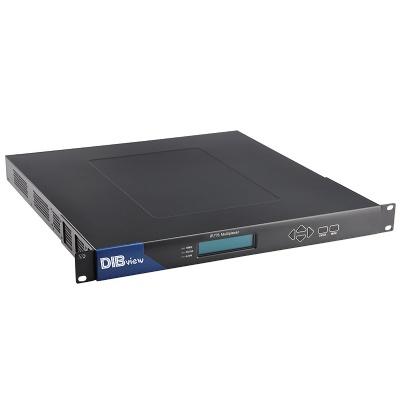

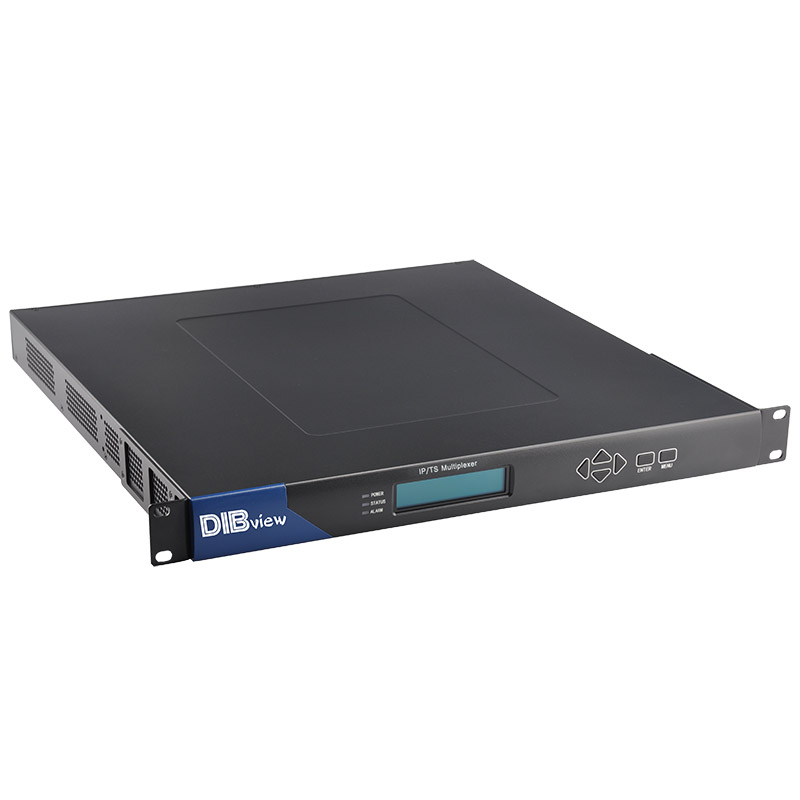

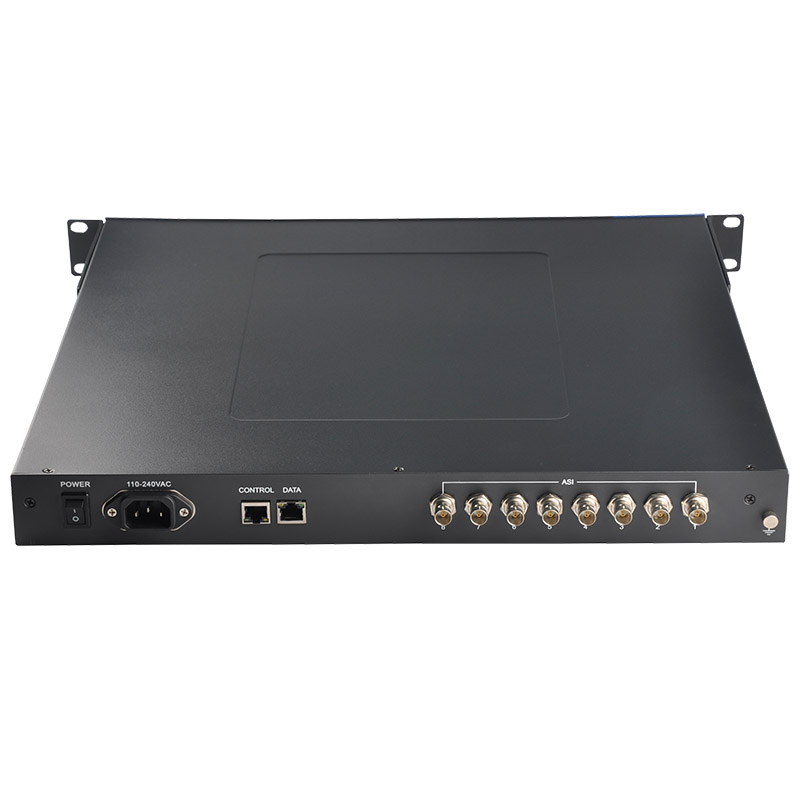

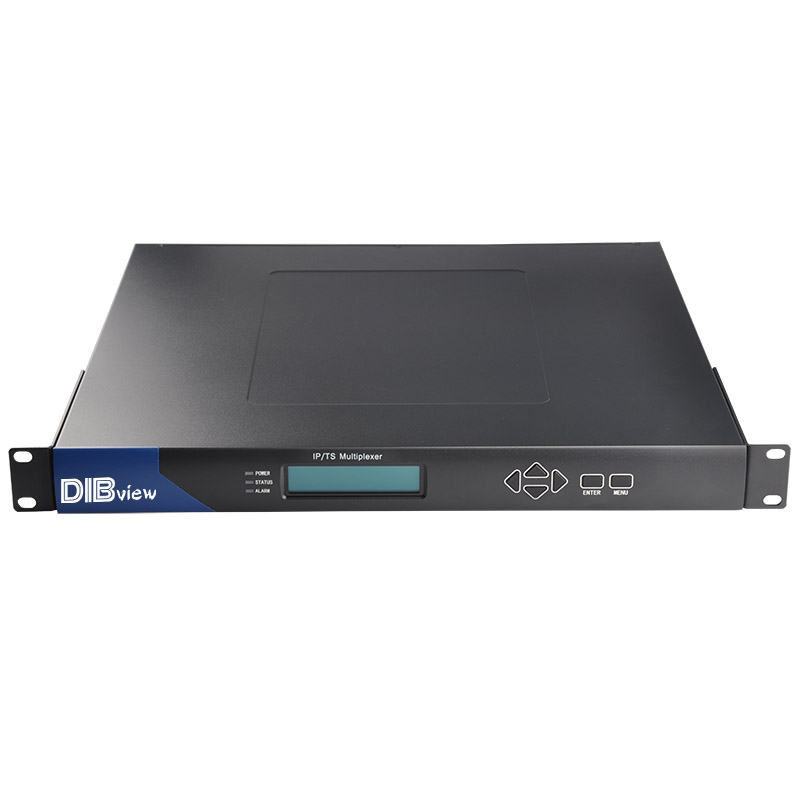

OTV-IPM51B ASI to IP Multiplexer is a professional TS processor and new generation IP Multiplexer used in digital TV broadcasting and IPTV front-end system. It receives 120*IP(MPTS/SPTS)+8*ASI IN channels and multiplex & de-multiplex the input programs into 450*IP STSP+8*IP MPTS OUT.

For easy management, OTV-IPM51B ASI to IP Multiplexer can be controlled and upgraded via web server in addition to front panel keyboard. Its high integration and cost effective design have made it widely used in the CATV Broadcasting system, edge side of Digital TV backbone network, Head-end system of Digital TV branch network etc.

Key Features:

• Fully complying with ISO13818 and EN300 468 standard

• Support 120*IP(MPTS/SPTS) input over RTP/UDP + 8 independent ASI input IN for remux

• Support 450*IP SPTS+8*IP MPTS output

• MAX. input bitrate of IP is 800Mbps.

• Support UDP, RTP, ARP, ICMP, IGMP protocol etc.

• Up to 120 re-multiplexing channels.

• Auto-generation of Network information.

• Support accurate PCR adjusting

• Support PID pass-through, re-mapping, filtering.

• Support PSI/SI rebuilding and editing and auto-generation.

• Huge buffer memory for saving the overflowing code stream

• LCD/keyboard, Web-based and SNMP management, remote upgrading.

• Power off memory, saving the settings for auto-loading after reboot.

• Import & export the settings, easy to be configurable.

Technical Specifications:

Applications:

Hotel TV System

Digital TV Front-end System

Digital TV Broadcasting System

CATV Broadcasting system

Digital TV Programs Transmission

Head-end system of Digital TV branch network

Edge side of Digital TV backbone network
