• OTV-IPAM2 64 in 1 IP to Analog Modulator

OTV-IPAM2 64 in 1 IP to Analog Modulator


Product Description

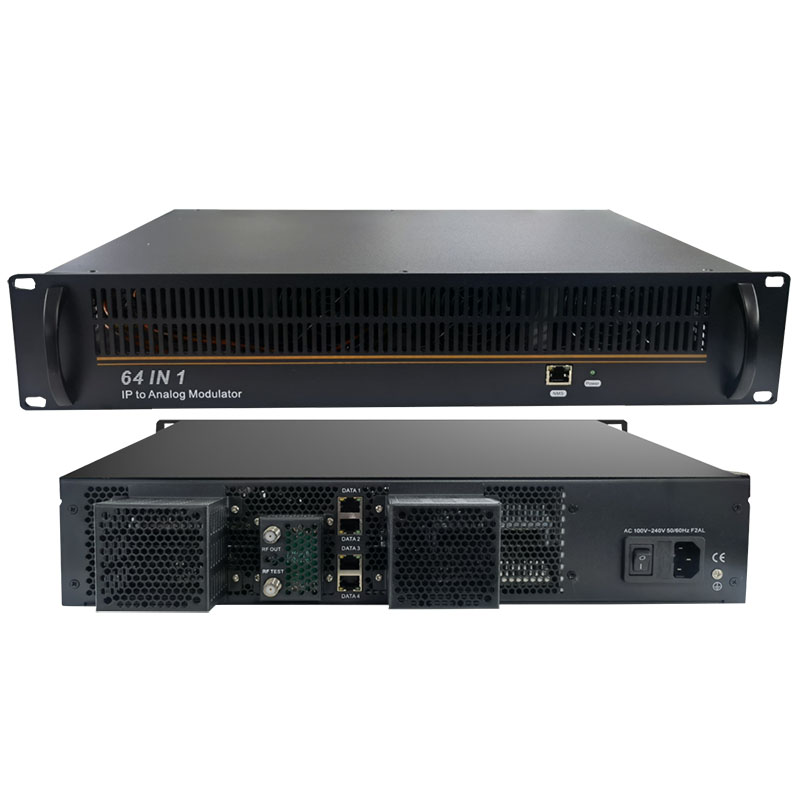

OTV-IPAM2 2U chassis high density analog modulator can ingest multiple HD or SD IP streams in either MPEG-2/ H.264 /H.265 format and convert them to PAL-B/G, PAL-DK, PAL-I, PAL-M, PAL-N, NTSC modulated RF analog outputs for delivery to legacy analog TV networks.


It can decode MPEG-2, H.264 and H.265 encoded video streams in SD and HD quality. In case of HD decoding, automatic downscaling to SD resolution is performed. Numerous audio formats and modes can be decoded and modulated on TV channels.


OTV-IPAM2 ensures a high agility inside the whole RF output frequency range. This enables full flexibility and makes the most efficient use of the available channel spectrum. This allows operators to support legacy analog tiers of service while simplifying headend equipment and power consumption and integrating with modern IP video headend architectures.


Main Features:

  • 4 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input

  • With 2U chassis high density

  • Support H.265/HEVC H.264/AVC, MPEG-2 TS Decapsulation

  • MPEG-1/2 Layer 1/2, (HE-)AAC, AC3, E-AC3 audio decoding

  • Processing of up to 64 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 64 standard PAL or SECAM TV programs (SECAM is under developing)

  • 64 non-adjacent or adjacent carriers output, each 32 carriers within 400MHz

  • OSD (Logo and Caption) insertion for each channel, easy operation

  • CC/Subtitle/Teletext

  • BISS De-scrambling (Under developing)

  • Support program info modify, multiple audio choose

  • Automatic HD to SD downscaling

  • Multi-system (PAL-B/G, PAL-DK, PAL-I, PAL-M, PAL-N, NTSC) support

  • Support Brightness, Saturability, Contrast adjust

  • Web-based Network management


Specifications:

Input Types: 6 GE ports (max 64 IP input), Max 840Mbps for each GE input

Stream: UDP, UDP/RTP, 1-7 packets, FEC, SPTS, MPTS

Transport Protocol: TS over UDP/RTP, unicast and multicast, IGMP V2/V3

Packet Length: 188/204 Bytes.


Decoding Parameters:

Video: H.264/AVC Level 4.1 HP, MPEG-2 MP@HL

Audio: MPEG-1/2 Layer 1/2, (HE-)AAC

Data: CC, Teletext subtitles, DVB Subtitling

Resolution: 480I, 576I, 720P, 1080I, 1080P

Aspect ratio: 4:3/16:9


Resolution:

MPEG-2

1080 @60I, 1080 @50I, 720 @60P, 720 @50P, 576 @50I, 480 @60I

H.264

1080 @60I, 1080 @50P, 1080 @50I, 1080 @30P,

1080 @25P, 720 @60P, 720 @50P, 576 @50I, 480 @60I

H.265

1080 @60P ,1080 @60I, 1080 @50P, 1080 @50I, 720 @60P, 720 @50P


Modulation Parameters:

Number of channels: Up to 64

Connectors: 75Ω, F-jack

Frequency range: 43.25 – 951.25MHz, digital modulation

Output level: -5 ~ 2dBm (102 ~ 112dBμV)

Return loss: ≥ 14dB

Spurious frequency dist≥ 60dB

Carrier to noise ratio≥ 60dB (when single carrier on)

≥ 55.5dB (when all 64 carriers on)

Residual carrier accuracy: 1%

TV standard: PAL B/G/D/K/M/N, NTSC, SECAM(under development)

Video-signal to noise ratio≥ 60dB

Output Bandwidth: 400MHz(each 32 carriers)


Network Interface Management:

1*100 Base-T Ethernet (RJ 45)

Data: 2*1000 Base-T Ethernet (RJ 45)

Protocol: IEEE802.3 Ethernet, RTP, ARP, IPv4, TCP/UDP,

HTTP, IGMPv2/v3


Others Functions

OSD: logo: JPG, BMP, PNG

CAPTION: support multiple languages, scrolling direction and speed customized

Image resolution output 480i/576i

Output volume adjustment: 0-100 %


Working Environment:

Dimension: 483mm×330mm×88mm (WxLxH)

Temperature: 0~45℃(operation), -20~80℃(storage)

Power Supply: AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz
