• OTV-IPM IP ASI TO RF Tansmodulator

OTV-IPM IP ASI TO RF Tansmodulator


Overview:

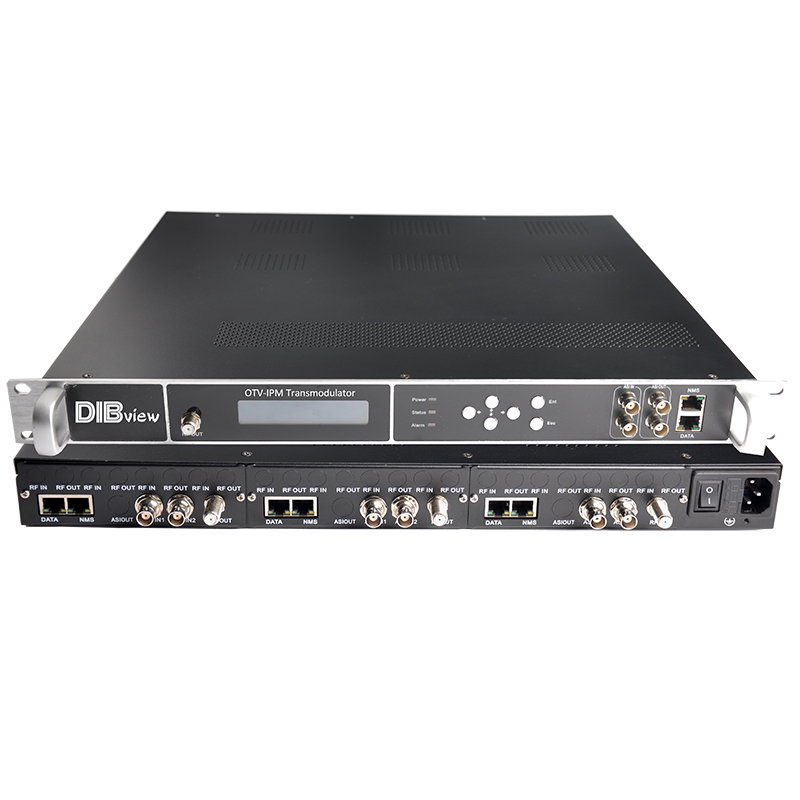

OTV-IPM ASI/IP to RF modulator, with ASI input and output, optional modulation (DVB-C, DVB-T, ATSC, ISDB-T/Tb, DTMB) to convert Video/Audio signals into RF over exist Coax Cable distribution. It provides a best-of-class modulator platform for Digital TV Owners and IPTV operators.


The platform can change the modulation signal by software upgrade, this flexible operation can help to reduce the cost in the operation of the project. OTV-IPM supports modulation channel independent multiplexing, with DVB-T, ISDB-T/Tb, DVB-C, ATSC-T, DTMB modulation output, and each module can output different modulation signals.


By using PSI/SI technology, inserting NIT information table in WEB, ASI/IP to RF modulator series increased compatibility with terminal products in cable TV application.

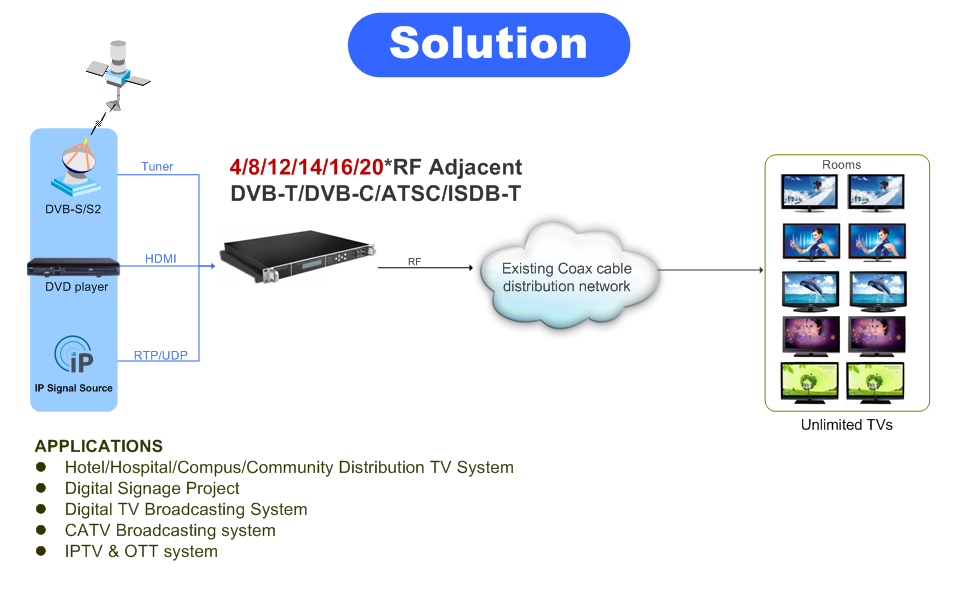

This is an ideal solution used largely to Hotel, entertainment facilities, education broadcasting systems at schools and government buildings or IP Source signals convert to Cable TV broadcast environments.


Key Features:

  • High density, high quality, high performance, high flexibility

  • Max to 3 independent modulation modules in rear panel

  • Each module data input: 128*IP(SPTS/MPTS)+2*ASI in

  • Each module output 4*RF DVB-T/DVB-C/ATSC/ISDB-T/DTMB for option,that is 128*IPx3 input + 2*ASIx3 input independently in 3 modulation modules at rear panel

  • Front panel with 2*ASI independent in, 2*ASI independent out+4*RF output (8*RF option) (Note: for mode of ISDB-T RF output, there is only 1*ASI in and 1*ASI out at front panel).

  • NMS port in back module only for upgrading, NMS port in front panel for management

  • PID Remapping & Filtering, support LCN (Logical Channel Number)

  • Support PSI/SI editing & inserting, PCR correct and PCR interval adjusting

  • Superior Shoulders and Excellent modulation, quality MER

  • Low power consumption, high reliability with MTBF(Mean Time Between Failure)≦87600 Hours

  • Easy-to-Use System Management via Web


Technical Specifications:

Item

Description

ISDB-T Modulation

Standard ARIB STD-B31

Constellation: DQPSK,  QPSK, 16QAM, 64QAM

Guard Interval:1/32, 1/16, 1/8, 1/4

Transmission Mode: 2K, 4K, 8K

Code rate:1/2, 3/4, 5/6, 7/8

Bandwidth:6MHz

ATSC-T

Constellation: 8VSB

DVB-C

Standard J83.A (DVB-C, J83.B, J83.C)

DVB-T

Standard: EN300744

Bandwidth: 6M, 7M, 8M

FFT mode: 2K, 8K

Constellation QPSK, 16QAM, 64QAM

Guard Interval 1/4, 1/8, 1/16, 1/32

FEC 1/2, 2/3, 3/4, 5/6, 7/8

IP Input

Support 128*IP Streaming input  SPTS/MPTS UDP/RTP each module,

total 3 modules 128*IP(SPTS/MPTS) input at front panel.

ASI Input

Each module equipped with  2*ASI independent input

2*ASI input at front panel  (only 1*ASI in front panel when ISDB-T/Tb out)

Connector: BNC female, 75Ω

Signal Level: 200-800mVp-p

Packet Length:188 bytes

Maximum bit-rate: per port≤100Mbps

Number of Input Ports: Dual separate ASI ports

IP Output

Support 127*IP(SPTS) output  and 1*IP(MPTS) UDP/RTP output at front panel.

(ONLY 1*IP(MPTS) output  when running with 3 modules in one device)

ASI Output

DVB-ASI: 2*ASI separate at front panel  (only 1*ASI out when ISDB-T out)

MPEG TS over DVB-ASI (EN 50083-9)

Mux

ONLY capable of multiplexing when  running with max. 1 module in one device.

Maximum PID Remapping 180 input  per channel PID remapping by automatically or manually

Accurate PCR adjusting

Capable of PSI/SI SDI/PMT/TOT/  PAT/BAT/CAT/TDT/NIT Insert

The Working Environment

Power Supply: AC 110V±10%,  50/60Hz or AC 220V±10%,50/60Hz

Power Humidity: AC 110V±10%,  50/60Hz or AC 220V±10%,50/60Hz

Operation temperature: 0 -50°C

Storage temperature: -20-80°C

Dimensions: 482mm *325mm*44mm

Weight: 5.5Kg
