Overview:

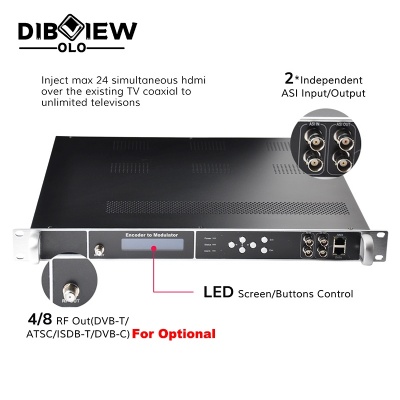

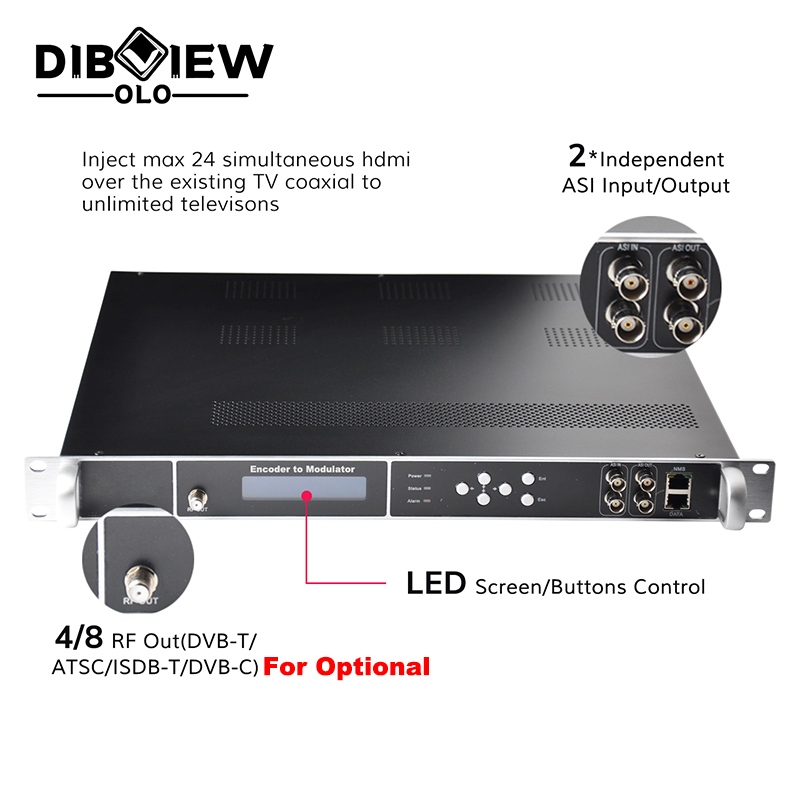

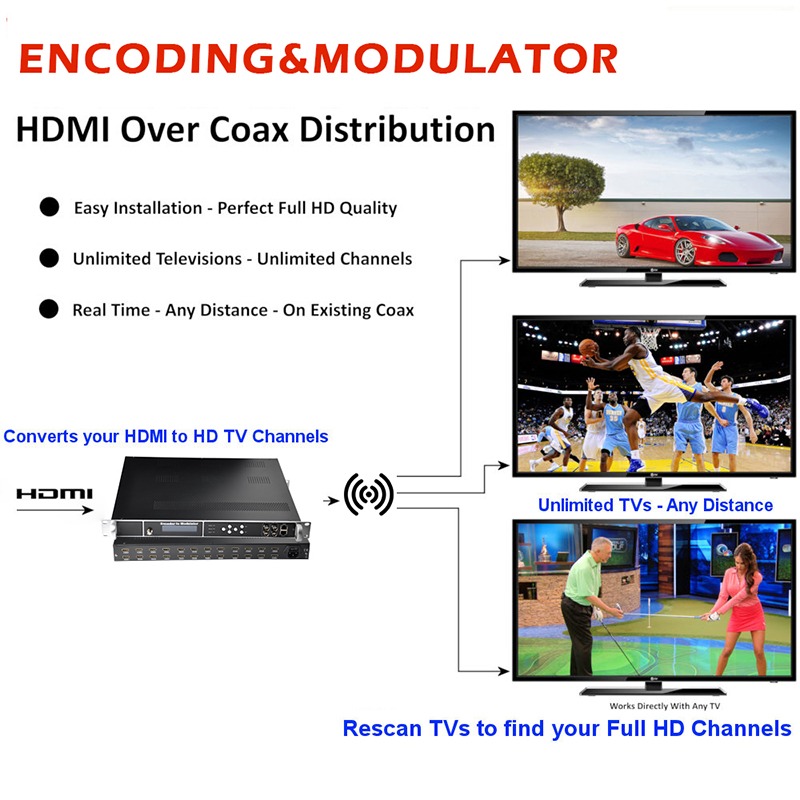

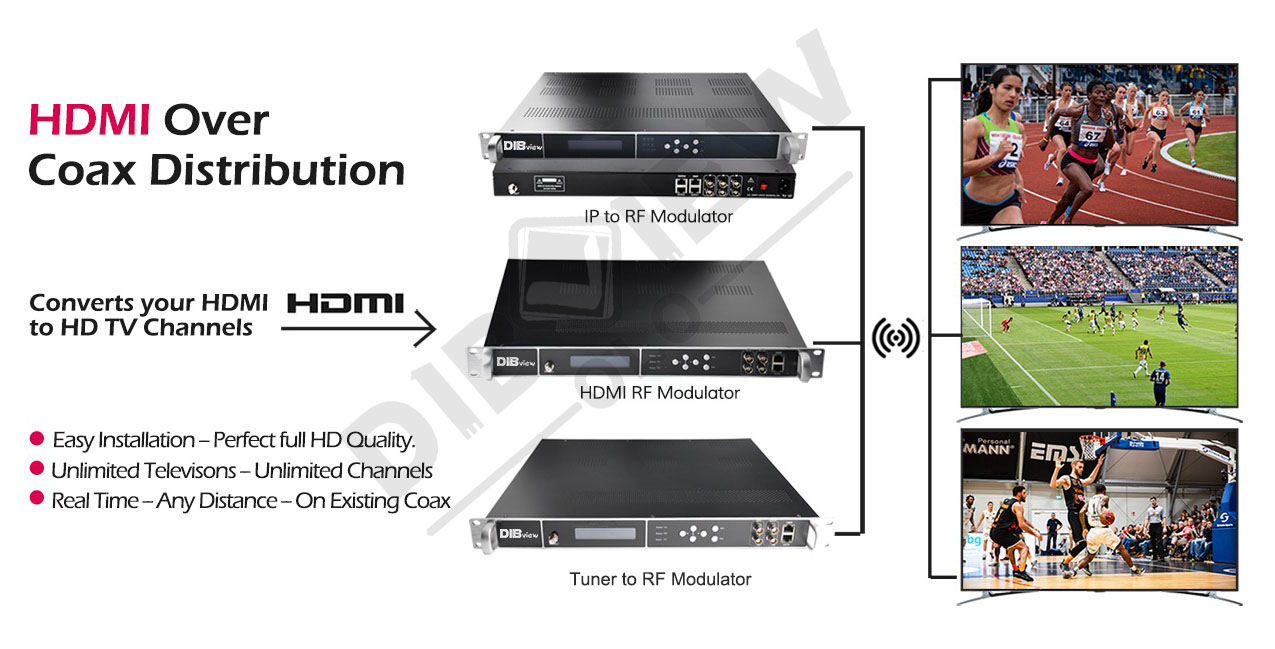

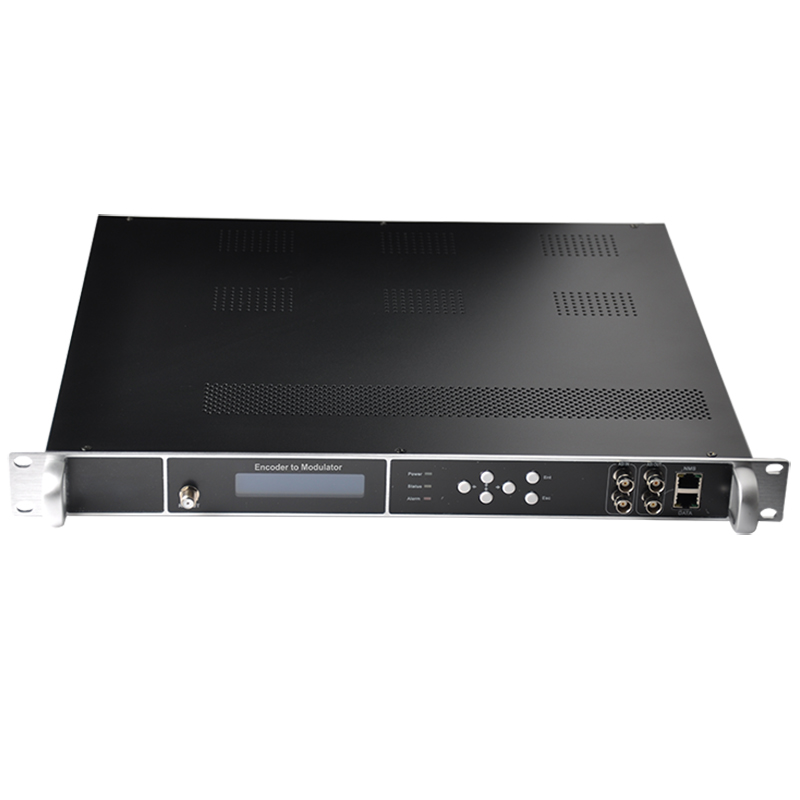

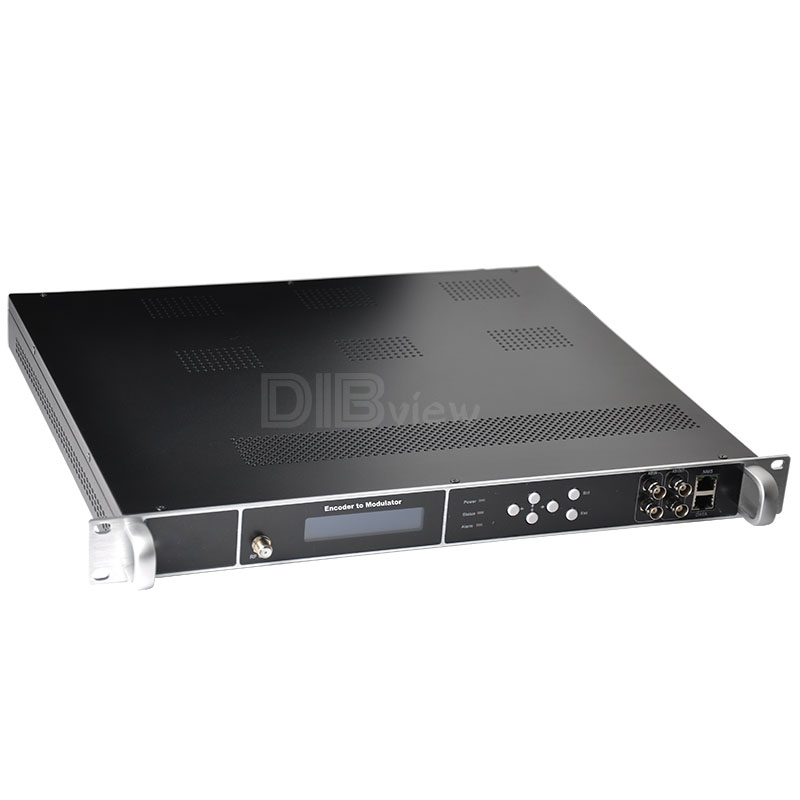

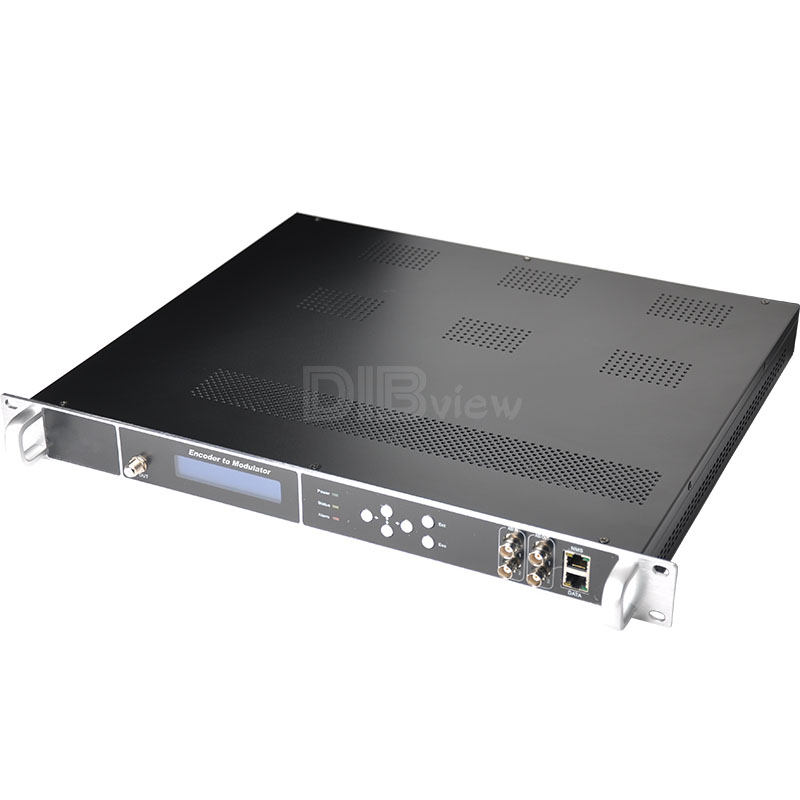

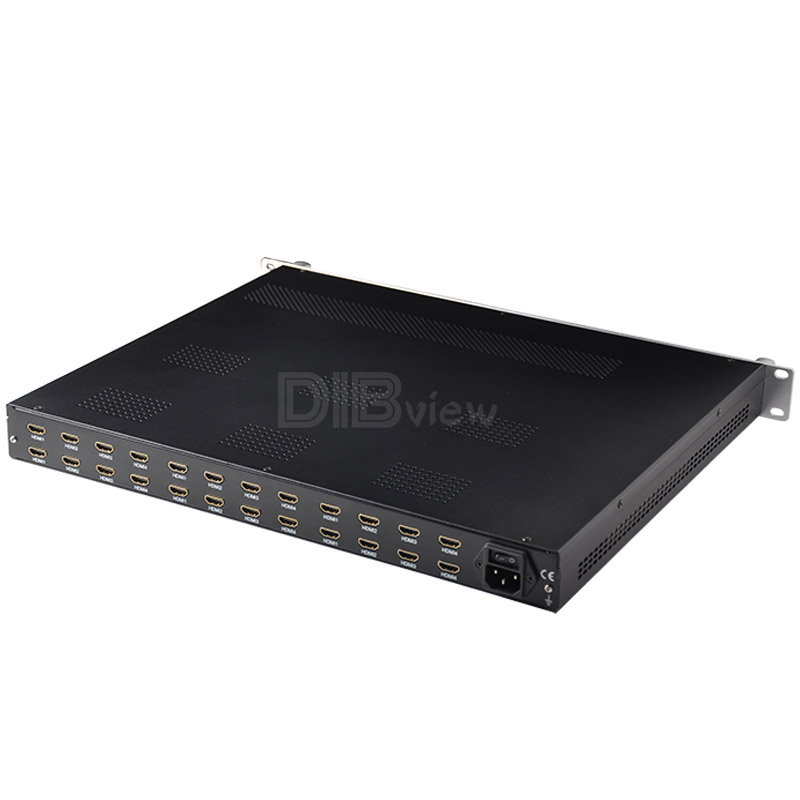

OTV-EM24 4/8/12/16/20/24 Channel HDMI TO RF Modulator up to 24 HDMI sources from Satellite Receiver, PC, Blue ray, Local Playout, the latest new device which integrate encoding (MPEG-4 AVC/H.264) and option modulation (DVB-C/ DVB-T/ISDB-T/ATSC/DTMB) to convert Video/Audio signals into RF over exist Coax Cable distribution.
OTV- EM24 is designed especially for high density Distribution Video Engineering project, which can support rapid deployment, It distribute any HD and SD of HDMI Clear Video to unlimited TVs over the existing TV coax cables with real time perfect quality at any distance.
Overall Dibview's encoder modulators perfectly suit any professional AV company, including TV Channels, Live broadcasters, AV Installers and Integrators, Government applications, Hotel, Campus, Entertainment facilities, education broadcasting systems at schools and government buildings and many others.
OTV-EM24 can be used in some of the most famous ballparks in the world, this is an ideal solution for environments where you have a large number of displays, such as stadiums, entertainment facilities, or broadcast environment. This Video Modulator is designed especially for high channel density environments where Rapid deployment, Easy management and compatibility are critical.
Key Features:
4/8/12/16/20/24 HDMI input, MPEG-4 AVC/H.264 Video encoding
Distribute Up to 8/12/16/20/24 channels of HD content over RF (DVB-T/DVB- C/DTMB/ISDB-T/ATSC) to an unlimited number of TVs
Modulation standard Switchable from UI DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation,4*Carrier RF Out or 8*Carrier RF Out for optional
Simultaneously MPTS and SPTS over UDP/RTP IP out
Two separate ASI input for External TS Multiplexing
Audio gain adjustment supported
4 separate multiplexing and Up-converter modulating adjacent carrier out
Selectable the Value of PCR PID same as Video PID
PID Remapping & Filtering
Support PCR correct and PCR interval adjusting
Superior Shoulders and Excellent modulation quality MER
Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≤87600 Hours
Easy-to-use System Management via Web
Technique Specifications:

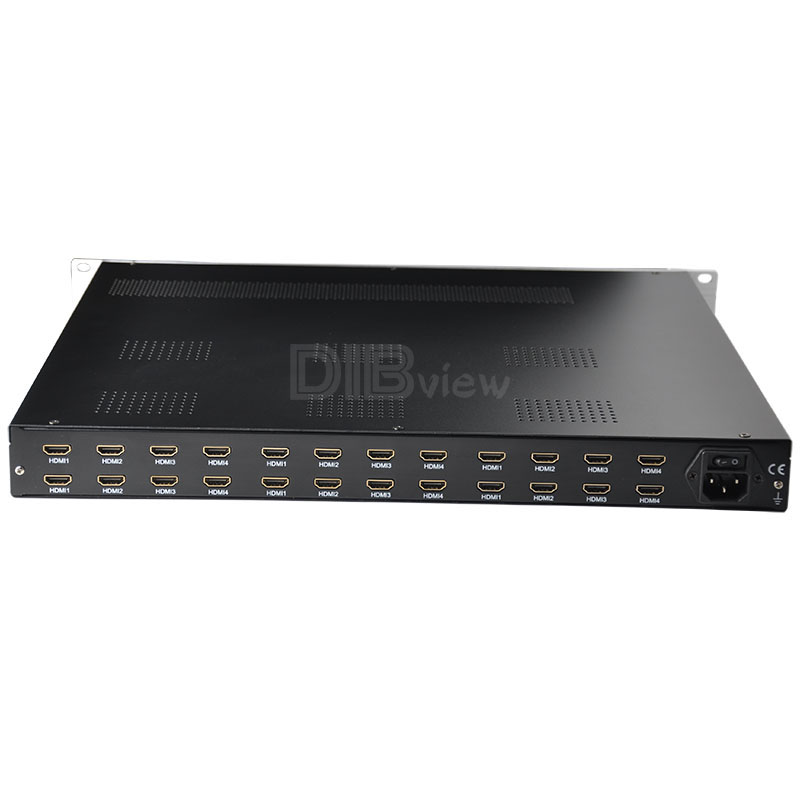

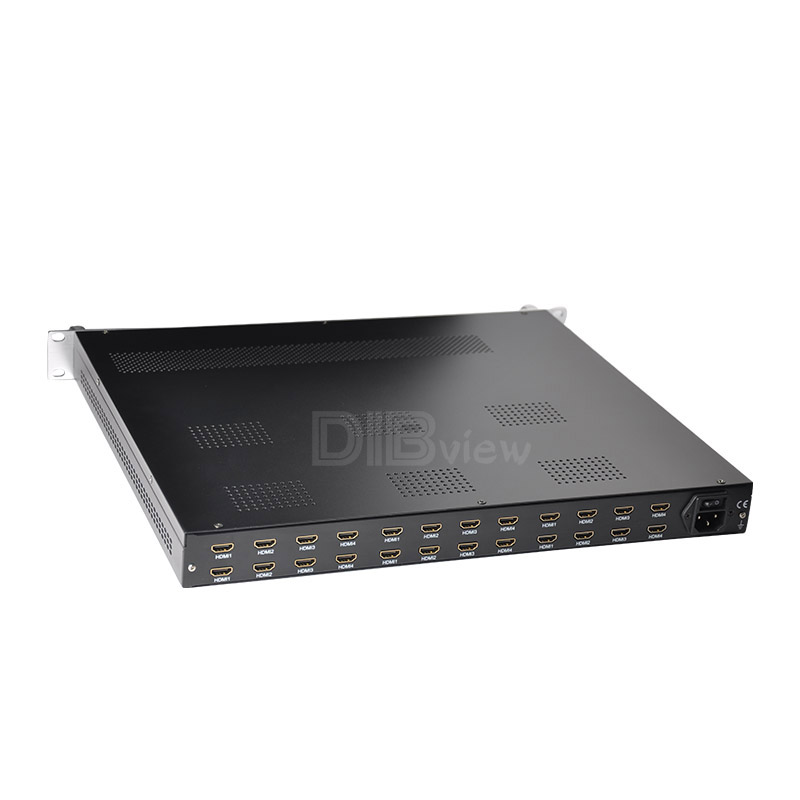

Item | Description | ||||
Encoding HDMI Inputs | |||||
Numbers of Boards: 4 HDMI ports per module, up to 6 Modules in Back panel Numbers of Ports: 4, 8,12,16,20,24 Channels | |||||
DVB-ASI Inputs | |||||
Connector: BNC female, 75Ω Signal Level: 200-800mVp-p Packet Length: 188 bytes Maximum bit-rate per port≤100Mbps Number of Input Ports: Dual separate ASI ports | |||||
Video Processing | |||||
Input Resolution: 1920×1080@60P, 1920×1080@60i, 1920×1080@50P, 1920×1080@50i, 1280×720@60P, 1280×720@50P 720×576@50i,720×480@60i Output Resolution: 1920×1080@30P,1920×1080@25P, 1280×720@30P, 1280×720@25P, 720×576@25P,720×480@30P Encoding: MPEG-4 AVC/H.264 Bit-rate:1Mbps~13Mbps Rate Control: CBR,VBR | |||||
Audio Processing | |||||
Encoding: MPEG-1 Layer 2, AAC Sampling rate: 48KHz Resolution: 24-bit Bit-rate: 64kbps, 128Kbps, 192kbps, 224kbps,256kbps, 320kbps, 384kbps Audio Gain: 0-255 | |||||
Multiplexing | |||||
Maximum PID Remapping 180 input per channel PID remapping by automatically or manually PSI/SI SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert Accurate PCR adjusting Max Numbers: 4 mux for RF and 1 Mux for MPTS IP out in Modulation 4 Mpts IP out In Tuners gateway | |||||
RF Modulation | |||||
Connector: 1 Port, F-Type, 75 Output Return Loss: 14 dB MER: ≥40dB RF output level: -30~-10dbm,0.1db step RF frequency: 47-860Mhz, 1KHz step Numbers of RF Channel: 4 Modulation Mode: DVB-C, DVB-T, ATSC, ISDB-T, DTMB | |||||
DVB-T Standard EN300744 | |||||
FFT mode: 2K, 8K Bandwidth: 6M, 7M, 8M Constellation: QPSK, 16QAM, 64QAM Guard Interval: 1/4, 1/8, 1/16, 1/32 FEC: 1/2, 2/3, 3/4, 5/6, 7/8 | |||||
| Annex A; Annex C | |||||
Bandwidth(Mhz) | 16,32,64,128, 256 | 64 | 256 | 64/256 | |
Symbol Rate(Mbaud) | 8 | 6 | 6 | 6 | |
Constellation(QAM) | 5-7 | 5.057 | 5.361 | 4.2-5.3 | |
Constellation(QAM) | 16,32,64,128, 256 | 64 | 256 | 64/256 | |
ISDB-T Standard ARIB STD-B31 | |||||
Constellation: DQPSK, QPSK, 16QAM, 64QAM Guard Interval: 1/32, 1/16, 1/8, 1/4 Transmission Mode: 2K, 4K, 8K Guard Interval: 1/32, 1/16, 1/8, 1/4 Code rate: 1/2, 3/4, 5/6, 7/8 Bandwidth: 6Mhz | |||||
ATSC-T Standard 6Mhz ATSC A/53 | |||||
Constellation: 8 VSB | |||||
DTMB Standard 6Mhz GB20600-2006 | |||||
Constellation: 4QAM, 16QAM, 32QAM, 64QAM Code rate: 0.4, 0.6, 0.8 Guard Interval: 420, 595, 945 | |||||
Stream Output | |||||
DVB-ASI: 2 Separate ASI, (Select from modulation Channels or MPTS channel) 75Ω, BNC, 188Bytes MPEG TS over DVB-ASI (EN 50083-9) RJ45 Port 100/1000M GbE Port Simultaneous output with N*SPTS (from HD MI channels) and 1*MPTS ( modulation or MPTS channels) TS over UDP, unicast, and multicast streaming TS over RTP/RTSP Configurable packet size(2-7)x188Bytes Filter Null Packet Total Bitrate: 1-200Mbps (Should be More than Encoding bitrate) | |||||
Management | |||||
LCD/keyboard, Web/NMS management, remote upgrading | |||||
The Working Environment | |||||
Voltage: 100 to 120/200 to 240V AC ±10%; 50/60Hz | |||||
