Overview

OTV-IPMC IP To RF Modulator, support Date1,date2,date3 (3*GigE) port by UDP/IP input ,each IP data port support 128*SPTS/MPTS inputt. Meanwhile OTV-IPMC with 6*ASI input, support 16*ISDB-T/DVB-T/ATSC or 32*DVB-C Non-adjacent RF DVB-C output ,IP 8*MPTS/SPTS output from Data 1,multiplexing the programs from IP and ASI sources to next device.

Main Features

• Input: 3 *Date(1,2,3)UDP/IP port .each data port support 128*IP(SPTS/MPTS)

• Support 6*ASI in

• Output 16*RF DVB-T/ATSC/ISDB-T/DTMB or 32 DVB-C for option, 1 IP(8*MPTS/SPTS) from date1 Output

• Front panel: L1/L2/L3/H1/H2/H3 indicator light for 6*ASIinput

• NMS port for management

• PID Remapping & Filtering

• PSI/SI editing & inserting

• Low cost solution for Hotel TV System

• Support PCR correct and PCR interval adjusting

• Superior Shoulders and Excellent modulation, quality MER

• Low power consumption, high reliability with MTBF(Mean Time Between Failure)≦87600 Hours

• Easy-to-Use System Management via Web

• Support:(LCN Logical Channel Number)

Key Specification

ISDB-T MODULATION

ISDB-T RF out: 16*ISDB-T RF out

ISDB-T Standard ARIB STD-B31

Constellation: DQPSK, QPSK, 16QAM, 64QAM

Guard Interval:1/32, 1/16, 1/8, 1/4

Transmission Mode: 2K(If you need 4K,8K , consult with sales)

Code rate:1/2, 3/4, 5/6, 7/8

Bandwidth:6MHz

DVB-T MODULATION

Channel:16*DVB-T RF out.

Modulation standard: EN300744

Bandwidth: 6M, 7M, 8M

FFT mode: 2K, 8K

Constellation QPSK, 16QAM, 64QAM

Guard Interval 1/4, 1/8, 1/16, 1/32

FEC 1/2, 2/3, 3/4, 5/6, 7/8

ATSC-T MODULATION

Channel:16*ATSC-T RF out.

Constellation: 8VSB

DVB-C MODULATION

Channel: 32*DVB-C RF out.

DVB-C Standard J83.A,J83.C

IP STREAM INPUT

Support 8*IP(MPTS/SPTS) UDP/RTP output from DATE1

MULTIPLEXING

ONLY capable of multiplexing when running with max.

Maximum PID Remapping 180 input per channel PID remapping by automatically or manually

Accurate PCR adjusting

Capable of PSI/SI SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert

GENERAL OPTIONS

Configuration Interface: Web-based, NMS

Remote: Upgrade via network

Connector: RJ45, 100M/1000M Ethernet interface

PHYSICAL AND POWER

Voltage 110~220V

Consumption: 18~20W

Operating temperature: 0~50°C

Dimensions: 483mm(W)*360mm(D)*44.5mm(H)

Weight: 5.1KG/pcs

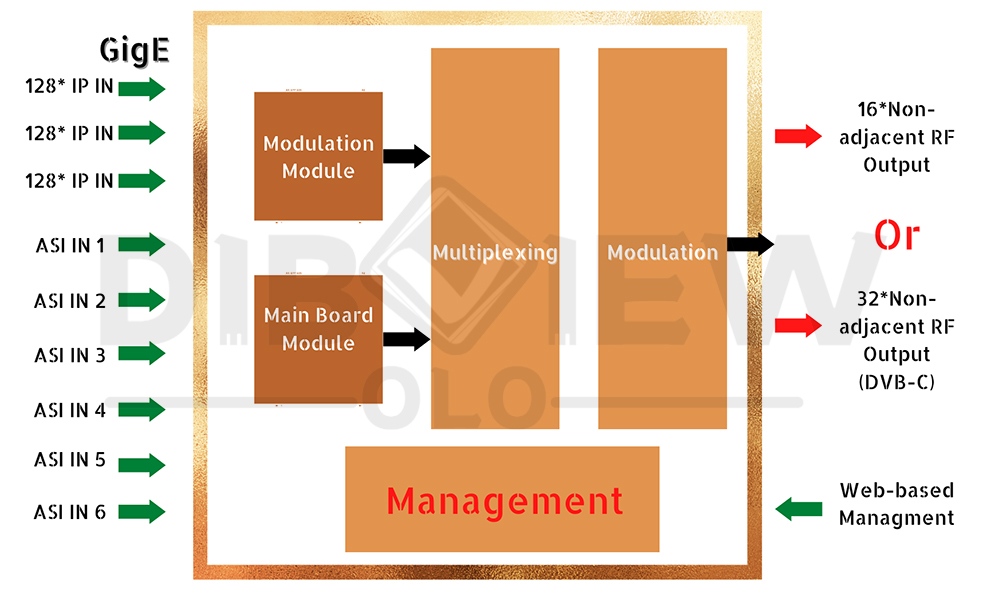

Key Diagram:

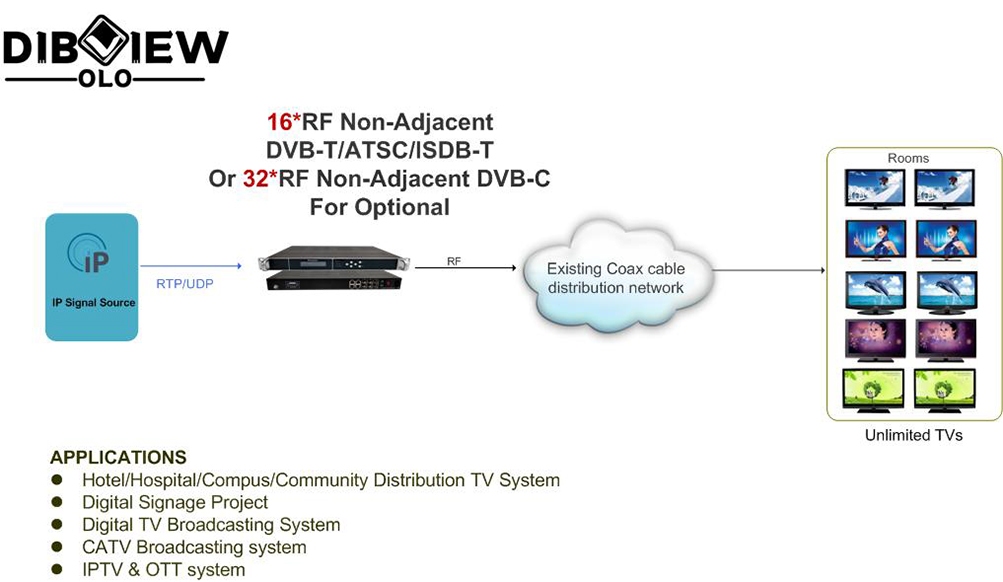

Main Application:

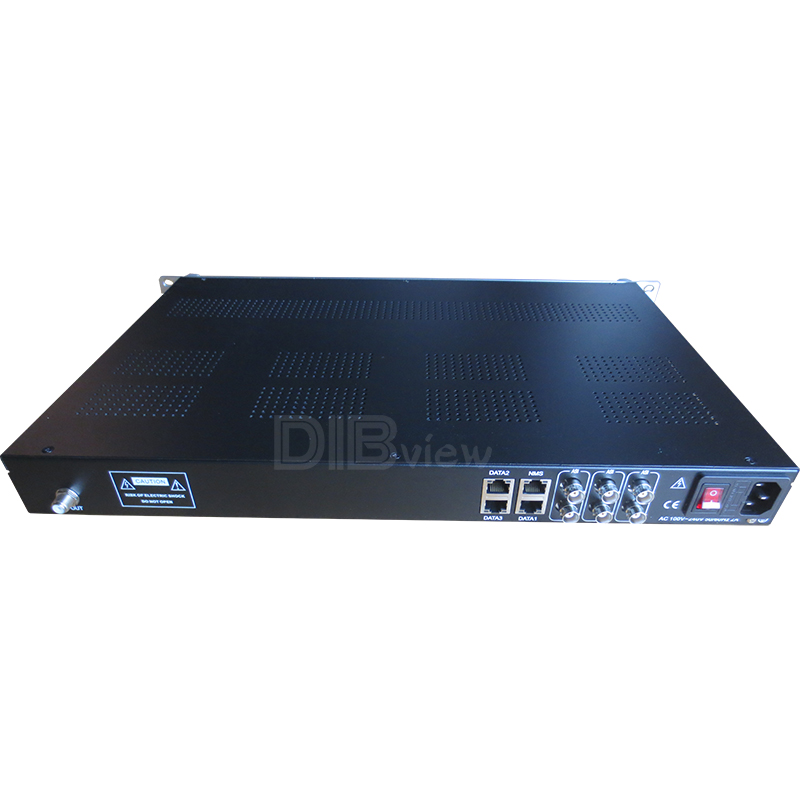

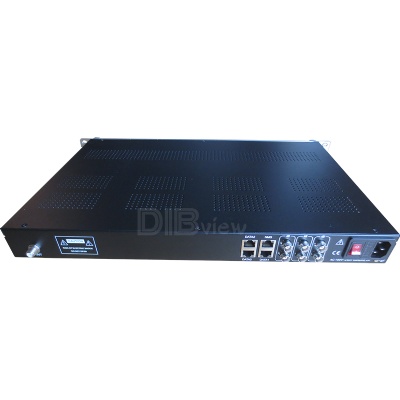

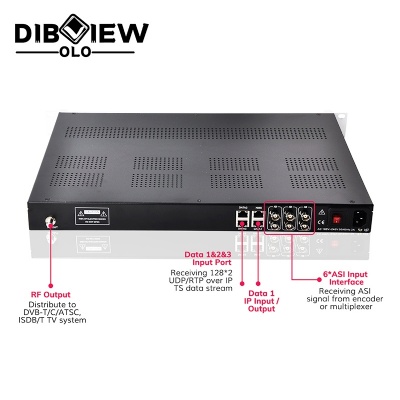

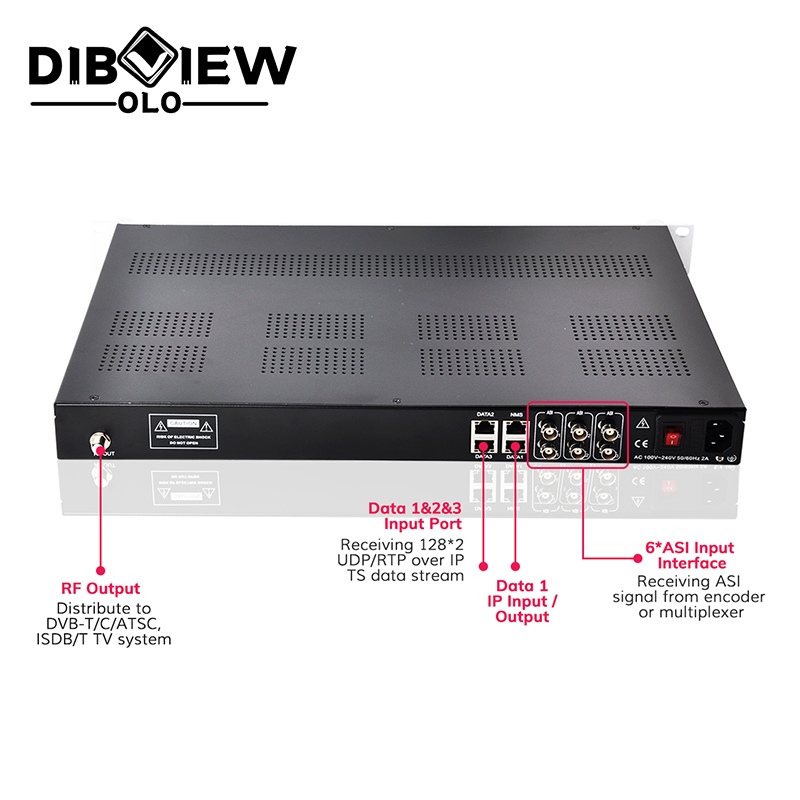

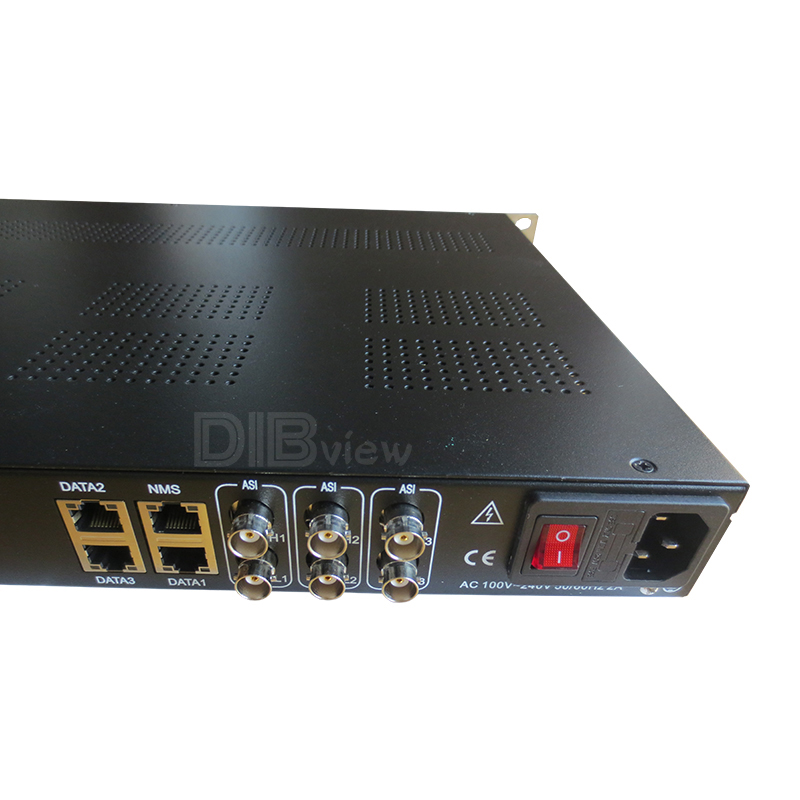

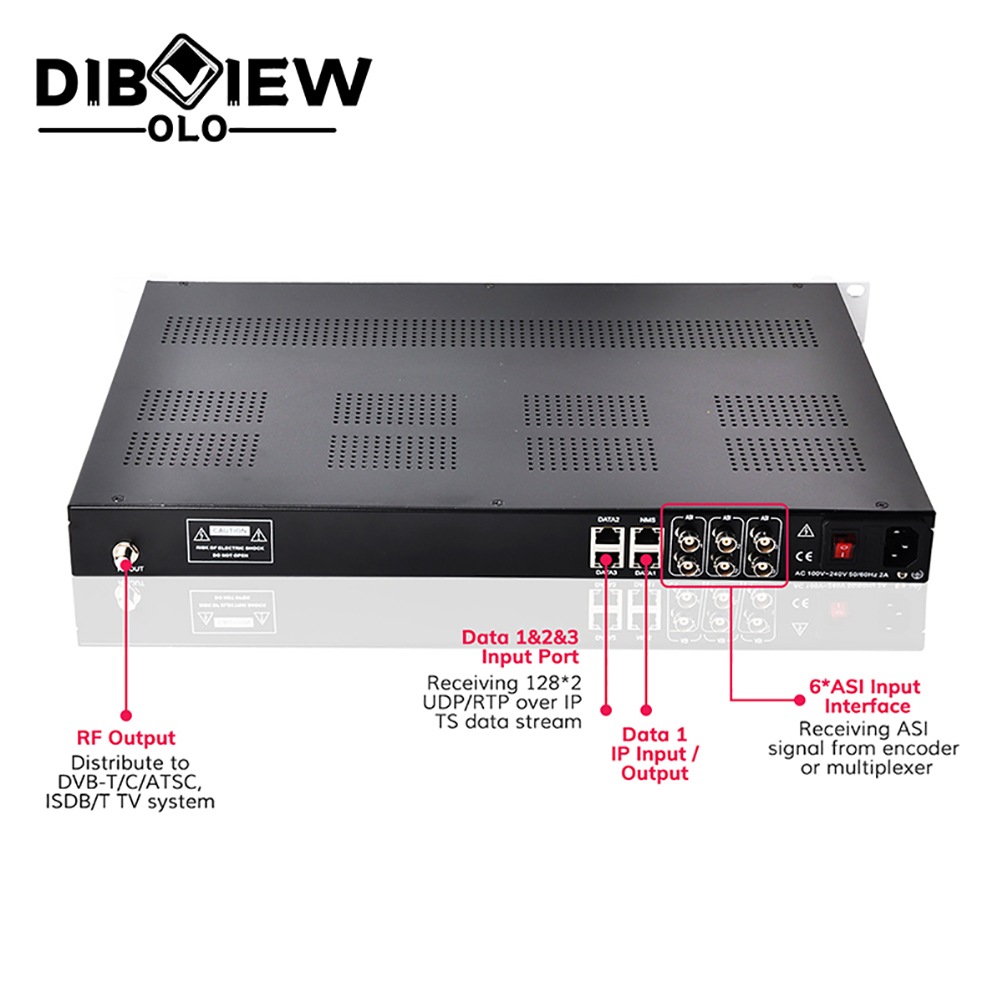

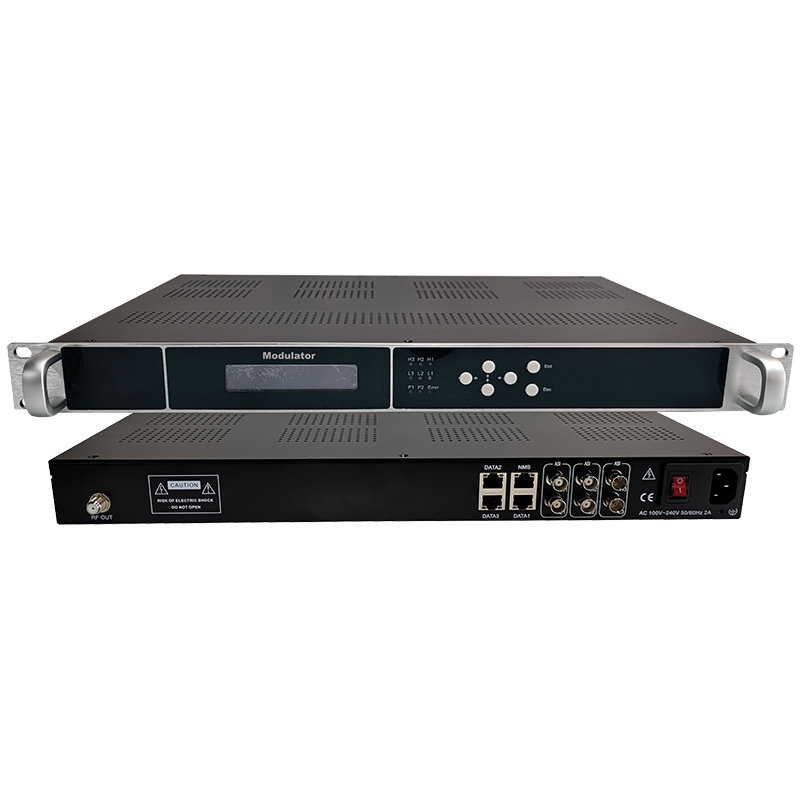

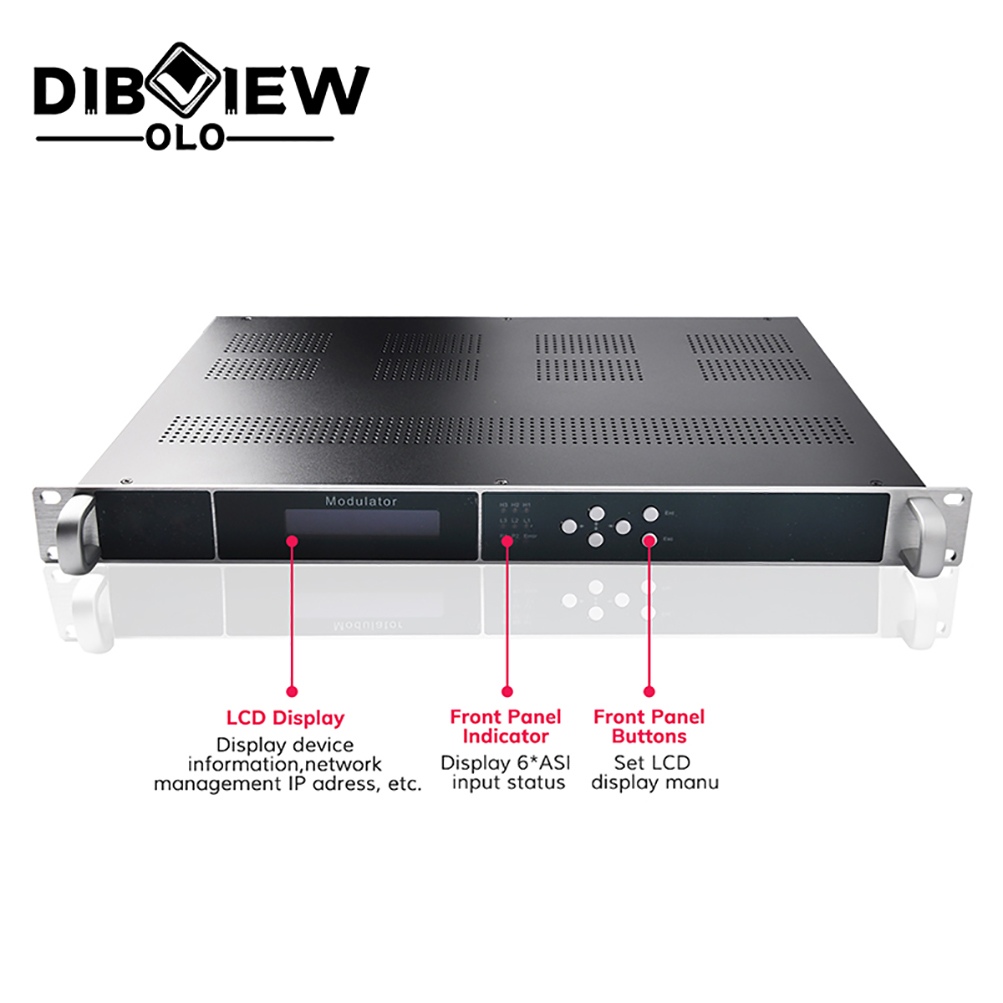

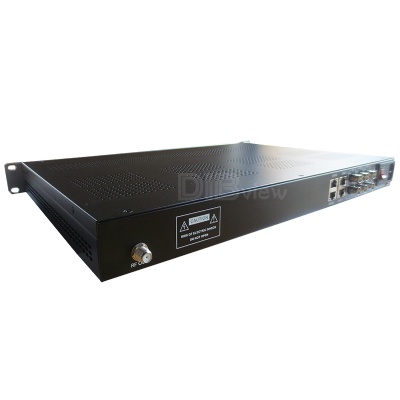

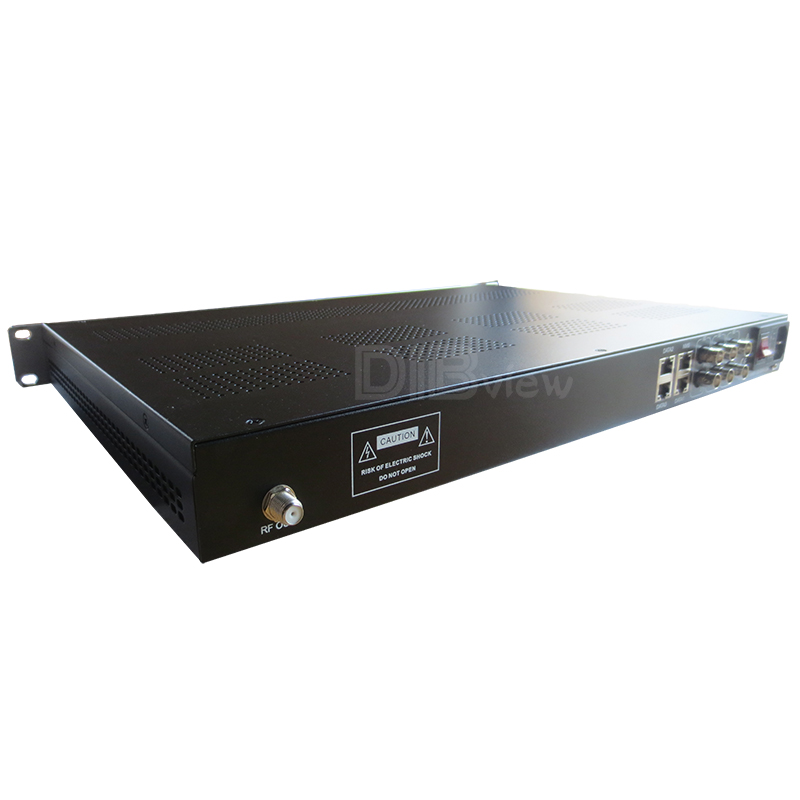

Back Panel & Front Panel:
