OVERVIEW:
In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms. This transcoder support decoding,transcoding,decoding all in one,it adopts the latest H.264 and H.265 image processing technology, it’s transcoding part support 9 channels 1080P@25fps(1 ch 4K@60FPS/2*4K@30FPS/4*1080P@60FPS), after changed the resolution and bit rate, output IP for transmission by HTTP RTSP UDP unicast RTP multicast RTP RTMP HLS, etc.

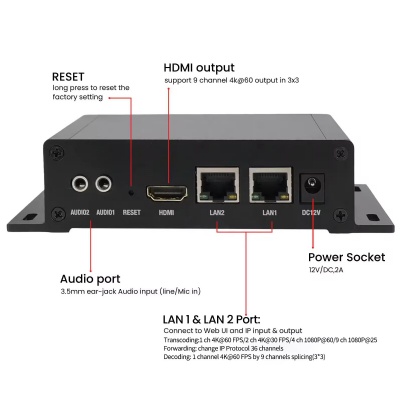

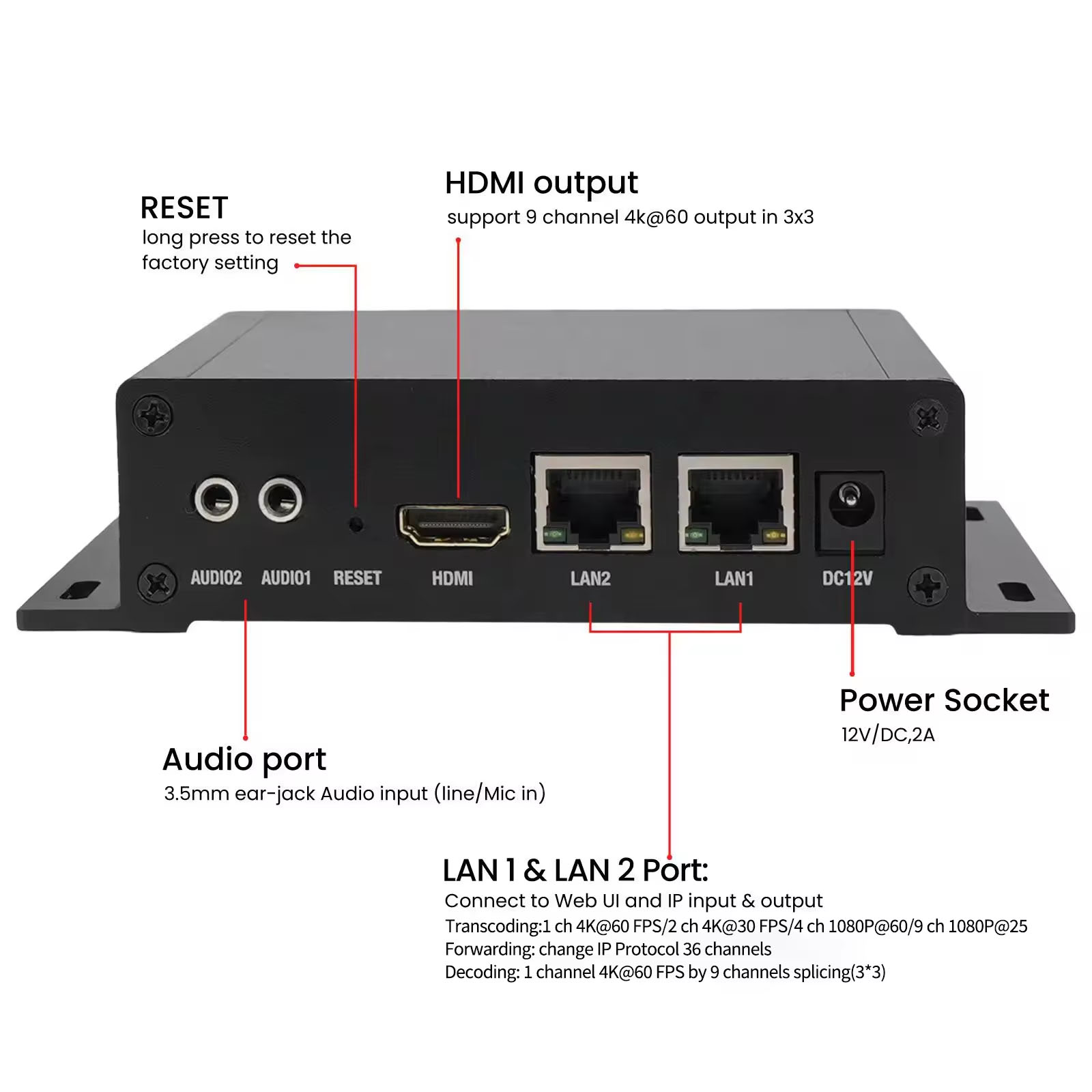

OTV-IPT9 can also decode online network video streams (such as: rtsp://.... http://.... rtmp://.... udp://@.... hls, etc.) to the device and then connect to a monitor or TV through HDMI output to restore the image.Besides it support 36 channels forwarding function,change the Ip protocol for IP transmission,it will not change the resolution,bitrate only change the IP protocol in forwarding function.
Specifications
|
Video Audio Input |
Video input:IP Streamings Audio input:Network stream built-in audio and 2-channel external audio to choose one of three |
Transcoder |
Video Transcoder |
Channels:1/2/4/9 Audio Play:choose any one channel
Encoding:H.264/H.265
Frame Rate:5-60 adjustable
Keyframe interval (frames):5-300 adjustable
Bit rate (kbit):32-32000 Adjustable
Encoded Resolution:
1920x1200/1920x1080/1680x1056/1680x1056/1600x1200/1600x900/1366x768/1280x1024/1280x720/1024x768/1024x576/960x540/ 850x480/800x600/720x576/720x540/720x480/720x404/704x576/640x480
H.264 Profile:baseline profile/main profile/high profile
Stream Control:CBR/VBR Optional Transcoded streaming protocol:Support RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/MP4/SRT/UDP Multicast/RTP Multicast |
Audio Transcoding |
Encoding:AAC /AAC+/AAC++/MP3/MP2/ AC3/Opus Encoding bit rate:AAC:48000~320000 adjustable/AAC+:24000~48000 adjustable/
AAC++:12000~32000 adjustable /MP3:64000~320000 adjustable /
MP2: 64000~320000 adjustable / AC3:40000~640000 adjustable/Opus:8000~256000
PTE streams are encoded using G711A:Disable/Enable
G711 Encoding:Disable/Enable
RTSP streams are encoded using G711: Disable/enable/enable and resample to 8K |
OSD |
Type:Text/Image/Scroll Text/Time Transparency:0-255
Zones:4 zones optional
X coordinate:0-1920
Y coordinate:0-1080
LOGO:4 LOGOs can be uploaded
Font Size:8-72
Background color:transparent/white/black
Font color :RGB color optional |
Transcoding |
Video Transcoding |
Channels:9 Transcoded streaming protocol:Support RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/MP4/SRT/UDP Multicast/RTP
Multicast |
Audio Transcoding |
Encoding:AAC /AAC+/AAC++/MP3/MP2/ AC3/Opus Encoding Bitrate:AAC:48000~320000 adjustable/AAC+:24000~48000 adjustable /
AAC++:12000~32000 adjustable /MP3:64000~320000 adjustable / MP2: 64000~320000 adjustable / AC3:40000~640000 adjustable
/Opus:8000~256000
PTE streams are encoded using G711A:disable/enable
G711 Encoding:disable/enable
RTSP streams are encoded using G711: disable/enable/enable and resample to 8K |
General |
Network:Dual Gigabit Network Configuration management:Configuration management via WEB
ONVIF:Support ONVIF search and browse video
Power Supply:12V/DC,2A
Power:5W
Working temperature:-20℃+60℃
Working humidity:<90%, non-condensing
Weight:372g
Size:14.1*3.5*10.2cm |
