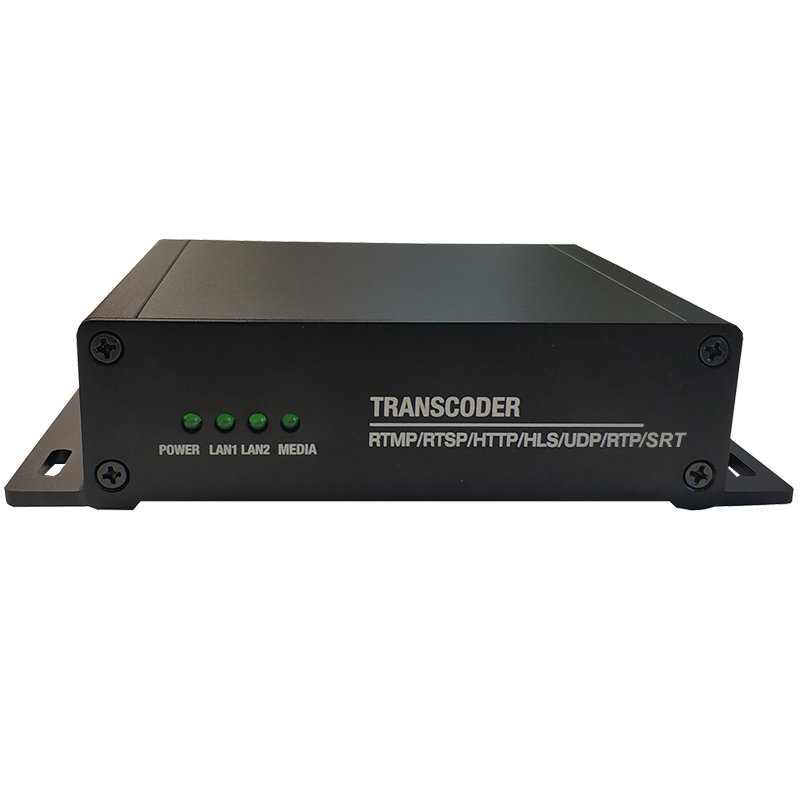

OTV-HT1 H.264 H.265 ProVideo Streaming Transcoder


Overview:

OTV-HT1 is a new generation HD H.265 HEVC H.264 Video Streaming Transcoder which adopts state-of-the-art transcoding technology of H.265 HEVC, H.264 Mpeg4, supporting RTSP/RTMP/UDP/HLS/HTTP/FLV/SRT(currently no support SRT) protocol 8-channel network streaming IP input, with 8 channels built-in audio, 2-Channels of external audio reserved, 1-Channel HDMI output reserved, and meantime support IP stream output RTSP,RTMP, HTTP, HLS,UDP unicast, multicast and other protocols.



With embedded operating system, OTV-HT1 HD H.265 HEVC H.264 Video Streaming Transcoder possesses the features of stability, reliability, powerful function, network agility, develop malleability, which makes it a new generation HD network media terminal. It’s Low Power Consumption physical design, with decoding in compact size, benefit customers for more flexible to use, and avoid the trouble of gathering multiple devices.



Key Features:

  • Input 8*network streaming+8*built-in audio

  • Input/output streams support to work under HTTP/HLS/RTSP/RTP/RTMP, HTTP/UDP unicast, multicast, etc. (Username and password verification are allowed under RTMP)

  • Low bit-rate by H.265 with high quality image

  • Any iOS browsers(iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.

  • Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC)

  • Support transcoding function, change IP input/output, protocol, compression format (H264 to H265, H265 to H264), resolution, etc.

  • Audio format: MP3, MP2, AAC, AC3; sampling rate: 44.1Khz, 48KHz.

  • Transport method: TCP,UDP,1000M (RJ45 duplex interface)

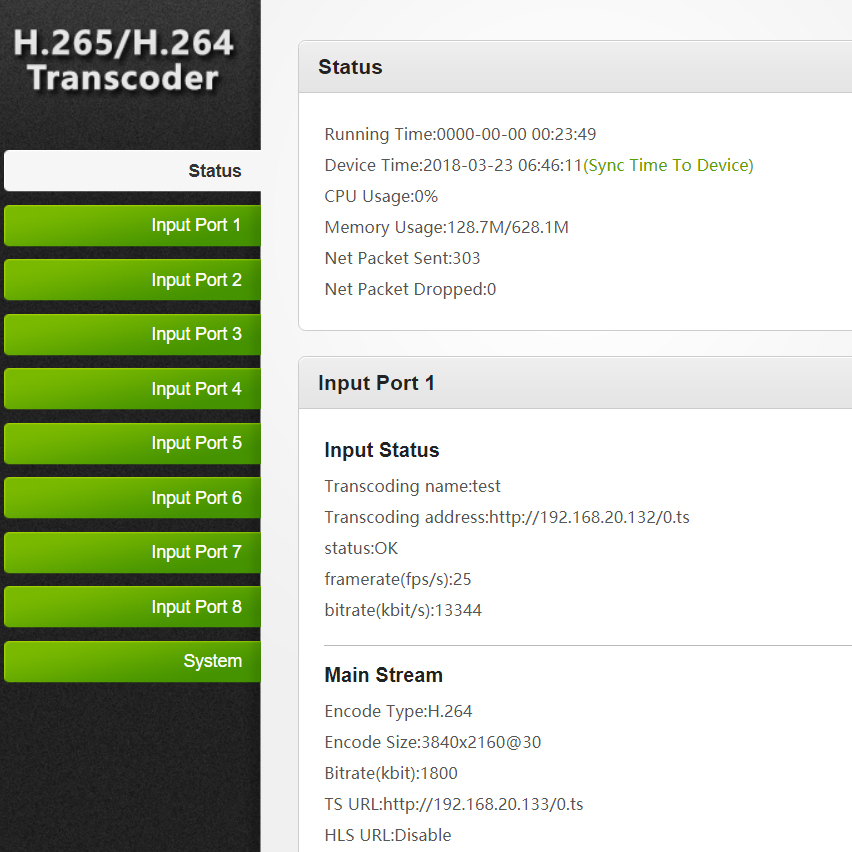

  • Web-based management easy for configuration.

  • Scrollable English OSD, picture overlapping and logos are realizable while letters and symbols can be displayed anywhere in the screen

  • Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance

  • Image setting: Contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering

  • The setting comes into effect once finished while reboot is unnecessary

  • Default configuration can be done by one key recovery



Technical Specifications:

Item

Description

Streaming Input

Video Input: 8-Channel network streaming

Audio Input: 8-Channels built-in audio, 2-Channels of external audio reserved.

Video Transcoding

Encoding: H.264/H.265 optional

Encoding frame rate: 5-60fps adjustable

Key frame interval (frame): 5-300 adjustable

Bit rate (kbit): 32-32000 adjustable

The resolution after coded: 1920x1080/ 1680x1056/1280x720/1024x576/850x480/

720x576/720x540/720x480/720x404/ 704x576/640x480/640x360/608x448/544x480/480x480/

480x384/480x360/480x320/480x272/ 480x270/400x320/400x352x480/

352x228/320x256/320x240/320x180/ 240x180/176x144/same as the input resolution

H.264 level: baseline profile/ main profile/high profile

Stream control: CBR/VBR optional

Stream protocol: Support RTMP/RTSP/ HTTP TS/HTTP FLV/HLS/UDP multicast/RTP multicast

Audio Transcoding

Encoding sampling rate: 44100/ 48000 optional

Coding type: AAC /AAC+/AAC++/ MP3/MP2/AC3 optional

Encoding bit rate: AAC: 48000-320000  adjustable/AAC+: 24000-48000 adjustable/

AAC++: 12000-32000 adjustable/MP3:  64000-320000 adjustable/

MP2: 64000-320000 adjustable/ AC3:  40000-640000 adjustable

Digital volume: -50~50 adjustable

RTSP stream uses G711A encoding:  Disable/enable optional

OSD

Transparency: 0-128 adjustable

Type: Text/Picture/Scrolling Text/Time

Area: 4 areas available for optional

X coordinate: 0-1920

Y coordinate: 0-1080

LOGO: user can upload 4 LOGO for selection

Font size: 8-72

Background color: transparent/white/black

Font color: RGB color optional

Management

Configuration Interface: web-based UI

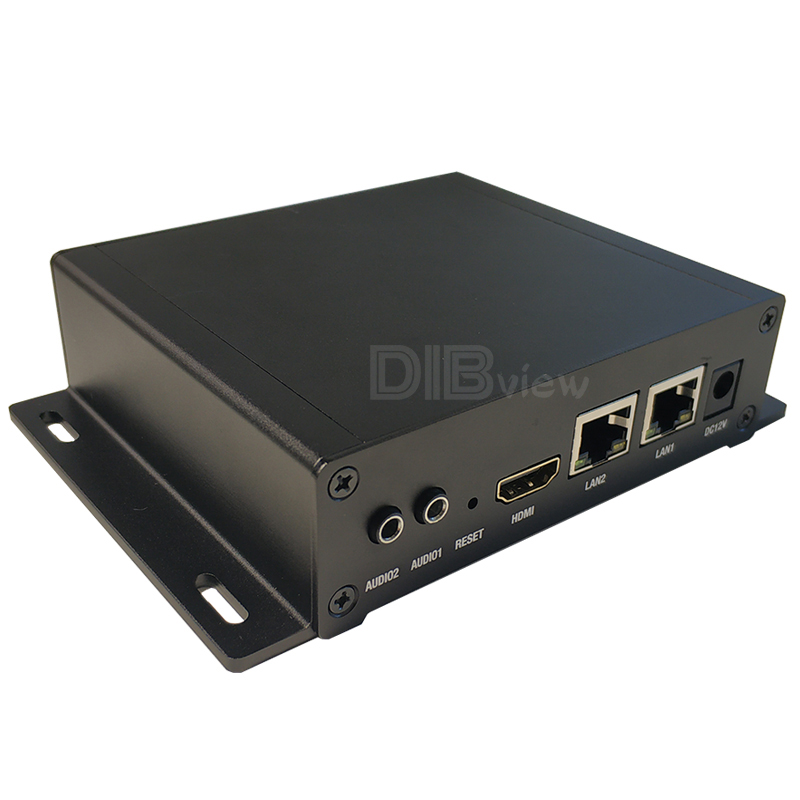

Connector: RJ45 duplex interface 100/1000M

Support ONVIF to find and browse videos

The Working Environment

Power consumption

5W

Dimension

155(L)*93(W) *32(H)mm

Operating Temperature

-20 to 60 (For working),  -20 to 80(For storing)

Input Voltage

12V/DC 2A



Applications:

Organizations, Conferences,

Multimedia projects

Remote Video Conference

Internet TV Broadcast,

Video Surveillance, IPTV/OTT system

Live Streaming education, Music and etc.
