OTV-DT1 IPTV Decoder and Transcoder


OTV-DT1 is a new generation HD H.265 HEVC Video Streaming Decoder & Transcoder which adopts state-of-the-art decoding technology of H.265/HEVC, H.264/Mpeg4, supporting RTSP/RTMP/UDP/SRT/HLS/HTTP/FLV protocol IP input, decoding it to HDMI and CVBS output, also supporting output IP can be different protocol, realize decoding& transcoding high integration.



OTV-DT1 HD H.265 HEVC Video Streaming Decoder & Transcoder is able to send streams via a series of IP protocols, like HTTP RTSP UDP unicast UDP multicast RTP RTMP HLS, SRT, etc., can also decode IP stream (eg: rtsp://.., http://..., rtmp://…, udp://@..., hls, etc.) to output HDMI/CVBS at the same time and then connected to the monitor or TV via HDMI out to display the image, and support 1 channel external sound output synchronization, then output with various IP protocols synchronization. After the IP stream is decoded, the sound can be connected to the sound box or the power amplifier from the sound interface of the 3.5mm.



OTV-DT1 HD H.265 Video Streaming Decoder & Transcoder can be used for Surveillance Camera, decoding, transcoding, push streaming and live broadcasting. It can decode the resolution up to 4K 60pfs,and transcoding resolution support 1080P 60fps. With cost-effetive solution, it is a ideal product for IPTV system projects.



With embedded operating system, OTV-DT1 HD H.265 Video Streaming Decoder & Transcoder possesses the features of stability, reliability, powerful function, network agility, develop malleability, which makes it a new generation HD network media terminal. It's Low Power Consumption physical design, with decoding in compact size, benefit customers for more flexible to use, and avoid the trouble of gathering multiple devices.



Key Features:


  • Up to UHD 4K 60fps decoding output

  • Up to Full HD 1080P 60fps transcoding output

  • HDMI+CVBS output simultaneously

  • Decoding video format: H.264, H.265, Mpeg4, Mpeg2, CAVS

  • Transcoding video format: H.264, H.265

  • Input/output streams support to work under SRT/HTTP/HLS/RTSP/RTP/RTMP, HTTP/UDP unicast, multicast, etc. (Username and password verification are allowed under RTMP)

  • Dual-channel(Main and sub streaming output), Main and sub streaming can be set as different resolution and IP protocol, perfect products for multi-screen, multi-protocol, multi-resolution application

  • Low bit-rate by H.265 with high quality image

  • Any iOS browsers(iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.

  • Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC)

  • Support transcoding function, change IP input/output, protocol, compression format (H264 to H265, H265 to H264), resolution, etc.

  • Audio format: MP3, MP2, AAC, AC3; sampling rate: 44.1 KHz.

  • Transport method: TCP,UDP,1000M (RJ45 duplex interface)

  • Web-based management easy for configuration.

  • Scrollable English OSD, picture overlapping and logos are realizable while letters and symbols can be displayed anywhere in the screen

  • Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance

  • Image setting: Contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering

  • The setting comes into effect once finished while reboot is unnecessary

  • Default configuration can be done by one key recovery



Technical Specifications:


Item

Description

Media Access

Standard protocol: RTSP/HTTP TS/HTTP FLV/RTMP/UDP

Private protocol: HTTP PTE

Decoding

Video Decoding

Video type: H.265/H.264/MJPEG/MPEG2/MPEG4/AVS/AVS2

Frame rate: 1~60fps

Resolution: Max. support 4K 60fps

Audio Decoding

Audio Type : AAC/AAC_AT/AAC_FIXED,

AAC_LATM/AASC/AC3/AC3_AT/AC3_FIXED/G729/GSM/

GS_MS/GSM_MS_AT/MP1/MP1_AT/MP1FLOAT/

MP2/MP2_AT/MP2FLOAT/MP3/MP3_AT/MP3ADU/MP3ADUFLOAT/MP3FLOAT/MP3ON4/MP3ON4FLOAT/PCM_ALAW/PCM_MULAW/ADPCM_G726

Sampling rate: 44.1 KHz.

Video Output

HDMI: 4096x2160P60/4096x2160P50/4096x2160P30/4096x2160P25

/3840x2160P60/3840x2160P50/3840x2160P30/3840x2160P25

/1440P60/1920x1200P60

/1080P60/1080I60/1080P50/1080I50/1080P30/1080P25

/720P60/720P50/576P50/480P60

CVBS: PAL/NTSC

Image setting: Contrast,brightness,hue, saturation, noise inspection, sharpness, wave filtering

HDMI: 48KHz dual channel output

Audio Output

3.5MM: dual channel output

Enable/disable

Transcoding

Video Encoding

Encoding type: H.264/H.265 optional

Encoding frame rate: 5-60 adjustable

Key frame interval (frame): 5-300 adjustable

Bit rate (kbit): 32-100000 adjustable

Resolution (after encoding) : 1920x1080/1680x1056/1600x900/

1280x720/1024x768/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/176x144/customizable

H.264 level: PROFILE_BASELINE/PROFILE_MAIN/

PROFILE_EXTENDED/PROFILE_HIGH

Streaming Protocol: Support RTMP/RTMPS/RTSP/HTTP TS/

HTTP FLV/HLS/UDP multicast/RTP multicast/SRT

Audio encoding

Encoding sampling rate: 44100/48000 optional

Encoding type: AAC

Management

Configuration Interface: web-based UI

Connector: RJ45

Support ONVIF to find and browse videos

The Working Environment

Power consumption

4W

Dimension

155(L)*93(W)*32(H)mm

Operating Temperature

-20 to 60 (For working), -20 to 80(For storing)

Input Voltage

12V/DC 2A



Applications:



HD video via private IP networks

Remote live Rebroadcasts and real-time transmission

Hotel, Campus, Enterprise IPTV & OTT system

Head-end system of Digital TV branch network

Digital TV Broadcasting System

CATV Broadcasting system

Edge side of Digital TV backbone network

Digital Signage Project

Remote Video Conference

Video Monitoring

Digital TV Programs Transmission

Live Streaming

Internet TV

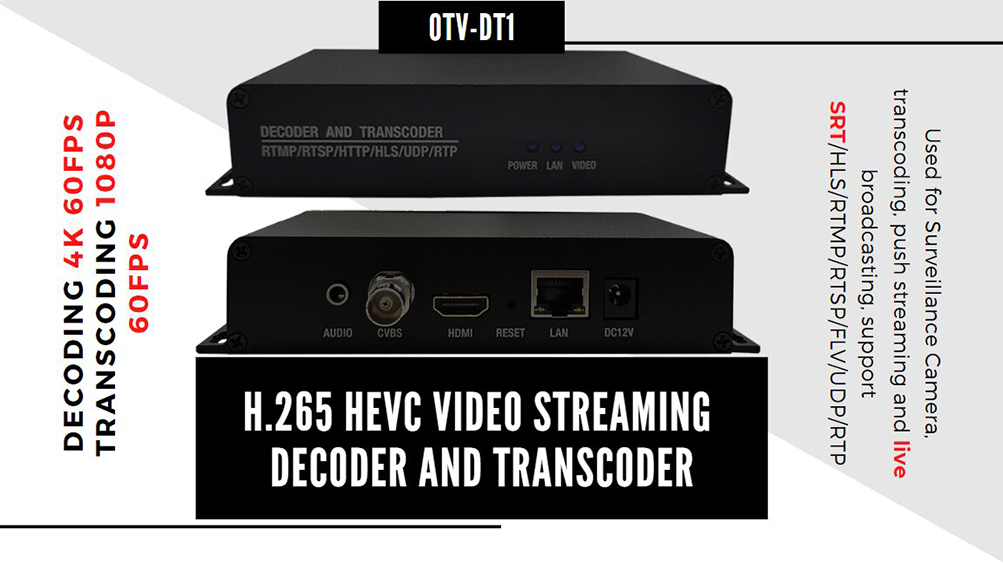

OTV-DT1 Professional Video Streaming Decoder and Transcoder(4K 60fps decoding, 1080P 60fps transcoding).jpg
