Overview:

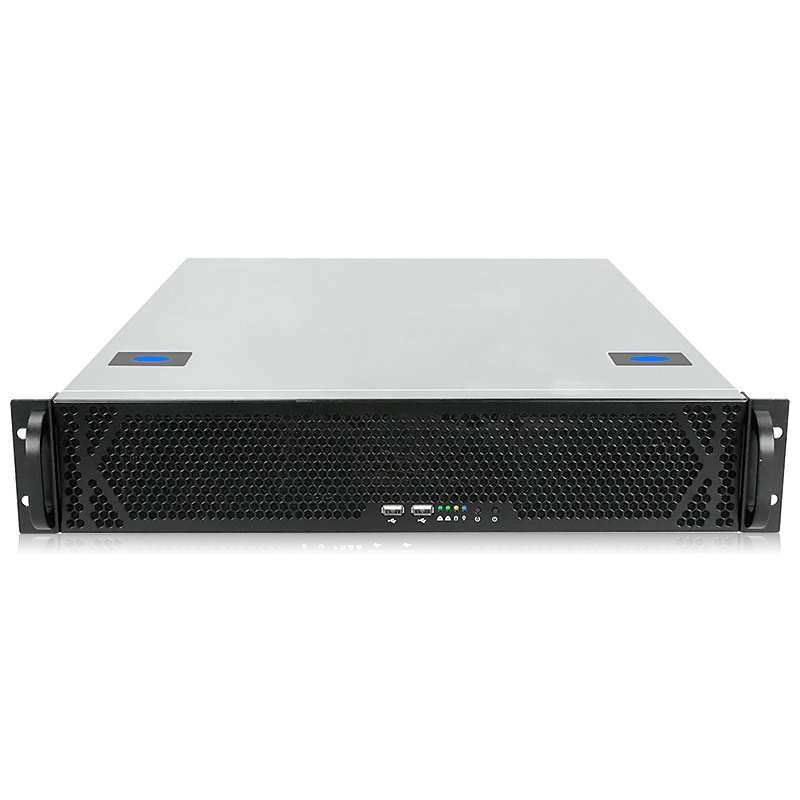

OTV-5000 Series Multi-Service IPTV Streaming Transcoder Server, as the new designed hardware Streaming Transcoder with Special embedded, OTV--5000 Series Transcoder can support HD video signal (720P/1080P/4K) encoding and IP network transmission functions. The next generation of technology showed in advance. It is the initiative launched in China, this IPTV Streaming Transcoder adopt breakthrough hardware-based encoding technology & software solutions under High performance framework (The industry initiative features High performance hardware and software combination transcoding, without occupied CPU resource), employ the high efficiency of H.265/HEVC, H.264/MPEG-4 AVC High Profile HD digital video compression technology with high definition low bit rate, low latency, etc. under the Linux operating system.

Supports a variety of signal source, from the capture equipment, video file to the IP flow, whatever in AVI, TS, MP4 or MOV, SRT, HTTP, MMS, UDP, RTP, RTSP format all can be fully supported. Support output SRT, FLV, TS, UDP, RTSP, HLS, RTMP, HTTP. In the aspect of image processing not only keep the subtitles and channel logo features of traditional software coding, but also in excellent compression performance which support multi-channels HD video transcoding in singe device.

The launch of the this OTV-5000 Multi-Service IPTV Streaming Transcoder Server fill the blank in the industry, widely used in various needs of capture for high definition video signal and high frame rate, meanwhile on the occasion of audio video transmission based on IP network. Strong expansibility can easily cope with different industries and needs. OTV-5000 Series Transcoder can be installed to any standard of 1U/2U/3U/4U rack, and make the system integration and installation to be more easily.

Main Features:

Hardware transcoding+software solution.

HD/SD H.264/MPEG-2, H.265/HEVC video encoding.

Support digital Dolby AC-3, AAC MPEG-4 advanced Audio encoding.

Input file supported: AVI, TS, MP4, MPEG-1, MPEG-2, MPEG-4, WMV etc.

Video input (optional): HDMI, SDI, YPbPr, CVBS.

Input/output IP streams supported: SRT, HTTP, MMS, UDP, RTSP, RTMP, HLS protocols.

Resolution support up to 4K (3840 x 2160)(H.264/H.265).

Support for multiple IPTV video on demand server(FMS, Wowza, EZ, etc.).

Variable GOP structure: I, IP, IBBP.

Support VBR, CBR, CQP, LA (look-ahead) bitrate control algorithm.

Recording file: support TS, MP4, FLV format for VOD service.

With multitasking timing functions, support recorded video, live, etc. as task management.

Name the task according to the time and date, no need to set the video file for many times.

Supports subtitles inserted (static/dynamic characters and image overlay), can be drag to screen at any location.

Web-based management in ease of configuration.

Automatically encoding after boot, automatic mode operation.

Support video & audio pre-surveillance, find signal errors at any time.

With the VOD system integration, realize Live/VOD service on single device.

Every channel is independent system, the same source can realize multiple IP protocols, encoding standards and resolutions output for multi-screen (PC,TV,Mobile,Pad) service.

Key Specification:

Standard:

ISO/IEC 14496-10 (H.264)

ISO/IEC 14496-3:1999 and AMD1 2000 (AAC LC)

ISO13818(MPEG-2)

Video input:

HD-SDI, HD Interface, BNC interface

Audio input:

Embedded SDI, Analog audio

Input/output channels:

1~256 channels (According to your input end)

Field/frame motion prediction +/-127 horizontal PEL+/- 63 vertical PEL with half-PEL accuracy

High accuracy DCT/IDCT

Structure

Variable GOP: IBBP,IBP,IP and I frame

Video bitrate: 20Kbps--25Mbps

Audio bitrate: 32--320Kbps

Video format: H.265/H.264/MPEG-2/WMV

Audio format: AAC, MPGA, WMA, 16-bit Sampling, 2 Stereo Audio

Sample rate: 32 KHz, 44.1 KHz, 48KHz

Resolution:

720P@50@60

1080i@50@60

1080P@25@30@50@60

4096P@25@30

Video signal recording frame rate

720P: 1-60 frame

1080P: 1-60 frame

4K: 1-60 frame

Output format:

TS,MP4,FLV,AVI

Internet protocols:

SRT, HTTP, RTSP, RTMP, UDP, HLS etc

Bitrate control: AVBR, CBR, CQP, LA

Weight: 10kg

Temperature: 0~45℃(working), -20~80℃(storage)

Voltage:  AC110V±10%, 50/60Hz; AC 220V±10%,50/60Hz

Power supply: 600W

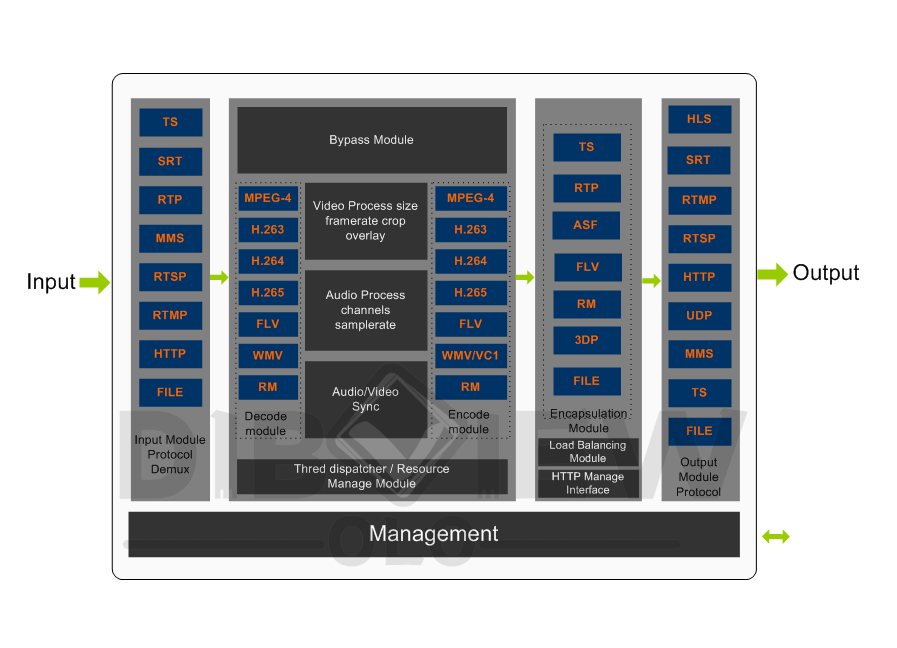

Key Diagram:
