Overview:

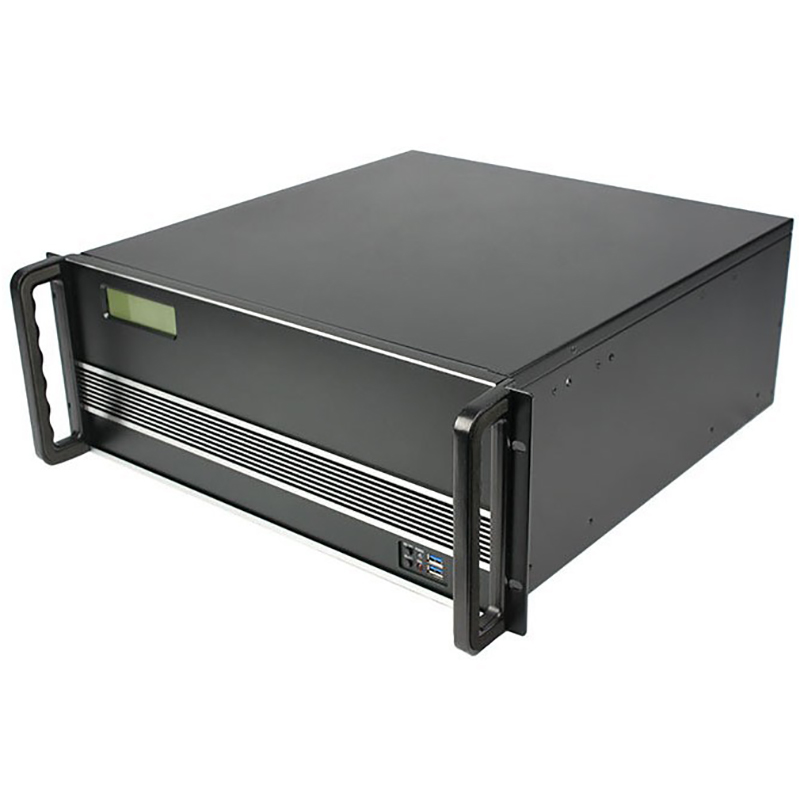

OTV-5900 Cloud Streaming Media Management Server is a professional Server based on ultra-strong high-performance streaming media engines, employ new generation of architecture design, it can be used for providing network forwarding of high quality Audio & Video to various kinds of end-users .

The system design reaches the distributing level for thousands of viewers simultaneously, compliant with various types of terminal devices. Owing to its powerful,fluent, stable and safe transfer capability,it is well-acclaimed .It supports H.264 & H.265 video format, push & pull of streams,SRT, HTTP, RTMP, HLS(m3u8) protocols,which means providing multi-screen live streaming and VOD services through PC,mobile,TV, tablet (IOS/Android/Windows) in applications such as IPTV, OTT and other kinds of live streams as VOD, time-shift, replay.

Based on the principle of saving costs for clients, the system must be able of being customized to control hardware and software budgets. The least hardware resoure is deployed according to clients' actual project scale, so as to undertake users' visit loads from scores to thousands suitable for small and big enterprises, government entities, army,groups, providing full levels of service in small size and broadcasting operting.

Main Features:

Hardware encoding+software solution.

The capability of Ten thousand people's concurrence and access synchronous

The high-performance media engine and new generation of architecture design insure the OTV-5900 possess the capacity of Ten thousand people's concurrence easy.

Compare with FMS,wowza, HLS or other similar product, OTV-5900 is a device which has a good value for money due to it's good compatibility and strong performance

The compatibility with various kinds of end-players

OTV-5900 realize high quality, high-speed video transmission based on LAN, MAN, Internet, cable,wireless network , cover all kinds of mobile smart terminals (PC, cell phone,TVs, pad (IOS/Android/Windows) for smoothly video play

The well compatibility with third-party encoding end

Input/output IP streams supported: SRT, HTTP, MMS, UDP, RTSP, RTMP, HLS protocols.

Support Push,Pull streaming transmittal mode, Compatible with TS, MP4,FLV format packaging

Variety in terminal play mode

OTV-5900 adopt flv, ts packaging, support play in PC, Cellphone(Android), TVs(set top box) by using RTMP(flash) live broadcast, also support slicing and pack the multi-media files,live streamings to generate m3u8 index file, output HLS streamings, convenient for playing in Apple(IOS) cellphone, pad, PC

Input file supported: AVI, TS, MP4, MPEG-1, MPEG-2, MPEG-4, WMV etc.

Variable GOP structure: I, IP, IBBP.

Support VBR, CBR, CQP, LA(look-ahead) bitrate control algorithm.

Recording file: support TS, MP4,FLV format for VOD service.

With multitasking timing functions, support recorded video, live, etc. as task management.

Name the task according to the time and date, no need to set the video file for many times.

Supports subtitles inserted (static/dynamic characters and image overlay) ,can be drag to screen at any location.

Web-based management in ease of configuration.

Automatically encoding after boot, automatic mode operation.

Support video & audio pre-surveillance, find signal errors at any time.

With the VOD system integration, realize Live/VOD service on single device.

Every channel is independent system, the same source can realize multiple IP protocols, encoding standards and resolutions output for multi-screen (PC,TV,Mobile,Pad) service.

Key Specification:

Play mode: LIVE,VOD

Package Mode: Flv, Ts, Mp4, M3u8

Broadcasting mode: SRT, http(flv), http(ts), rtmp, hls, dash

Video format: H.264, H.265

Multimedia stream technology HTTP dynamic adaptive DASH

Audio format: AAC, AC3, MP3

Input IP streamings: push streming, pull streaming

VOD files: According to your requirements

Security: Anti-stealing-link data layer authenticated encryption, token authentication technology, many network authentication, Static authentication, secret key, third-party memcached authentication server

Network security use the black and whitelist firewall settings

Player terminal TVs(set top box), Pad, cellphone, PC and so on

Terminal system: Android, ios (HLS section), windows and others smart Terminal

Terminal adapter: Adobe Flash Player, iPhone, iPod, iPad(IOS3.0 or later);

QuickTime Player Safari; Android (2.0 or later) device; VLC Player; Other HLS-compatible players

statistical monitoring statistical data for network data broadband, users, consumption and others, monitor the occupied CPU ,internal storage, hard-disk space capacity Strong load capacity, each unit OTV-5900 support up to 10000 users concurrence

Stability broadcast level Operation design, 7x24 hours uninterrupted running very long time

operating system Industrial embedded Linux operating system

Control method: Web remote management, realize the configuration,

management, control the equipment through web remote operation in any device at any time and anywhere

Resolution:

160*120, 176*144, 320*240, 352*288, 352*240, 640*480, 800*600, 720*480,

720*576, 1024*576, 1024*768, 1152*864, 1280*720, 1280*800, 1280*960

1280*1024, 1300*768, 1336*768, 1360*768, 1366*768, 1440*900, 1600*900

1600*1024, 1600*1200, 1680*1050, 1920*1080, 1920*1440, 2048*1080

2560*1440, 3840*2160, 4096*2160

Frame rate: 0fps, 1fps, 5fps, 10fps, 15fps, 29.97fps, 30fps, 50fps, 60fps

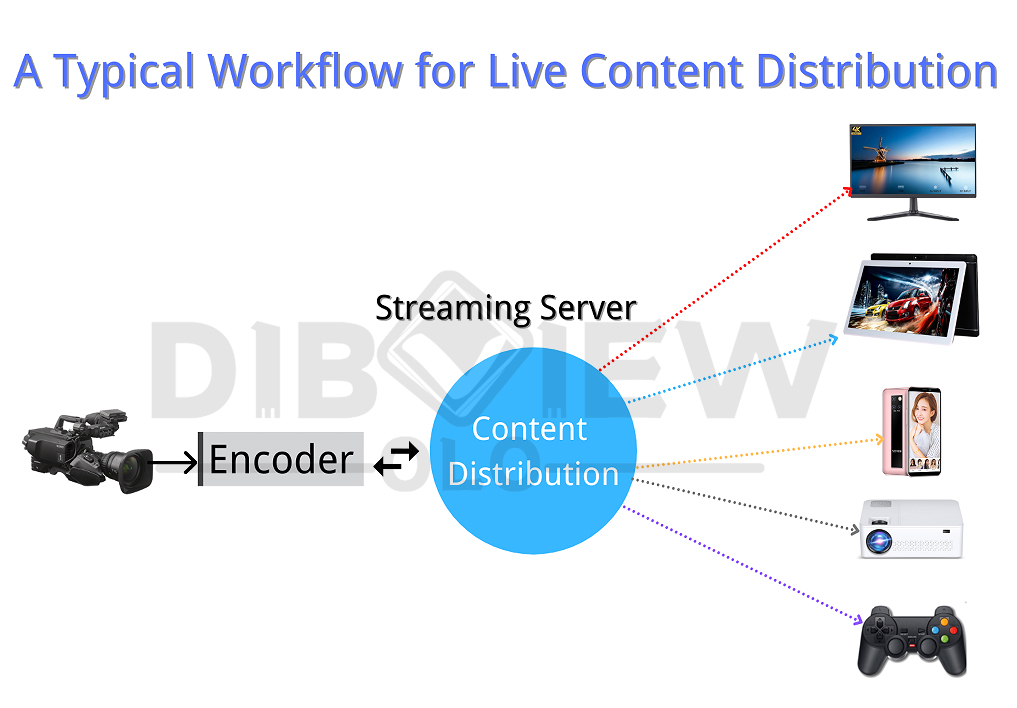

Key Diagram:
