Overview:
OTV-6000 Professional IPTV Management System Streaming Server is one popular media management server based on ultra-strong high-performance streaming media engines, employ new generation of architecture design, it can be used for providing distribution of high quality Audio & Video to various of end-users by Internet.
Owing to its powerful, fluent, stable and safe distribution capability, it is well-acclaimed. It supports H.264 & H.265 video format, easy to setup as Push mode & Pull mode of streams, output through HLS(m3u8) protocols, which means providing VOD services, Time-Shift etc.. Based on the principle of saving costs for clients, the system must be able of being customized to control hardware and software budgets.
Designed for the centralized control of Android STB's the control protocol conversion function acts, OTV-6000 Professional IPTV Management System Streaming Server is widely used for the protocol conversion scenarios and streaming media distribution scenarios, to the commonly deployed STB's in the hotel, hospitality, corporate, education and entertainment sectors.
Key Features:
Web interface management
RTP/UDP->HLS/HTTP
Optical modem collection, satellite collection, encoding collection
Basic functions: salutatory, advertisement, live broadcast, program grouping, TV VOD, program source management (manual update, batch update)
Value added function: automatic movie downloading (timing downloads, stagger peak downloads), ordering services, guest service
Up to 60 live channels (it can be customized more)
Up to 1000+ VOD channels storage
Up to 600 terminals online(it can be customized more)
Docking PMS (cash register system), RCU system, guest room voice control system
Can run independently from the external network
The terminal APK can run on TVS, set-top boxes and mobile phones above android 4.4.2
Technical Specifications:
Item | Description |
Classic Series hardware configuration (Optional 1) | |
CPU: I5-4570 quad-core 4-thread processor (3.2GHZ), I5-4590,I5-4670K,I7-4770,I7-4770K for optional CS: Intel® B75 high-speed chipset DDR: 8G, HHD: 1TB/2TB/4TB Expandable Network: Integrated 6 Intel® 82583V Gigabit LAN Fan: Temperature control | |
Premium Series hardware configuration (Optional 2) | |
CPU: I5-4570 quad-core 4-thread processor (3.2GHZ) I5-4590, I5-4670K, I7-4770, I7-4770K for optional CS: Intel® B75 high-speed chipset DDR: 8G, HHD: 1TB/2TB/4TB Expandable Network: Integrated 6 Intel® 82583V Gigabit LAN, 2 Gigabit Intel® I-350 Fiber Adapters Fan: Temperature control fan | |
The Working Environment | |
Dimension | 1RU Chassis, 430*45*300mm |
Gross Weight | 5KG |
Operating Temperature | 0 to 45 (For working), -20 to 80(For storing) |
Input Voltage | AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
This product is suitable for IPTV hotels, clubs, IPTV communities, hospitals, prisons and so on.
Note: The set top box UI could be customized as per needs.
The software is sold in different versions, and the APP interface can be customized for different occasions.
Please contact us for talking more details.

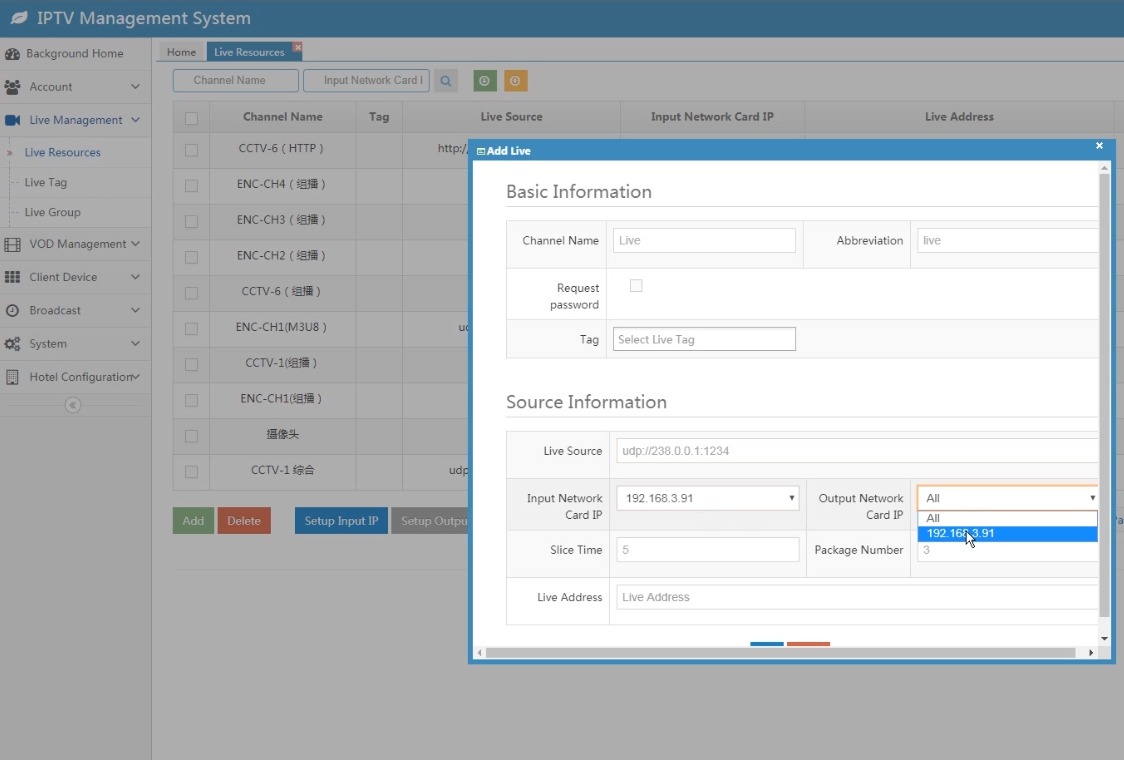

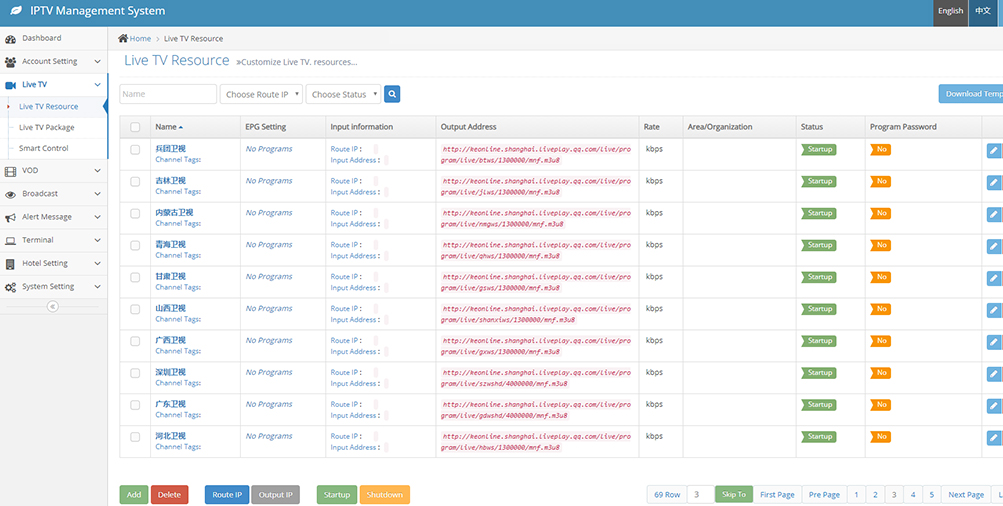

IPTV Management Software Page:
This operation is convenient, easy installation, and it also can effectively improve the efficiency of engineering construction (the finished time of the system is shortened within 24 hours), greatly reducing construction time and labor costs.

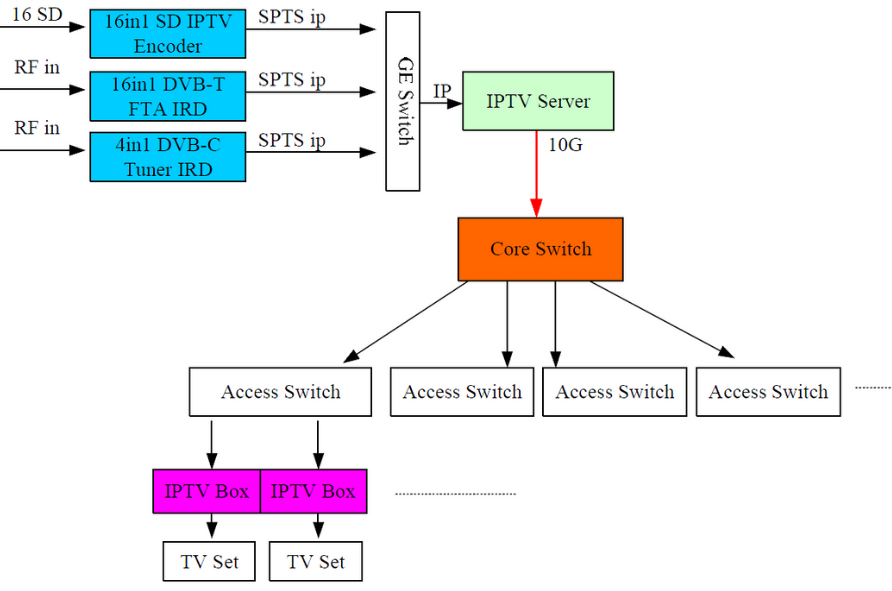

Project Cases E.g:
