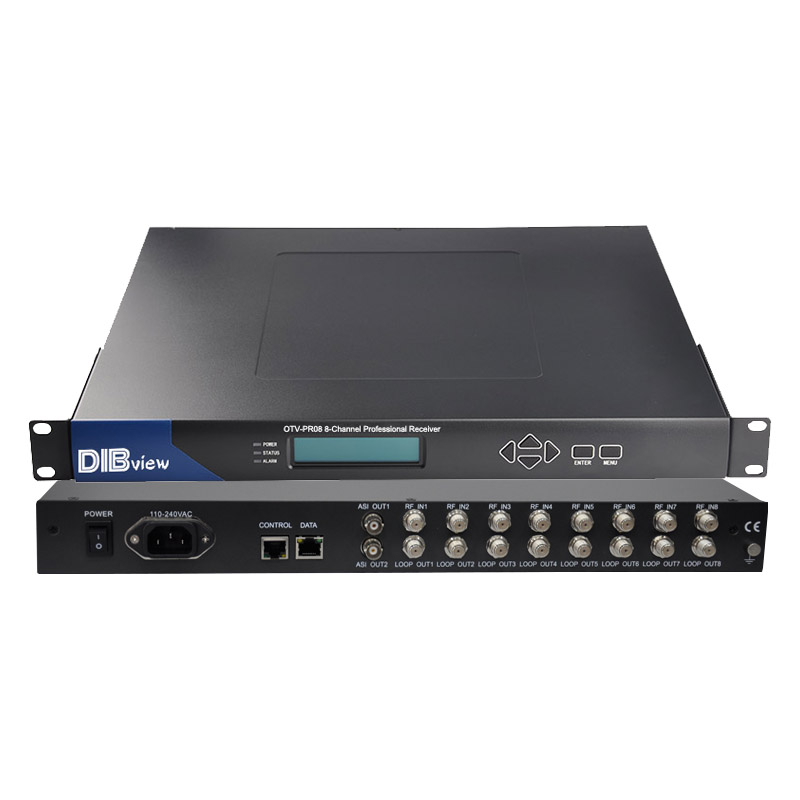

Overview:

OTV-PR08 8 Channel Professional Receiver is a high density, digital tv professional receiver, multiplexer and scrambler, which was designed to receive up to eight FTA Tuner (DVBS/S2/T/T2/C/ISDBT/Tb) or BISS encrypted SD and HD broadcasting streams from satellite (or cable, terrestrial) network in 1U.

OTV-PR08 8 Channel Professional Receiver with multiple options, high density and superior performance, support up to five RF demodulation options, including DVB-S/S2 from satellite, DVB-C from cable, DTMB, ATSC and ISDB-Tb terrestrial input, each option with a maximum input eight channels simultaneously. It deliver high quality content or better system capacity for operators compared with the professional IRD on the world market today.

OTV-PR08 8 Channel Professional Receiver enables service providers to offers a wide range of cost-effetive, high-quality and reliable services to subscribers with a lower cost, It can be widely used in DTV front-end system and remote front-end systems.

Key Features:

• Tuner inputs support DVB-S/S2,DVB-T/T2,DVB-C,ISDB-T/Tb, ATSC-T, DTMB for option

• Each Tuner input with loop out interface, for the convenience of next device

• Up to 246*SPTS or 14*MPTS output over IP addresses or ports via GigE

• IP transmission follows UDP, RTP, ARP, ICMP, IGMP protocol

• Support PID mapping and PSI/SI processing

• Capable of TS multiplexing, SimulCrypt CA, DVB-CSA scrambling, BISS decryption.

• Realize optimum transmission performance in low latency

• Easy and convenient operation, with keyboard on front panel and LCD display

• Web-based management

Technical Specifications:

Transport Stream Tuner Input

Interface: 8*Tuner(DVB-S/S2/C/ATSC) input and loop out option

RF input range: 950MHz~2150MHz(DVBS/S2)

Input level: 65~25dBm

Connector: Ffemale type, 75ohm

Symbol rate: 2~45Msps for QPSK/8PSK

Rolloff factor: 0.35 for QPSK; 0.35,0.25,0.2 for 8psk

Convolution: DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 ;

DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

Standard: DVBS comply to EN300421

DVBS2 comply to EN302307

LNB Power Output: 0V/+DC 13V/18V, Imax=400mA

Transport Stream Output Interfaces

ASI Output

2 x ASI(independent),impendence 75Ω, BNC Female

188/204 Bytes MPEGTS per packet length

Bit Rate≤100Mbps each

IP Output

Output: 246*SPTS or 14*MPTS over IP

Interface: GigE port(100/1000M baseT Ethernet),RJ45

Transmission protocol: UDP, RTP, ARP, ICMP, IGMP protocol

Transmission mode: Unicast or Multicast

TS packet Length: 7 x 188Byte

Transport Stream Processing

Re-multiplexing

Capable of multiplexing, BISS decryption

Working Environment

Control and Management

Interface: 1*RJ45,10/100 BaseT network interface

Remote control: web-based management

Local operation: keyboard on front panel, LCD display

Physical Parameters

Voltage: 90~260VAC, 50/60Hz

Consumption: 25W

Operating temperature: 0~50°C

Storage temperature: 10~70°C

Relative humidity: 10%~90%(non-condensing)

Dimensions: 440mm(W)×400(D)mm×45mm(H)(19inch,1RU)

Weight: 4.5 KGS

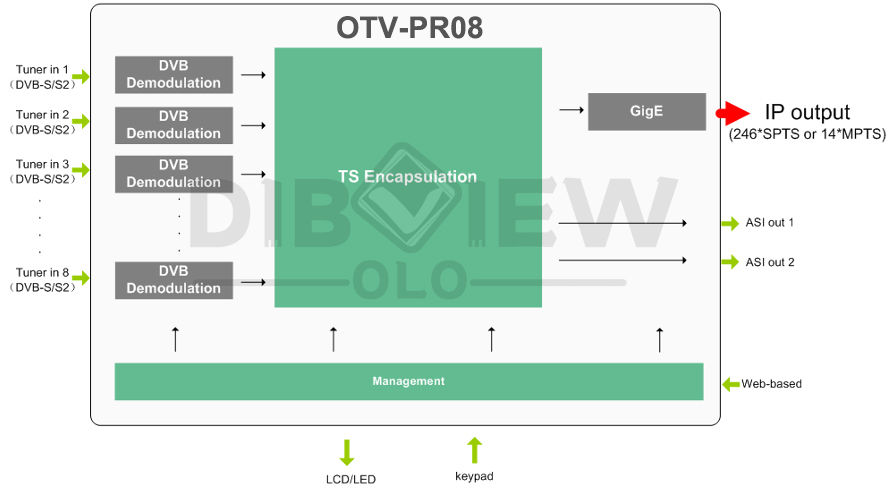

Key Diagram:
