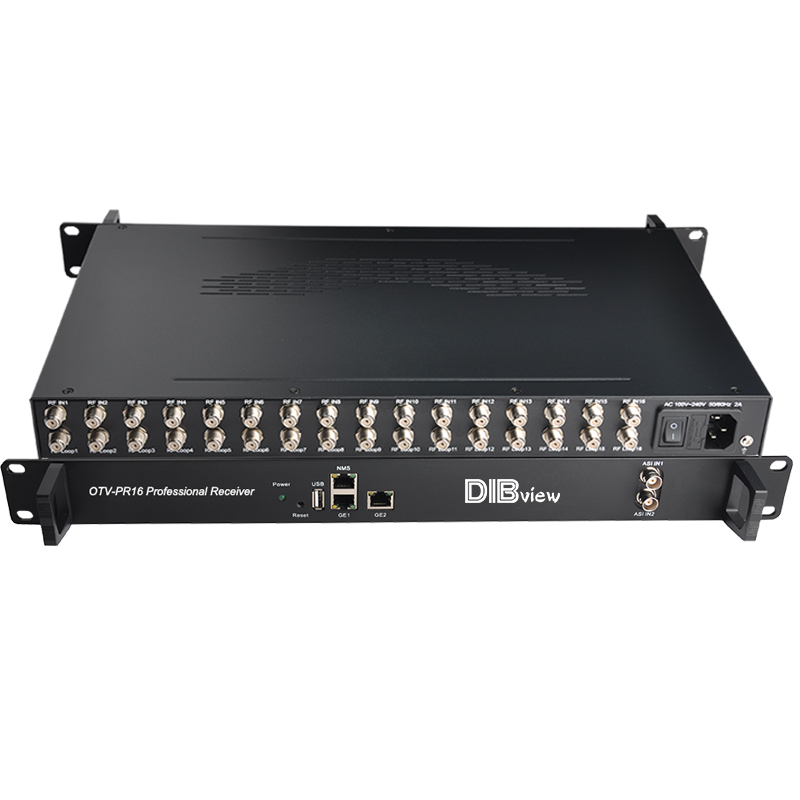

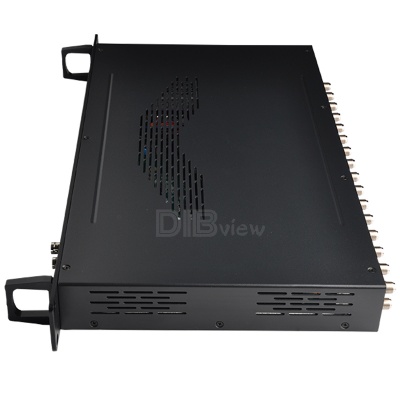

OTV-PR16 16-Channel Professional Receiver


Overview:

OTV-PR16 Dibview 16 Channel professional receiver can accepts 16*Tuners (DVB-S/S2/S2X/T/T2/C/ISDB-T/ATSC-T optional) input, demodulate to TS and encapsulated output IP packet. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol through different IP address and ports. At the same time, it can capable of multiplexing, BISS descrambling and DisEqc. Largely cost down the source gathering of Digital TV Broadcasting system and IPTV/OTT system which based on IP construction.


OTV-PR16 16 Channel Professional Receiver enables service providers to offers a wide range of cost-effetive, high-quality and reliable services to subscribers with a lower cost, It can be widely used in DTV front-end system and remote front-end systems.


Key Features:

  • Tuner inputs support DVB-S/S2/S2X,DVB-T/T2,DVB-C,ISDB-T/Tb, ATSC-T, DTMB for option, 2*ASI Input

  • 2 GigE mirrored output, up to 850Mbps---SPTS mode

  • Offering PID filtering, re-mapping (Only for SPTS output)

  • 2 independent GigE output ports, GigE1 + GigE2---MPTS mode

  • Support 'Null PKT Filter' function (Only for MPTS output)

  • Capable of BISS descrambling and DisEqc function

  • 16 MPTS or 512 SPTS output mode (MPTS and SPTS output switchable)

  • Providing web-based management


Technical Specifications:

Item

Description

Transport Stream Input

Optional 1:16 tuners input +2 ASI input---SPTS output

Optional 2:14 tuners input +2 ASI input --- MPTS output

Optional 3:16 tuners input --- MPTS output

Multi-mode tuners switchable (New Type)

DVB-C

Frequency In: 60~890MHz

Standard: J.83A(DVB-C), J.83B, J.83C

Constellation: 16/32/64/128/256 QAM

DVB-T/(T2)

Frequency In: 60~890MHz

Bandwidth: 6/7/8 M bandwidth

ISDB-T

Frequency In: 60~890MHz

Version 1

DVB-S

Frequency In: 950-2150MHz

Symbol rate: 1~45 Msps

FEC: 1/2, 2/3, 3/4, 5/6, 7/8

Constellation: QPSK

DVB-S2

Frequency In: 950-2150MHz

Symbol rate: 1~45 Msps

FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Constellation: QPSK, 8PSK

Version 2 (New Type)

DVB-S

Frequency In: 950~2150MHz

Symbol rate: 0.5~45Msps

Signal Strength: - 65- -25dBm

FEC: 1/2, 2/3, 3/4, 5/6, 7/8

Constellation: QPSK

Max input bitrate: ≤125 Mbps

DVB-S2

Frequency In: 950~2150MHz

Symbol rate: QPSK/8PSK/16APSK :0.5~45 Msps

32APSK: 0.5~34Msps

FEC:

QPSK: 1/2,3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

Constellation:

QPSK, 8PSK, 16APSK, 32APSK

Max input bitrate: ≤125 Mbps

DVB-S2X

Frequency In: 950~2150MHz

Symbol rate: QPSK/8PSK/16APSK :0.5~45 Msps

8APSK: 0.5~40Msps

32APSK: 0.5~34Msps

FEC:

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,

13/45, 9/20, 11/20

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

8APSK: 5/9-L, 26/45-L

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L,

8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 ,

2/3-L, 25/36, 13/18, 7/9, 77/90


32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9

Constellation:

QPSK, 8PSK, 8APSK, 16APSK, 32APSK

Max input bitrate: ≤125 Mbps

ATSC-T Terrestrial Input Option

Number of Inputs

16x RF Input (with Loop Out each)

Connector Type

F-Type (Female, 75Ω)

Standards

ATSC A-53

Constellations

8VSB, 16VSB

Bandwidth

6MHz

Frequency Range

54 to 900MHz

BISS Descrambling

Mode 1,Mode E (Up to 850Mbps)(descramble individual program)

DVB ASI Output

Numbers of ASI

2 x ASI Output

Connector Type

BNC (Female, 75Ω)

Data Format

188/204 Bytes MPEG-TS packet length

Bit Rate

1.5 to 100Mbps each

IP Streaming Output (below two options switchable)

Output option1: 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol

through GE1 and GE2 port, Unicast and Multicast


Output Option2: 16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol

through GE1 and GE2 port, Unicast and Multicast

Connector

GigE port(100/1000M base-T Ethernet),RJ45

Transmission protocol

UDP, RTP, ARP, ICMP, IGMP protocol

Transmission mode

Unicast or Multicast

Supported Protocol

UDP, RTP, ARP, ICMP, IGMP

TS packet Length

7 x 188Byte

Control and Monitoring

Interface

1*RJ-45,10/100 Base-T network interface

Remote control

web-based management

Local operation

keyboard on front panel, LCD display

The Working Environment

Power Supply

AC110V±10%,50/60Hz or AC 220V±10%

50/60Hz

Power Humidity

9~ 89% non-condensed

Operation temperature

0 -50°C

Storage temperature

-20-80°C

Dimensions

482mm x 410mm x 44mm

Weight

4Kg

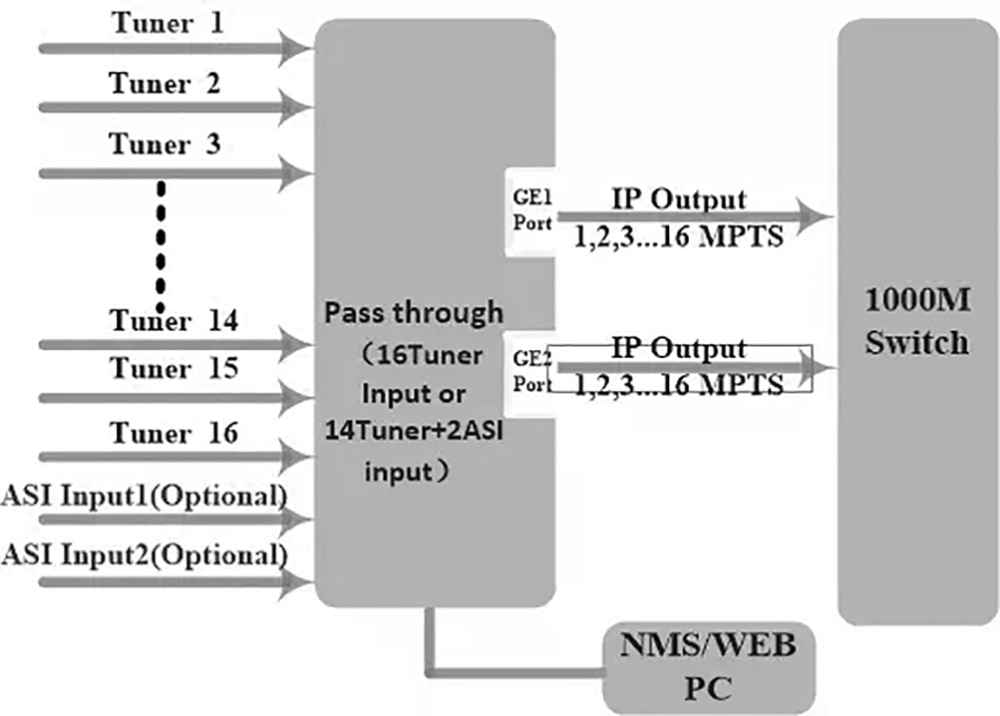

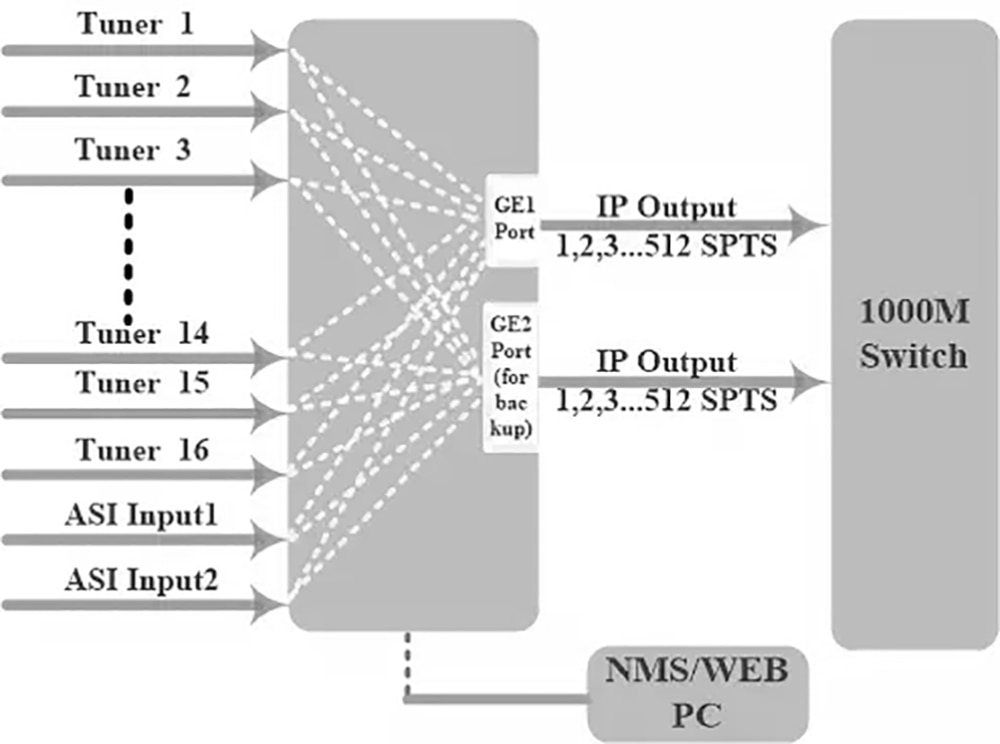

Key Diagram:
