Overview:

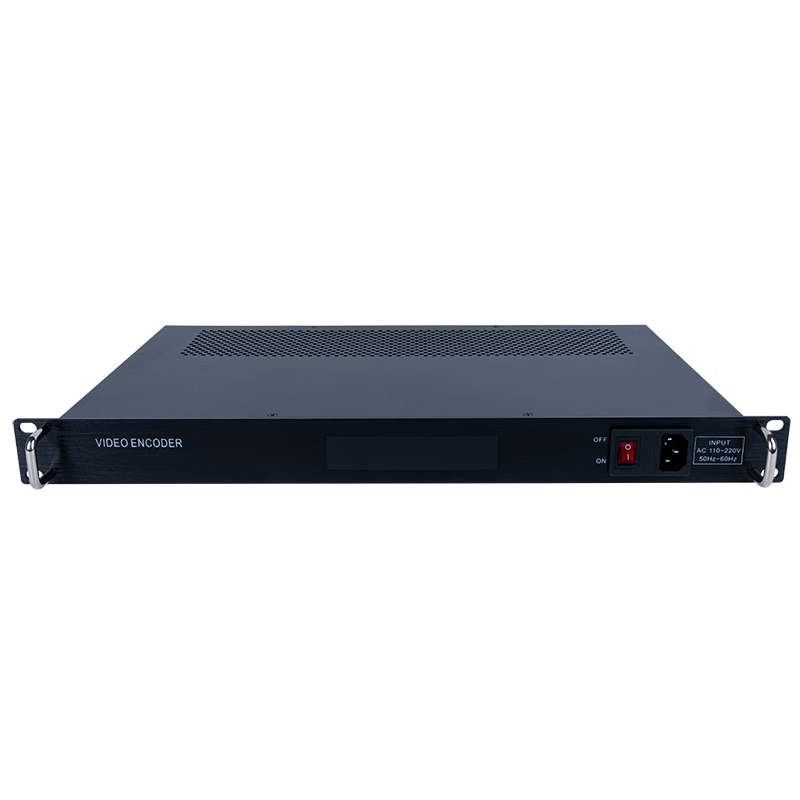

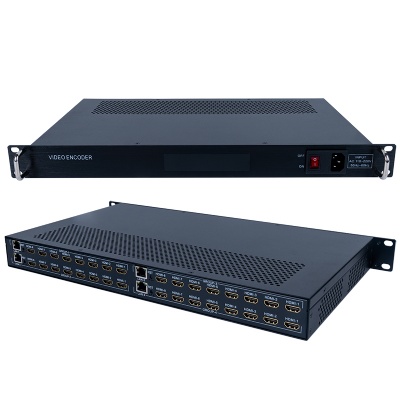

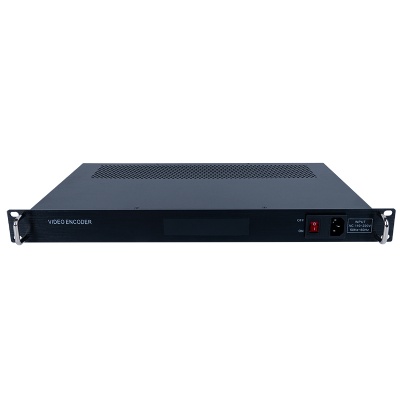

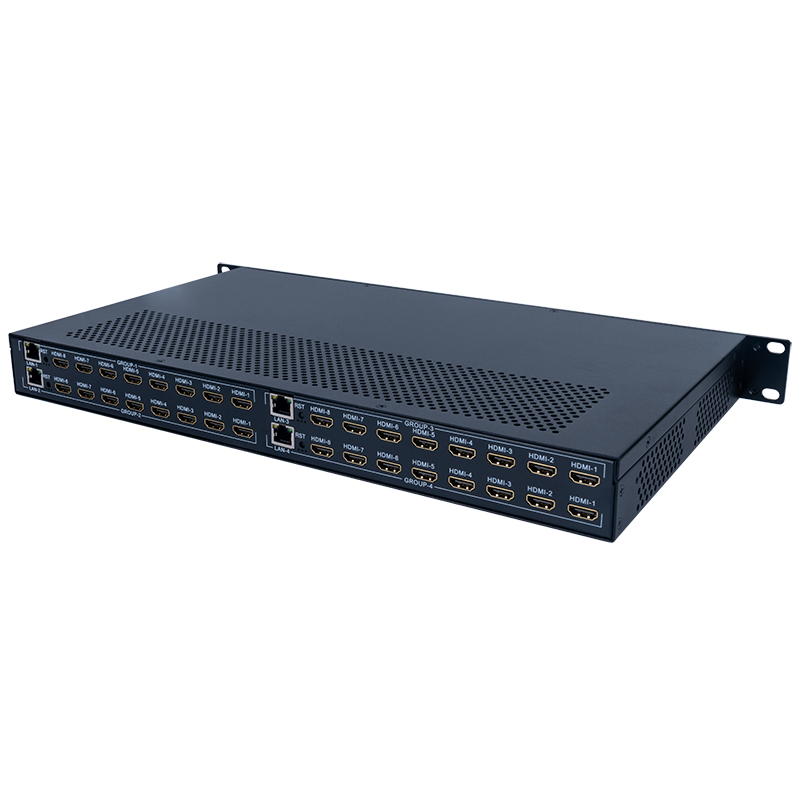

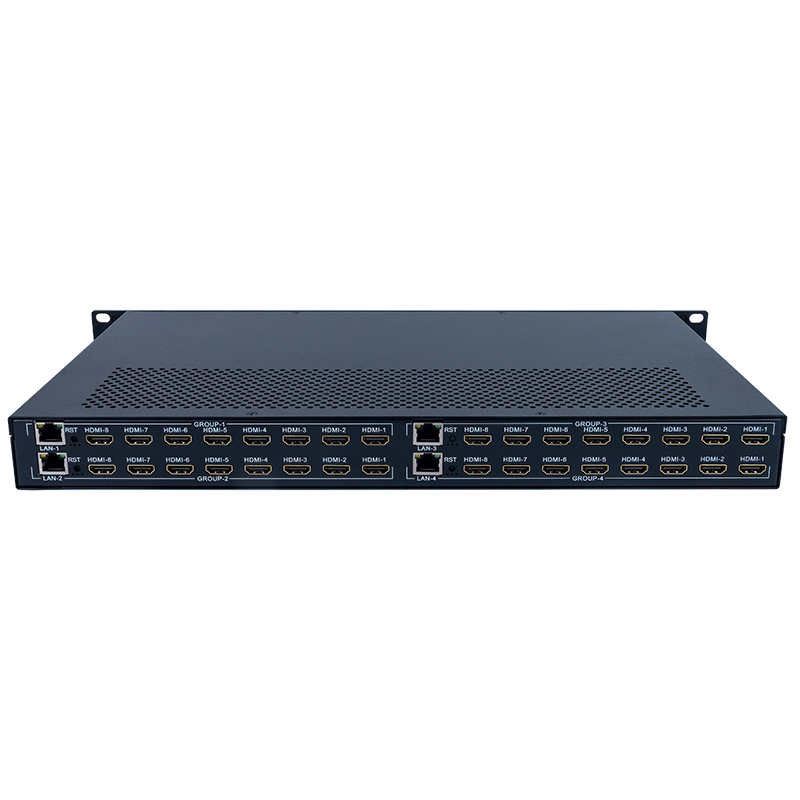

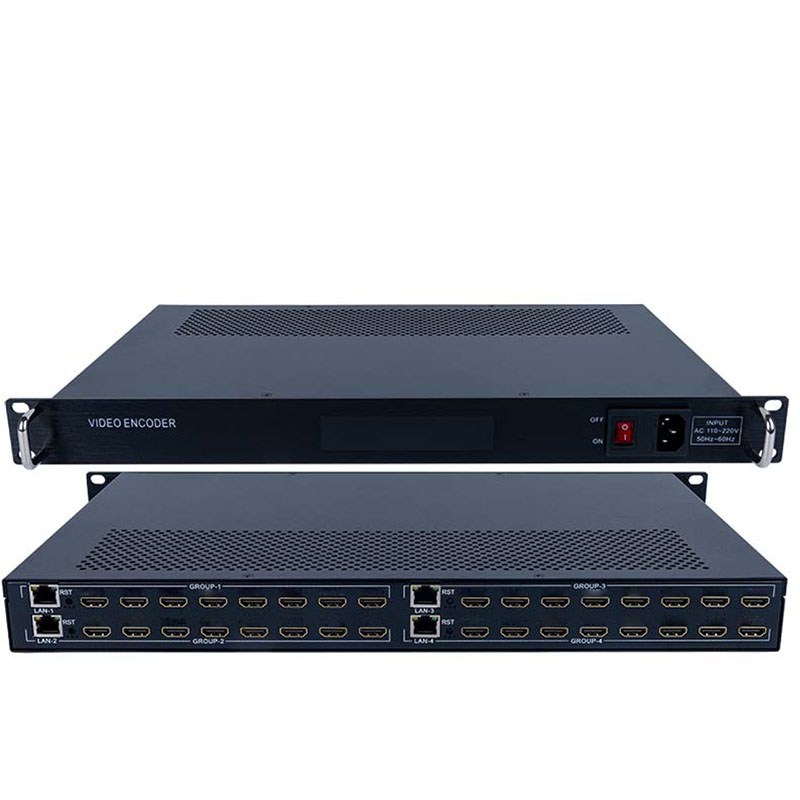

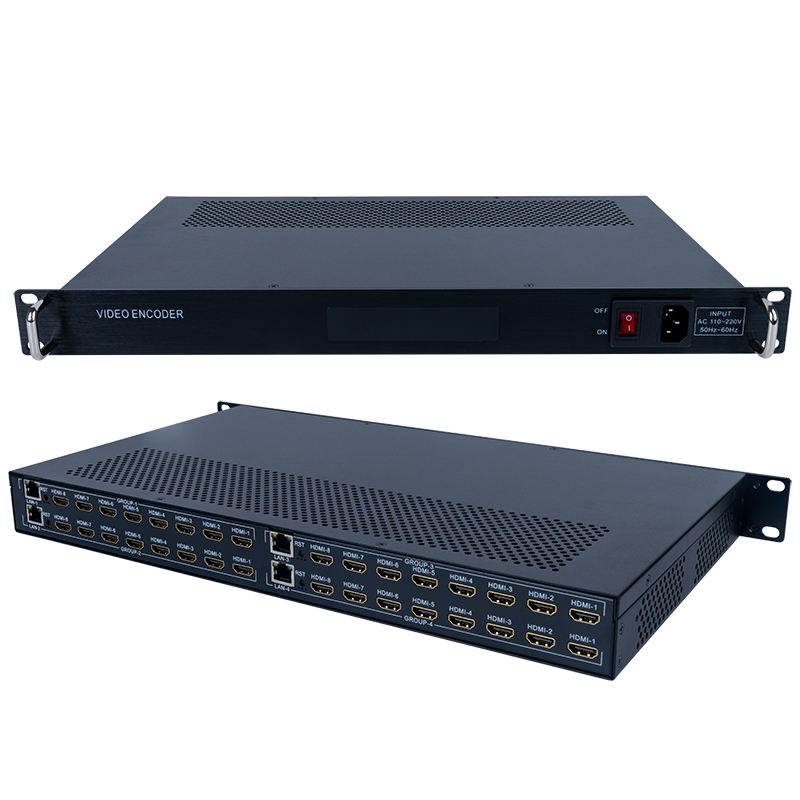

OTV-U32H 1U 32-channel HDMI Video Encoder has the function of simultaneously collecting and transmitting 32-channel HDMI signals and encoding dual streams. HDMI video sources can be

encoded and compressed into network streams, and long-distance high-definition video transmission/live broadcast can be achieved on the Internet or LAN through wired networks.

OTV-U32H 1U 32-channel HDMI Video Encoder supports 16 channels of 1080P 60 frames or 32 channels of 1080P 30 frames encoding output.

Key Features:

Powerful streaming media service function, supports mainstream protocols such as RTSP/RTMP/UDP, and additionally supports Onvif and NDI protocols.

Support web browser web-side network management login encryption function

Support multiple mainstream protocols such as

HTTP/RTSP/RTMP/HLS/UDP/ONVIF/SRT/RTP/unicast/multicast/HLS

Supports dual-stream output, the main stream supports video encoding up to 1080p 60FPS, and the sub-stream supports video encoding 720p 60FPS. The output

resolution can be customized.

Support the establishment of a small LAN distribution system, with 5-7 display terminals for streaming playback

Support private protocol transmission

Compatible with streaming media servers such as Wowza/FMS/RED5, and can be used with the streaming media server to push DC to achieve live video streaming

Provide a more reliable encrypted transmission method, with multiple encryption methods available.

Support web browser web-side network management login encryption function

Support RTMP upload function to add user name and password, RTSP supports opening authentication function to add user name and password encryption function

High integration, multiple streams

Supports 2 types of code stream output, 2 different network protocols for simultaneous transmission, and supports 2 types of resolution/code rate adjustable

Strong bandwidth adaptability, stable in low-bandwidth network environments,transmitting high-definition, low-latency, and no-lag audio and video signals.

Embedded chip and H.265/H.264 video encoding technology, combined with image enhancement technology processing, achieve low bit rate encoding to ensure high definition

Image quality output, output resolution is adjustable

Wider adjustable code rate, 16Kbit/s～12Mbit/s adjustable, supports code rate control CBR/VBR

Support DHCP to automatically obtain IP (closed by default, some computer firewalls will block it)

Transmission mode supports TCP, UDP, 1000M (full duplex mode)

Audio encoding

Support AAC, MP2, MP3, G711 audio encoding

Low power consumption, low heat dissipation, supports 7*24 h uninterrupted operation conditions

Low power consumption power supply design

Support Chinese and English OSD, support OSD scrolling, picture overlay, XY axis, font can be set, support adding company logo

Support WEB Chinese and English web page access, password change, and support LAN remote management (WEB)

Supports one-click restoration, version upgrade and remote maintenance, and supports one-click restoration of default configuration

Supports non-video signal encoding, the setting takes effect immediately without restarting; supports set-top box decoding
