    OTV-AV08A 8 Channel CVBS AV TO IP SRT RTMP RTSP HTTP UDP Streaming Video H264 Encoder For Hotel TV System

    EMAIL   INQUIRY

Overview

OTV-AV08A  IPTV Streaming Encoder has 8*CVBS (AV) input working at the same time. Meanwhile, it outputs 16 groups stream by TS over IP transmission in H.264 Compression(Video), AAC, MP3 Compression(audio) with different resolutions, bit-rates and protocols for delivering services to multiple Internet connected devices at the same time, including smart-phones, tablets, different size TVs
and other mobile device.

With powerful video pre-compression and efficient adaptive video compression algorithm, OTV-AV08A IPTV Streaming Encoder is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth. It can be applied to education, health care, IPTV & OTT, conference, remote education, news interview, court, public security, banking, transportation and other industry applications.

Main Features

* Support 8*CVBS input

* Output respect ratio 16:9 and 4:3 adjustable

* Up to 16 groups TS over IP with 16 different resolutions and 16 different bitrates

* Offering H.264 Video Compression

* Workable under SRT/RTSP/RTP/HTTP, UDP unicast and multicast, RTMP(Username and password verification allowed under RTMP)

* Support ON VIF Network Video Protocol

* Configurable of multi-protocol, multi-resolution and multi-stream and low bit-rate by H.264 with high quality image

* Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC)

* Encoding profile: H.264/AVC BASELINE PROFILE/MAIN PROFILE/HIGH PROFILE

* Bit-rate mode CBR/VBR,16Kbps~12Mbps

* Video packing: FFMPEG/ VLC

* Transport method: TCP, UDP, 1000M (RJ45 duplex interface)

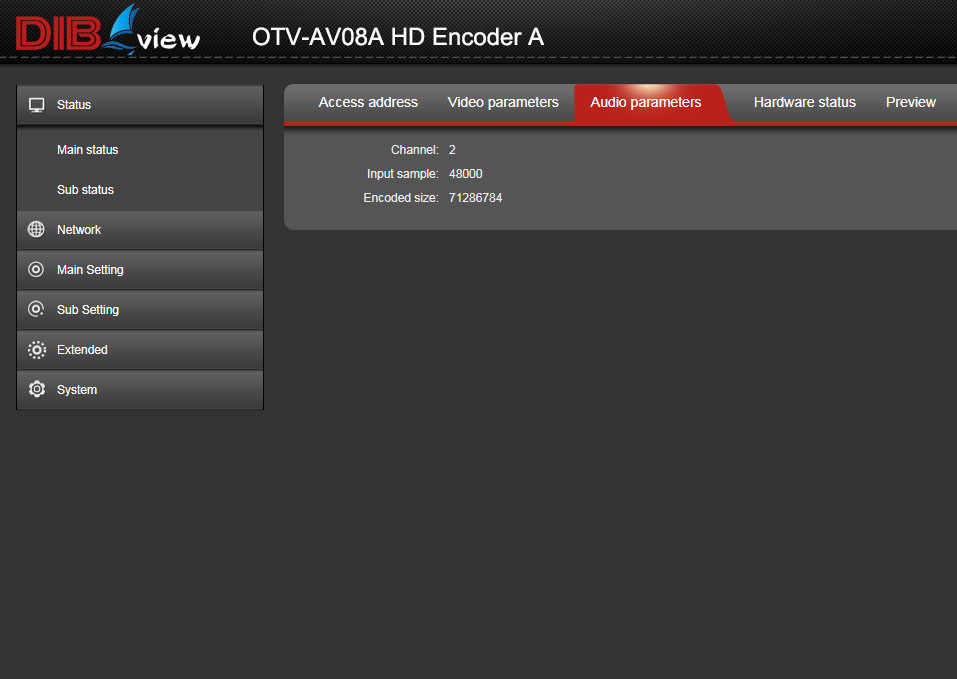

* Web-based management easy for configuration.

* Scrollable English OSD, picture overlapping and logos are realizable while letters and symbols can be displayed anywhere in the
  screen

* Image setting: Contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering


* Audio: line in (left&right)

* The setting comes into effect once finished while reboot is unnecessary

* Default configuration can be done by one key recovery

* WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

Specifications

VIDEO Encoding

Video compression: H.264/MPEG-4 AVC

Video inputs: 8*CVBS input

Input resolution:
720x576, 720x540, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, auto

Output resolution:
CVBS main stream: NTSC: 720x480(MAX.)
PAL: 720x576(MAX.)
CVBS sub-stream: NTSC: 720x480(MAX.)
PAL: 720x576(MAX.)

Bit-rate: 16kbps~12Mbps, CBR/VBR
Video Frame Rate: 25/30fps
OSD: text, logo, scroll caption

Audio Encoding

Input interface: 8*CVBS audio
Audio compression: AAC, MP3
Sampling Rate 32KHz, 44.1 KHz, 48 KHz etc.
Audio Bit-rate: 48Kbps, 64 Kbps, 96 Kbps, 128 Kbps, 16 Kbps, 192 Kbps, 256 Kbps, 384Kbps
IP Streaming output
Transport protocol: TS over IP output, SRT, RTSP, HTTP, RTMP, UDP multicast/unicast, ON VIF protocol
Support output up to 16 groups TS over IP streams with 16 different resolutions and 16 different bitrates by 8 CVBS channel input
Support RTMP Username and Password for verification of IPTV Server
Connector: RJ45, 100M/1000M

System

Configuration Interface: Web-based Remote

Upgrade: via network

Connector: RJ45, 100M/1000M Ethernet interface

Working Environment

Voltage: 110~220V
Consumption: 18~20W
Operating temperature: 0~50°C
Dimensions: 483mm(W)*240mm(D)*44.5mm(H)
Weight: 3Kg/pc

Key Diagram or Application

IPTV OTT System
Internet TV
Digital Signage Project

Remote Video Conference
Video Monitoring
