Overview:

In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms.

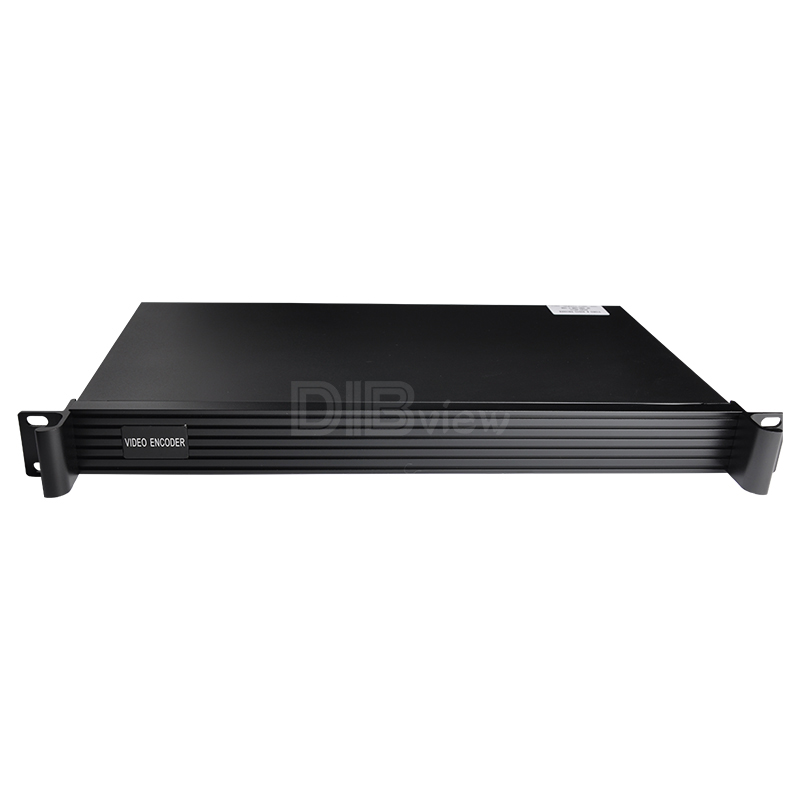

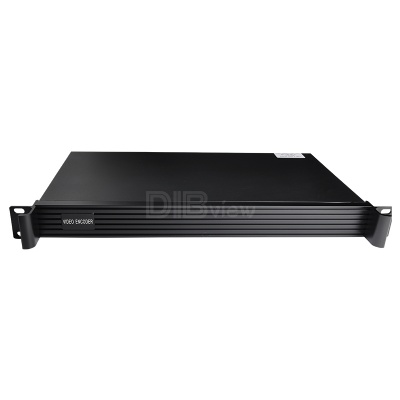

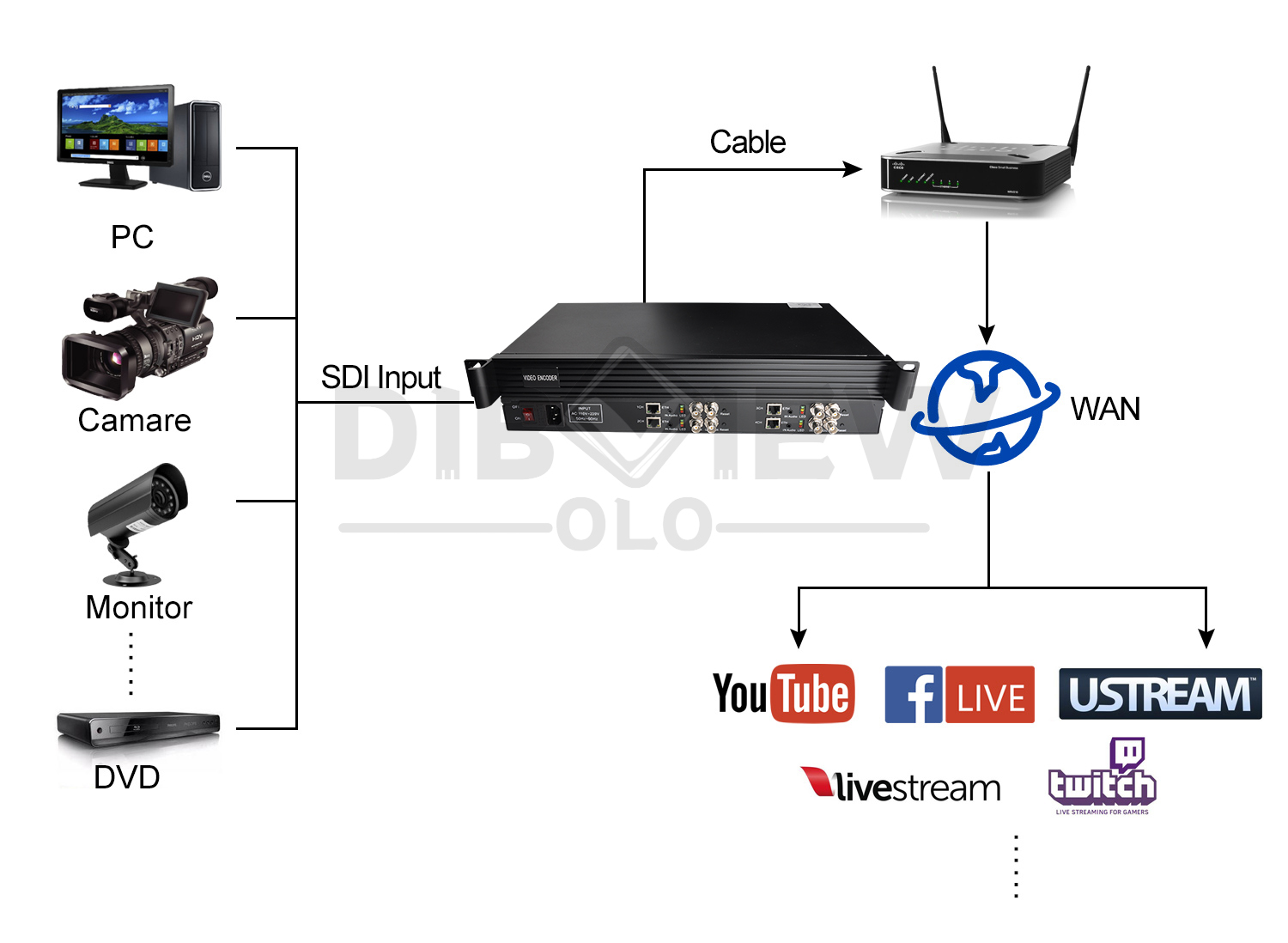

Dibview multiscreen multiprotocol series IPTV Encoder are designed to address the increasing demand for video delivery to Internet and mobile devices. OTV-HE4S H.264 H.265 HD 4 Channel IPTV Encoder supports audio and video collection by 4-Ch HD or 4-Ch SDI input simultaneously for option. For SDI input, each channel of SDI input supports output 2 channels IP streams with two different resolutions(one higher resolution, the other one lower resolution), each channel of IP stream support two kinds of protocols output option. So there are total 4*4=16 channels IP streams output from 4 channels SDI input. The Encoder can deliver H.264/H.265 encoding video streams by 16 channels independent IP output to various servers for IPTV & OTT application, such as Adobe Flash Server, Wowza Media Server, Windows Media Server and some other servers based on SRT/HLS/UDP/RTSP/RTMP/HTTP/ONVIF protocols. Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized.

OTV-HE4S is suitable for professional broadcast level IPTV&OTT system construction, hospitality IPTV application, Remote HD multi-window video conference, Remote HD education and Remote HD medical treatment etc.

Key Features:

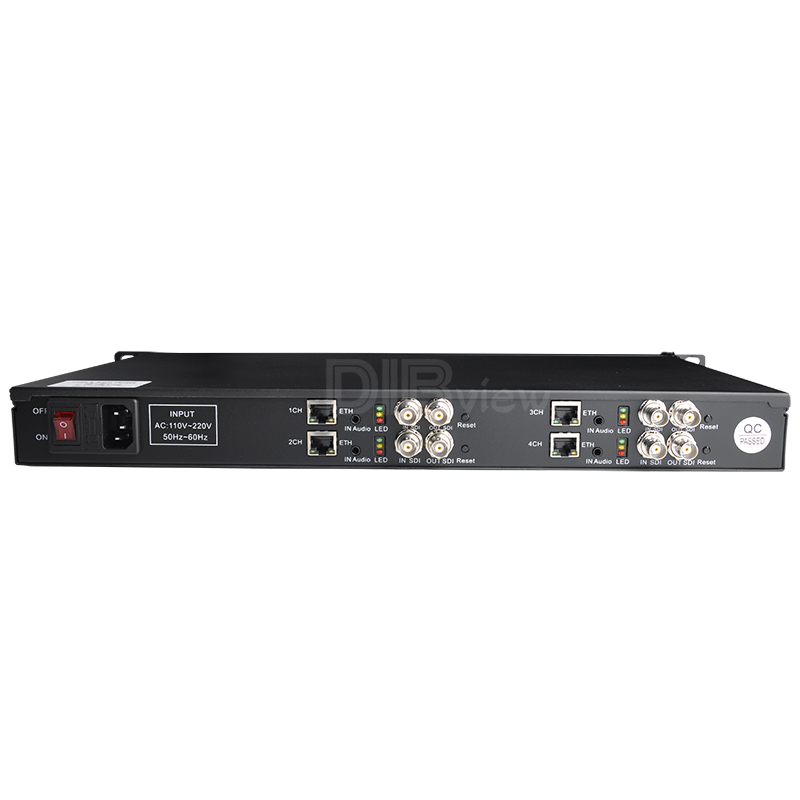

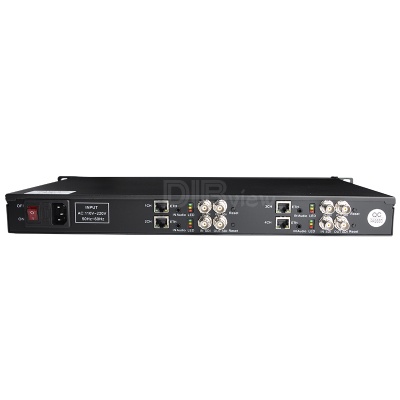

• Video Input: 4-Channels HD SDI +3.5mm audio SDI loopout work simultaneously

• Support RTMP User name and Pass word for authentication of IPTV Server

• Insertable of logo and Scroll Caption; Adjustable of audio gain;

• Support up to 4 TS over IP stream out each HDMI/SDI channel

• Support H.265/H.264 Main Profile/H.264 High Profile and MP3 & AAC audio compression

• Bitrate mode: CBR/VBR

• Capable of image parameter settings

• Switchable of audio output mode: Left, right and Stereo

• Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.

• Providing SRT/HLS,RTSP/HTTP/UDP or RTMP protocol

• Any iOS browsers(iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.

• Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC).

• Support HDCP protocol

• Support ONVIF Network Video Protocol

• Support multiple equipments display at the same time on a computer

• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

• Web-based management.

• Full-duplex mode 1000M

Technical Specifications:

VIDEO Encoding

Video compression: H.265/H.264/AVC High/Main/Baseline Profile Level 4.0

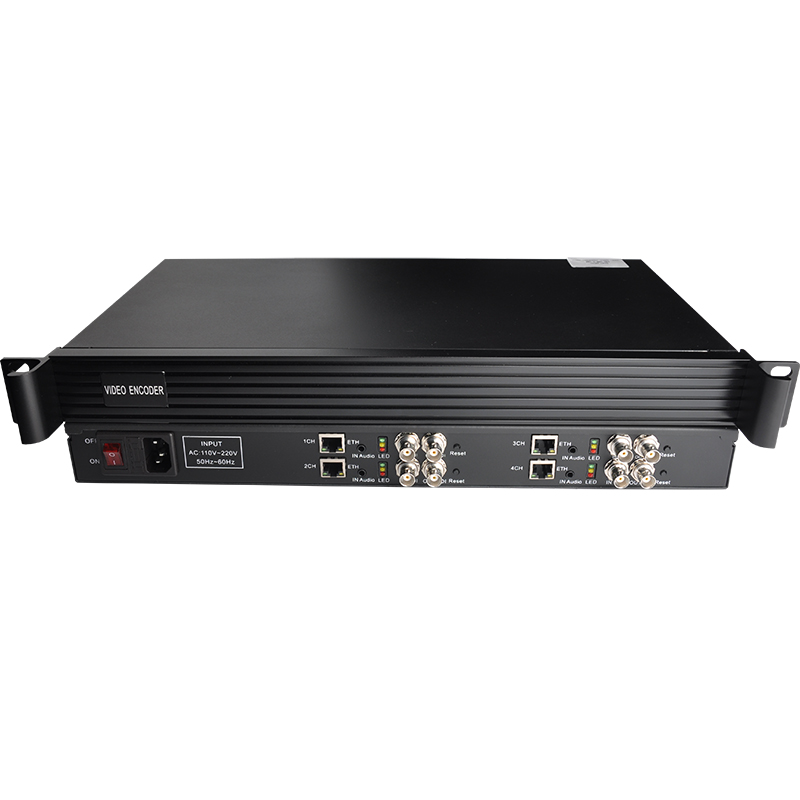

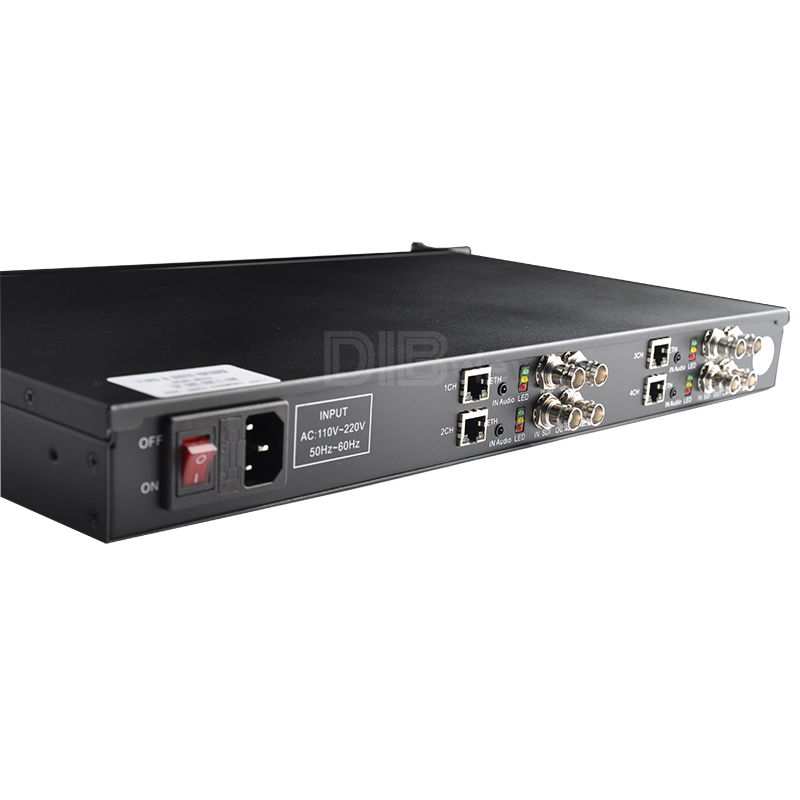

Video inputs:4*SDI in/loopout

Resolution:

Main stream:

1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480,

720x404,704x576,640x480,640x360,auto

Sub-stream:

1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480,

640x300,352X288,320X240,320X180 auto.

Bit-rate: 16kbps~12Mbps, CBR/VBR

Video pre-processing: Noise reduction, Sharpen, Filtering

AUDIO Encoding

Audio compression: AAC, MP3

Sampling rate: Adaptive, selectable of re-sample.

Sampling accuracy: 24-bit

Bit Rate: 48Kbps, 64Kbps, 96Kbps, 128Kbps, 160Kbps, 192Kbps, 256Kbps

Re-sample: 32KHz, 44.1KHz

IP Streaming output

Transport protocol: TS over IP output, SRT/HLS,RTSP/HTTP/UDP or RTMP protocol

For each HDMI/SDI to IP output, 4*TS over IP stream out(SRT/HLS,HTTP/RTSP/UDP or RTMP protocol)

2 Channels with higher resolution(up to 1080P) for large screen application,

2 channels with lower resolution(up to 720P) for small screen application)

Connector: RJ45, 1000M

Physical And Power

Voltage: 220V

Consumption: less than 20W.

Operating temperature: 0~45℃(operation), -20~65℃(storage)

Dimensions: 483mm(W)*240mm(D)*44.5mm(H)

Weight: 3Kg/pc

Applications:

Agencies, TV & Pro Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference, Internet TV

IPTV/OTT system, Live Streaming

Government, Education and Music

Digital Signage Project

Video Monitoring
