OTV-M4K Multi-Channel 4K HDMI Encoder


Overview:

OTV-M4K Multi-Channel 4K Streaming IPTV Encoder, which supports 1-4pcs M001 cards installation, 4/8/12/16 channels HDMI input, the max resolution at 4K@30fps, and output stream resolution up to 4K@30fps.


OTV-M4K Multi-Channel 4K Streaming IPTV Encoder provides with HTTP/HLS/FLV/RTSP/ RTMP(S)/UDP/RTP (Unicast/Multicast)/SRT Stream Protocols and ONVIF.


Also OTV-M4K Multi-Channel 4K Streaming IPTV Encoder can be applied to education, health care, IPTV & OTT, conference, remote education, news interview, court, public security, banking, transportation and other industry applications.


Key Features:

  • High density, high quality, high performance, high flexibility

  • Provide Max.16 Channel 4K@30fps HDMI input

  • Friendly Web Control UI, default IP is 192.168.1.168.

  • Support SRT/HTTP/HLS/FLV/RTSP/RTMP(S)/UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.

  • Support output Multi RTMP(S) (Main stream & Sub stream) to different Media Streaming Server.

  • Provide custom resolutions, Main Stream Preset Resolutions–1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.

  • Support Text and image insert as Stream Logo for Main stream & Sub stream.

  • Output Stream bitrate adjustable.

  • Support External Analog audio input.

  • With Audio digital gain.

  • Support firmware upgrade.

  • Support remote control via router port forward.

  • Easy-to-Use System Management via Web


Technical Specifications:

Item

Description

Video

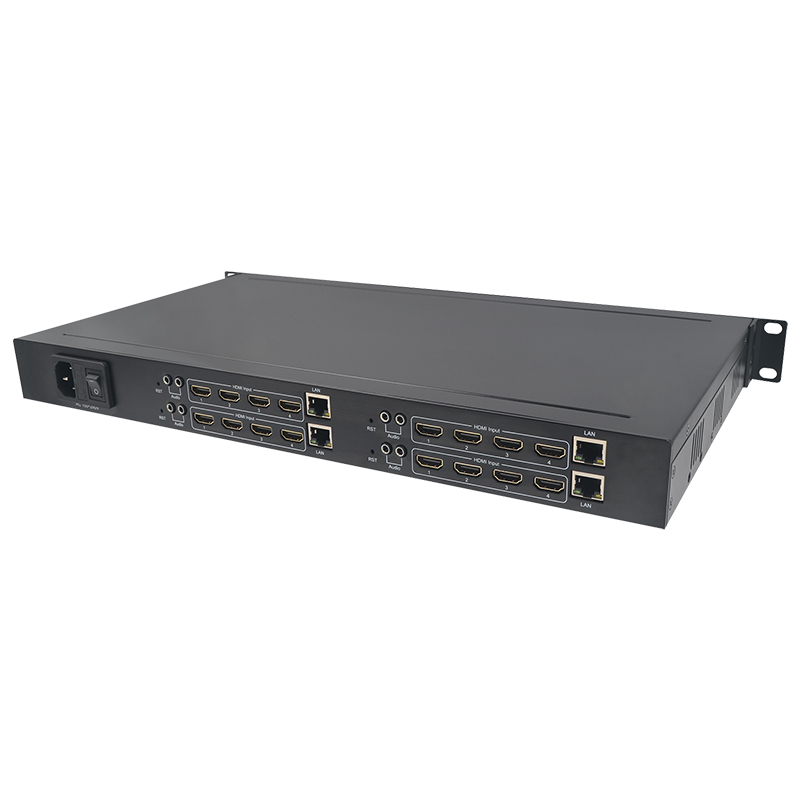

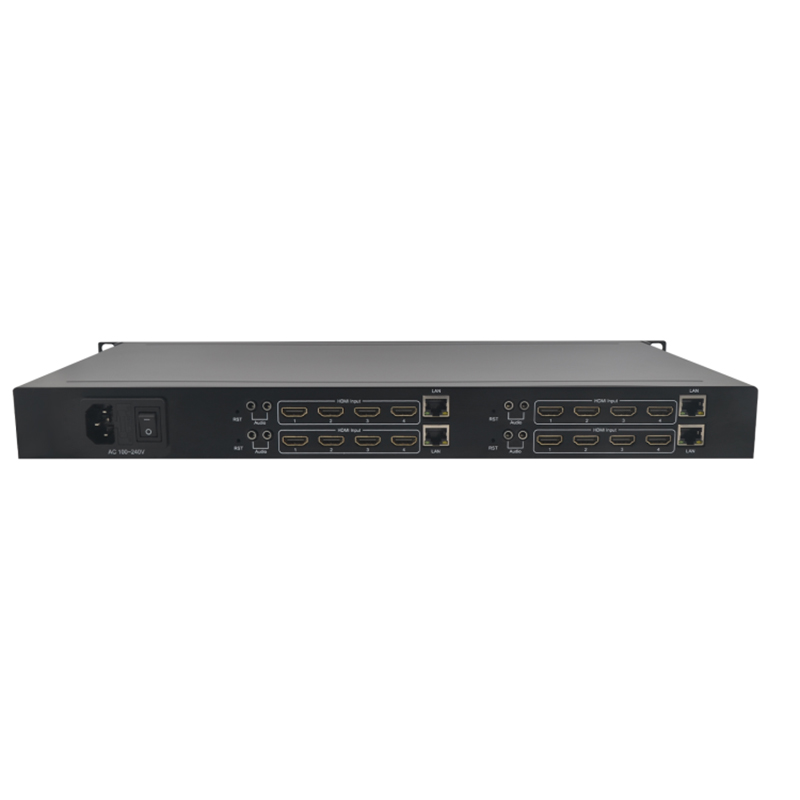

Video Input: 16*HDMI (4PCS 4 in 1 HDMI   Video Encoder Cards)

Supports HDMI Resolution: HDMI 1 &  2 Max support 3840*2160@30fps,

HDMI 3 & 4 max support 1080p60fps

Encoding Levels: H.264/AVC High/Main/Baseline   Profile H.265/HEVC main profile MJPEG/JPEG baseline

Output TS Steam Resolution: HDMI 1 & 2  Max support 3840*2160@30fps,

HDMI 3 & 4  max support 1080p60fps,

Video FPS: 5-60FPS (when 1080P)

Video Bitrate: 0.1~32Mbps adjustable

Bitrate control: VBR/CBR

TS Protocols: SRT/HTTP/HLS/FLV/RTSP/UDP/RTMP/ONVIF

Audio

Audio: Input

HDMI Audio or 2*3.5mm L/R Analog Audio line in for Mixed

Sample Rates: 44.1 kHz, 48.0 kHz

Encoding: AAC/AAC+/AAC++/MP3, G.711 (i-Law/a-Law)

Bit rate: 12K~320K adjustable

ONVIF: G.711

Network

Network: 1000Base-T Ethernet interface

System Control Panel: Http Web

Firmware Update: Supports Remote management

The Working Environment

Power Supply: AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz

Operation temperature: 0 -50°C

Storage temperature: -20-80°C

Dimensions: 483mm*250mm*44.5mm

Weight: 4.5Kg


Key Applications:

Digital Signage

Hotel TV system

Recording System

Video Conference

NVR (Net Video Recorder)

Teaching/Campus Broadcast

IPTV (Wowza, Xtream Codes Media Server, etc.)

Online Live Broadcast (YouTube, Ustream, Facebook,Twitter, etc.)

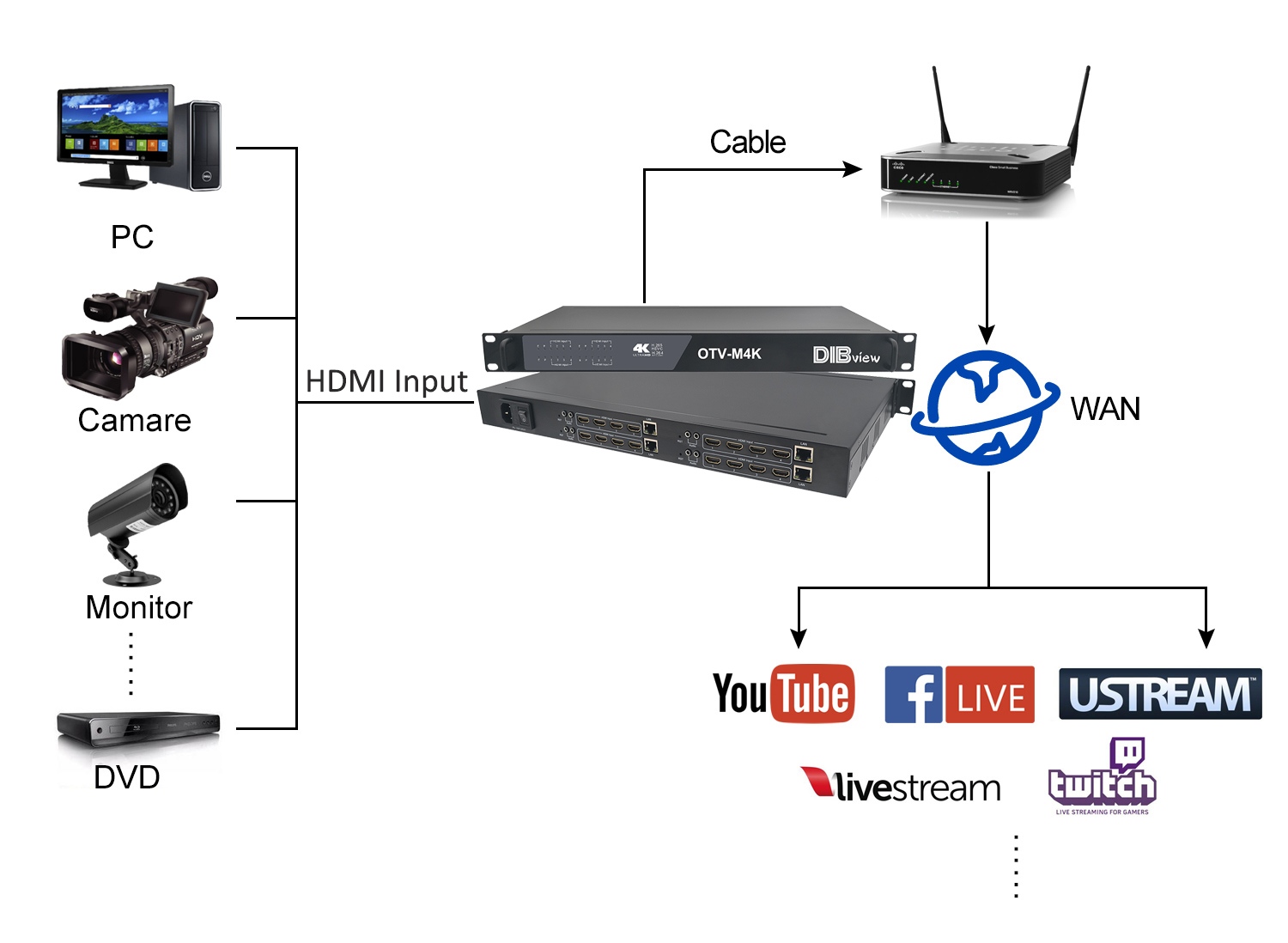

OTV-M4K Multi-Channel 4K HDMI Encoder Application 000.jpg
