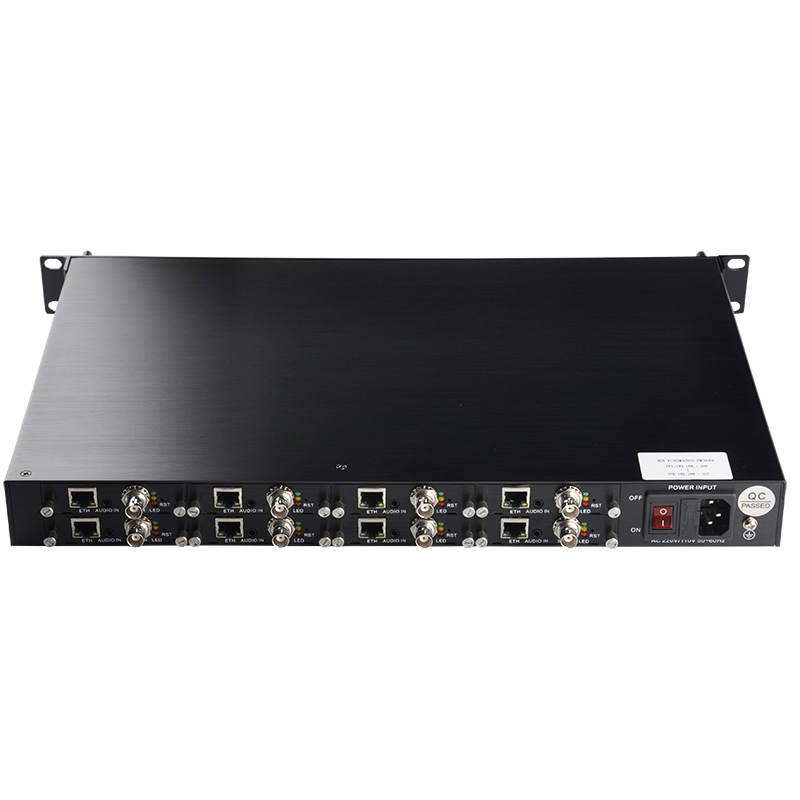

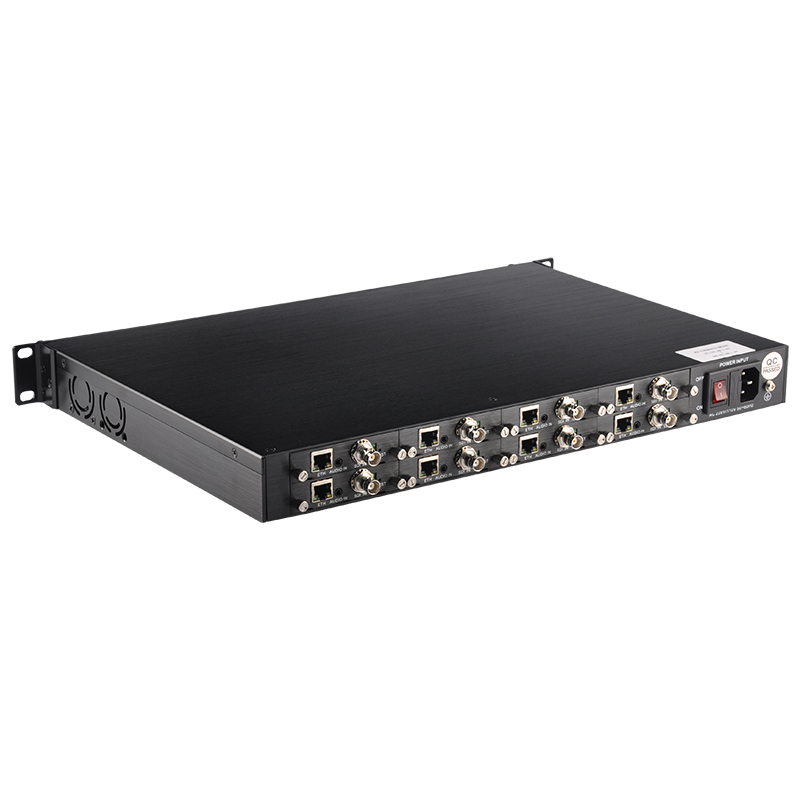

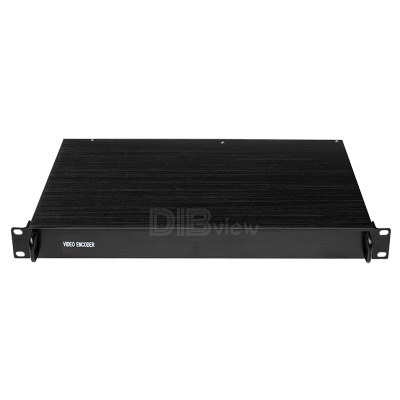

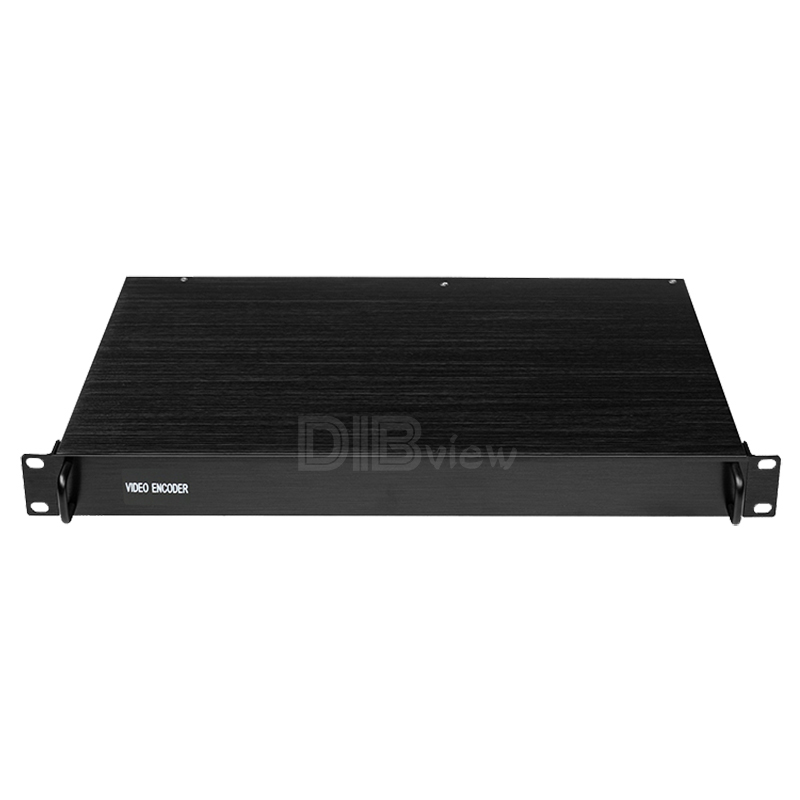

OTV-HE80S 1U Rack 8-Channel SDI Encoder


Overview:


In a rapid changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms.


DIBVIEWOLO OTV-HE80S H.265/H.264 8-Channel SDI Encoder Multiscreen multiprotocol series IPTV Encoder are designed to address the increasing demand for video delivery to Internet and mobile devices. OTV-HE80S H.265/H.264 HD 8 Channel IPTV Encoder supports audio and video collection by 8-Channel HD SDI input simultaneously for option. For SDI input, each channel of SDI input supports output 2 channels IP streams with two different resolutions(one higher resolution, the other one lower resolution), each channel of IP stream support two kinds of protocols output option. So there are total 8*4=32 channels IP streams output from 8 channels SDI input. The Encoder can deliver H.265/H.264 encoding video streams by independent IP output to various servers for IPTV & OTT application, such as Adobe Flash Server, Wowza Media Server,Windows Media Server and some other servers based on UDP/HLS/RTSP/RTMP/HTTP/ONVIF protocols.Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized.


OTV-HE80S is suitable for professional broadcast level IPTV & OTT system construction, hospitality IPTV application, Remote HD multi-window video conference, Remote HD education and Remote HD medical treatment etc.


OTV-HE80S H.265/H.264 8-Channel SDI Encodersupport SDI embedded audio or external audio optional from output video streaming.


Not only 8-channel, we also produce multichannel SDI video encoder which is packed by 2U/3U box. For 3U rack, support max 16pcs independent encoding modules to be installed.


Key Features:

  • Video Input: 8-Channels SDI Plus 3.5mm audio work simultaneously

  • H.265/H.264 Baseline Profile/Main Profile/High Profile

  • Support RTMP User name and Pass word for authentication of IPTV Server

  • Insert logo and Scroll Caption; Adjustable of audio gain;

  • Support up to 4 TS over IP stream out each SDI channel

  • Bitrate mode: CBR/VBR

  • Capable of image parameter settings

  • Configurable of Multi-Screen, Multi-Protocol HLS, HTTP, RTSP, UDP, RTMPs, FLV/RTP/ONVIF

  • Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.

  • Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).

  • Supports the HDCP protocol and supports Blu ray HD

  • Support multiple equipment display at the same time on a computer

  • System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

  • WEB interface authority management

  • Network interface adopts 100/1000M adaptive/full duplex mode


Technical Specifications:

Item

Description

Video Encoding

Video compression: H.265 HEVC,H.264/AVC High/ Main/Baseline Profile Level 4.0

Video inputs:8*SDI (HDCP protocol) input+3.5mm audio

Resolution

Main stream:

1920x1080,1680x1056,1280x720,1024x576, 850x480,720x576,720x540,

720x480,720x404,704x576,640x480,640x360,auto

Sub-stream:

1280x720,800X450,720x576,720x540, 720x480,720x404,704x576,640x480,

640x300,352X288,320X240,320X180 auto.

Output Interface

Ethernet Port (RJ45)

Video Encoding

HEVC/H.265 Or H.264 /AVC

Code Rate Control

16kbps~12Mbps, CBR/VBR

Video pre-processing

Noise reduction, Sharpen, Filtering

Audio Encoding

Audio compression: AAC, MP3

Audio bit rate:

48Kbps,64Kbps,96Kbps,128Kbps,160Kbps,192Kbps,256 Kbps,384Kbps

Sampling rate: Adaptive, selectable of re-sample

Sampling accuracy: 24-bit

Re-sample: 32KHz,44.1KHz

IP Streaming Output

Transport protocol: TS over IP output, HLS, RTSP,  HTTP, UDP and RTMPs protocol

For each HDMI to IP output, 4*TS over IP stream out  (HLS,HTTP/RTSP/UDP or RTMP protocol)

2 Channels with higher resolution(up to 1080P)  for large screen application,

2 channels with lower resolution(up to 720P)  for small screen application)

Management

Configuration Interface: web-based UI

Upgraded: via network

Connector: RJ45, 1000M Ethernet interface.

The Working Environment

Dimension

483mm(W)*240mm(D)*45mm(H)

Gross Weight

4KG

Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

AC220V±10%, 50/60 Hz

Power Consumption

75W

Warranty
5 year


Applications:

Live Streaming

Video Monitoring

Digital Signage

Remote Video Conference

Agencies, Pro Radio and Sports

Organizations Conferences and Worship

IPTV/OTT system

Hotel TV System

CATV Broadcasting system

Digital TV Broadcasting System

Digital TV Programs Transmission

Government, Education and Music

Edge side of Digital TV backbone network

Head-end system of Digital TV branch network.

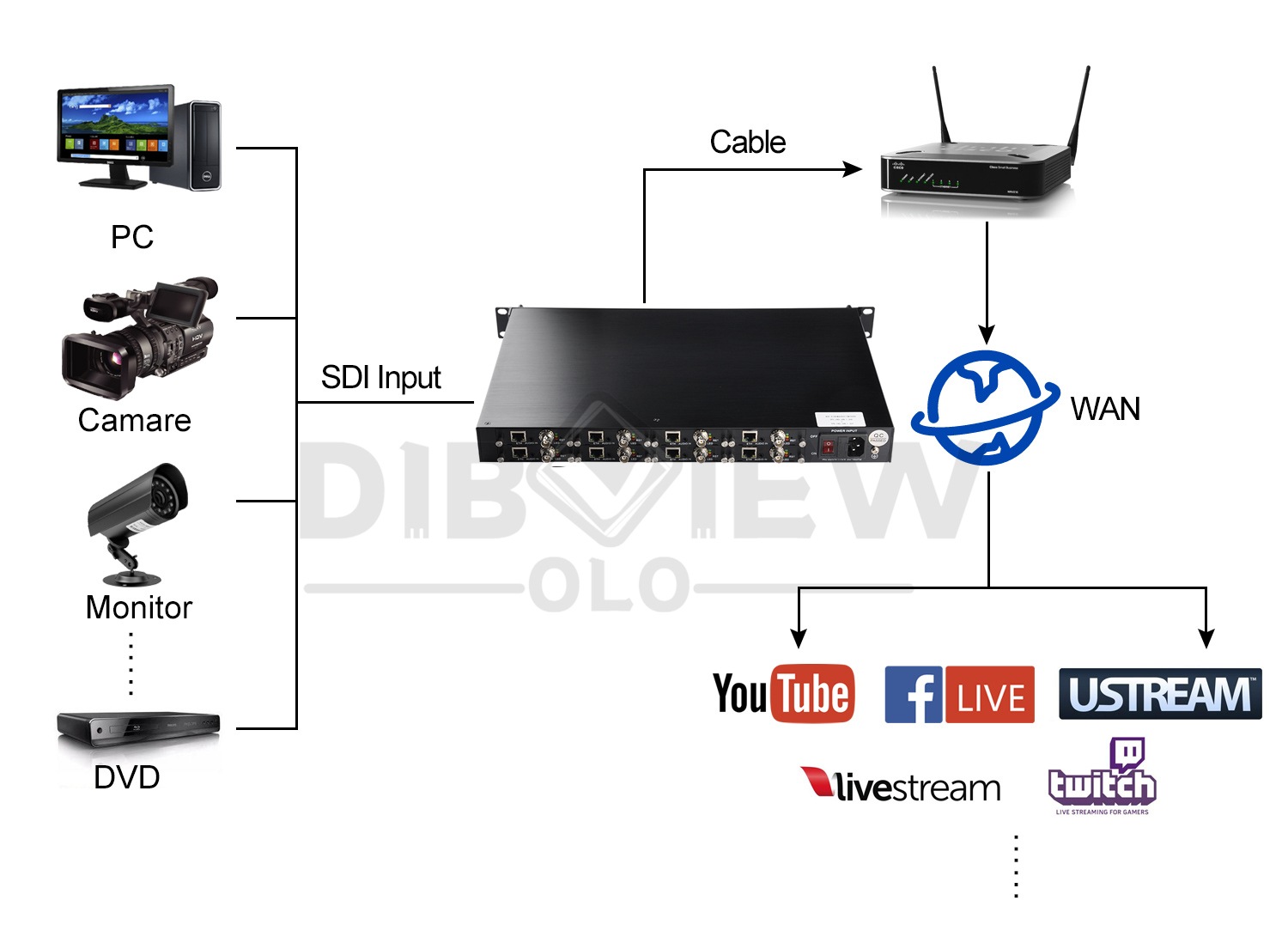

OTV-HE80S 1U Rack 8-Channel SDI Encoder Application 02.jpg
