OTV-SCE16L 3U 16-Channel SDI Encoder With SDI Loopout


Overview:

OTV-SCE16L 3U 16-Channel ProVideo Streaming SDI Encoder With SDI Loopout features high performance, low latency and ultra-low bit rate for IPTV/OTT systems, realize Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.264/MPEG-4 AVC and H.265/HEVC (Option), which realizes its resolution to be up to full HD 1080P high quality image. Moreover, with powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate compare with traditional broadcast Encoder.  Also it is highly compatible with IPTV server like Wowza server, FMS server etc. Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized.


OTV-SCE16L 3U 16-Channel ProVideo Streaming SDI Encoder With SDI Loopout can be applied to education, health care, IPTV & OTT,conference, remote education, news interview, court, public security, banking, transportation and other industry applications.


Main Features:

Input:  8*SDI/16*SDI With SDI Loopout

Support up to 4 TS over IP stream out per module

Support up to H.265 Main Profile/High Profile/Baseline Profile and MP3 & AAC audio compression

Bitrate mode: CBR/VBR

Capable of image parameter settings

Switchable of audio output mode: Left, right and Stereo

Configurable of Multi-rate, Multi-resolution, Multi-protocol

Providing SRT/RTSP/HTTP/UDP,RTMP and HLS(m3u8) protocol

Support HDCP protocol

Any iOS browsers(iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS

Any terminal devices/decoders are able to have streams from IPTV

Streaming Encoder directly by RTMP protocol with software players(such as VLC)

Support ONVIF Network Video Protocol

Providing user name, password matching function which required from destination server

Support multiple equipments display at the same time on a computer

System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

Web-based management

Full-duplex mode 1000M

Insertable of logo and Scroll Caption, Adjustable of audio gain


Key Specifications:

Item

Description

Video Encoding

Input

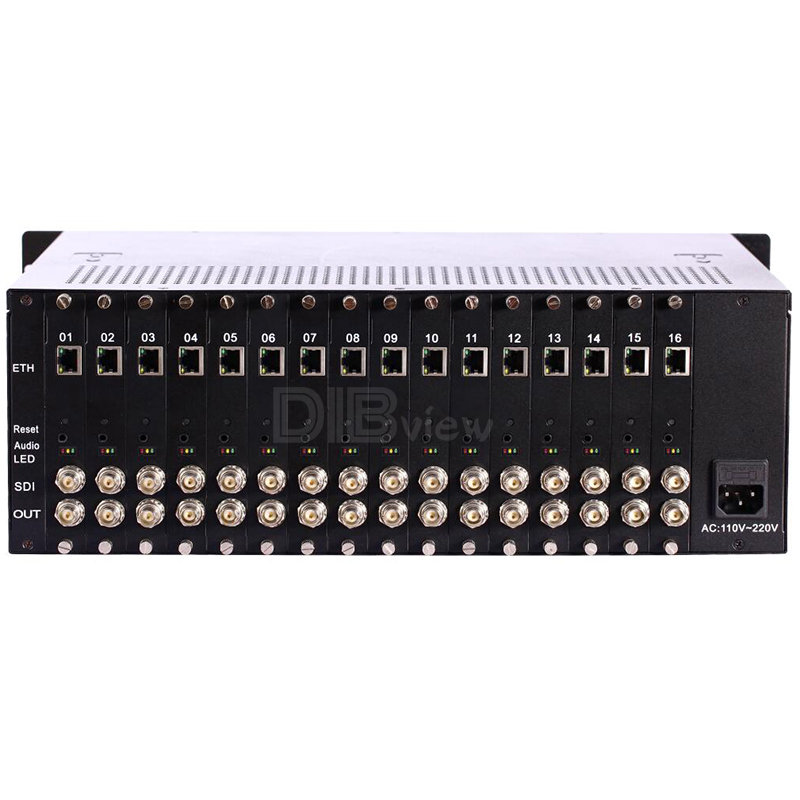

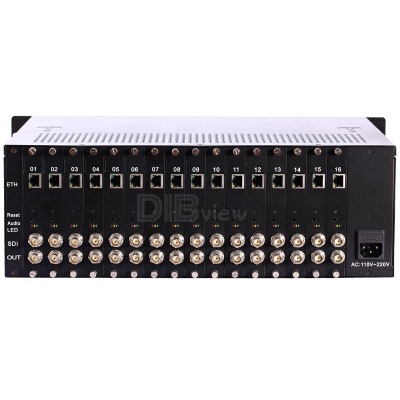

16 Channel SDI With 16 *SDI Loopout

Resolution

SDI main stream:

1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480,

720x404, 704x576, 640x480, 640x360, auto

SDI sub-stream:

1280x720, 800X450, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480,

640x300, 352X288, 320X240, 320X180 auto

Video Bitrate

16Kbps~12Mbps

Bitrate Mode

CBR/VBR

GOP Type

Adjustable

Video De-interlacing

De-interlacing, noise reduction, sharpening

OSD Image

Image, word

Audio Encoding

Encoding

AAC,MP3

Resample Rate

Adaptive output sample rate (option)

Sampling

32000,44100,48000

Bitrate

64Kb/s~384Kb/s

IP Streaming Output

Transport protocol: TS over IP output, SRT/RTSP/HTTP/UDP or RTMP protocol

SDI to IP output, 4*TS over IP stream out (SRT/HTTP/RTSP/UDP or RTMP protocol)

2 Channels with higher resolution (up to 1080P) for large screen application,

2 channels with lower resolution (up to 720P) for small screen application)

Connector: RJ45,100/1000M

Management

Configuration Interface: web-based UI

Upgraded: via network

Connector: RJ45,100/1000M Ethernet interface.

The Working Environment

Dimension

(WxDxH): 484mm x 365mm x 148mm

Gross Weight

8KG

Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

AC220V±10%, 50/60 Hz

Power Consumption

80W




Application:

IPTV digital headend, Hotel TV System

Encoding programs to YouTube

Remote education video system

Agencies, TV & Pro Radio and Sports

Internet conferencing system video capture

Hospital, Bank, transport agency system

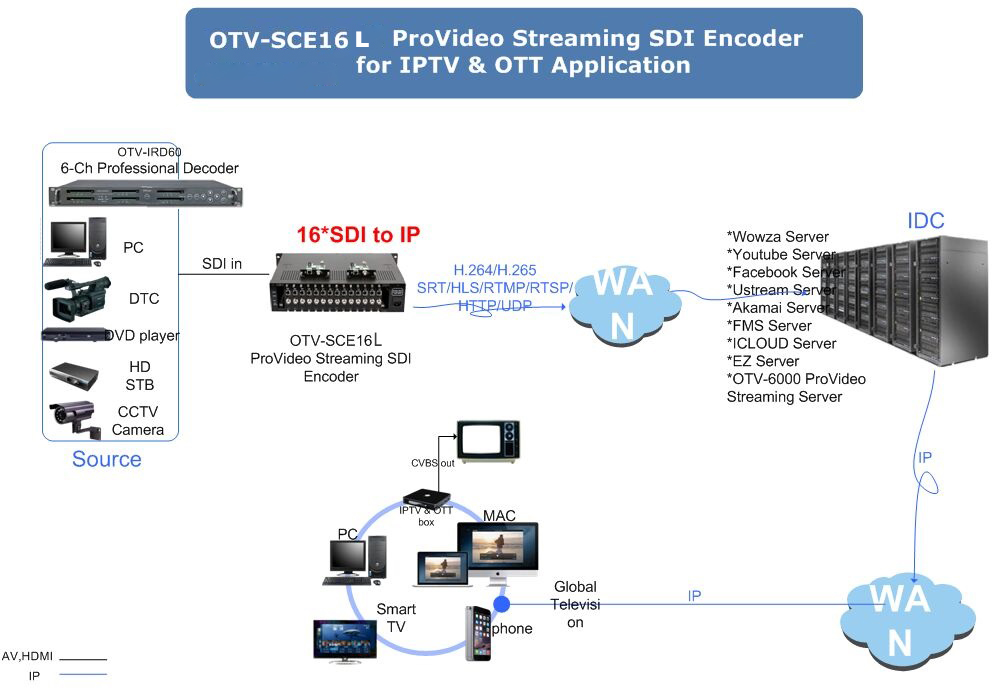

OTV-SCE16L 16-Channel SDI Video Streaming Encoder Application.jpg
