Overview:

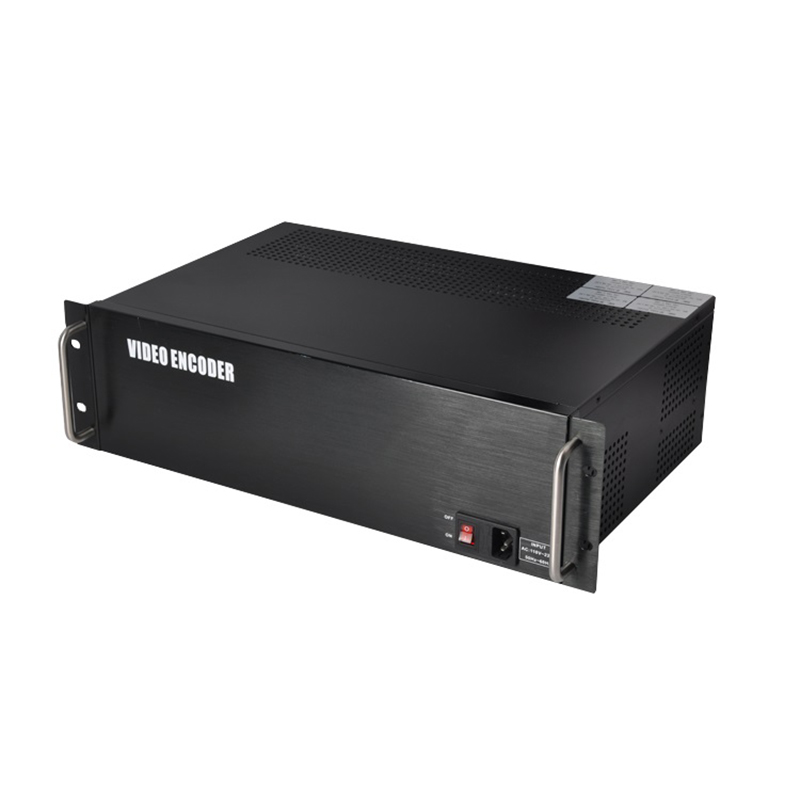

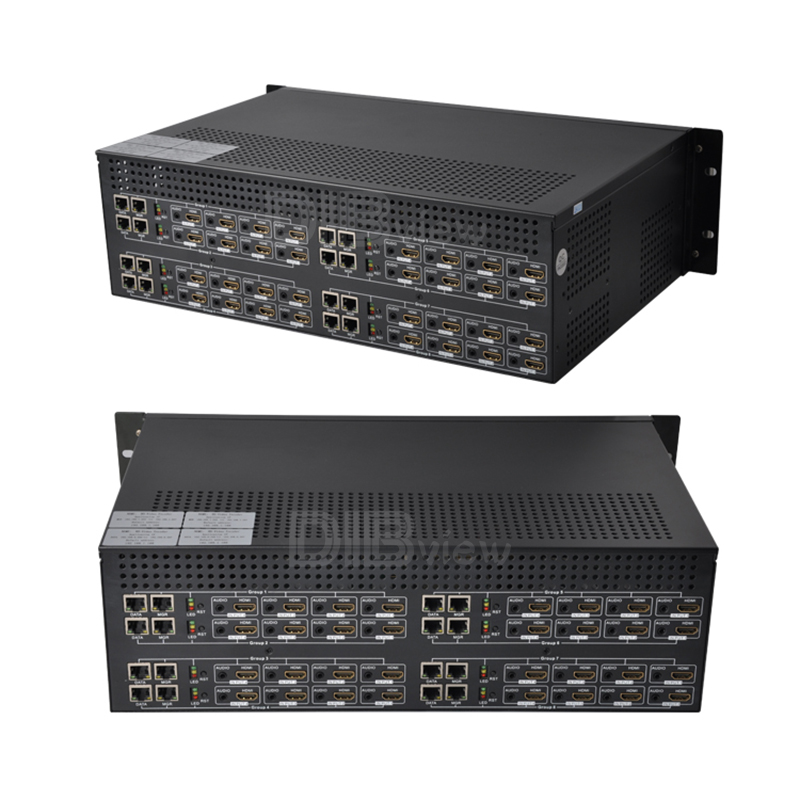

OTV-32HD ProVideo Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.264/H.265/AVC, which realizes its resolution to be up to 1080P. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth.
OTV-32HD ProVideo Streaming Encoder accepts 32*HDMI and 32*3.5mm input and each channel of HDMI input outputs 4 channels TS over IP in H.264/H.265 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs.
Moreover, it provides username and password matching function required from a destination server, aiming at avoiding unauthorized streamings.
OTV-32HD ProVideo Streaming Encoder provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.
Main Features:

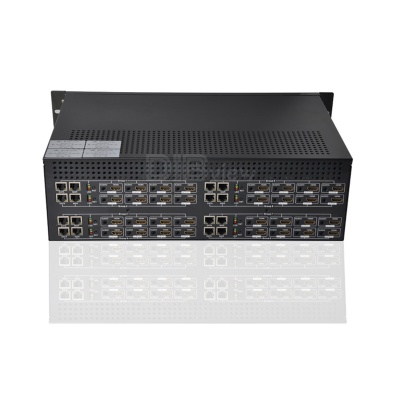

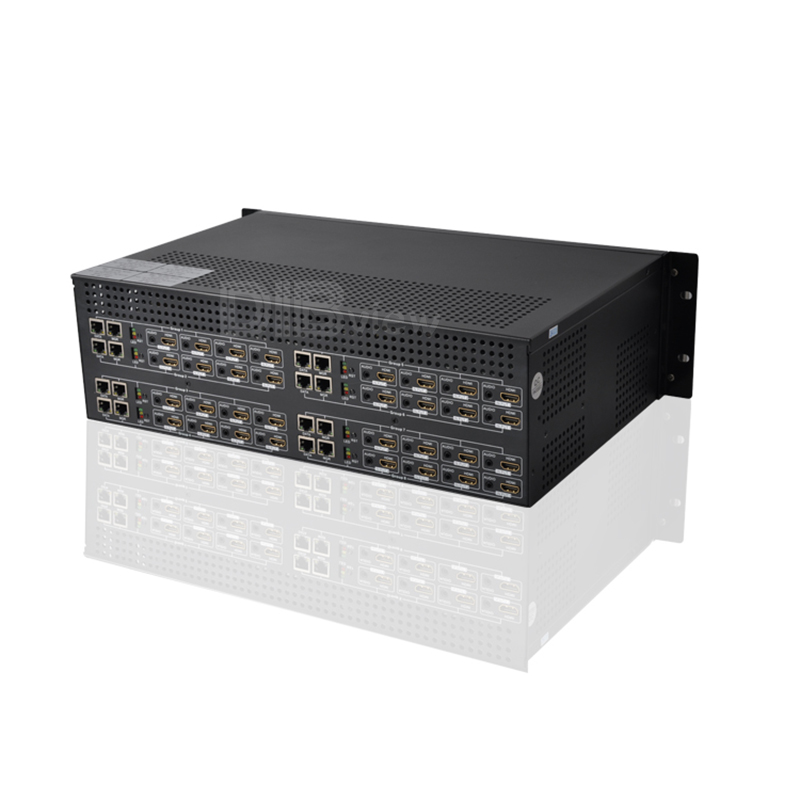

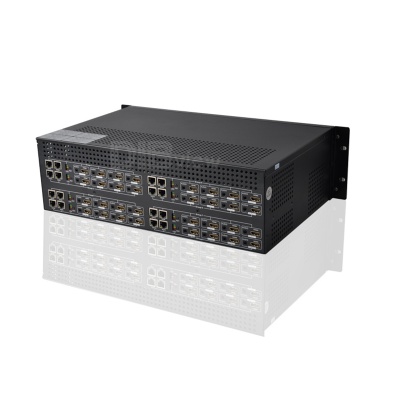

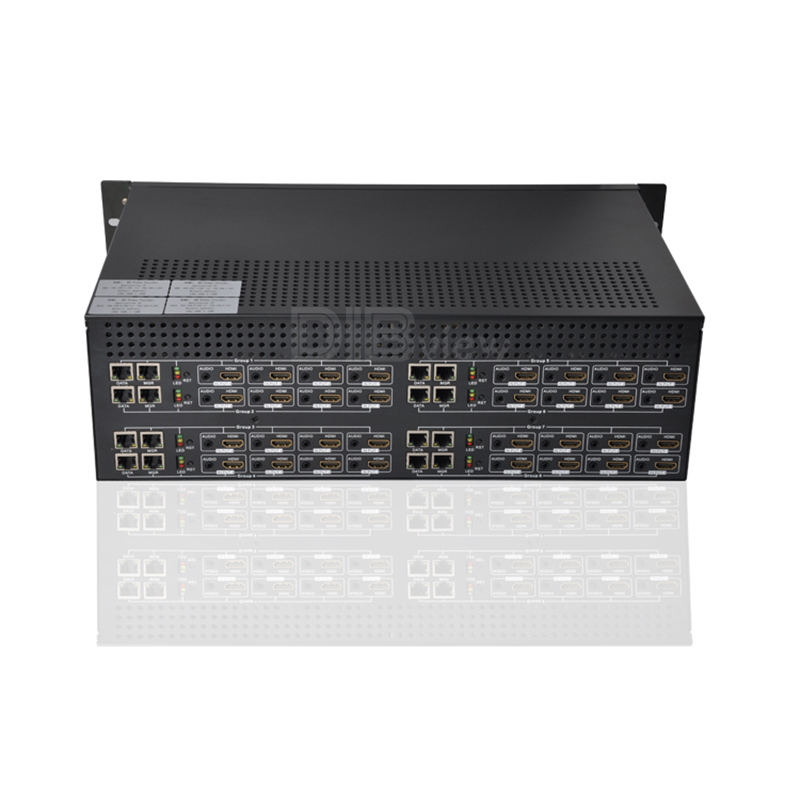

Support 1*RJ45 for IP stream output, 1*RJ45 for management,4 HDMI input in each module, total 8 modules, total 32 HDMI input.
Switchable audio output mode: Left, Right and Stereo
Display on multi-screensfrom a computer is available
Up to full HD1080P@60fps
Workable under HLS, RTMP, RTSP/HTTP/UDP unicast and multicast (Username and password verification allowed under RTMP)
Support HDCP protocol
Support ONVIF Network Video Protocol
Multi-protocol,multi-resolution and multi-bitrate are configurable
Any iOS device browser (iPhone, iPad, MacBook etc) is able to have streams from IPTV Streaming Encoder Anytime, Anywhere by HLS protocol without installing any software players.
Anyterminal device/decoder is able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC).
Audio encoded bit-rate: 48K /64K /96K /128K/160K/192K /256K
Bit-rate modeCBR/VBR,16Kbps~12Mbps
Video packing: FFMPEG/ VLC
Transport method: TCP,UDP,1000M(RJ45 duplex interface)
Web-based managementeasy for configuration.
Scrollable English OSD ,picture overlayand logos are available while letters and symbols can be displayed anywhere in the screen
Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance
Image setting: contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering
Audio: embedded or line in; left & right; built-in audio gain for independent volume adjustability
Able to encodewith absence of video signal
The setting comes into effect once finished while reboot is unnecessary
Default configuration can be done by one key recovery
WINDOWS XP/VISTA/SERVER2003/SERVER 2008/WIN7 32 and WIN7 64, LINUX are supported
Technical Specifications:
Item | Description |
Model | |
OTV-32HD | |
Video Encoding | |
Video Compression:H.265/HEVC, H.264/AVC High/Main/Baseline Profile Level 4.0 Video Input:32*HDMI and 32*3.5mm Resolution: Main stream: 1920x1080,1680x1056, 1280x720, 1024x576, 850x480,720x576, 720x540, 720x480, 720x404,704x576, 640x480, 640x360, auto Sub-stream: 1280x720, 800X450, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x300, 352x288, 320x240, 320x180, auto Bit-rate:16kbps~12Mbps, CBR/VBR Video pre-processing:Noise reduction, Sharpen, Filtering | |
Audio Encoding | |
Audio compression:AAC, MP3 Sampling rate:Adaptive, selectable of re-sample Sampling accuracy:24-bit Re-sample:32KHz,44.1KHz Audio bit-rate:48Kbps, 64Kbps, 96Kbps, 128Kbps, 160Kbps, 192Kbps, 256Kbps, 384Kbps | |
IP Streaming output | |
Transport protocol:TS over IP output, RTSP/HTTP/HLS/UDP or RTMP protocol Each HDMI in/loopout to IP:4*TS over IP stream out (HTTP/HLS/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution(up to 1080P) for large screen application 2 channels with lower resolution(up to 720P) for small screen application) Connector:RJ45,1000M | |
Physical And Power | |
Voltage:AC220V±10%, 50/60 Hz Consumption:80 W Operating temperature:-20~80°C Dimensions: 484mm(W) *365mm(D) *148mm(H) Weight:8Kg/pc | |
Application:
Hotel IPTV System
Digital TV Broadcasting System
IPTV & OTT system
Internet TV
Digital Signage Project
Remote Video Conference
Video Monitoring
Live Streaming
Digital TV Broadcasting System
Digital TV Programs Transmission
Head-end system of Digital TV branch network
CATV Broadcasting system
Edge side of Digital TV backbone network

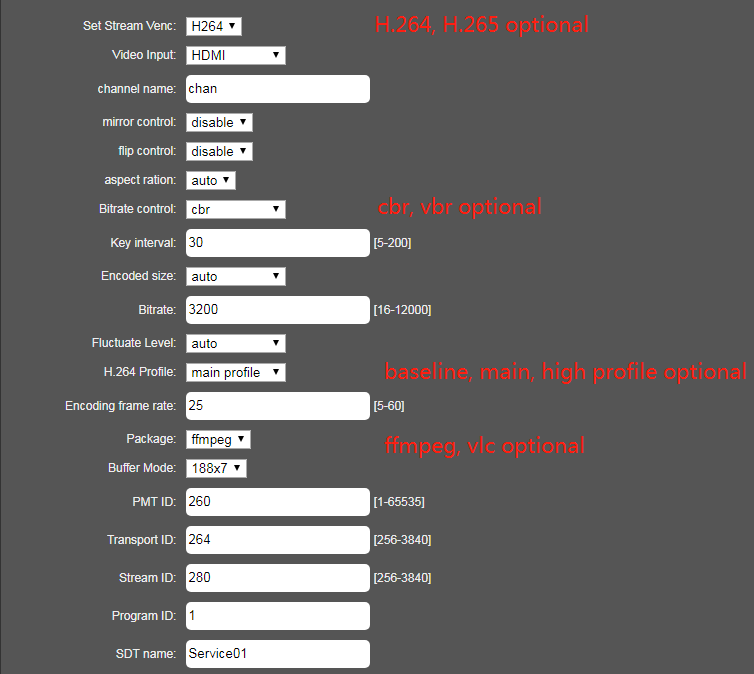

HDMI Input Settings:

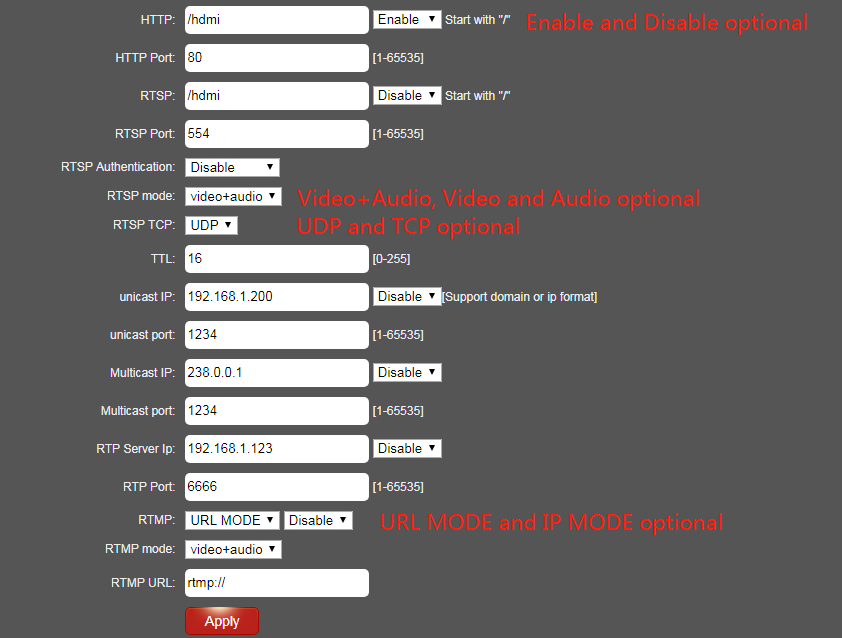

Protocols Settings:

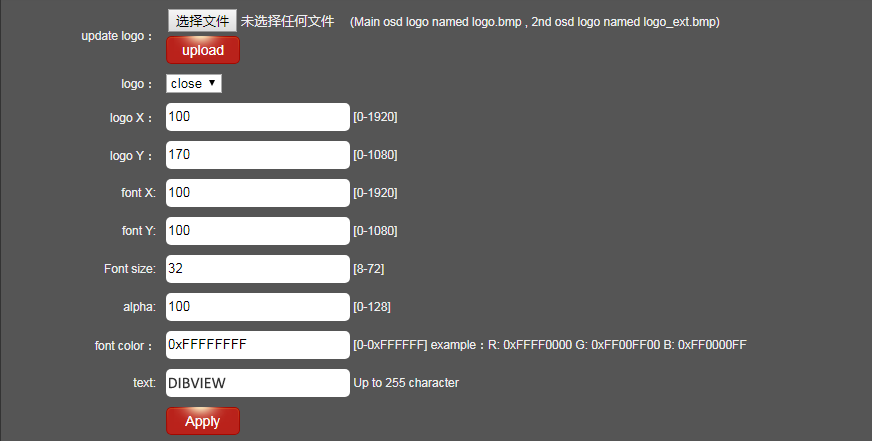

OSD Settings:
This part can be edited the characters that displayed on the page, currently, support 32 letters or numbers. This part, user can edited the size and location of the characters.
Note: with the resolution changing, the characters size is also changing. Currently, transparency not open for users.
Logo X: 0-1920 is optional, display the left and right position of the logo
Logo Y: 0-1080 is optional, display the up and down position of the logo
Font X: 0-1920 is optional, display the left and right position of the font
Font Y: 0-1080 is optional, display the up and down position of the font
Font size: 8-72 optional
Alpha: 0-128 optional

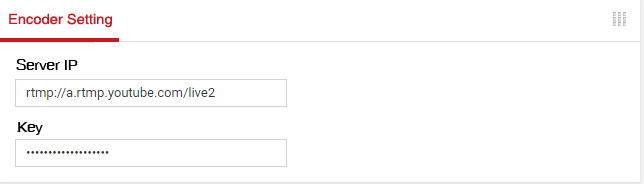

Broadcast Settings:
Find Server IP and Key on YouTube, then fill-in it on web management.
rtmp://a.rtmp.youtube.com/live2/Key
