Overview:

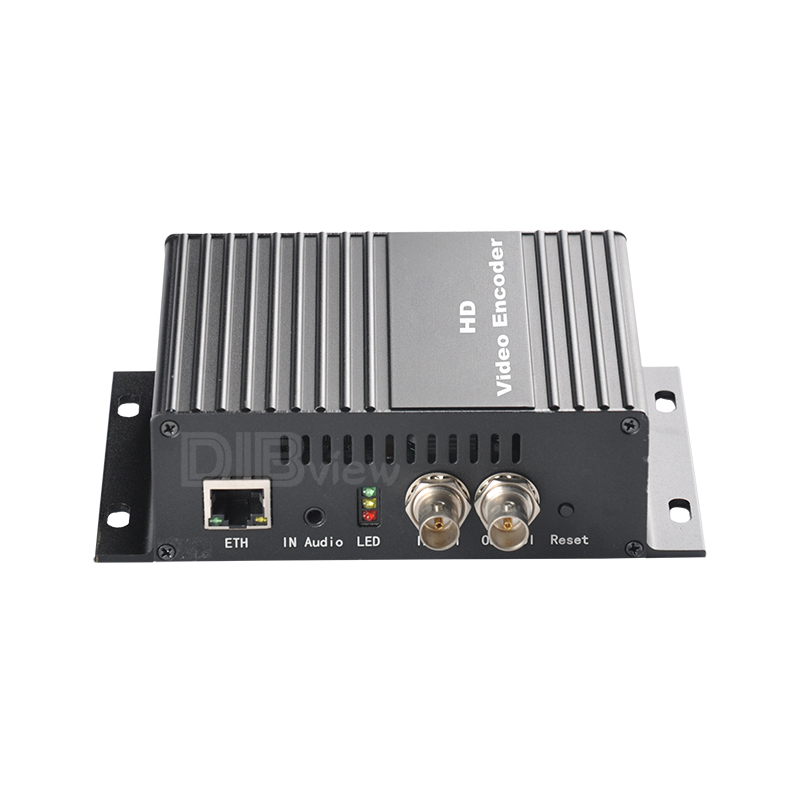

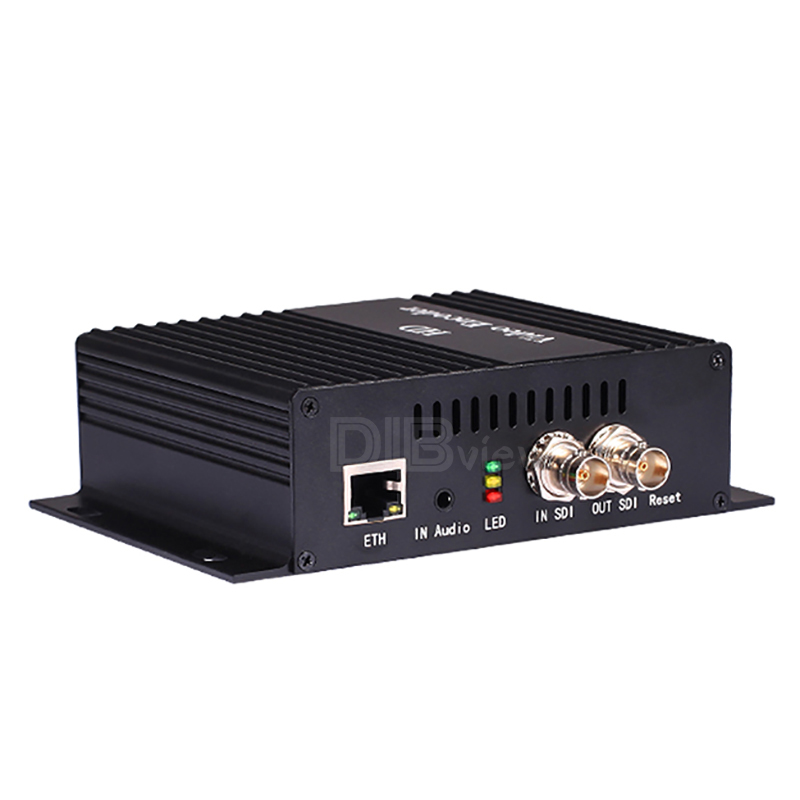

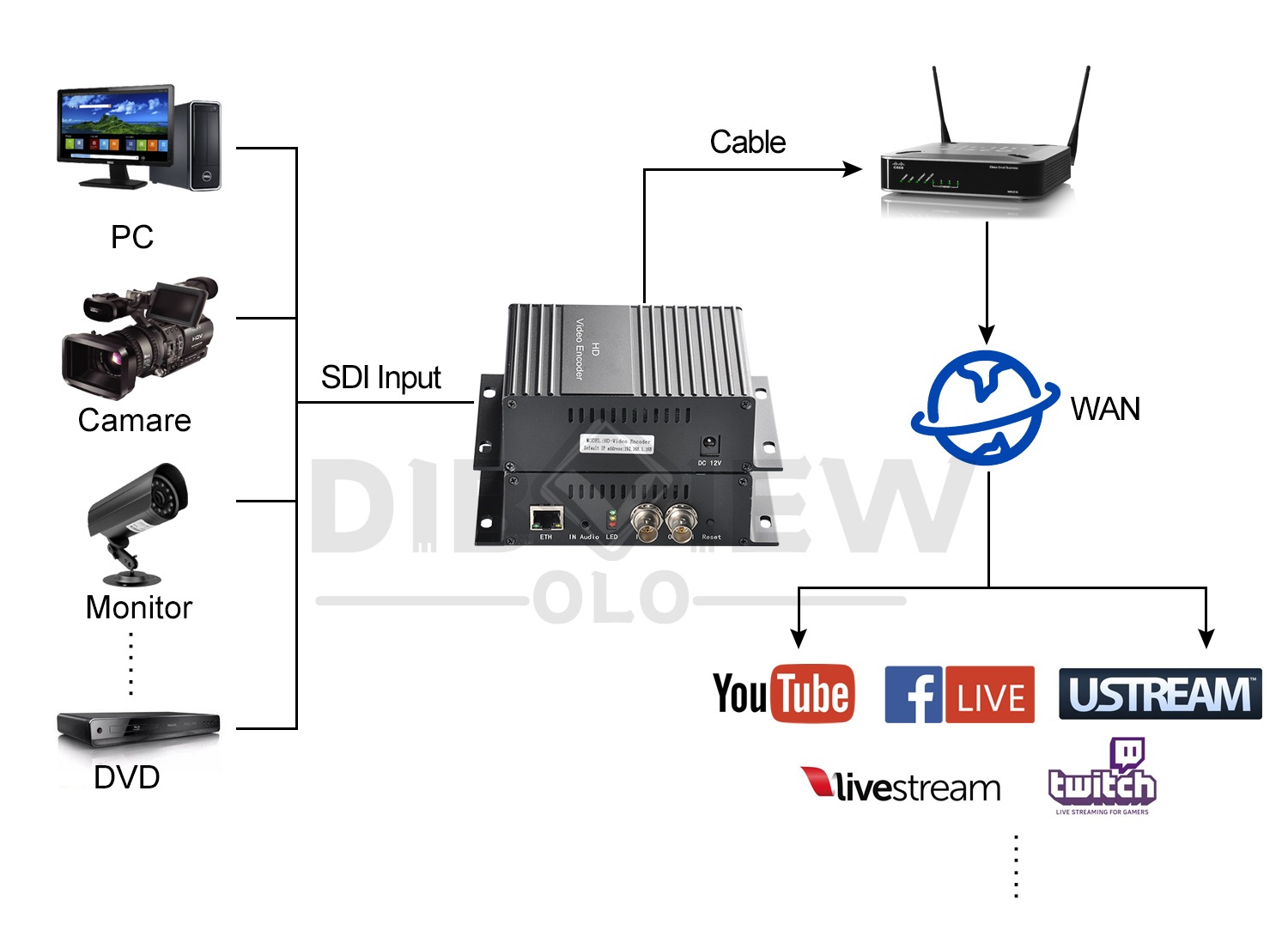

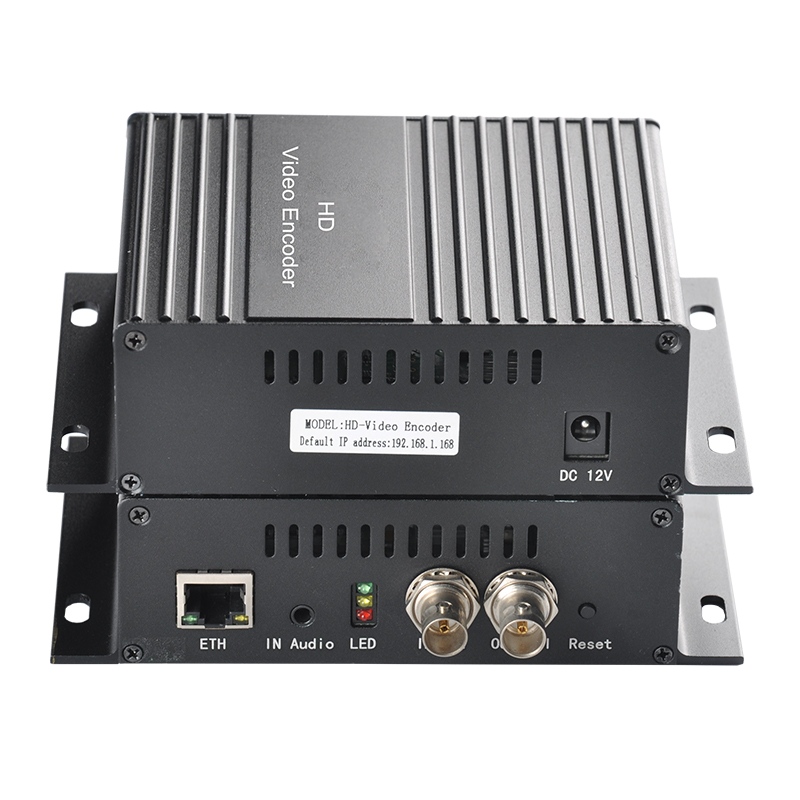

OTV-HS1S H.264 H.265 SDI video encoder with loopout is our professional HD audio and video encoding device with powerful functionality. It is equipped with 1 channel SDI input supporting H.264 /AVC H.265HEVC high profile /main profile /baseline profile coding format and two video streamings output, which is streaming by HTTP, RTSP, UDP, RTP, RTMP, RTMPS, ONVIF, HLS, FLV. SDI max resolution is 1080p@60fps,and output stream resolution can up to [email protected] high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end,hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.
Key Features:
Support 1channel SDI INPUT SDI LOOP out
Support up to 4 TS over IP stream out per module
HLS protocol, HLS Streaming PLAYS THE VIDEO DIRECTLY in Apple end by Browser
Low Delay, perfect also for Live Applications ,perfect solution for Churchs, Schools, Classrooms, GYM,Airport, Business, Trains, homes,video conference and so on
Support H.265 HEVC/ H.264 Main Profile/H.264 High Profile and MP3 & AAC audio compression
Bitrate mode: CBR/VBR
Providing user name, password matching function which required from destination server.
Capable of image parameter settings
Switchable of audio output mode: Left, right and Stereo
Configurable of Multi-rate, Multi-resolution, Multi-protocol
Providing RTSP/HTTP/UDP or RTMP protocol
Support HDCP protocol
Support ONVIF Network Video Protocol
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
Support multiple equipments display at the same time on a computer
Full-duplex mode 1000M.
Web-based management
Technical Specifications:
Item | Description |
VIDEO SPECIFICATIONS | |
Video compression: H.265 HEVC, H.264/AVC High Profile Level 4.0 Video inputs:1channel SDI INPUT SDI LOOP out Analog video input mode: PAL, NTSC | |
AUDIO SPECIFICATIONS | |
Audio compression: AAC, MP3 Sampling rate: Adaptive, selectable of re-sample. Sampling accuracy: 24-bit Bit Rate:48000,64000,96000, 128000, 160000,192000,256000 Re-sample:32000,44100 | |
OUTPUTS(IP output) | |
Transport protocol: TS over IP output, RTSP/HTTP/UDP or RTMP protocol For SDI to IP output, 4*TS over IP stream out(HTTP/RTSP/UDP or RTMP protocol) , 2 Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application) Connector: RJ45,1000M | |
Resolution | |
main stream: 1920x1080,1680x1056,1280x720, 1024x576,850x480, 720x576,720x540,720x480,720x404, 704x576,640x480, sub-stream: 1280x720,800X450,720x576,720x540, 720x480,720x404, 704x576,640x480,640x300,352X288, 320X240,320X180, auto Bit-rate: 16kbps ~ 12Mbps, CBR/VBR Video pre-processing: Noise reduction, Sharpen, Filtering | |
GENERAL OPTIONS | |
SYSTEM: Configuration Interface: Web-based management. Upgraded: via network Connector: RJ45,1000M Ethernet interface. PHYSICAL AND POWER Voltage:12V 2A, 50/60 Hz Consumption: 5W Operating temperature: -20~80°C Dimensions:150mm(W)*150mm(D)*80mm(H) Weight:0.8kg/pc | |
Applications:
Live Streaming
Video Monitoring
Digital Signage
Remote Video Conference
Agencies, Pro Radio and Sports
Organizations Conferences and Worship
IPTV/OTT system
Hotel TV System
CATV Broadcasting system
Digital TV Broadcasting System
Digital TV Programs Transmission
Government, Education and Music
Edge side of Digital TV backbone network
Head-end system of Digital TV branch network.
