    4-Channel SDI IN Encoder (Including 2CH 4K 30fps)

    EMAIL   INQUIRY

OTV-HES4 H.265/H.264 Streaming IPTV 4-Channel SDI Encoder is DIBVIEW newest professional HD audio and video encoding device with powerful functionality, which is equipped with 4 channel SDI input, multi-screen multiprotocol series IP Encoder are designed to demand the increasing needs for video delivery to Internet and mobile devices.



OTV-HES4 H.265/H.264 Streaming IPTV 4-Channel SDI Encoder supports audio and video collection by 4-Channel SDI input. For SDI input, each channel of SDI input supports output 4 groups IP streams with four different resolution (up to 1080p) and another four different bitrates to meet different size screen and different bandwidth condition. Each group of IP stream supports kinds of main protocols output (SRT, HLS, RTMP, HTTP, RTSP, UDP), this enable Encoder to deliver H.264/H.265 IP streams by independent IP output to various servers for IPTV & OTT application. Such as Facebook Server, YouTube Server, Ustream Server, Adobe Flash Server, Wowza Media Server, and some other servers based on HLS/UDP/RTSP/RTMP/HTTP/ONVIF protocols. Moreover, providing username, password matching function which required from destination server, to avoid the streaming which does not authorized.


OTV-HES4 H.265/H.264 Streaming IPTV 4-Channel SDI Encoder is an excellent Hardware encoder for professional broadcast level IPTV & OTT system construction, hospitality Hotel IPTV application, Remote multi-window video conference, Remote education and Remote medical treatment and etc.



Not only 4-channel SDI, we also produce multichannel SDI Streaming Encoder which is packed by 2U or 3U Rack. For 3U rack, support max 16pc independent encoding modules to be installed.



Key Features:

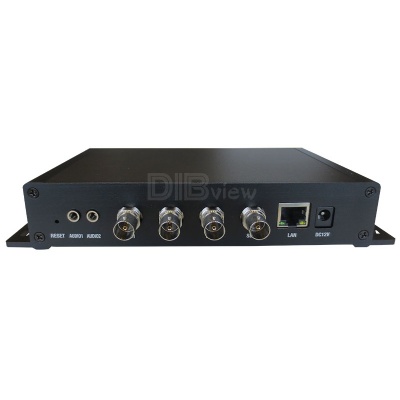

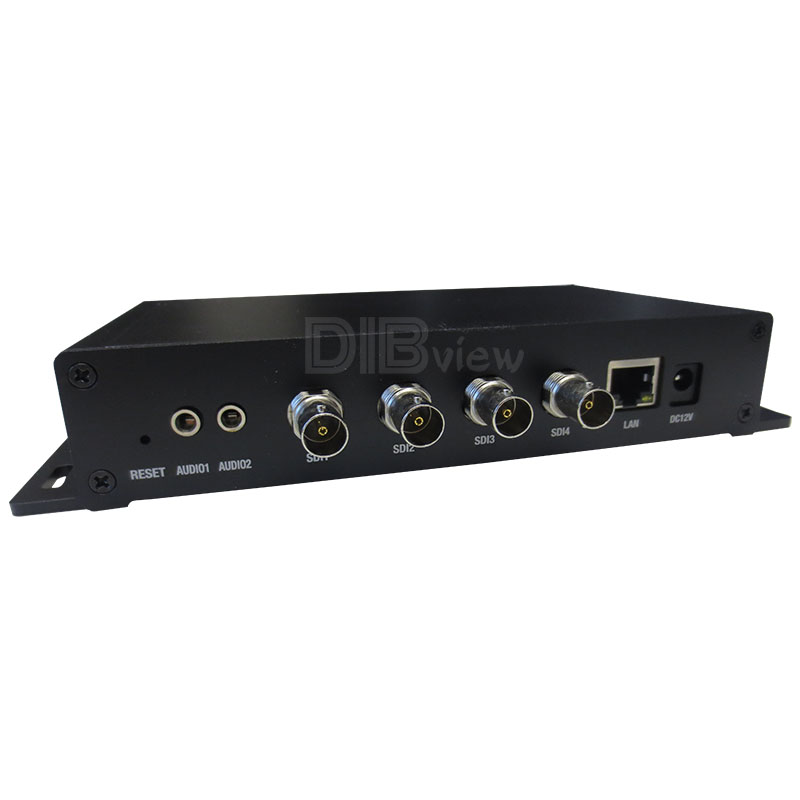

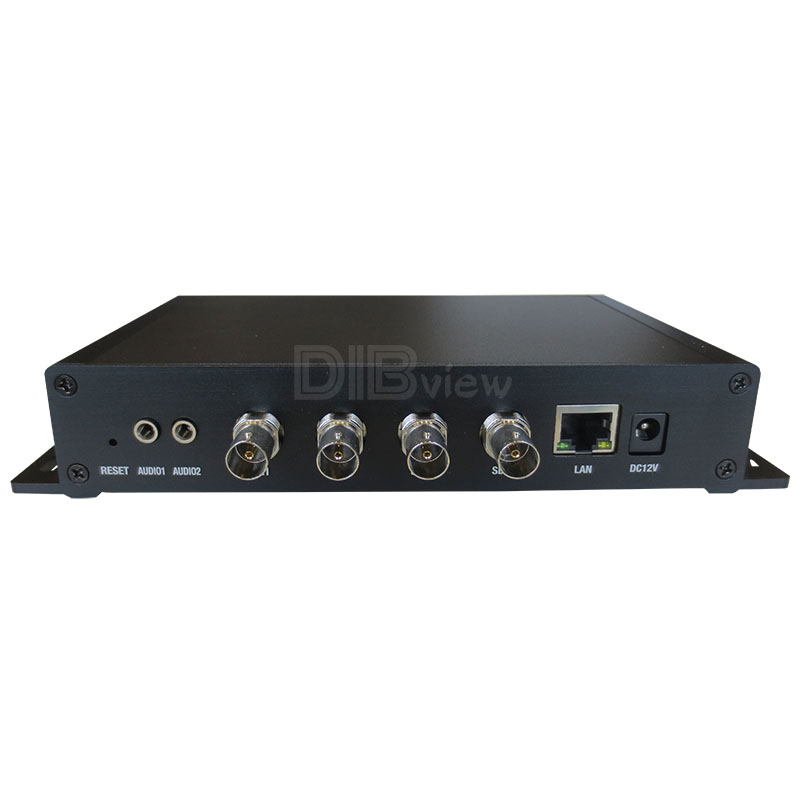

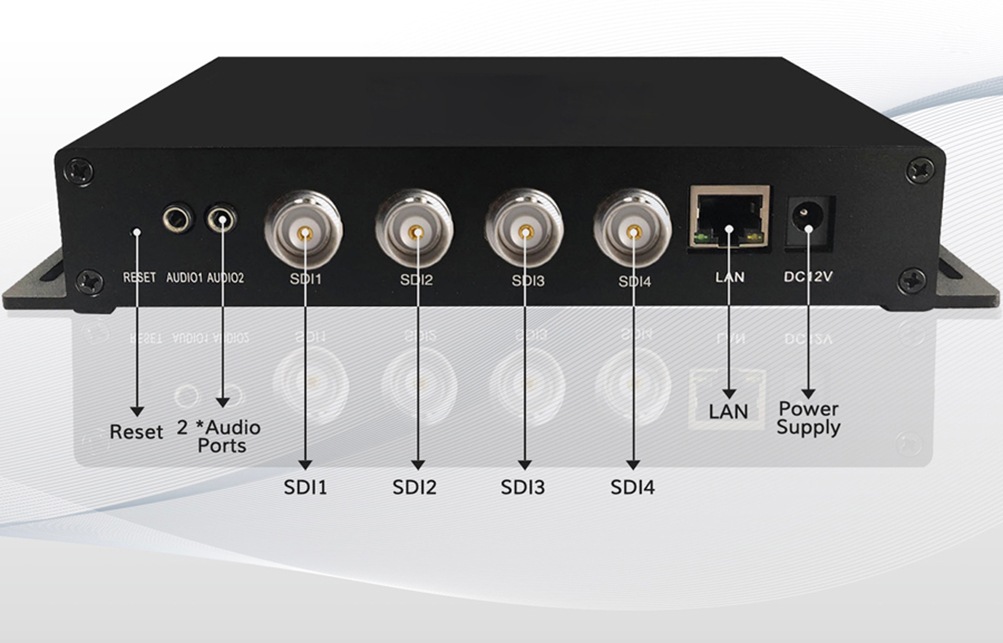

  • Video Input: 4-Channel SDI work independent simultaneously+4*SDI embedded audio input, with 2*Jack(3.5mm).

  • Video Compression: H.265/H.264 Baseline Profile/Main Profile/High Profile, up to Full HD 1080P@60fps

  • Dolby AC3 audio compression

  • Support AAC, AAC+, AAC++, MP3, MP2/G.711 audio compression

  • Support output up to 4 groups TS over IP streams with 4 different resolutions and 4 different bitrates by each SDI channel input

  • Support RTMP User name and Pass word for authentication of IPTV Server

  • Capable of OSD settings for logo, upload 16 LOGO options, text and Scroll Caption; Adjustable of audio gain;

  • Bitrate mode: CBR/VBR

  • Capable of image parameter settings

  • Configurable of Multi-Screen, and Multi-Protocol SRT/HLS/HTTP/RTSP/RTMP/FLV/ ONVIF/UDP Multicast /RTP Multicast

  • Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.

  • Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).

  • Supports the HDCP protocol and supports Blu ray HD

  • Support multiple equipment display at the same time on a computer

  • System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

  • WEB interface authority management

  • Network interface adopts 100/1000M adaptive/full duplex mode



Technical Specifications:



Item

Description

Video Encoding

Video compression: H.265 HEVC /H.264/AVC High/Main/Baseline Profile Level 4.0

Frame rate: Up to Full HD 1080P 60fps

Video input: 4*SDI (HDCP protocol)

Resolution

The Main stream:

1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360 auto

The Second Stream:

1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360 auto

The Third Stream:

720x576, 720x540,720x480, 720x404, 704x576, 640x480, 640x300, 352x288, 320x240, 320x180 auto

The Fourth Stream

720x576, 720x540, 720x480, 720x404,704x576, 640x480, 640x300, 352x288, 320x240, 320x180 auto

Code Rate Control

32kbps~32Mbps, CBR/VBR

Video pre-processing

Noise reduction, Sharpen, Filtering

Video Encoding

HEVC/H.265 Or H.264/AVC

Audio Encoding

Audio compression: Dolby AC3,AAC/ AAC+/AAC++/MP3/G.711

Audio bit rate: AAC:48000-256000 adjustable /AAC+:24000-48000 adjustble/

AAC++:12000-32000 adjustable/MP3:64000-320000 adjustable/

MP2: 64000-320000 adjustable/AC3:40000-640000 adjustable

Sampling rate: 44.1KHz, 48.0KHz

RTSP stream uses G711A encoding: Disable/enable/enable and resample to 8K optional

IP Streaming Output

Transport protocol: TS over IP output, HLS, RTSP, HTTP, UDP and RTMP protocol

For each SDI to IPTV output, supporting output 4 groups TS over IP streams (for each group the HLS, HTTP, RTSP, UDP and RTMP protocol all enabled). With 4 different resolutions (up to 1080P@60fps) and 4 different bitrates to meet different size screen and different bandwidth condition

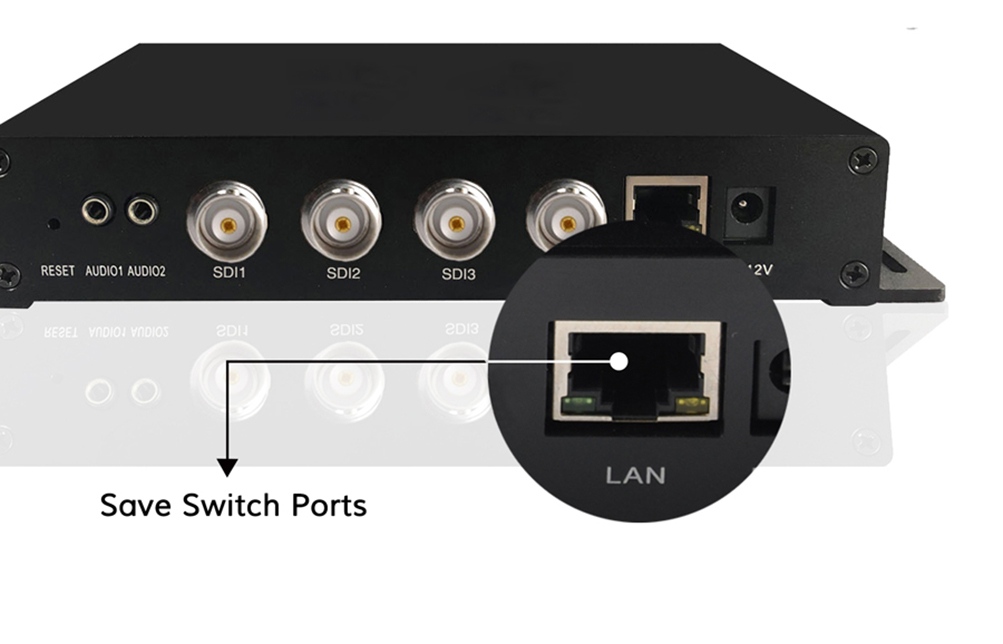

Connector: RJ45, 100/1000M

Management

Configuration Interface: Web-based UI

Upgraded: via network

Connector: RJ45, 100/1000M Ethernet interface.

The Working Environment

Dimension

205mmx105mmx35mm

Gross Weight

0.8KG

Temperature

0 to 45 (For working), -20 to 80(For storing)

Input Voltage

12V /DC 2A

Power Consumption

20W





Powerful Function:


OTV-HES4 1003x1003 002.jpg


OTV-HES4 1003x1003 003.jpg


OTV-HES4 1003x1003 004.jpg

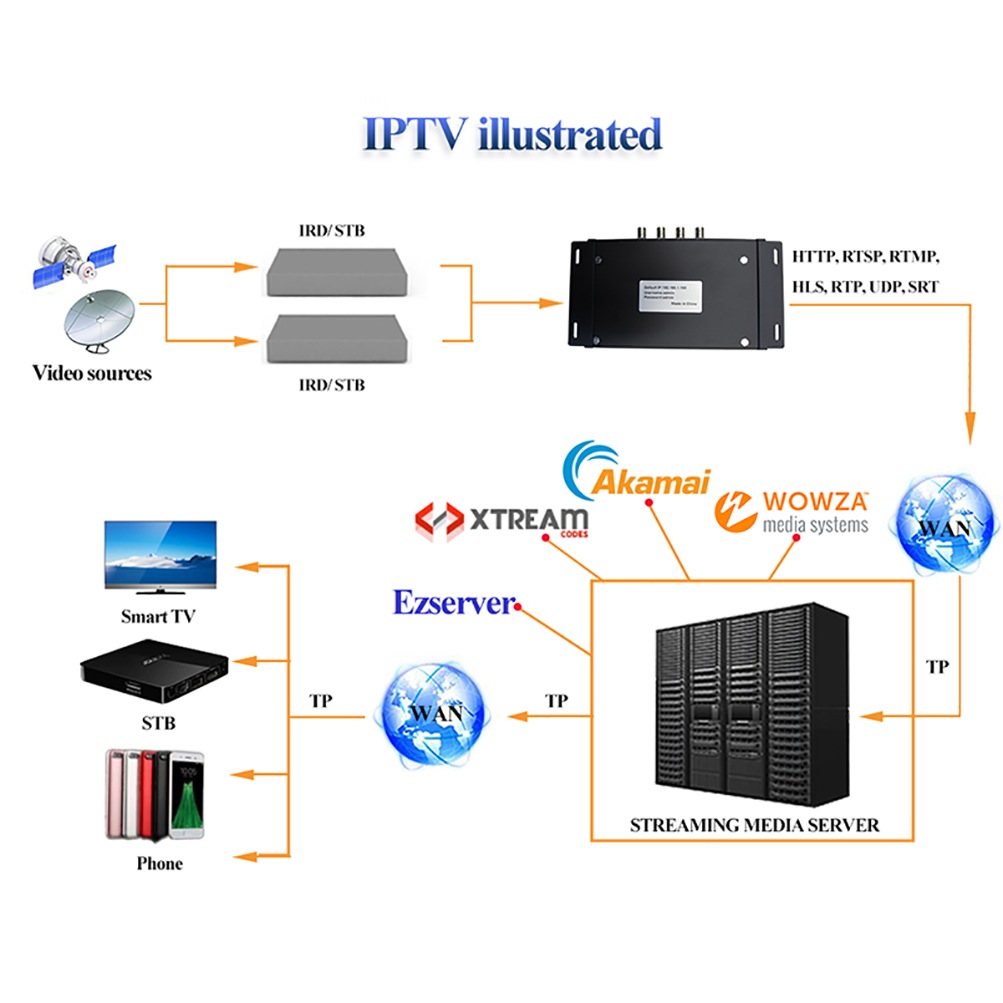

Applications:



Agencies, TV & Pro Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference, Internet TV

IPTV/OTT system, Live Streaming

Government, Education and Music

Digital Signage Project

Video Monitoring
