Order Guide:

1.Without Recoding

2.With Recoding

Overview:

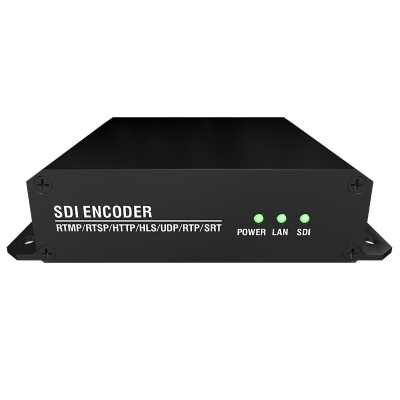

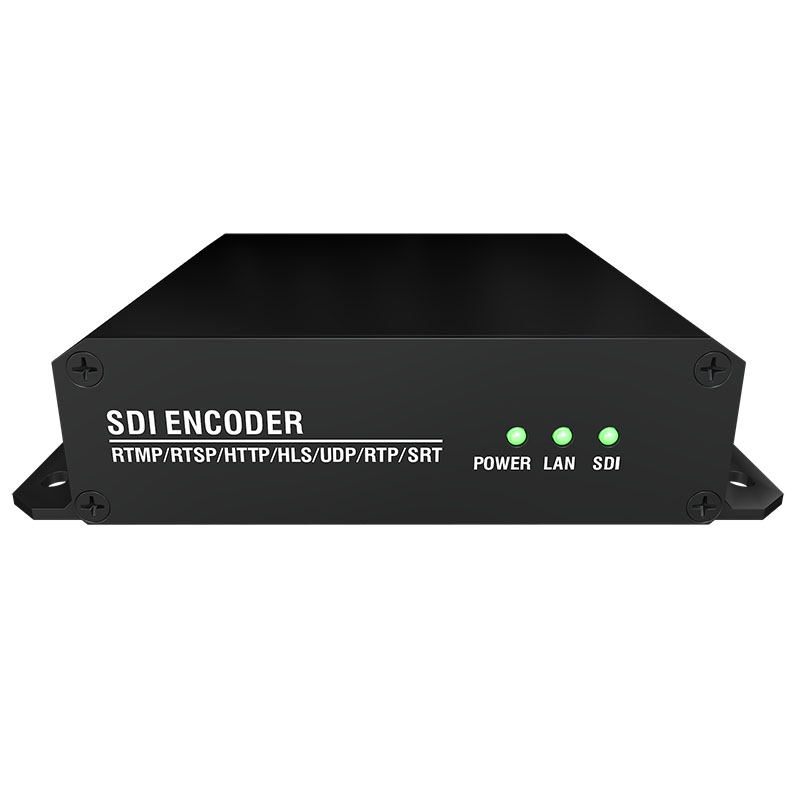

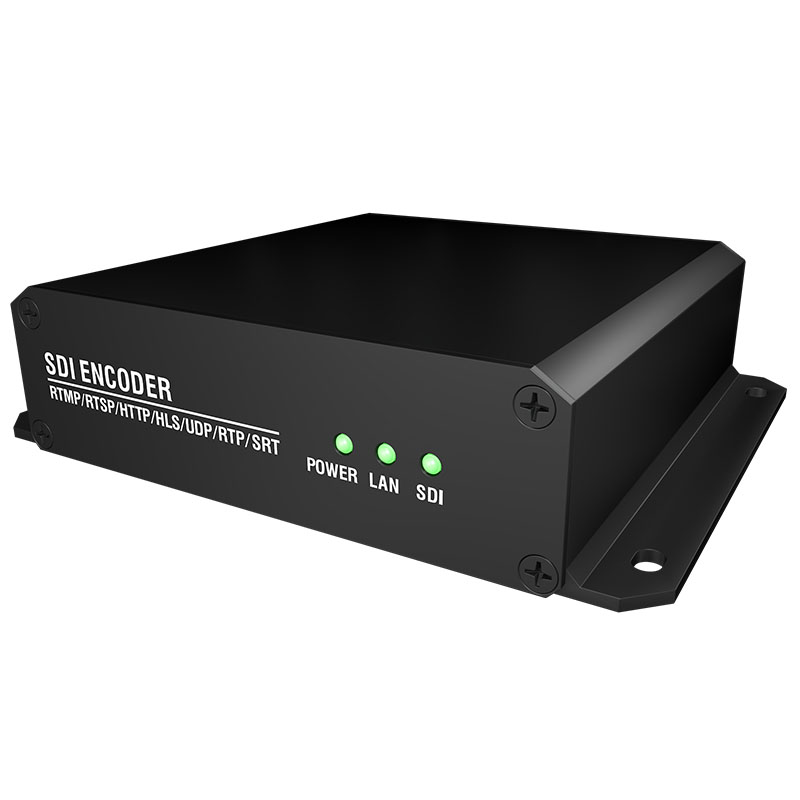

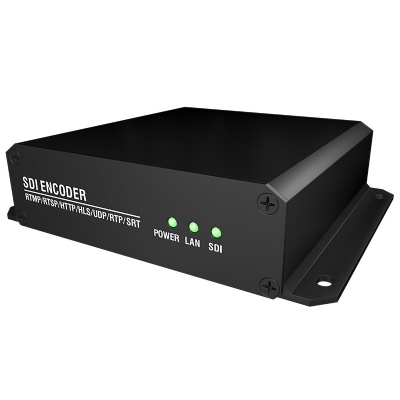

OTV-HES1S HD SDI Streaming Encoder With SDI Loop out - Which is a HD audio & video encoding device with powerful functionality,  it supports input SDI max resolution at 1920×1080@60fps, and output stream resolution to 1080P@60fps, etc.

OTV-HES1S HD SDI Streaming Encoder With SDI Loop out works with SRT/HTTP/HLS/FLV/RTSP/RTMP(S)/UDP/RTP (Unicast/Multicast)  Stream Protocols and ONVIF. It also works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.

Key Features:

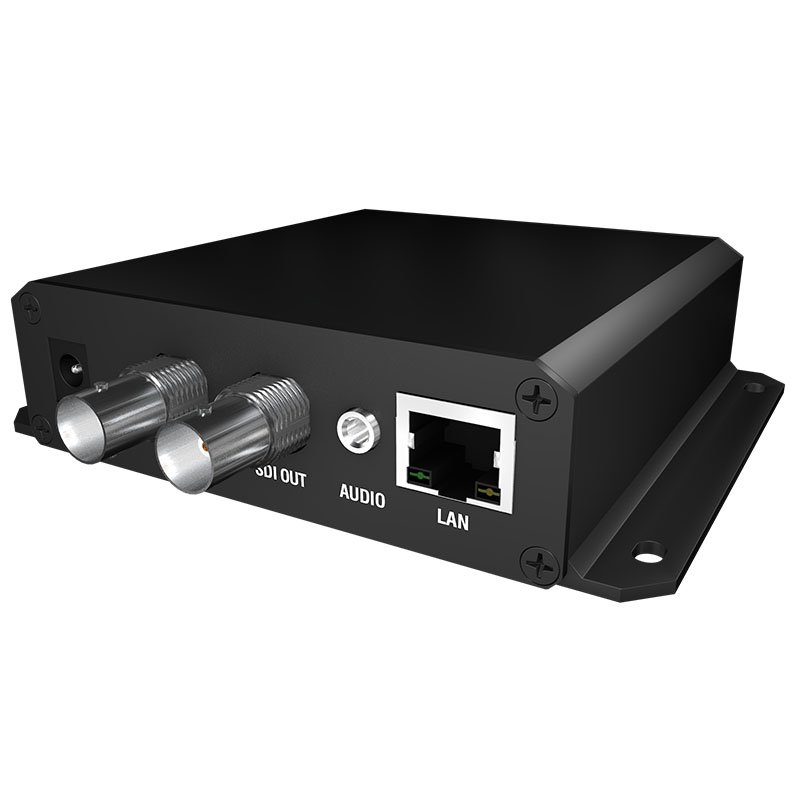

• 1-Channel SDI In With 1-Channel SDI Loopout

• Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.

• Friendly Web Control UI, default IP is 192.168.1.168.

• Support SRT/ HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.

• Support output Multi RTMP(S) (Main stream & Sub stream) to different Media Streaming Server.

• Provide custom resolutions, Main Stream Preset Resolutions–1920x1080, 1680x1200, 1600x900, 1440x1050,  1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.

• Support Text and image insert as Stream Logo for Main stream & Sub stream.

• Automatic detect the input video signals, output stream will show no signals when input signals interrupted.

• Output Stream bitrate adjustable.

• Support External Analog audio input.

• Support Audio digital gain.

• Support firmware upgrade.

• Support remote control via router port forward.

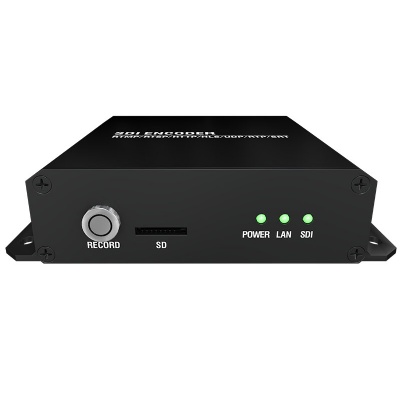

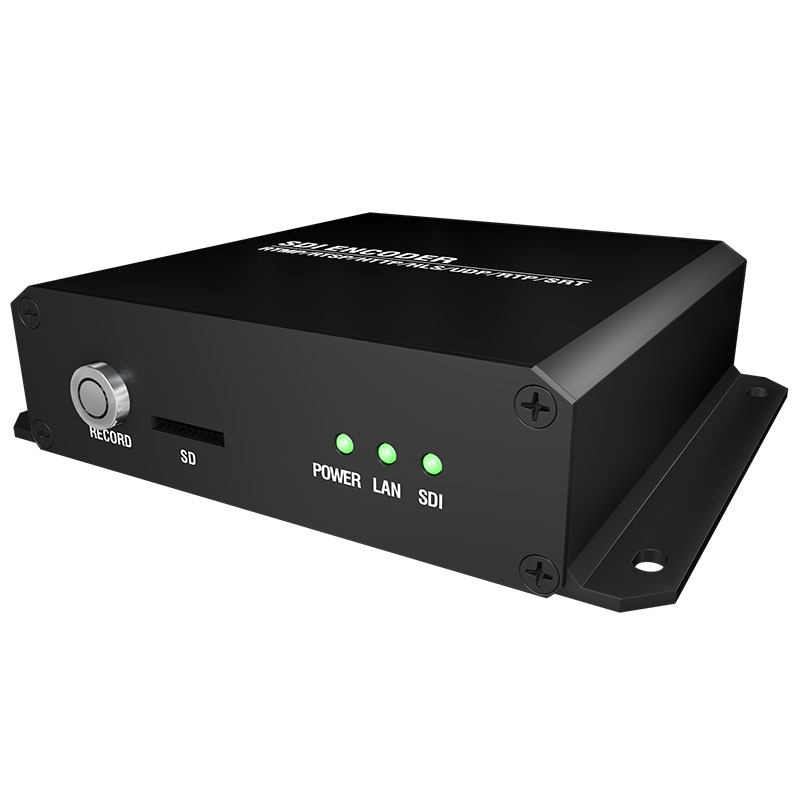

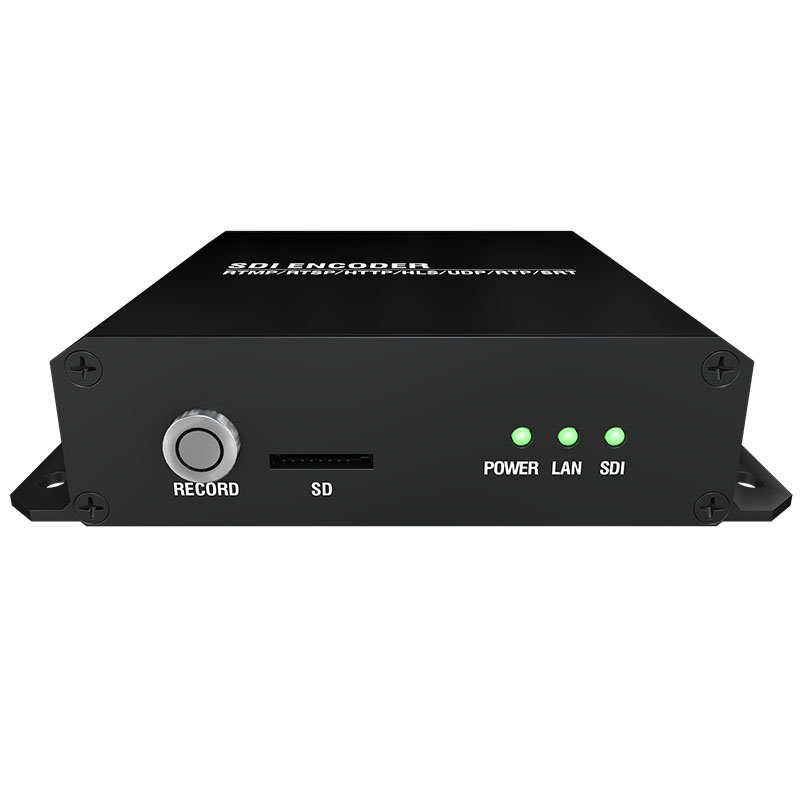

• Support recoding optional

Main Specifications:

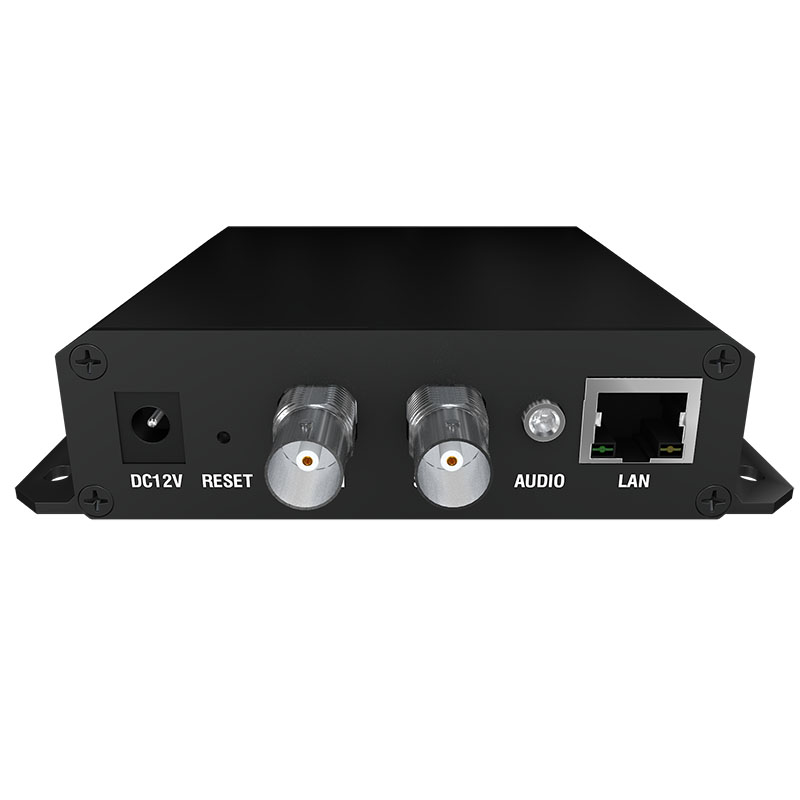

Interfaces

Video Input: SDI input, Max support 1920x1080P@60Hz

Audio Input: SDI embed audio

Ethernet: 1000Mbps, RJ-45

Video Encoding

Video Format: H.264/AVC High/Main/Baseline Profile H.265/HEVC main profile MJPEG/JPEG baseline

Video Resolution: Max support 1920x1080P@60FPS

Video Bitrate: 0.1~32Mbps

Video FPS: 5-60FPS

Bitrate Control: VBR/CBR

Streaming Protocols: SRT/ HTTP / HLS / FLV / RTSP / RTMP(S) / UDP / RTP ONVIF

Audio Encoding

Audio Format: AAC/AAC+/AAC++/MP3/MP2/AC3 G711

Sample Rates: 44.1kHz/48kHz

Bitrate: 12~640kbps

System

Control Method: Web based management – IP 192.168.1.168

Language: Chinese-English control interface

Firmware: Ethernet software upgrade

Working environment

Operating temperature: -10 to 70 deg C

Storage temperature: –20 to 80 deg C

Relative Humidity: 5% to 90% non-condensing

Miscellaneous: Dimension (L×W×H): 155*103*32mm

Approx weight: 300g

Power adapter: DC output 12V 1A

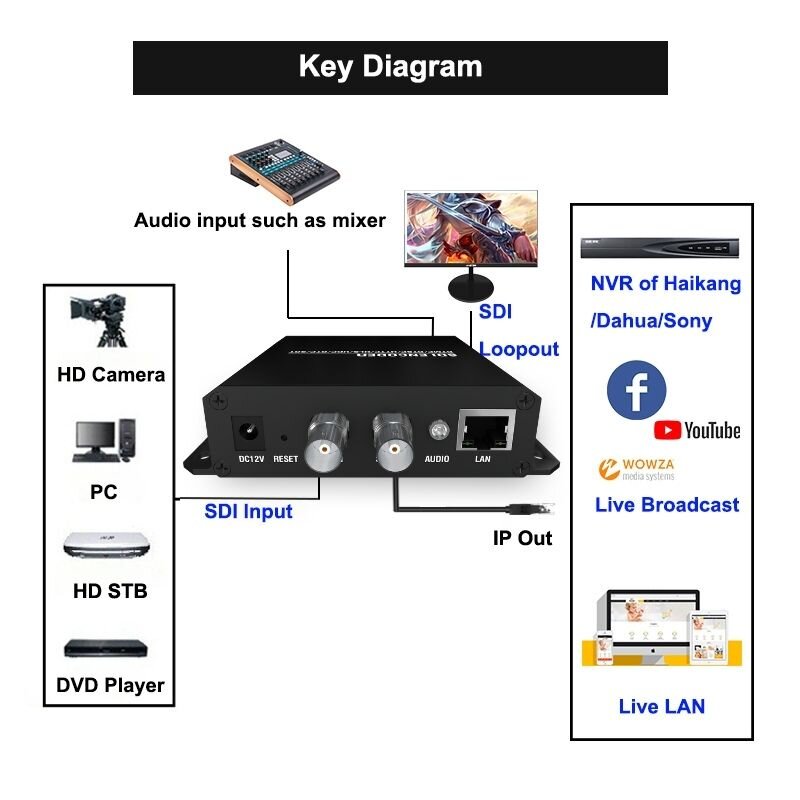

Main Application:

IPTV (Wowza, Xtream Codes, nginx Media Server, etc.)

Online Live Broadcast ( YouTube, Ustream, Twitter, etc.)

NVR (Net Video Recorder)

Teaching / Campus Broadcast

Hotel TV system

Video Conference

Digital Signage

Recording System
