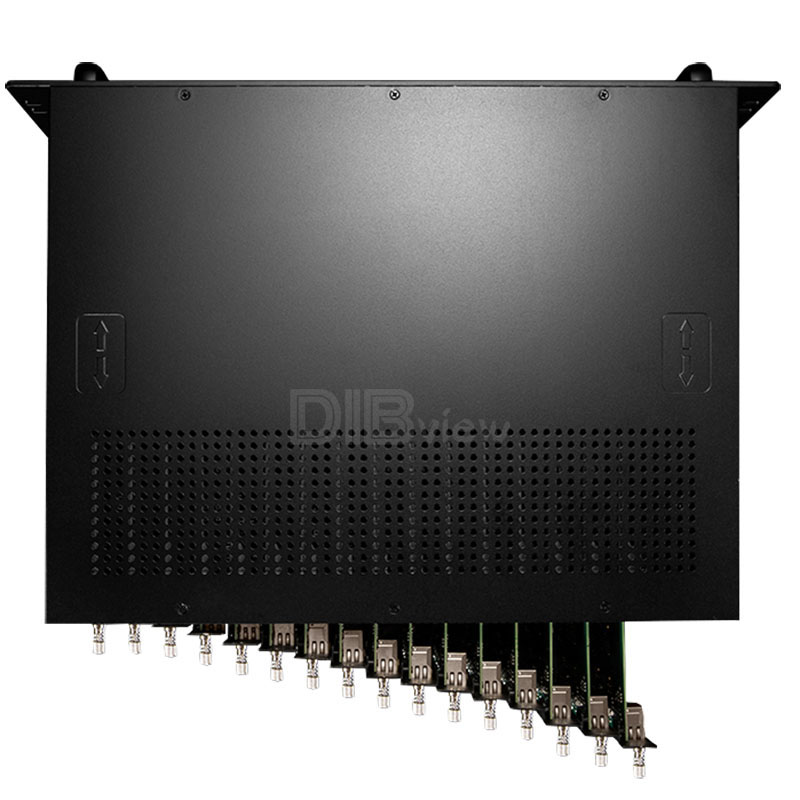

OTV-16HD 16-Channel HDMI Encoder


Overview:

OTV-16HD Multi-channel IPTV Streaming Encoderl accepts 16*HDMI input working. Meanwhile, it outputs 64 channels stream by TS over IP transmission in H.264 & H.265 Compression(Video), AAC, MP3 Compression(audio) with different resolution and protocols for delivering services to multiple streaming servers and different size screens at the same time, including Youtube, Facebook, Wowza, Ustream, smartphones, tablets, different size TVs and other mobile devices. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth.



OTV-16HD IPTV Video Streaming Encoder can be applied to education, health care, IPTV & OTT, conference, remote education, news interview, court, public security, banking, transportation and other industry applications.



Key Features:

  • Support 16 channel HDMI Input

  • Support up to 64 TS over IP stream out.

  • Support H.264/H.265 Main Profile/H.264/H.265 High Profile and MP3 & AAC audio compression

  • Bitrate mode: CBR/VBR

  • Capable of image parameter settings

  • Switchable of audio output mode: Left, right and Stereo

  • Configurable of Multi-rate, Multi-resolution, Multi-protocol

  • Providing SRT/HLS/RTSP/HTTP/UDP or RTMP protocol

  • Compatible with HDCP

  • Any terminal devices/decoders can have streams from IPTV streaming Encoder

  • directly by RTMP protocol with software players (such as VLC).

  • Support ONVIF Network Video Protocol

  • System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

  • Web-based management

  • Full-duplex mode 1000MFull-duplex mode 1000M



Technical Specifications:

Item

Description

Video Processing

Video compression: H.264/H.265 AVC High Profile Level 4.0

Video inputs: HDMI (Compatible with HDCP)

Video resolution

HDMI main stream:

1920x1080,1680x1056,1280x720,1024x576,

850x480,720x576,720x540,720x480,

720x404,704x576,640x480,640x360, auto

HDMI sub-stream:

1280x720,800X450,720x576,720x540,720x480,

720x404,704x576,640x480,

640x300,352X288,320X240,320X180 auto

Bit-rate: 16kbps~12Mbps, CBR/VBR

Video pre-processing: Noise reduction, Sharpen, Filtering

Audio Processing

Audio in: 3.5mm Line in+HDMI Embedded in

Audio compression: AAC, MP3

Sampling rate: Adaptive, selectable of re-sample.

Sampling accuracy:24-bit

Bit Rate: 48kbps,64kbps,96kbps, 128kbps,160kbps,192kbps,256kbps

Re-sample:32KHz,44.1KHz

IP Output

Transport protocol: TS over IP output,  SRT/HLS/RTSP/HTTP/UDP or RTMPs protocol

For HDMI to IP output, 4*TS over  IP stream out (HTTP/RTSP/UDP or RTMPs protocol)

2 Channels with higher resolution  (up to 1080P) for large screen application,

2 Channels with lower resolution (up to720P) for small screen application)

Connector: RJ45,1000M.

Management

Configuration Interface: Web-based

Upgraded: via network

Connector: RJ45, 1000M Ethernet interface.

The Working Environment

Dimension

484mm(W) *365mm(D)*88mm(H)

Gross Weight

8KG

Operating Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

AC220V±10%, 50/60 Hz

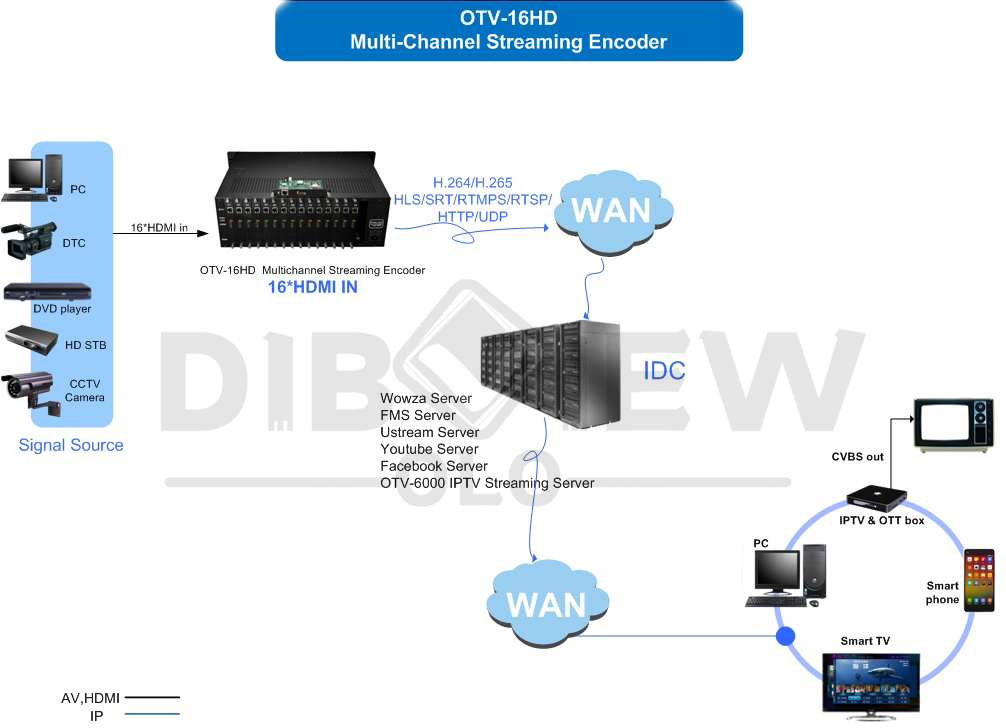

Applications:

DTV & Professional Broadcasting Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference, Internet TV

IPTV/OTT system, Live Events Streaming

Government, Education, Healthcare and Music

Digital Signage Project

Public Security Video Monitoring


OTV-16HD 16-Channel HDMI Encoder 06.jpg
