Overview:

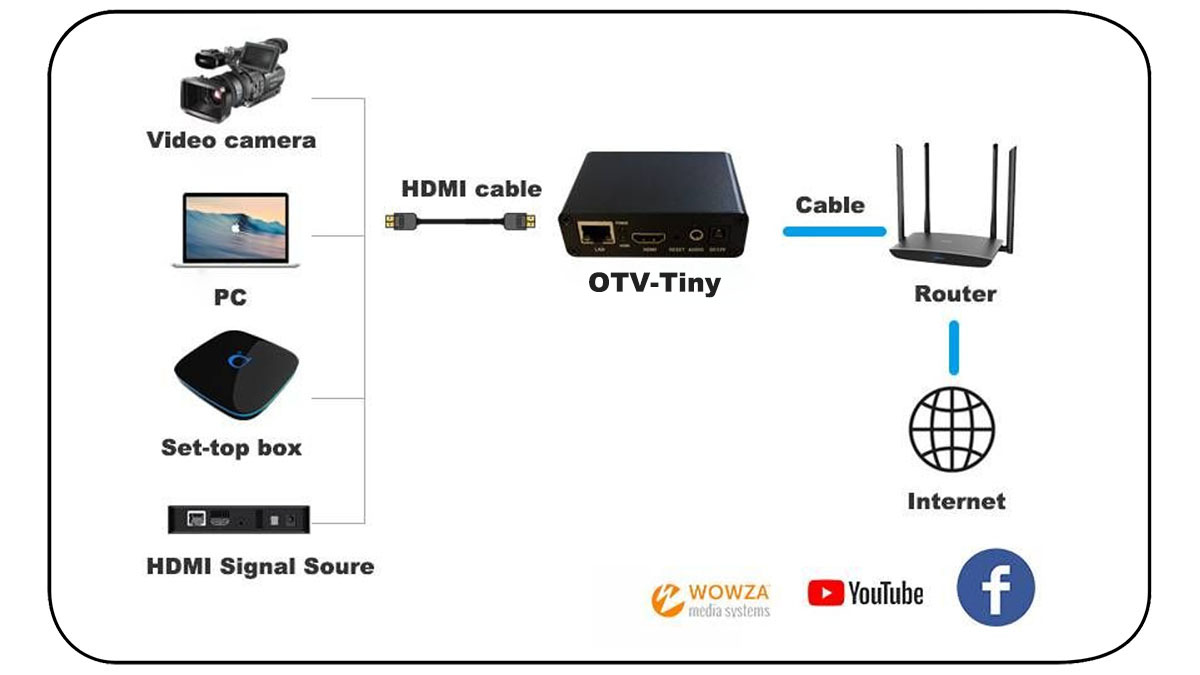

OTV-Tiny ProVideo Streaming IPTV Encoder. It features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265 HEVC.

OTV-Tiny ProVideo Streaming IPTV Encoder can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

Key Features:

• 1-Channel HDMI Input

• Most of push url can be filled in the (push url column), not only RTMP,but also supports RTMPS, RTSP, UDP SRT,ＨLS and other push methods.

• Embedded hardware encoder

• H 265,H 264 Main profile

• Max. 1080P 30fps

• Support a variety of common platforms such as Facebook, Wowza, FMS, Youtube, Ustream, and so on

Main Specification:

Audio and video input

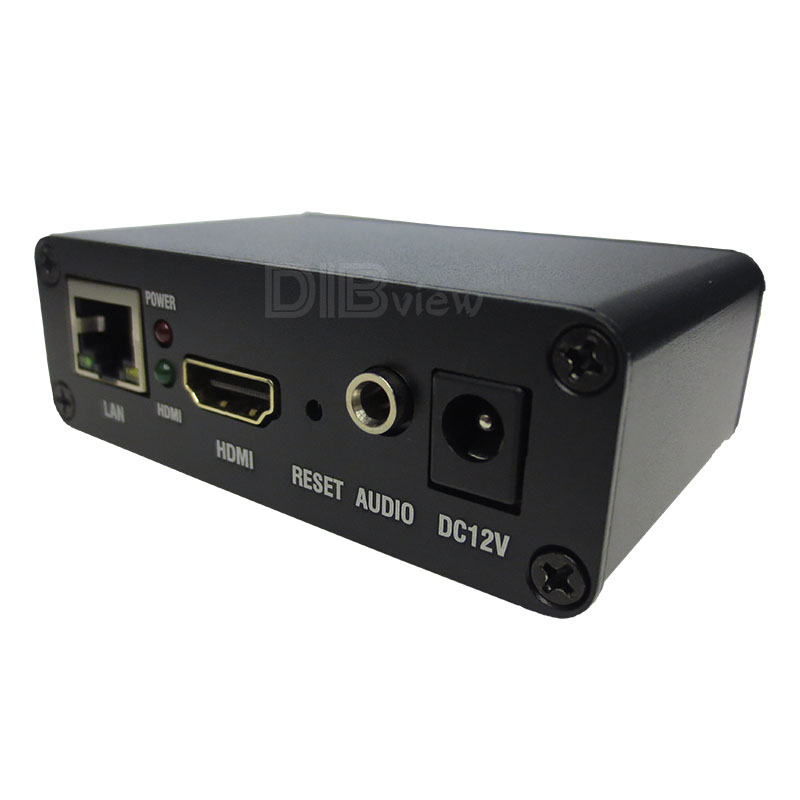

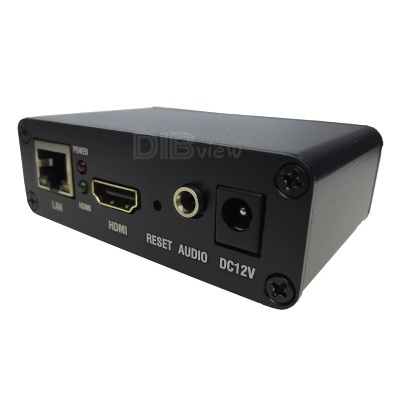

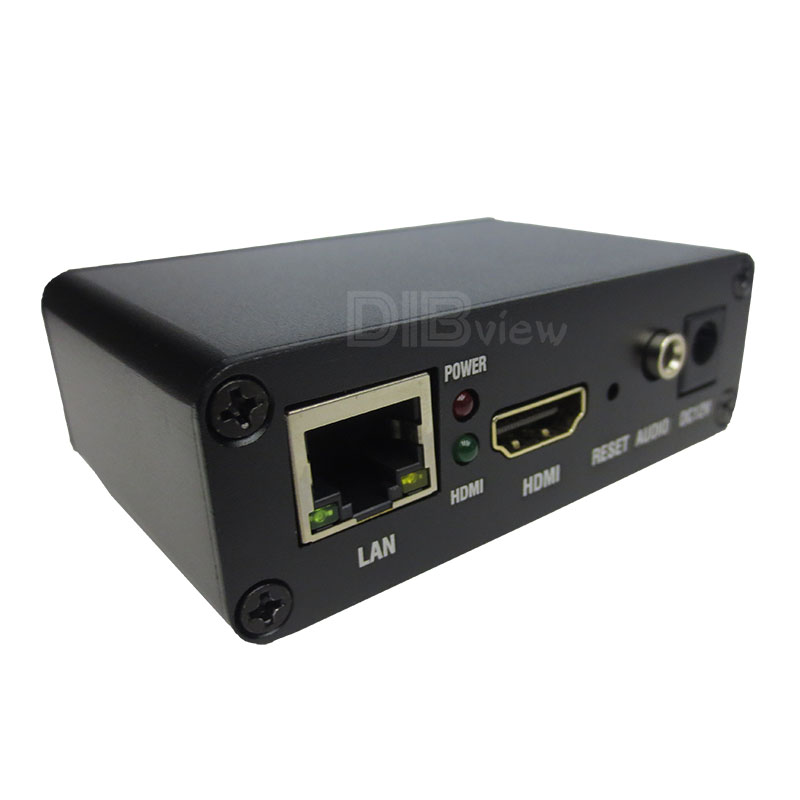

Video input: 1*HDMI

Audio input: 1*channel HDMI built-in audio, 1 channel external audio

Encoding type: H.264/H.265 optional

Video encoding

Encoding frame rate: 5-60 adjustable

Key frame interval (frame): 5-300 adjustable

Bit rate (kbit): 32-32000 adjustable

Maximum support: 1920x1080P30

Resolution after encoding: 1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/same as input resolution

H.264 level: baseline profile/main profile/high profile

Stream control: CBR/VBR optional

Streaming Protocol: Support RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP multicast/SRT/RTP multicast

Encoding sampling rate: 44100/48000 optional

Coding method: AAC /AAC+/AAC++/MP3/MP2/ AC3 ??optional

Encoding bit rate: AAC: 48000-320000 adjustable/AAC+: 24000-48000 adjustable/AAC++: 12000-32000 adjustable/MP3: 64000-320000 adjustable/MP2: 64000-320000 adjustable/AC3: 40000-640000 adjustable

Digital volume: -50~50 adjustable

RTSP stream uses G711A encoding: disable/enable optional

OSD

Transparency: 0-128 adjustable

Type: text/picture/scrolling text/time

Area: 4 areas are optional

X coordinate: 0-1920

Y coordinate: 0-1080

LOGO: 4 LOGOs can be uploaded for selection

Font size: 8-72

Background color: transparent/white/black

Font color: RGB color optional

Universal

Network: 100M

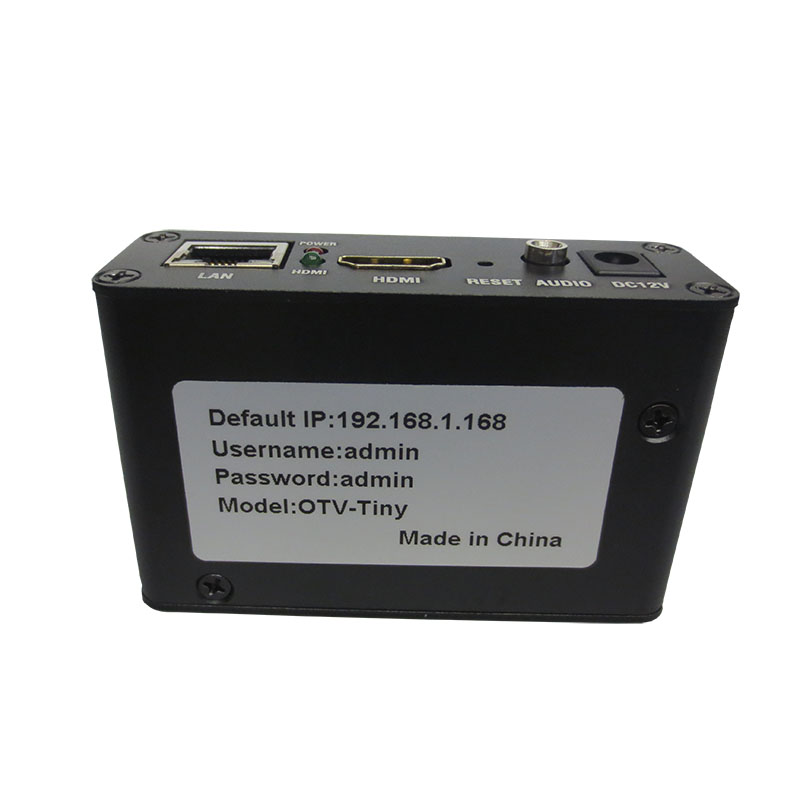

Configuration management: configuration management through WEB

ONVIF: Support ONVIF to find and browse videos

Power supply: 12V/DC, 2A

Power consumption: 4W

Working temperature: -20℃+60℃

Working humidity: <90%, no condensation

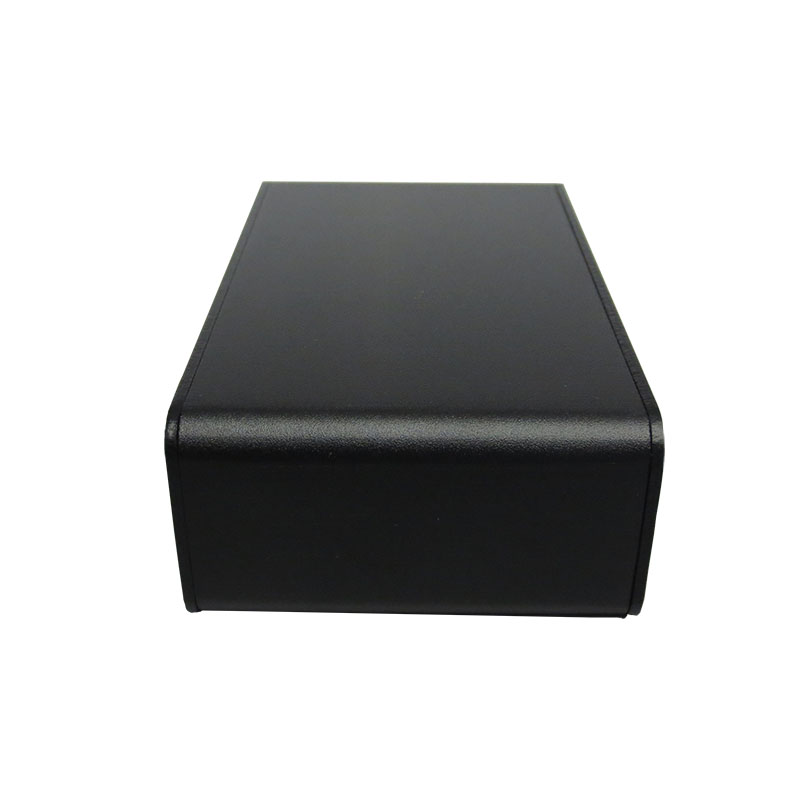

Size: 8.4cm x 5.3cmx2.7cm

Applications:

DTV & Professional Broadcasting Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference, Internet TV

IPTV/OTT system, Live Events Streaming

Government, Education, Healthcare and Music

Digital Signage Project

Public Security Video Monitoring
