    NDI SRT HLS RTMPs Encoder Decoder with USB Video Recording

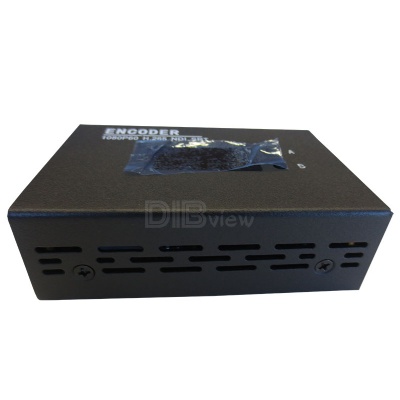

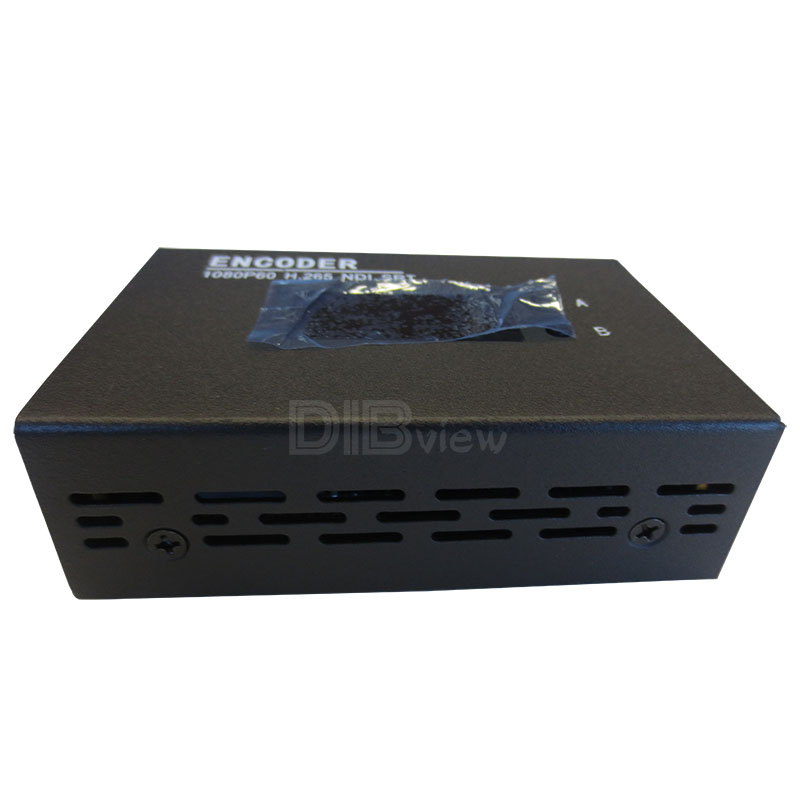

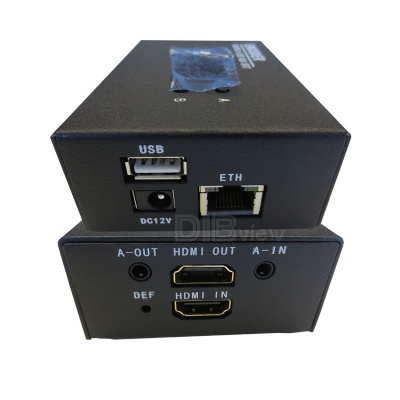

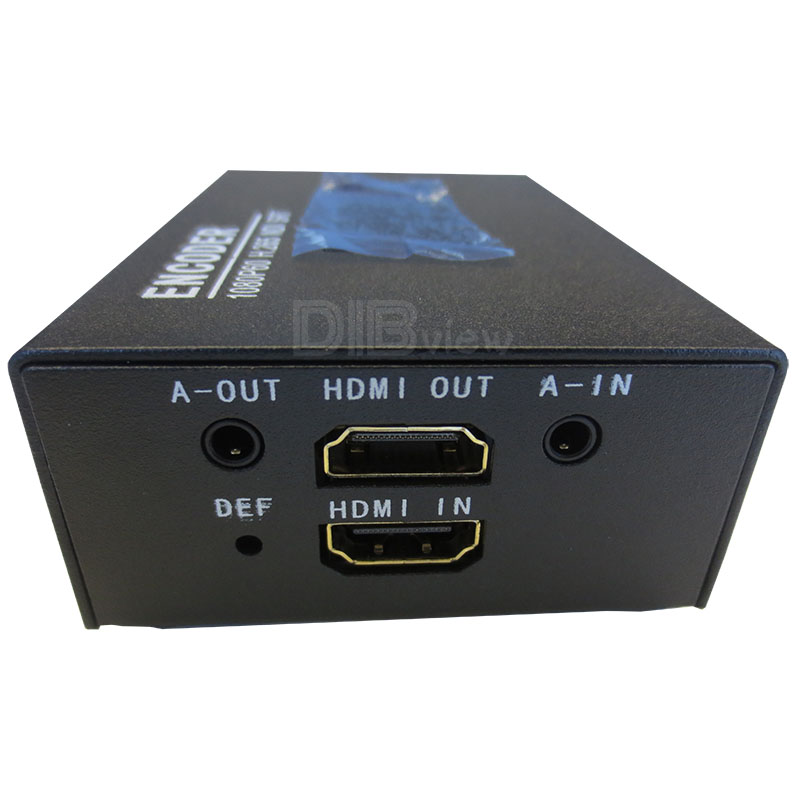

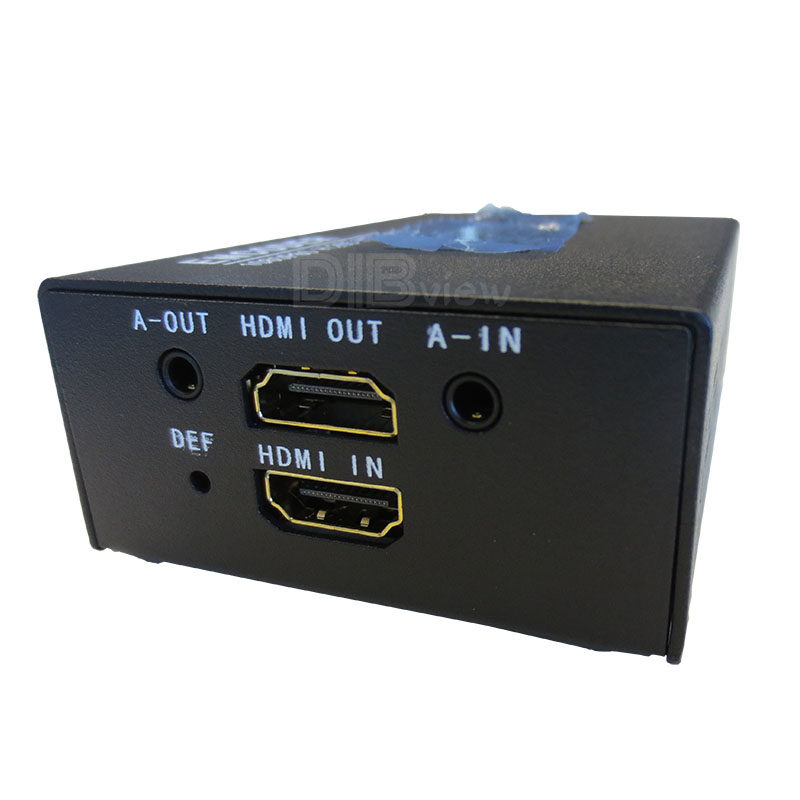

OTV-ENC1 NDI|HX H.265 HDMI Video Encoder Decoder with USB Video Recording. It features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265 HEVC. As encoder, it support video source through the local USB files,HDMI video or over Ethernet in normal protocol of HTTP/HLS/RTSP/RTP/UDP/RTMP/RTMPS, or in NDI|HX streams (Optional) for use with other NDI|HX compatible systems, convert it to IP. Meanwhile It support Decoding function, IP streams or NDI|HX streams input H DMI out.

OTV-ENC1 NDI|HX H.265 HDMI Video Encoder Decoder Encoding support 1 channels of 1080P H 265 video and stereo audio simultaneously, built-in self-developed full frame

rate de-interlacing technology (e.g. 1080i@60 input, after de-interlacing is 1080p@60, rather than other manufacturers of 1080P@30, which is particularly important for high quality demand live Event ).

OTV-ENC1 NDI|HX H.265 HDMI Video Encoder Decoder be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

Key Features:

  • Support NDI HX encoding and NDI HX decoding functions. At the request of NewTek, the copyright owner, customers who need to use the complete NDI functions need to purchase NDI Authorization separately. If no authorization, only can be use 30 minutes but no affect on other functions.

  • Audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol SRT,HTTP, HLS, RTSP, RTP,RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

  • Encoding & Transcoding*Decoding multi-function in one device

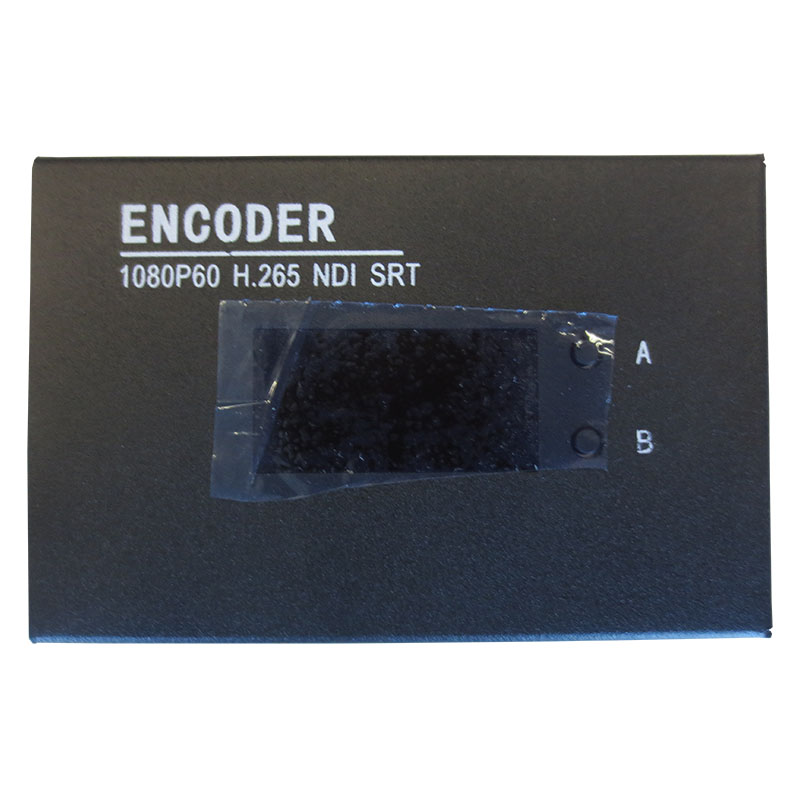

  • Button A, Button B can be custom in web management, default button A–Start the record Button B---stop the record

  • LED Screenshot content can be customized in web management

  • Embedded hardware encoder

  • USB Interface can be used for WIFI, Recording storage, 4G LTE module

  • H265/H264 Main profile

  • Signal source resolution 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480

  • Support High-bandwidth Digital Content Protection (HDCP)

  • Audio output format AAC,MP3,PCMA,MPEG-2

  • Coding Resolution: 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480

  • Support 1-channel decoder HDMI output and multiple live streams mix video output

  • Support CBR,VBR,AVBR

  • Highest code rate 40Mbps

  • Automatic scene change detection technology, improve the coding effect

  • Every channel is inserted with de-interlacing scanning algorithm

  • OTV-ENC1 HEVC HDMI video encoder can use space pre-treatment and block filtering technology for moving scenes

  • Support a variety of common platforms such as NDI, Wowza, FMS, Youtube, Facebook, and so on

Technical Specifications:



Performance Parameter

Core performance

Main chip:Hi3520DV400

CPU: ARM [email protected] 32KB I-Cache, 32KB D-Cache


Flash: 256MB SPI Nand Flash

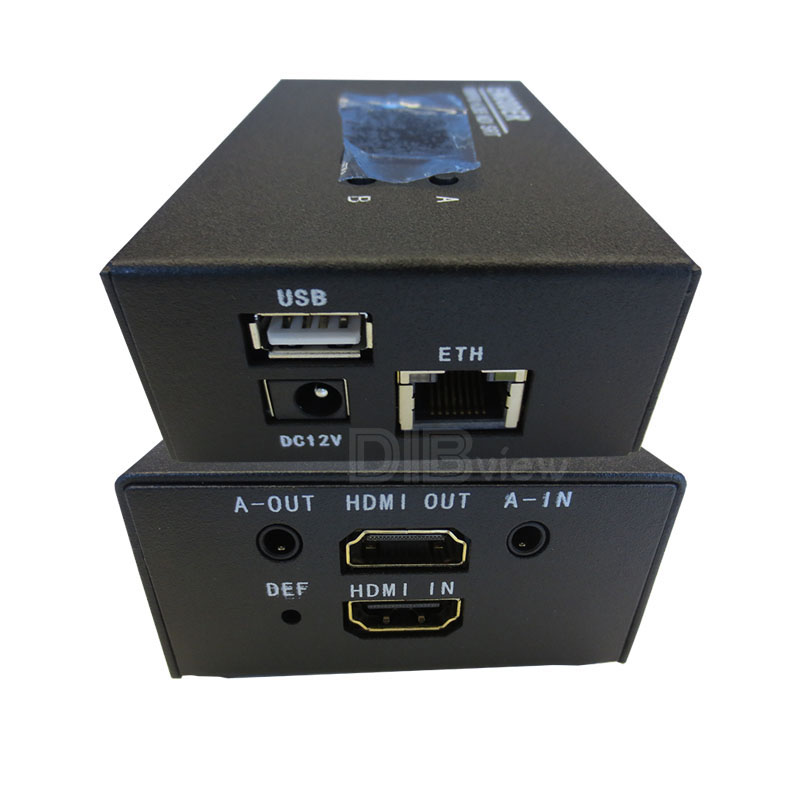

Input Interface

Input interface: HDMI 1.4 Highest support1080P@60fps


Encoding format: H.264 Baseline profile, H.264 Main profile, H.264 High profile

H.265 Main profile, MJPEG/JPEG Baseline

Decoding format: H264,MJPEG

Encoding resolution:

Main:1080P,720P,360P, Sub:720P,360P

Frame rate:1~60 Adjustable

Multiple reference frame: stand by SmartP, DualP

Maximum bit rate: 40Mbps


Audio Parameters

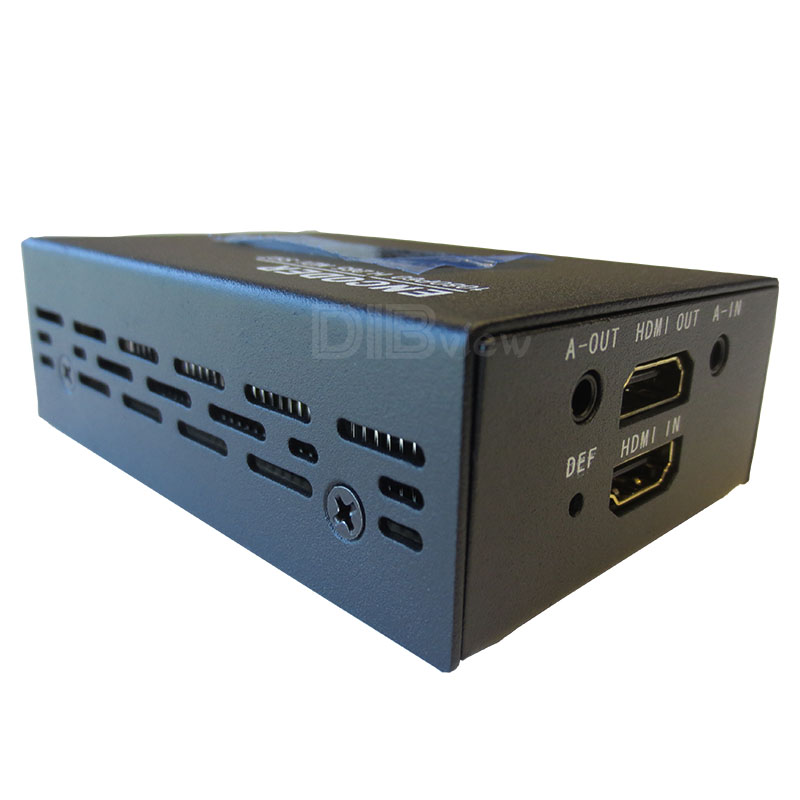

Input interface: HDMI, 3.5mm Line-In, Audio can be used simultaneously

Output interface: HDMI, 3.5mm Line-Out, Audio can be used simultaneously

Sampling Rate:48K, 44.1K, 32K, 16K, 8K

Encoding format: AAC, MP3, MPEG2, PMCA, PMCU

Network Parameters

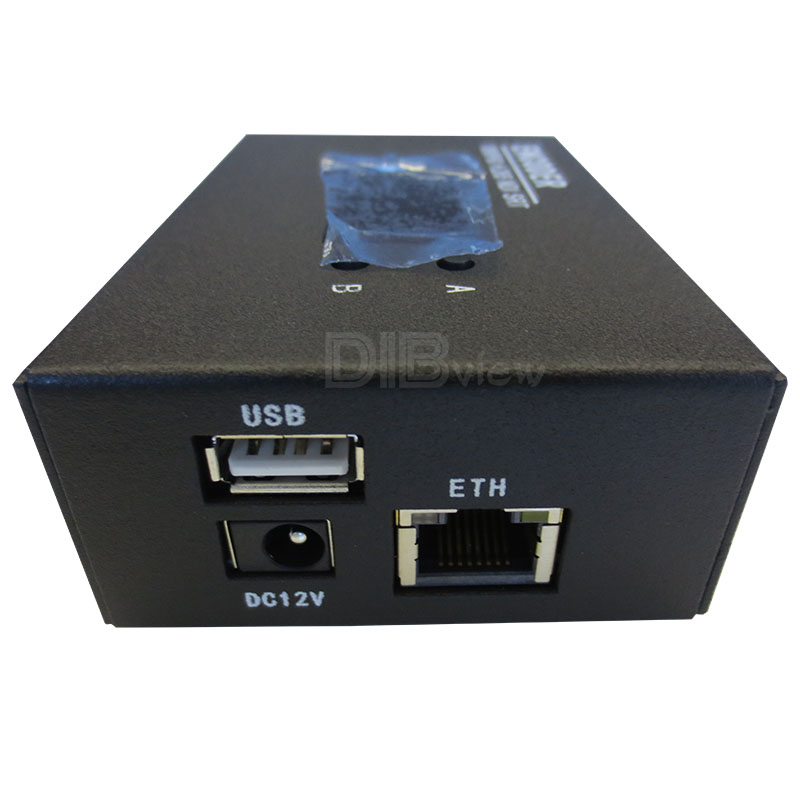

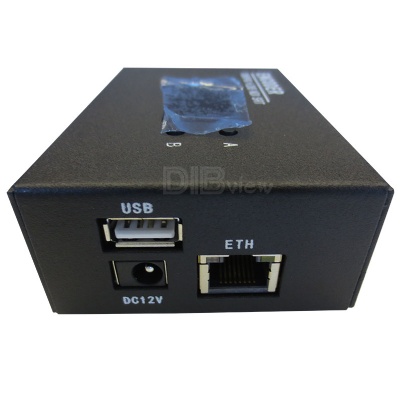

Wired interface:10/100M/1000M RJ45 Network port

Wireless interface: Support USB wifi module, support USB 4G module

Transfer Protocol: SRT,NDI, RTSP, RTMP, RTMPS, HTTP, HLS, UDP, Unicast, multicast

ONVIF: Yes, support

Software Function

Basic skills:WEB configuration, parameter hot update, firmware upgrade, network setting, password management

Special effects overlay:Logo, watermark, subtitle, rolling caption, mosaic, time stamp

Video mixing:Picture-in-picture, 4 pictures, 9 pictures, etc, support real-time switching, support mixing

Resource management:Customize fonts, upload watermark logo images

The Working Environment

Voltage: DC 12V 1A

Consumption: Less than 4W

Operating temperature: 0~70℃

Dimensions: 132mm(W)*140mm(D)*30mm(H)


DTV & Professional Broadcasting Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference, Internet TV

IPTV/OTT system, Live Events Streaming

Government, Education, Healthcare and Music

Digital Signage Project

Public Security Video Monitoring

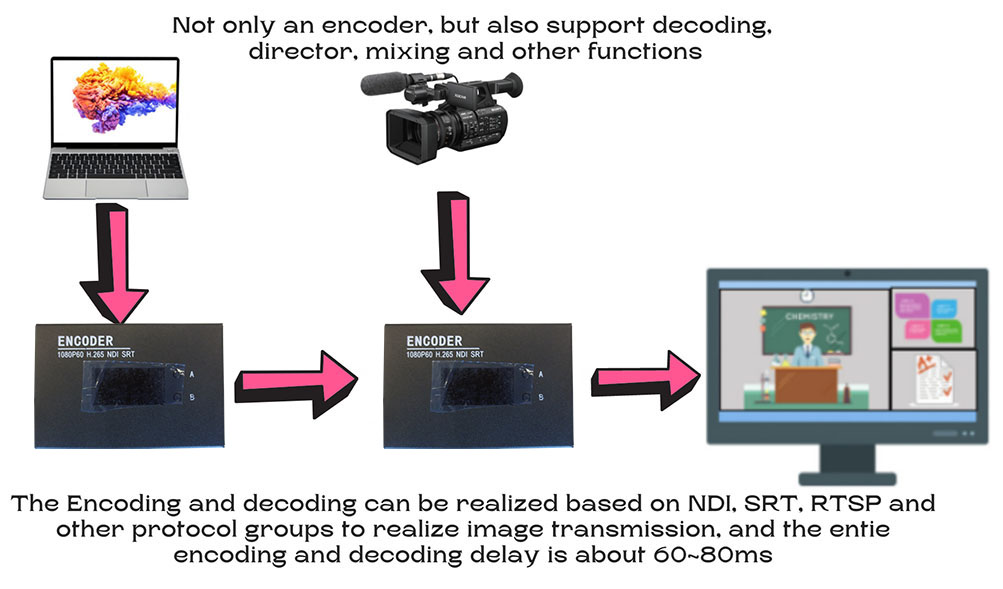

Streaming Encoder Decoder Application.jpg
