Overview:
Dibview OTV-HCV2 ProVideo IPTV Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265/H.264/AVC, which realizes its resolution to be up to 1080P 60fps. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth.

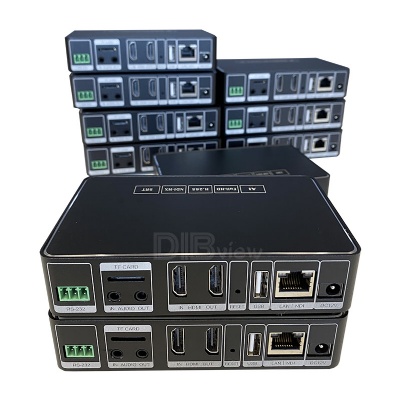

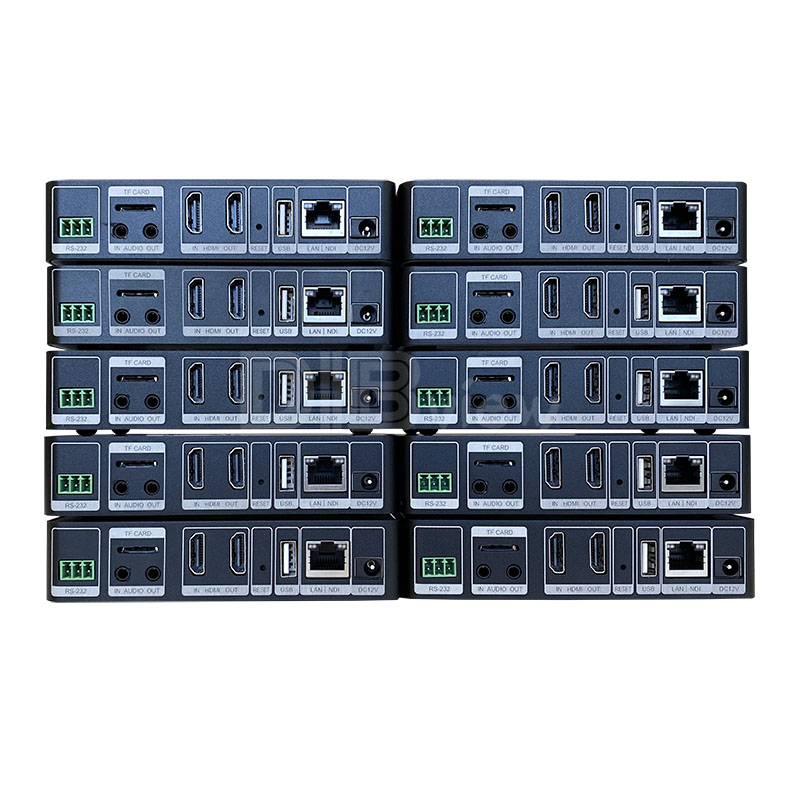

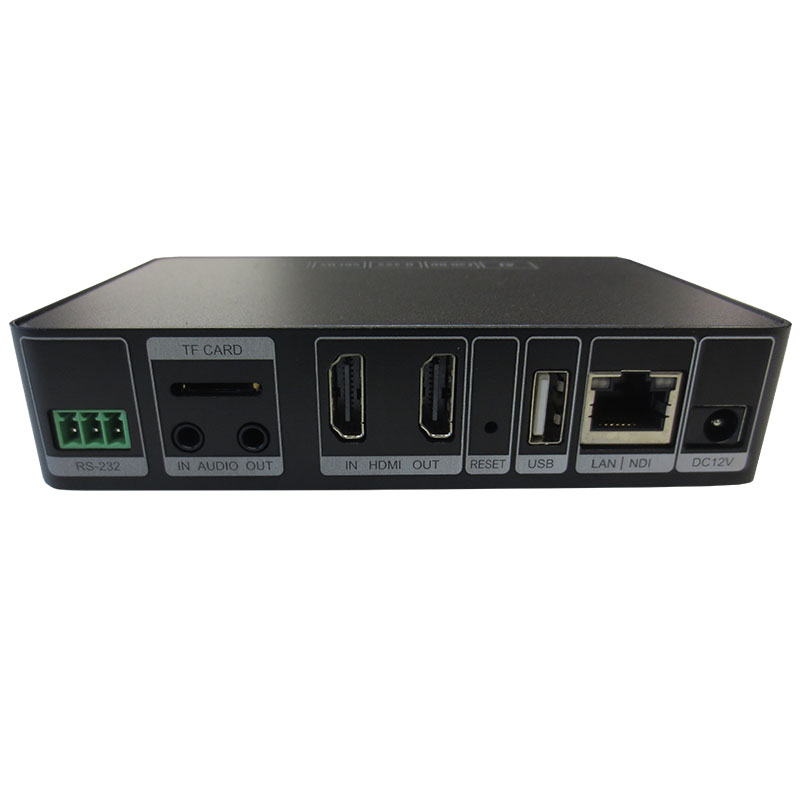

OTV-HCV2 ProVideo IPTV Streaming Encoder accepts 1*HDMI input and 1*HDMI Loopout, it can support HDMI and USB Camera input at the same time. Besides this, it can support Picture in Picture function.
OTV-HCV2 ProVideo IPTV Streaming Encoder provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.
Key Features:
Video Input: 1-Channel HDMI +3.5mm audio
Support 1*HDMI Loopout+3.5mm audio
Video Compression: HD H.264/H.265/MPEG-4 AVC, up to 1080P@60fps
Support in Picture in Picture function, real-time Switching, support for mixing
Providing HDMI and USB signal source input combine together
Insertable of logo, water mark, subtitle, rolling caption, mosaic, time stamp
Transmission mode: TCP, UDP, 1000M/100M (RJ45 duplex network port)
Bitrate mode: CBR/VBR/AVBR
Capable of image parameter settings
Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.
Providing SRT/HLS, RTSP/HTTP/UDP or RTMPs protocol
Any iOS browsers (iphone, ipad, MacBook etc) are able to have streams from in Anytime, Anywhere by HLS protocol without install any software players.
Any terminal devices/decoders are able to have streams from directly by RTMPs protocol with software players(such as VLC)
Support HDCP protocol (for HDMI input)
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
Web-based management.
Technical Specifications:
Item | Description |
Video Processing | |
Video compression: H.264/H.265/AVC High/Main/Baseline Profile Level 4.0/Mjpeg/JPEG Baseline Frame rate: Up to 60fps Video inputs: 1*HDMI (HDCP protocol) Resolution: 1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480, 720x404, 704x576, 640x480 auto Bit-rate: 16kbps~40Mbps, CBR/VBR, AVBR Video pre-processing: Noise reduction, Sharpen, Filtering | |
Audio Processing | |
Audio compression: AAC, MP3, MPEG2, PMCA, PMCU Sampling rate: Adaptive, selectable of re-sample Sampling accuracy: 24-bit Bit Rate: 24Kb/s~64Kb/s Sampling Rate: 48KHz, 44.1KHz, 32KHz, 16KHz, 8KHz | |
IP Output | |
Transport protocol: TS over IP output, SRT/HLS,RTSP/HTTP/UDP or RTMPs protocol Support USB Wifi Module/4G Module for optional | |
Management | |
Configuration Interface: Web-based Upgraded: via network Connector: RJ45, 100M/1000M Ethernet interface. | |
The Working Environment | |
Voltage: 12V 1A Consumption: Less than 5W Operating temperature: 0~45℃(operation), -20~65℃(storage) Dimensions: 133mm(W)*82mm(D)*29mm(H) Net weight: 0.32kg/pc | |

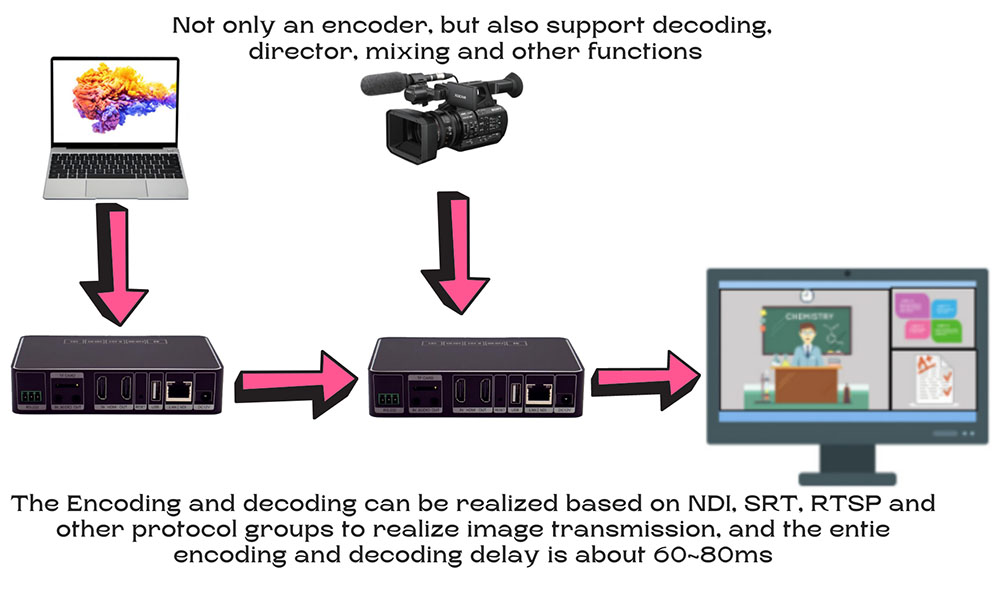

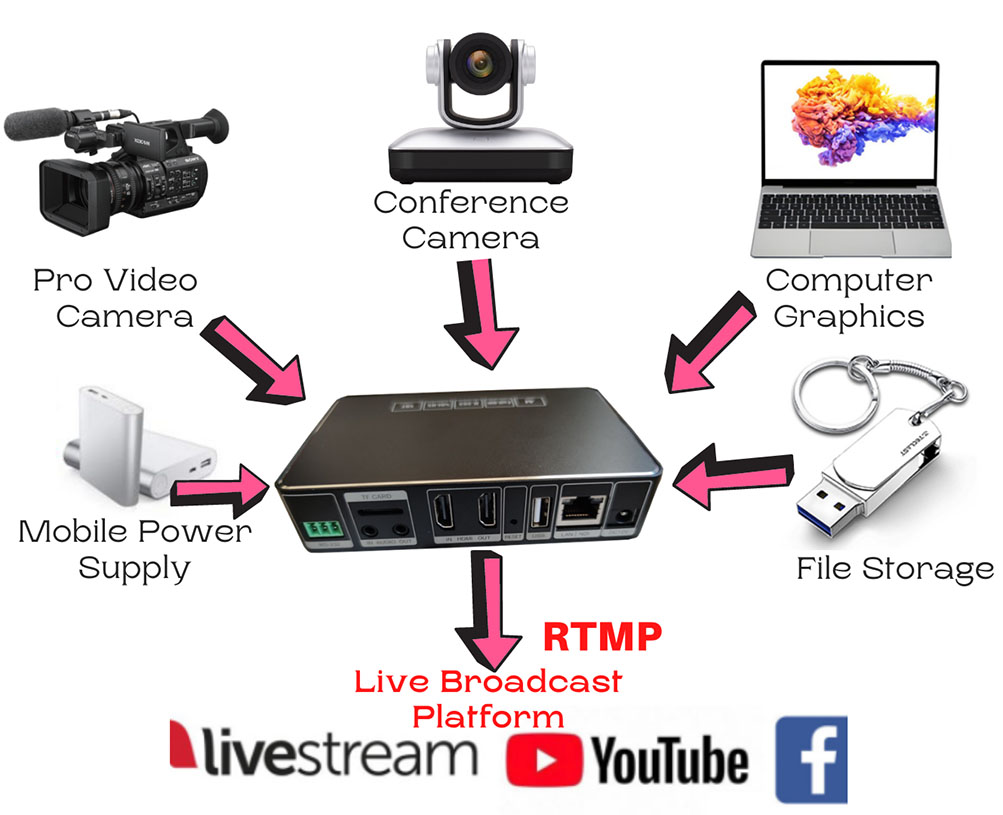

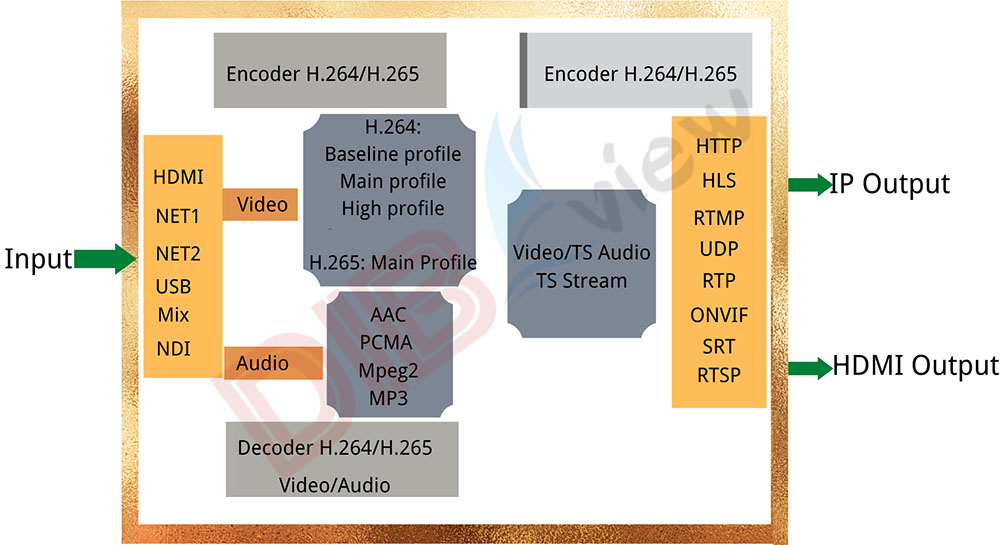

Key Diagram:
Applications:
DTV & Professional Broadcasting Radio and Sports
Organizations, Conferences and Worship
Remote Video Conference, Internet TV
IPTV/OTT system, Live Events Streaming
Government, Education, Healthcare and Music
Digital Signage Project
Public Security Video Monitoring
