Overview:

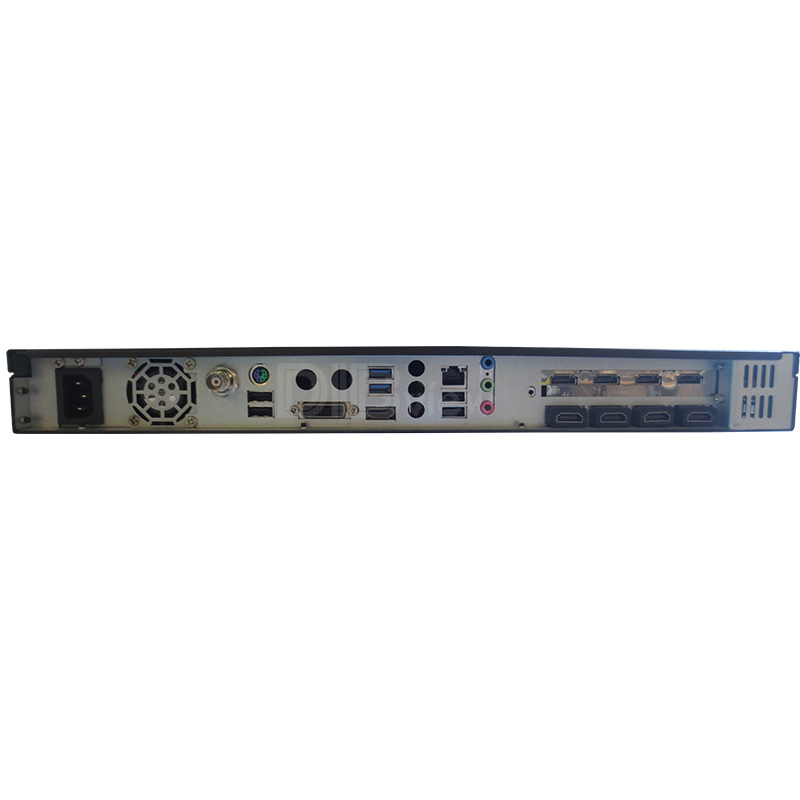

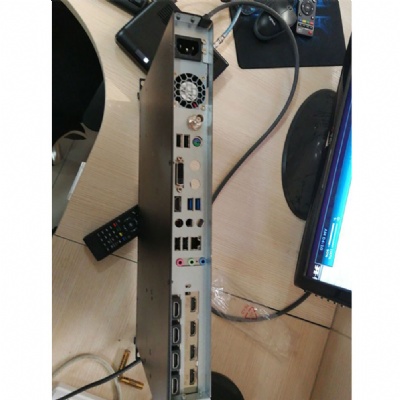

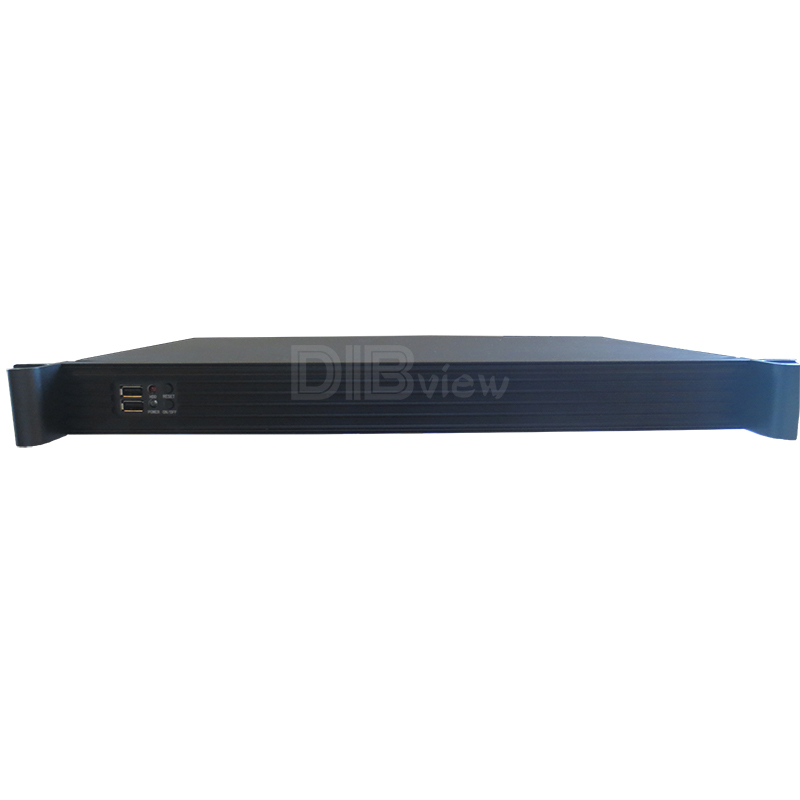

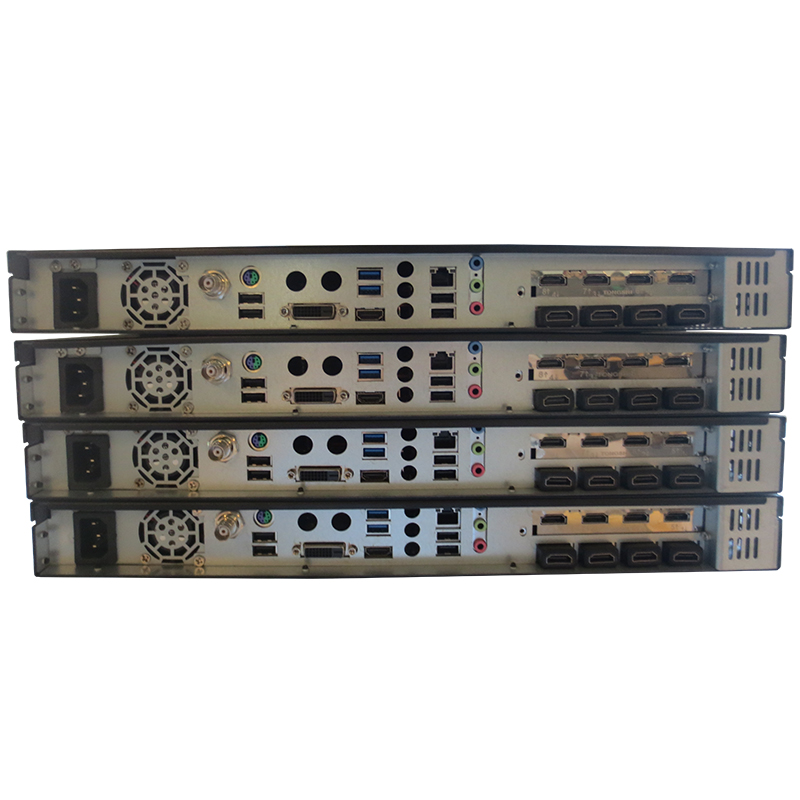

OTV-8100TS HDMI to IP & ASI Hashcode Encoder with Hash code remove functions, this 1U Rack-mounted video streaming Dtvane encoder is designed for HDMI Video hashcode/watermark/ fingerprint/logo & Audio hashcode remove, hide or blurring on the fly. It comes with 8 channels HDMI input, by real-time H.264 encoding, output RTMP/HTTP/UDP/RTP TS and ASI for DVB.

With highly integrated hardware and software, the equipment is convenience for you send streaming to IPTV Media Streaming Server, such as wowza, Xtream Codes, or DVB modulators.

OTV-8100TS Encoder by compare with 2 STBs' HDMI input signals, automatically detect & hide the different video contents, such as the hashcodes/video logo/watermark, etc.. (2 HDMI input, 1 stream output) *1

Note:

a. Two STBs' output HDMI must be same channels (programs), and STB need to be same brand, same settings.

b. The encoder can only output 4 hashcode remove streams when do compare for hide watermark.

C. If use removing hashcode function, suggest input resolution for 1080i, it will bring better effect.

Key Features:

•


• 8 Channels normal TS streaming or 4 Channels compared Streaming, support audio & video hashcode hidden, blurry, logo add & erase for specify are.

• Output streaming video quality adjustable.

• Add logo for your stream supported.

• With RTMP/UDP/RTP/HTTP protocols & ASI output for DVB modulators.

• Software to be upgraded.

Technical Specifications:

HR100 Hashcode Encoder

FAQ:

Q: Could you introduce the working principle of your encoder?

A:  Actually, our hashcode encoder is same like a computer. Just only connect to the network and keep the network normally working online. It can be remotely controlled by Teamviewer or Anydesk or Sunflower. Currently, these three software are pre-installed in encoder. Our hashcode encoders are not managed by browser, because our software has a preview interface, either through Teamviewer or Anydesk's or Sunflower remote software is managed.

Q: Is your device support audio compare functions?

A:Yes. Not only support video compare, but also support audio compare functions.

Q: The hidden code for voice is also deleted by comparison?

A:Yes. By comparing the sound data of the two programs, whether it is video or audio. All of them transmitted by data.

The most difficult part is the synchronization of the two programs, so if the customer wants to use the audio compare function. Try to make sure the volume is consistent.

Once found that there are different for the sound. It will be adopted silent mode.

Q:Should be same brand & same model of the set-top box, as well as the channel switching, all should be the same? Including the volume same?

A:Yes, it must be the same operator's set-top box, otherwise, it is difficult to be synchronize between set-top boxes.

Q:  Is your device used the updated Software?

A:yes, compared the market OS Centos 7.2 type, we used Linux (Centos7.5)

Q: How to change the resolution?

A: First of all, the input resolution cannot be changed by the encoder. For the input resolution, only 1080I and 720p are supported. The output resolution can be modified on the set-top box.

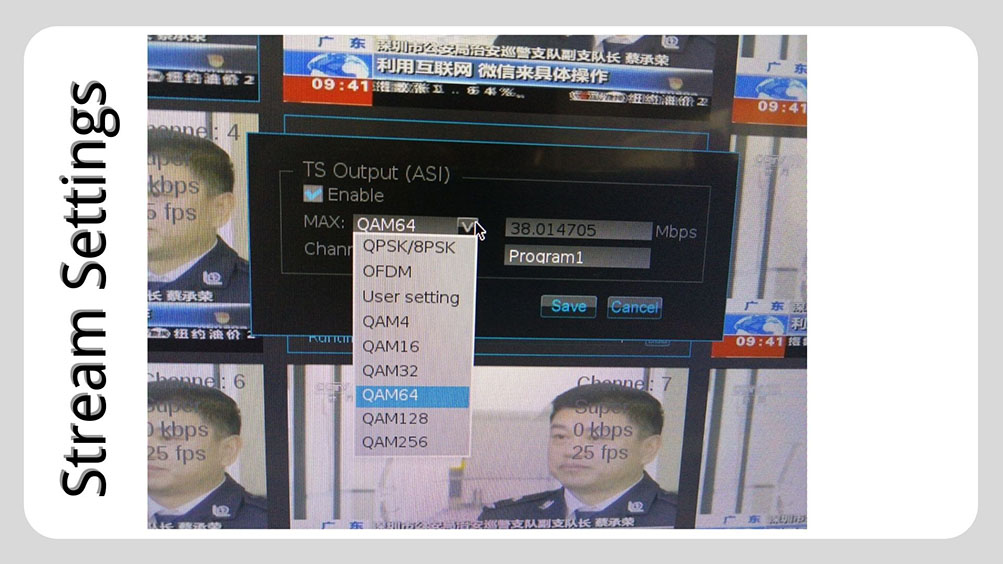

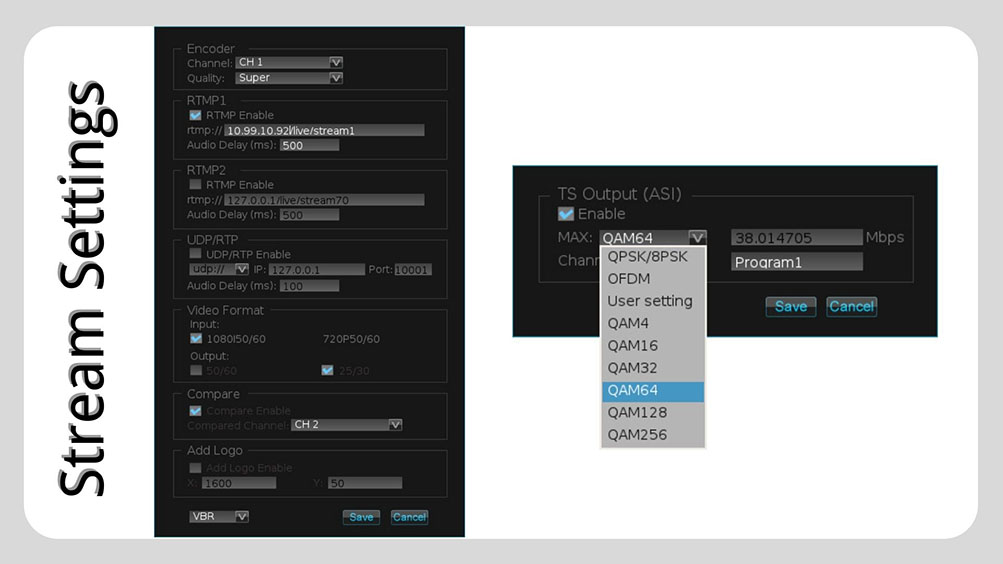

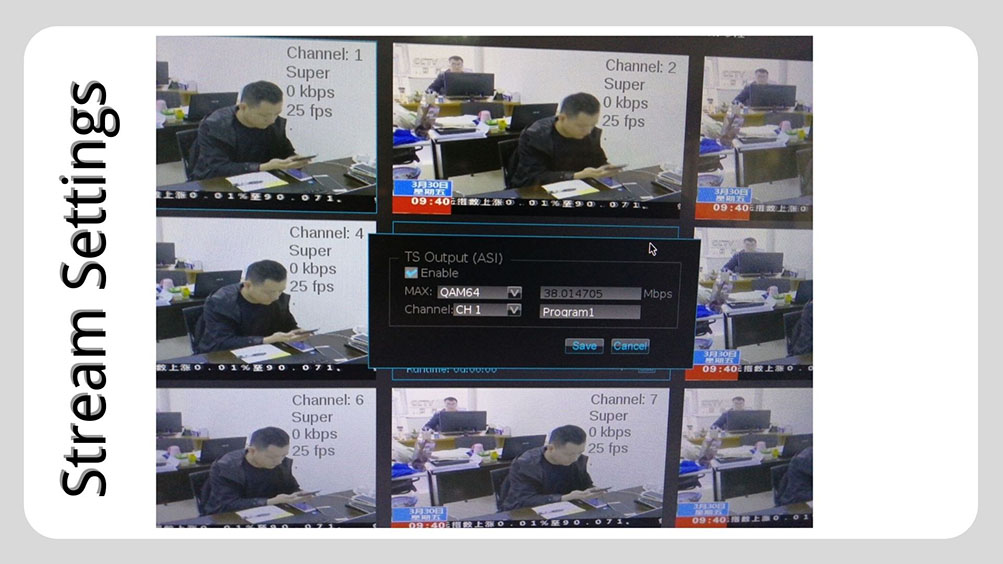

Stream Settings:

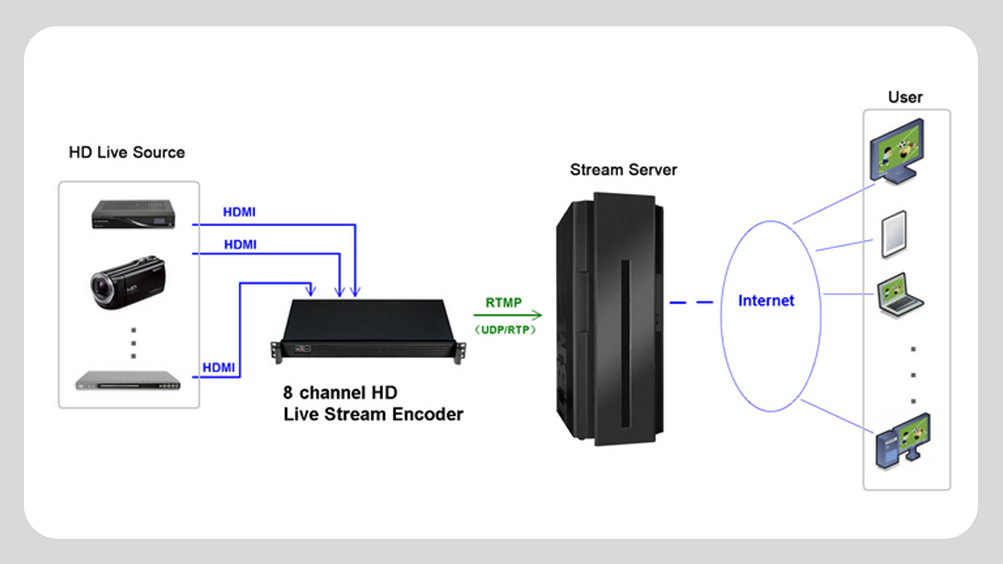

Main Application:

1. IPTV (Wowza, Xtream Codes, etc.,)

2. Online Live Broadcast

3. NVR (Net Video Recorder)

4. Teaching/Campus Broadcast

5. Hotel TV system

6. Video Conference

7. Digital Signage

8. Recording System

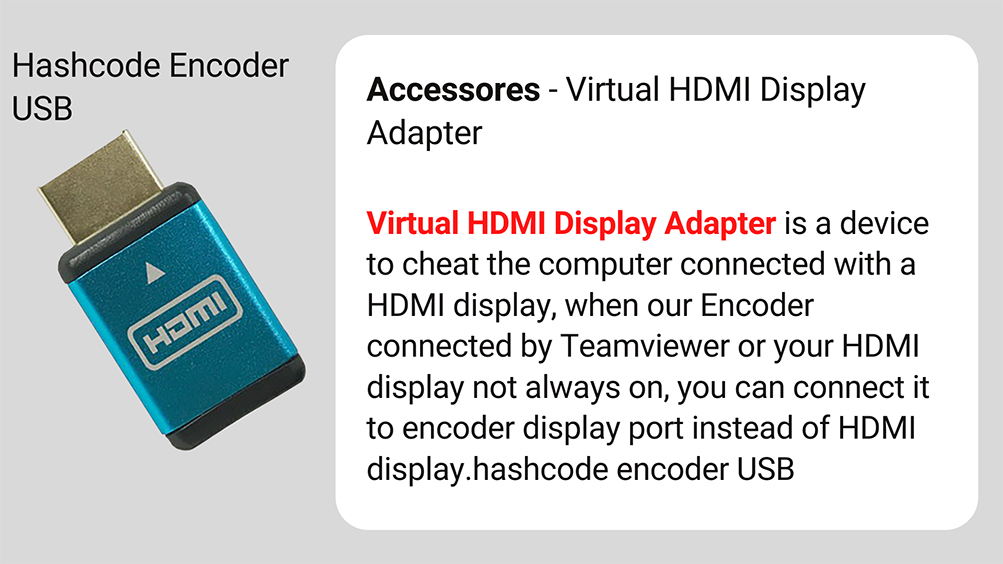

Accessores - Virtual HDMI Display Adapter:

Note:  HDMI false load is not used on our card.

It is actually used in place of the monitor. If the motherboard is connected to a monitor, you don't need it.

If you want to put on the rack. You have to connect it to the HDMI port of the motherboard.

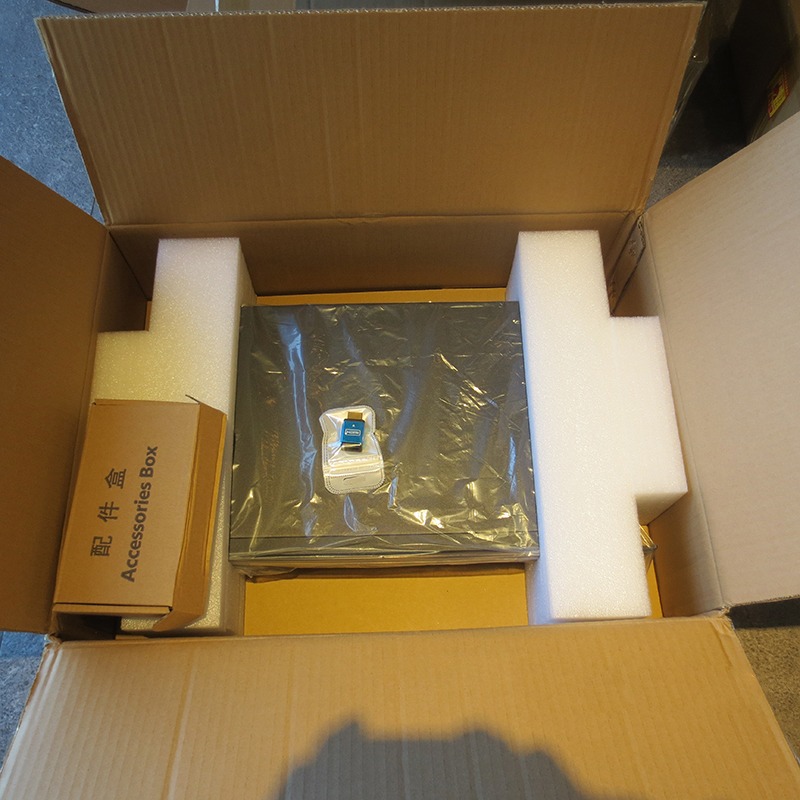

Package:
