Overview:

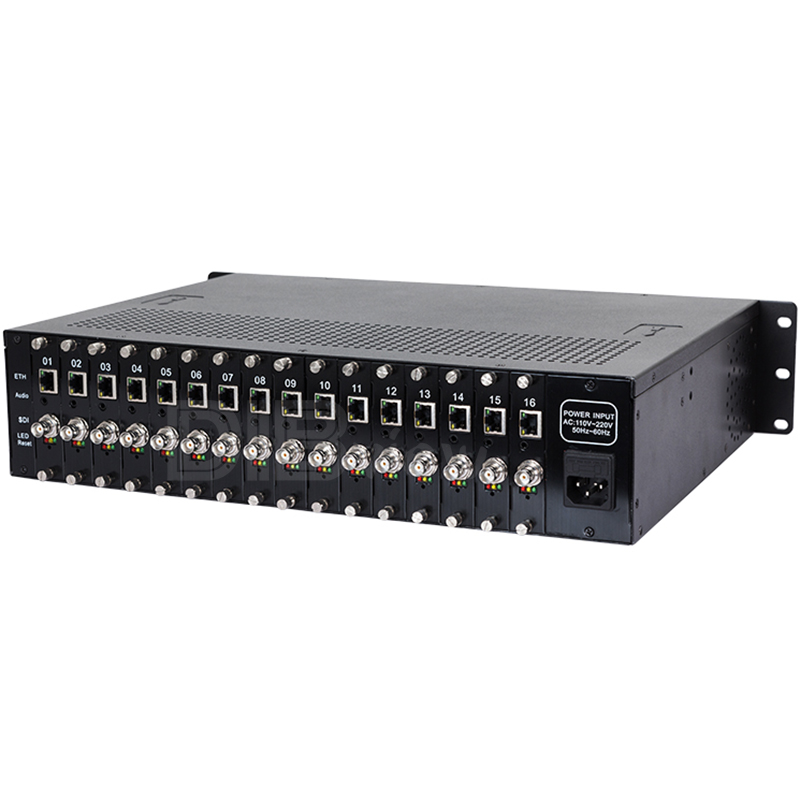

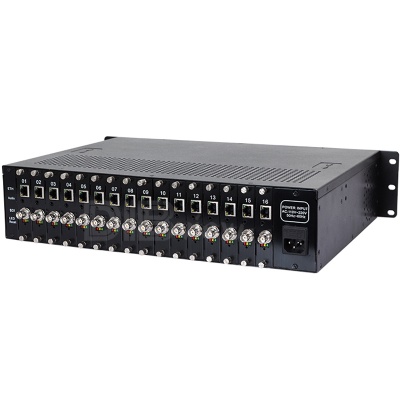

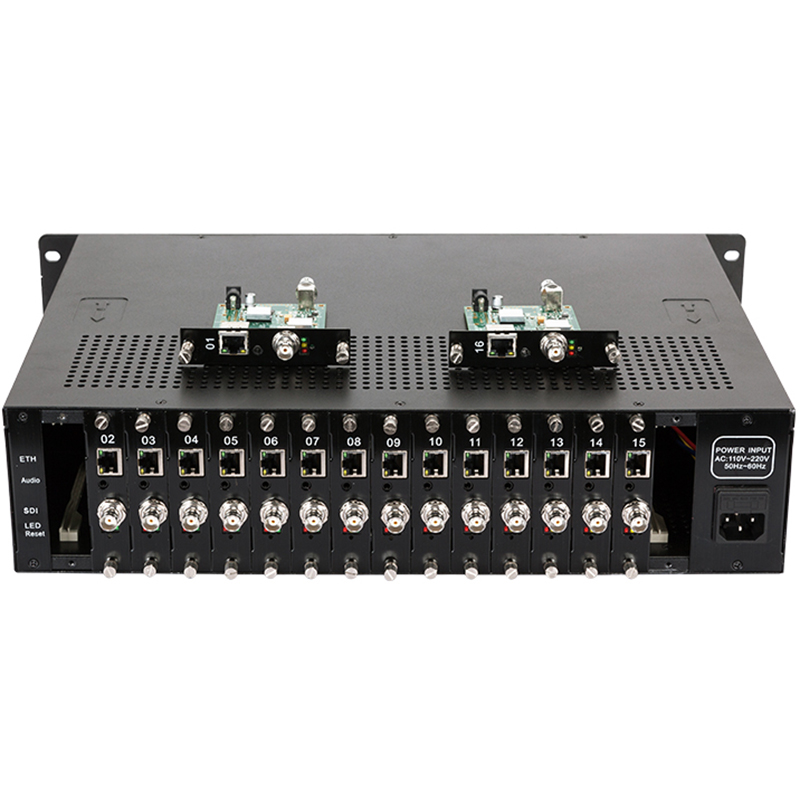

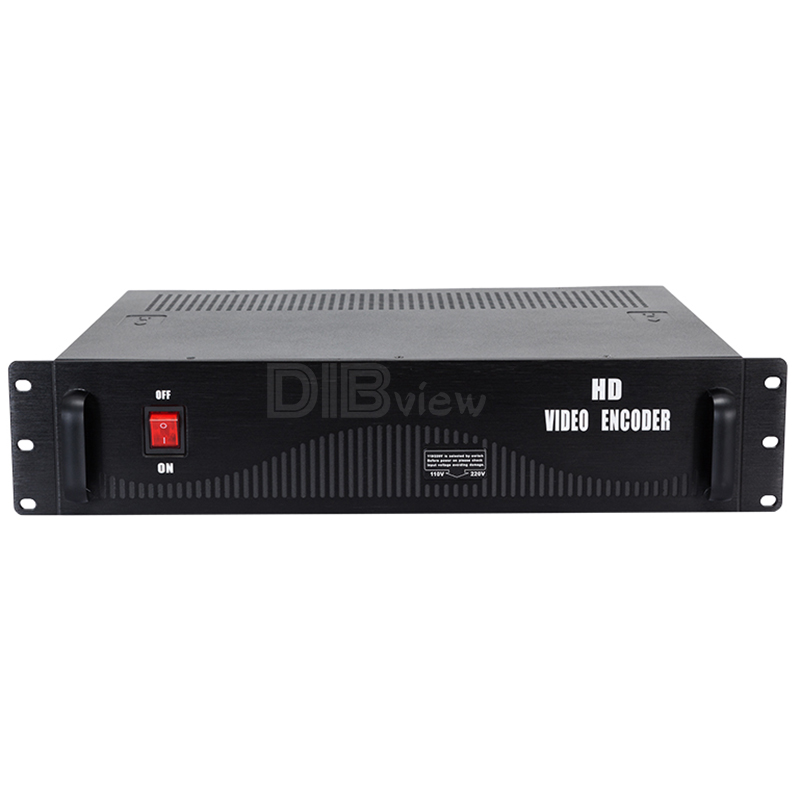

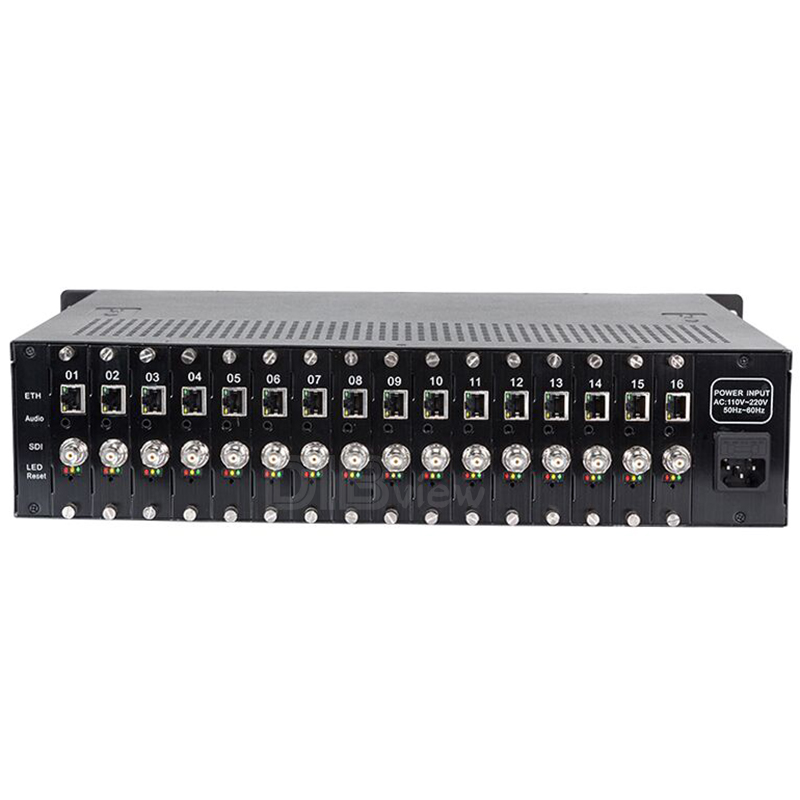

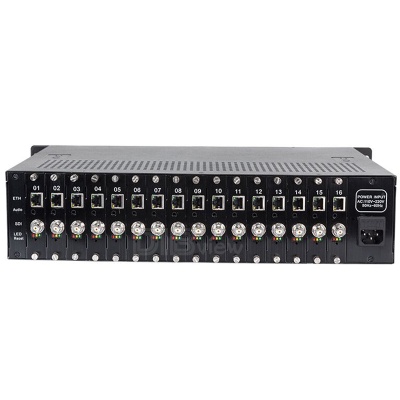

OTV-SCE16 2U 16-Channel ProVideo Streaming SDI Encoder features high performance, low latency and ultra-low bit rate for IPTV/OTT systems, realize Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.264/MPEG-4 AVC and H.265/HEVC (Option), which realizes its resolution to be up to full HD 1080P high quality image. Moreover, with powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate compare with traditional broadcast Encoder. Also it is highly compatible with IPTV server like Wowza server, FMS server etc. Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized.
OTV-SCE16 2U 16-Channel ProVideo Streaming SDI Encoder can be applied to education, health care, IPTV & OTT,conference, remote education, news interview, court, public security, banking, transportation and other industry applications.
Main Features:
Input: 8*SDI/16*SDI
Support up to 4 TS over IP stream out per module
Support up to H.265 Main Profile/High Profile/Baseline Profile and MP3 & AAC audio compression
Bitrate mode: CBR/VBR
Capable of image parameter settings
Switchable of audio output mode: Left, right and Stereo
Configurable of Multi-rate, Multi-resolution, Multi-protocol
Providing SRT/RTSP/HTTP/UDP,RTMP and HLS(m3u8) protocol
Support HDCP protocol
Any iOS browsers(iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS
Any terminal devices/decoders are able to have streams from IPTV
Streaming Encoder directly by RTMP protocol with software players(such as VLC)
Support ONVIF Network Video Protocol
Providing user name, password matching function which required from destination server
Support multiple equipments display at the same time on a computer
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
Web-based management
Full-duplex mode 1000M
Insertable of logo and Scroll Caption, Adjustable of audio gain
Key Specifications:
Item | Description | |
Video Encoding | ||
Input | 16 Channel SDI | |
Resolution | SDI main stream: 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, auto SDI sub-stream: 1280x720, 800X450, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x300, 352X288, 320X240, 320X180 auto | |
Video Bitrate | 16Kbps~12Mbps | |
Bitrate Mode | CBR/VBR | |
GOP Type | Adjustable | |
Video De-interlacing | De-interlacing, noise reduction, sharpening | |
OSD Image | Image, word | |
Audio Encoding | ||
Encoding | AAC,MP3 | |
Resample Rate | Adaptive output sample rate (option) | |
Sampling | 32000,44100,48000 | |
Bitrate | 64Kb/s~384Kb/s | |
IP Streaming Output | ||
Transport protocol: TS over IP output, SRT/RTSP/HTTP/UDP or RTMP protocol SDI to IP output, 4*TS over IP stream out (SRT/HTTP/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution (up to 1080P) for large screen application, 2 channels with lower resolution (up to 720P) for small screen application) | ||
Connector: RJ45,100/1000M | ||
Management | ||
Configuration Interface: web-based UI | ||
Upgraded: via network | ||
Connector: RJ45,100/1000M Ethernet interface. | ||
The Working Environment | ||
Dimension | (WxDxH): 484mm x 365mm x 148mm | |
Gross Weight | 8KG | |
Temperature | 0 to 45(For working), -20 to 80(For storing) | |
Input Voltage | AC220V±10%, 50/60 Hz | |
Power Consumption | 80W | |

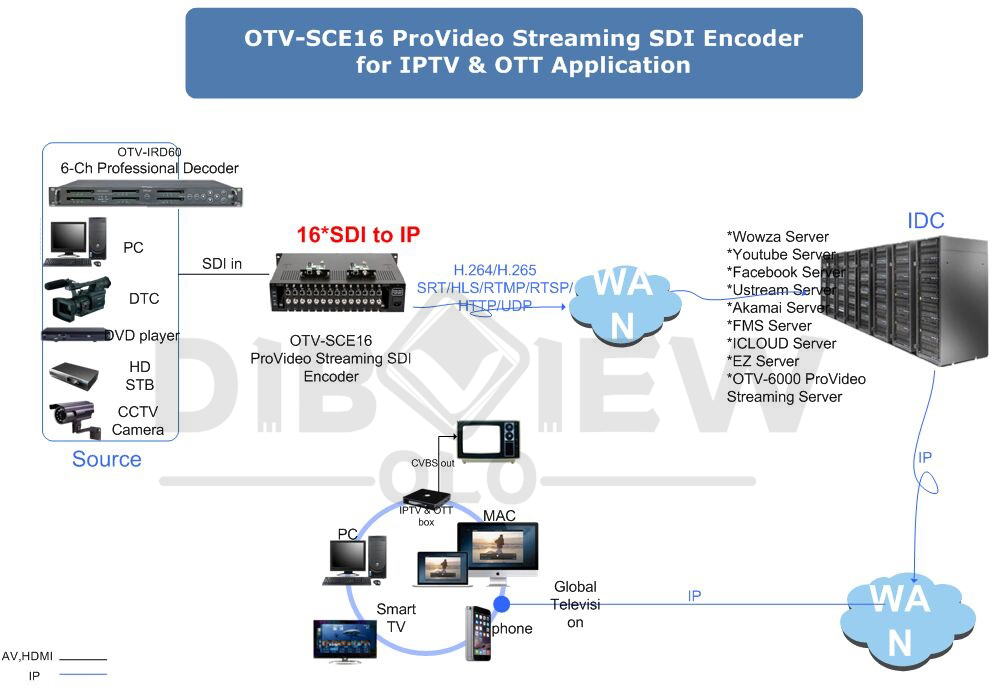

Application:
IPTV digital headend, Hotel TV System
Encoding programs to YouTube
Remote education video system
Agencies, TV & Pro Radio and Sports
Internet conferencing system video capture
Hospital, Bank, transport agency system

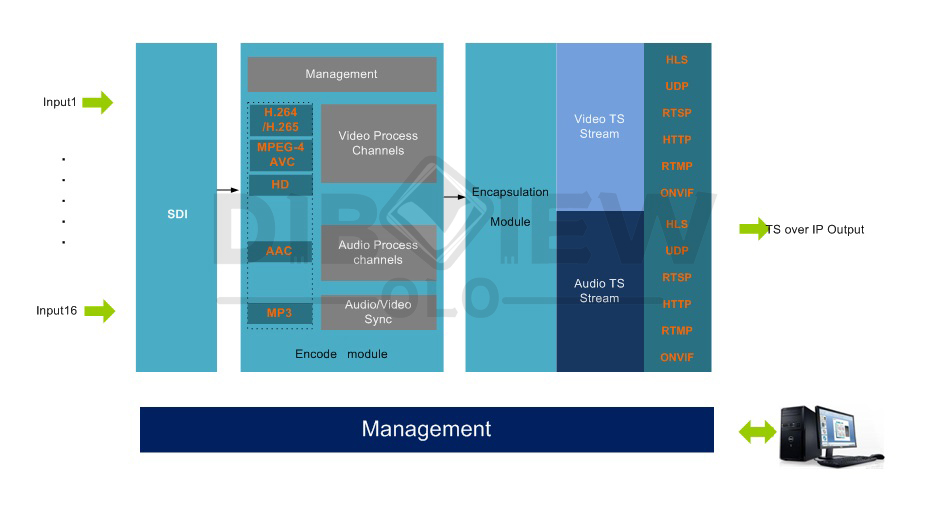

Key Diagram:
