Overview:

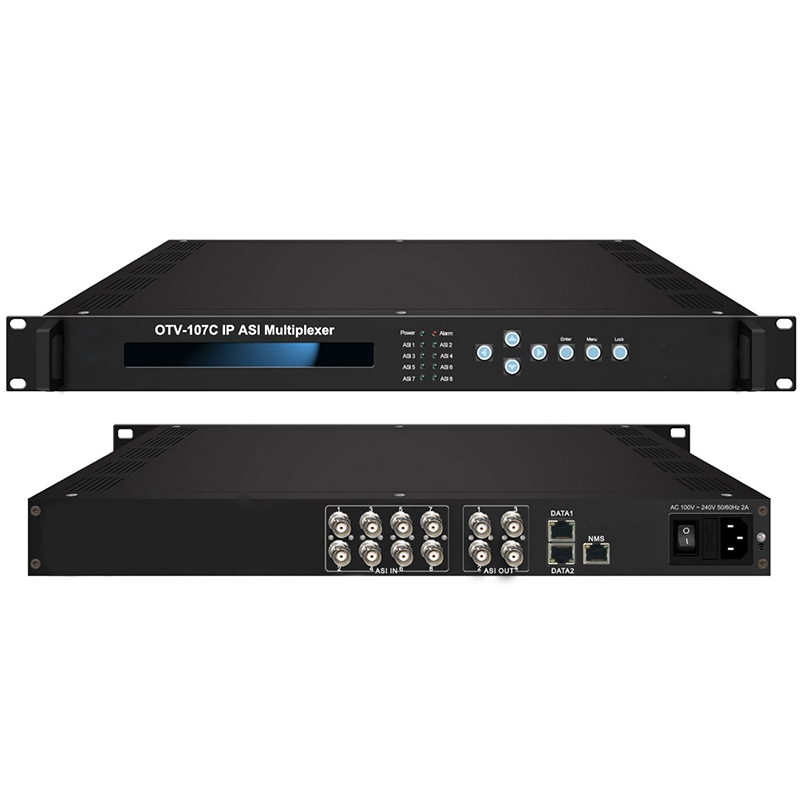

OTV-107C IP ASI Multiplexer is an enhanced TS re-multiplexer for digital TV broadcasting head-end system. It can multiplex up to 8 ASI and 512 IP input and output TS through 2 groups of separate ASI output port and two GE port for two separate IP outputs. The multiplexer has all the functions of normal TS multiplexer, including programs multiplexing, PID re-mapping etc. Also the multiplexer can insert EPG (Electronic Program Guide), and data casting information into each output stream.

In conclusion, OTV-107C IP ASI Multiplexer's high integration and cost effective design make this device widely used in the CATV Broadcasting system.

Main Features:

Fully complying with ISO13818 and EN300 468 standard

Support 8 ASI input for re-multiplexing

Support 512 IP input through DATA 1 and DATA 2 over UDP protocol

Support accurate PCR adjusting/ PID re-mapping/PSI/SI rebuilding and editing

Two groups (each group has 2 channels)separate ASI outputs

IP (2 MPTS) over UDP, RTP/RTSP output as mirror of ASI output (RJ45), GE Port, DATA 1 and DATA 2

Huge buffer memory for saving the overflowing code stream

Support to multiplex one program to all outputs

LCD/keyboard and Web-based NMS management

Key Specification:

Input:

8 ASI input+512 IP input DATA 1 and DATA 2 over UDP protocol

Re-multiplex:

PID re-mapping

PCR accurate adjusting

PSI/SI (PAT, PMT) tables auto generation and edition

Output port

ASI: 2 groups separate outputs (each group has 2 channels)

IP: MPTS over UDP, RTP/RTSP output (RJ45), 1000Mbps Ethernet, DATA 1 and DATA 2

PID

Output range: 0x0000—0x1FFF

PID transparent: Any PID transparent and mapping achievable

Amount of output PID: 180

NMS port:

Ethernet port: 10/100M/1000M self adaption

Working Environment

Dimensions: 482mm×300mm×44mm (WxLxH)

Weight: 3.5kg

Temperature: 0~45℃(operation), -20~80℃(storage)

Power supply: AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz

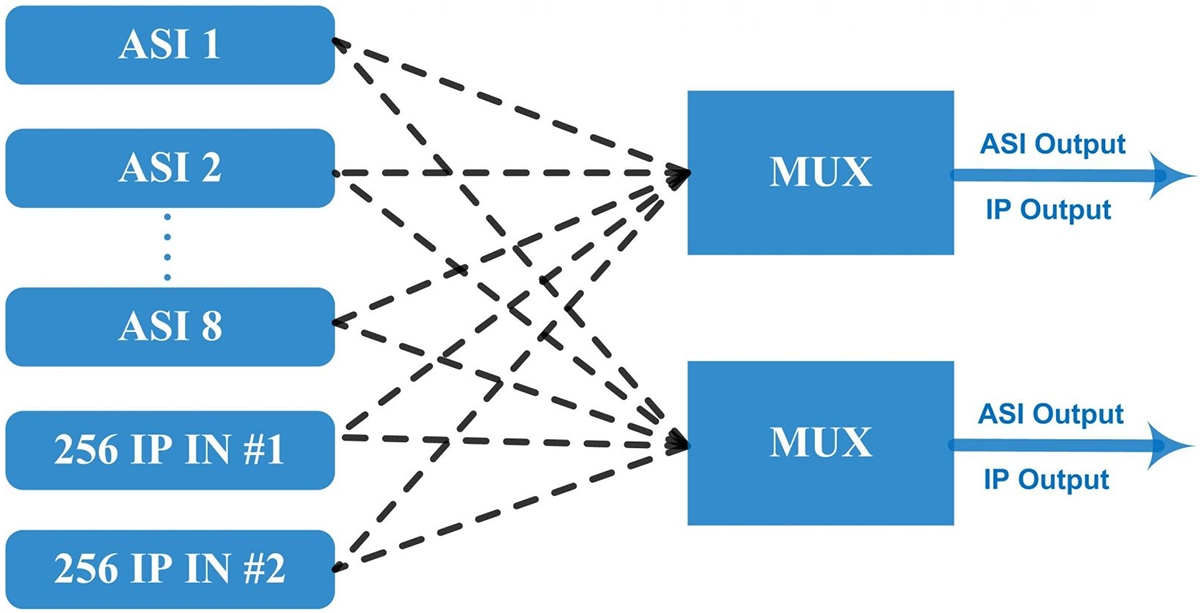

Key Diagram:
