Overview:

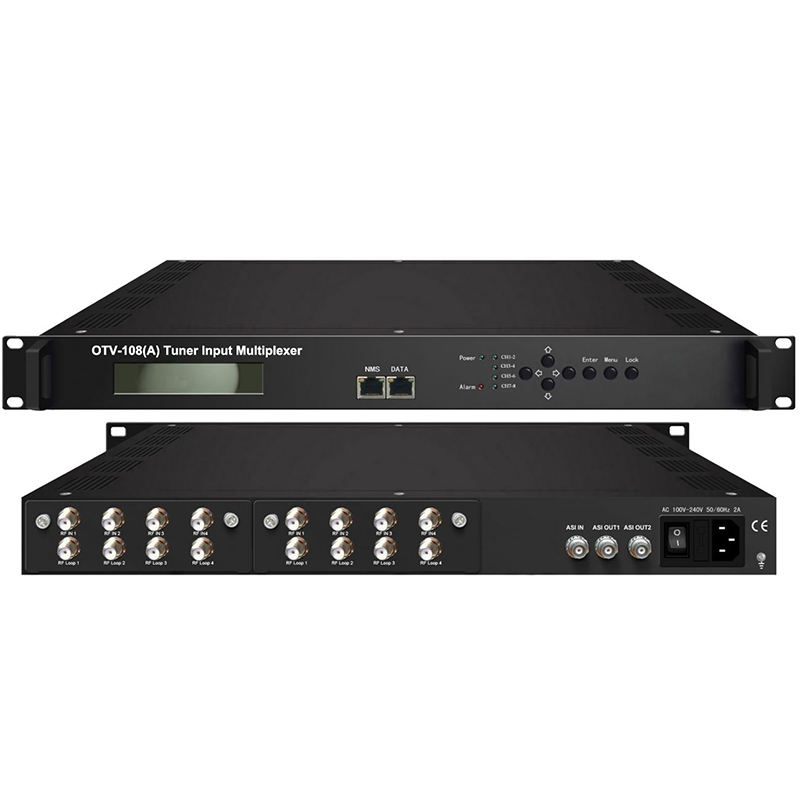

OTV-108 and OTV-108A Tuner Input Multiplexer is the latest demodulation and multiplexing device for digital TV broadcasting head-end system with TS output through ASI and IP port. It can multiplex up to 8 channels Tuner and 1 ASI input to one MPTS. This multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. Also the multiplexer can insert EPG (electronic program guide), CA (conditional access), data broadcasting into output TS.

In conclusion, OTV-108 and OTV-108A Tuner Input Multiplexer's high integration and cost effective design make this device widely used in the CATV Broadcasting system.

Main Features:

Fully complying with ISO13818 and EN300 468 standard

8 Tuner(DVB-C/S2/ (T)/ATSC optional)+1 ASI input port---OTV108A

8 Tuner(DVB-C/S2/(T) optional)+1ASI input port---OTV108

ASI and IP output

Integrated demodulating and multiplexing functions

Support accurate PCR adjusting

Support PID filtering, re-mapping

Support PSI/SI rebuilding and editing

Support MPTS over UDP, RTP/RTSP output as mirror of ASI output (RJ45)

Huge buffer memory for saving the overflowing code stream

Supporting to multiplex one program to all outputs

Alarming function

LCD/keyboard and Web-based NMS management

Key Specification:

Input interface

8 DVB-C/S2/(T)/ATSC tuners+1 ASI---OTV108A

8 DVB-C/S2/(T) tuners+1 ASI---OTV108

Re-multiplex

PID re-mapping

PCR accurate adjusting

Automatic generating PSI/SI table

Input

Packet format: 204/188 self-adaption

Output port

ASI: 2*ASI output (Max180Mbps)

IP:  MPTS over UDP, RTP/RTPS out as mirror of ASI output (RJ45)

100 Mbps Ethernet–OTV108 (Max 83Mbps)

1000 Mbps Ethernet–OTV108A (Max 280Mbps)

PID

Output range: 0x0000—0x1FFF

PID transparent: Any PID transparent and mapping achievable

Output PID: 128 (per input channel)

NMS port

Ethernet port: 10/100M

Working Environment

Demission: 482mm*300mm*44mm (WxLxH)

Temperature: 0~45℃(operation), -20~80℃(storage)

Power supply: AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz

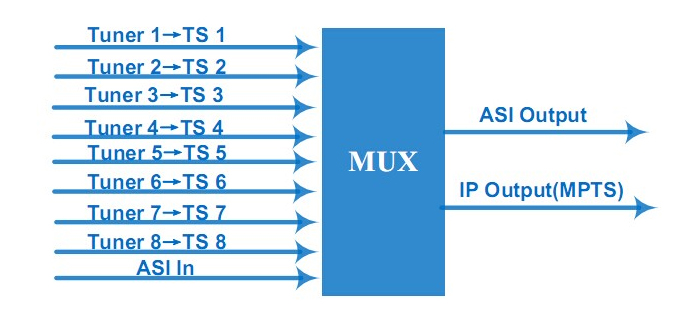

Key Diagram:
