Overview:

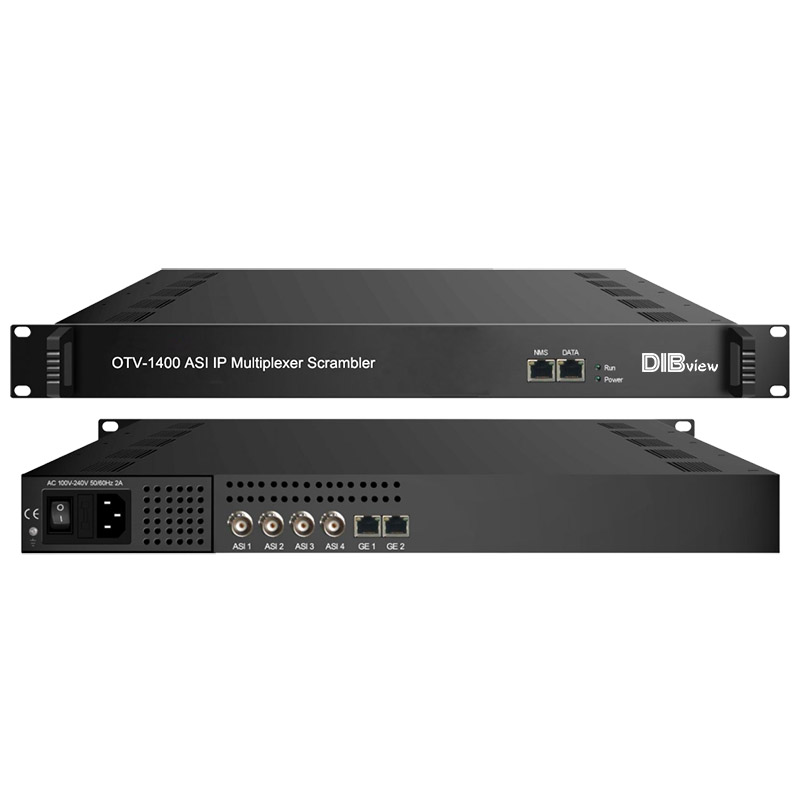

OTV-1400 ASI IP Multiplexer Scrambler is Dibview's latest multiplexing scrambling device, which has 4 bi-direction ASI and 3 bi-direction IP ports supporting up to 4 ASI and 128 IP input, after scrambling, it outputs 4 MPTS and max 4 ASI.

OTV-1400 ASI IP Multiplexer Scramblerhas the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. In conclusion, its high integration and cost effective design make this device widely used in the CATV Broadcasting system.

Key Features:

• Low power consumption, rack-mount design

• ASI in/out: Max 4 ASI input/output thru 4 bi-direction ASI ports (ASI direction can be defined as input or output manually)

• IP in/out: 128 IP input, 4 IP (MPTS) output thru 3 bi-direction Data ports

• Support scramble with up to 4 simulcrypt CAs

• Up to 512 PIDs remapping per output channel

• Support accurate PCR adjusting, PID filtering, re-mapping and PSI/SI rebuilding and editing

• Huge buffer memory for saving the overflowing code stream

• Alarming function

• Web-based NMS management

Technical Specifications:

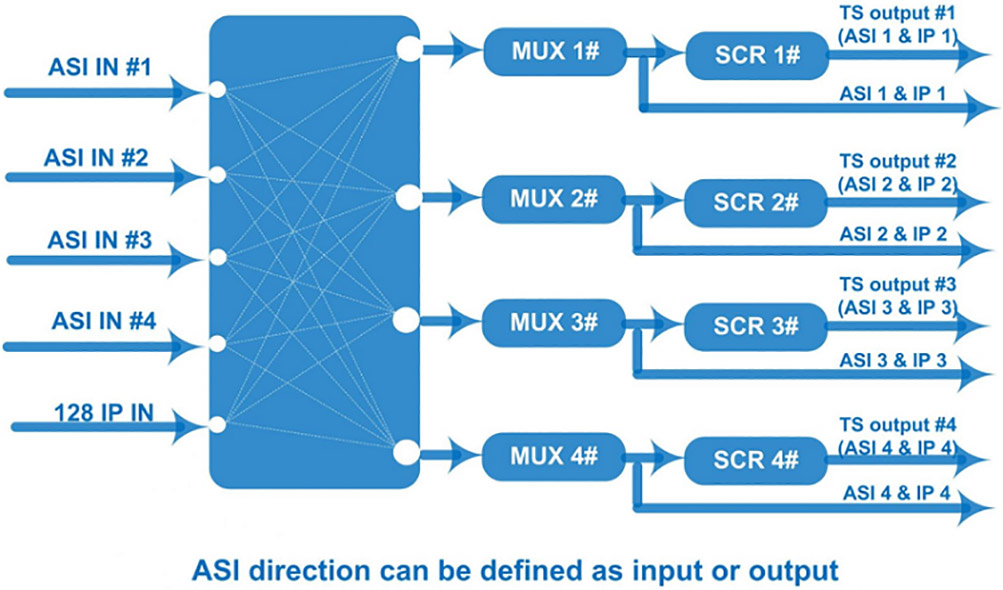

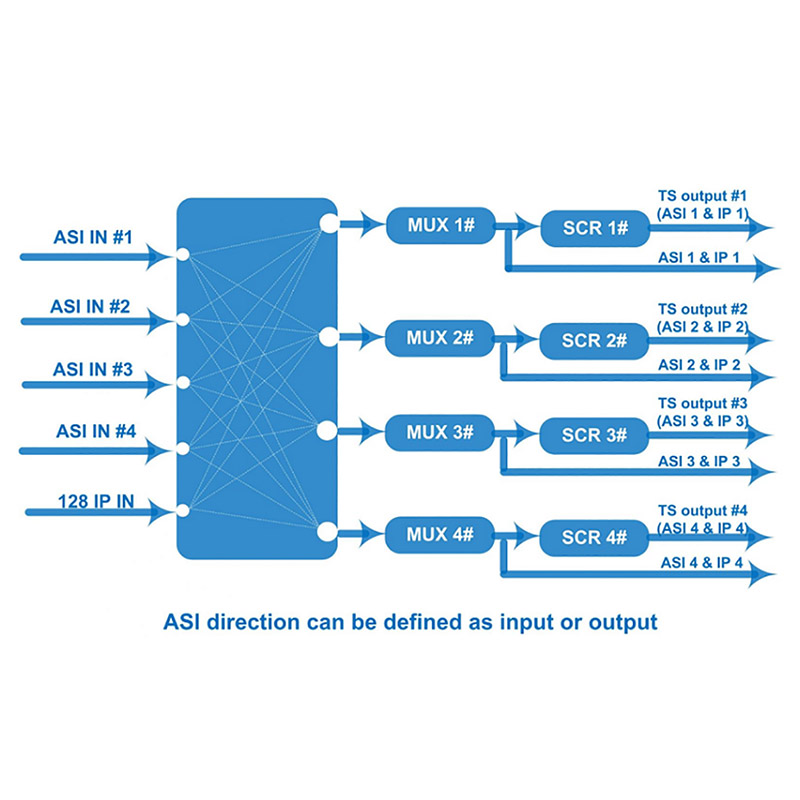

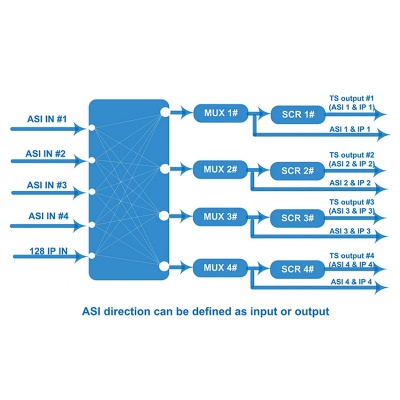

Key Diagram:
