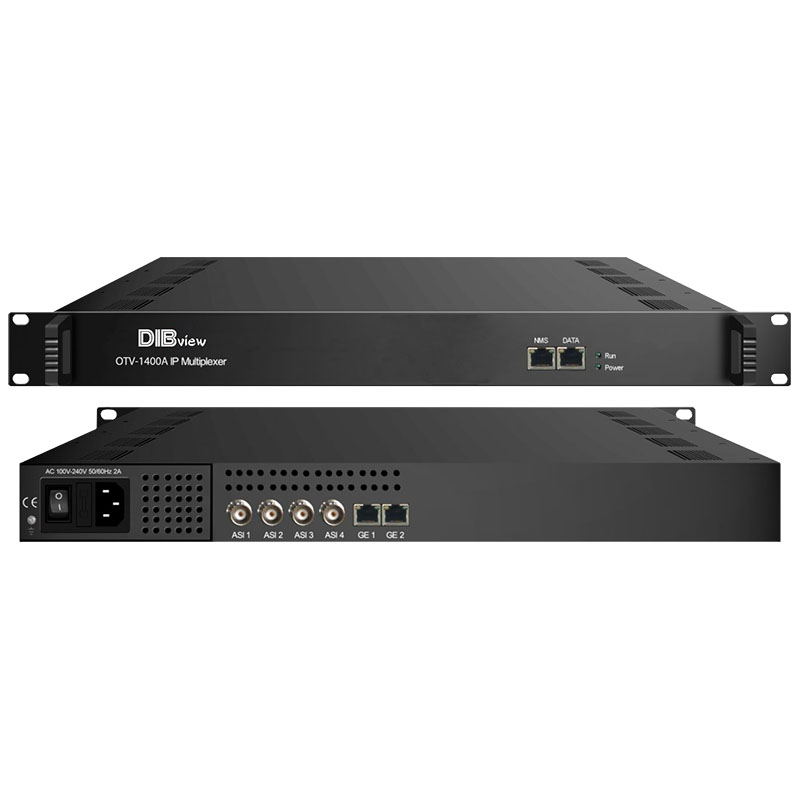

Overview:

OTV-1400A ASI IP Bidirectional Multiplexer is Dibview's latest multiplexing device for digital TV broadcasting head-end system with TS output through 4 bi-direction ASI and 3 bi-direction IP ports. It can multiplex up to 4 ASI and 513 IP input to 5 MPTS, and the amount of ASI output should based on ASI input (ASI port can be used as input or output).


OTV-1400A ASI IP Bidirectional Multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. In conclusion, its high integration and cost effective design make this device widely used in the CATV Broadcasting system.


Key Features:

  • Low power consumption, rack-mount design

  • ASI in/out: max 4 ASI input/output thru 4 bi-direction ASI ports (ASI direction can be defined as input or output manually)

  • IP input: 513 IP in over UDP/RTP (256×2 IP in thru GE1 and GE2, 1 IP in thru Data port)

  • IP output: 5 IP (MPTS) out over UDP/RTP (4 MPTS out thru GE1 and GE2, 1 MPTS out thru Data port)

  • Support all input programs output bypass

  • Support accurate PCR adjusting, PID filtering, re-mapping and PSI/SI rebuilding and editing

  • Huge buffer memory for saving the overflowing code stream


Technical Specifications:

Item

Description

Input/Output

4 bi-direction ASI ports: max  4 ASI input/output, BNC 75Ω

3 bi-direction Data ports (RJ45):

513 IP input over UDP/RTP  (256×2 IP in thruGE1 and GE2, 1 IP in thru Data port)

5 IP (MPTS) output over UDP/RTP  (4 MPTS out thru GE1 and GE2, 1 MPTS out thru Data port)

100/1000Mbps self-adaption

Packet format: 204/188 self-adaption

Re-Multiplexing

Max PIDs: 512 output per channel

Functions:

PID re-mapping

PCR accurate adjusting

Automatic generating PSI/SI table

PID transparent: Any PID  transparent and mapping achievable

System Management

Web-based management

Ethernet software upgrade

Language: English and Chinese

The Working Environment

Power Supply

AC 110V±10%,  50/60Hz or AC 220V±10%,50/60Hz

Power Humidity

9~89% non-condensed

Operation temperature

0 -50°C

Storage temperature

-20-80°C

Dimensions

482mmx 300x44mm

Weight

3.5Kg

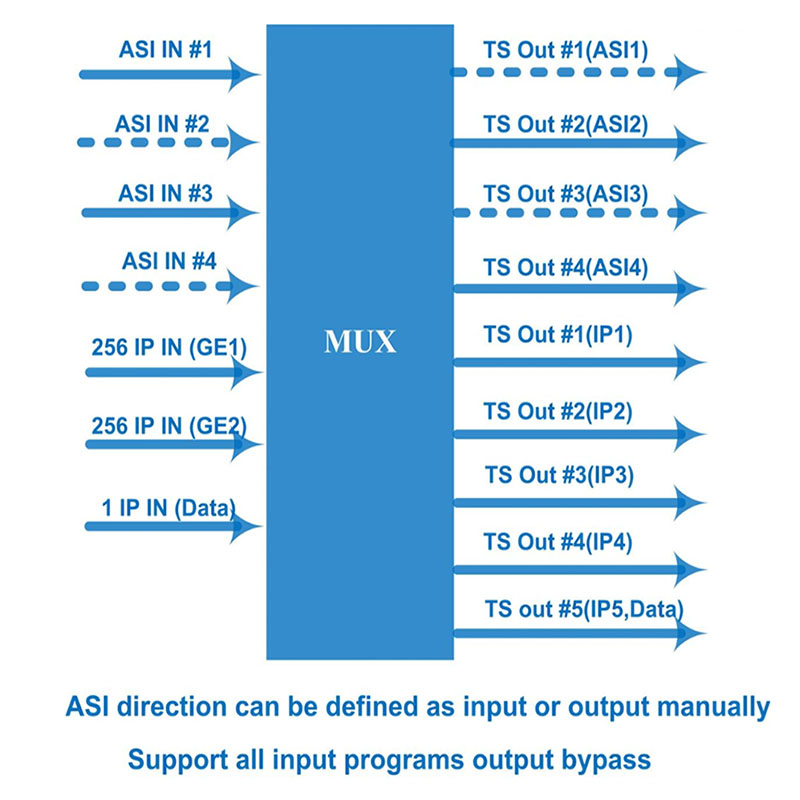

Key Diagram:
